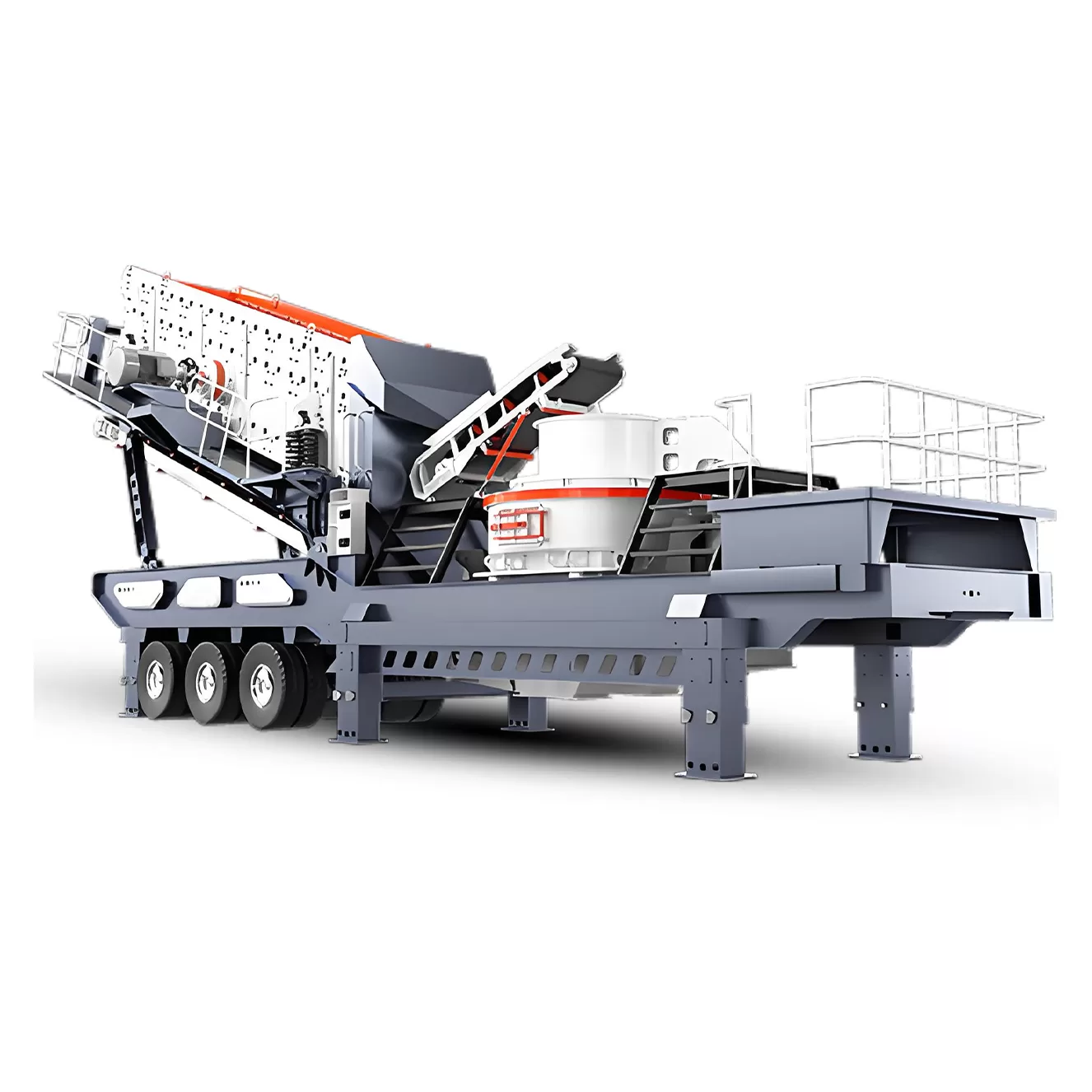

What is a Mobile Cone Crusher ?

A mobile cone crusher is ideal because its compression crushing handles hard, abrasive rock effectively. It creates the cubical product shape needed for high-specification aggregates. Plus, its mobility allows flexible operation on different sites or within large quarries, reducing transport costs.

What Jobs and Crushing Stages Best Suit a Mobile Cone Crusher?

Mobile cone crushers mainly work in secondary or tertiary crushing stages. They are common in mining, quarrying (aggregate production), and construction waste recycling industries, especially for hard and abrasive materials.

Mobile crushing station application areas?

Mobile cone crushers are versatile workhorses found in several demanding sectors:

Niche Applications: They also process materials like slag (steel, copper), quartz, and other hard industrial minerals where mobility and product shape are important.

Mining: Essential for breaking down hard ores like iron, copper, gold, and basalt after primary crushing. Their ability to handle abrasive materials makes them durable choices.

Aggregate Production: Widely used in quarries to produce high-quality cubical aggregate from materials like granite, river stone, and limestone for concrete, asphalt, and construction fill.

Construction Waste Recycling: Effective at processing crushed concrete and asphalt into reusable aggregates. Their mobility is a huge plus for temporary recycling sites.

When Does a Mobile Cone Crusher Outperform a Mobile Impact Crusher?

Making the wrong decision leads to inefficiency or even equipment damage. Understanding their strengths guides the right choice.

A mobile cone crusher has the advantage with very hard and abrasive materials like granite or basalt. A mobile impact crusher generally works better with softer, less abrasive materials like limestone and performs well in recycling applications.

Material Suitability

• Mobile Cone Crusher: Excels with hard, abrasive rocks (e.g., granite, basalt, river stone, hard ores). The compression crushing action minimizes wear compared to impact crushing in these conditions.
• Mobile Impact Crusher: Better suited for softer to medium-hard, less abrasive materials (e.g., limestone, dolomite, construction debris like concrete and asphalt). High abrasiveness rapidly wears down impactor blow bars.

Performance Differences

Here’s a quick comparison:

Essentially, if you’re dealing with tough, abrasive feed and need a cubical product in secondary or tertiary stages, the mobile cone crusher is likely your machine. If you have softer rock, need a higher reduction ratio in one pass, or are focused on recycling, a mobile impact crusher be better.

How to choose the appropriate crushing chamber according to the material?

Mobile cone crushers offer different cavity (liner) types. Choosing incorrectly leads to poor performance, high wear, and frustration. Matching the cavity to your feed material and desired product is crucial.

Select the crushing cavity (like Fine, Medium, Coarse, Extra Coarse) based on the feed size distribution and the target product size. The right cavity ensures efficient crushing and optimal liner wear.

Choosing the right liner set (mantle and bowl liner) goes beyond just picking a name. It’s about optimizing the crushing process.

Common Cavity Types

Zoneding offer various profiles, generally categorized by the feed opening size they accept:

• Extra Coarse (XC): Accepts the largest feed size for a given crusher model. Used typically in secondary stages after a primary crusher with a large setting.
• Coarse (C): A common secondary stage cavity.
• Medium (M): Suitable for secondary or tertiary applications.
• Fine (F): Accepts smaller feed and produces finer products, often used in tertiary or quaternary stages.
• Extra Fine (EF): For producing the finest products, like manufactured sand.

The main structure of mobile cone crusher

Mobile cone crushers work hard, and parts wear out. Unplanned downtime for replacements and high consumable costs can eat into profits. Knowing the wear life and cost is essential for budgeting and maintenance planning.

The main wear parts are the mantle (on the cone head) and the bowl liner/concave (lining the upper frame). Their lifespan varies greatly depending on material abrasiveness, feed conditions, and operation. Replacement costs are significant but predictable.

Managing wear parts effectively is key to controlling operating costs.

Maintain your wear parts

You can maintain consumable parts and improve crusher performance by paying attention to the following factors:

• Material Abrasiveness: High silica content or other abrasive minerals drastically shorten life (e.g., hundreds of hours). Less abrasive materials allow for longer life (e.g., thousands of hours).
• Feed Control: Consistent, properly sized feed without tramp metal or excessive fines maximizes life. Poor feed control (oversize, packing with fines) causes rapid, uneven wear. This is critical.
• Crusher Operation: Running at the correct speed, maintaining proper CSS, and ensuring good lubrication are vital. Choke feeding (keeping the cavity full) generally promotes even wear.
• Liner Material/Profile: Using the correct alloy and profile matched to the application makes a difference.

Essential Maintenance Checks

Regular checks prevent minor issues from becoming major problems, especially given the harsh conditions mobile units face.

• Lubrication: Check oil levels, pressures, and temperatures daily. Ensure the correct lubricant type and viscosity are used. Analyze oil periodically. Proper lubrication is lifeblood; neglect leads to catastrophic failure.
• Hydraulics: Check fluid levels, pressures, and look for leaks daily. Hydraulic systems control CSS adjustments and overload protection.
• CSS: Verify the setting regularly, both via the control panel and physically if possible.
• Wear Parts: Visually inspect liners for wear patterns and remaining life.
• Structure: Check for any loose bolts or signs of cracking, especially after transport.

How Do Mobile Cone Crushers Typically Combine with Other Mobile Units?

A mobile cone crusher rarely works alone. It needs feeding and its product needs sizing. Mis-matched equipment in the line creates bottlenecks and inefficiency. Understanding common setups helps plan a productive system.

A mobile cone crusher usually works after a mobile primary jaw crusher and before a mobile screening plant. The jaw crusher handles large feed, the cone reduces it further, and the screen separates products.

Creating an efficient mobile production line involves combining the right units.

Typical Mobile Crushing Circuit

The most common setup for hard rock processing involves three main mobile units:

1. Mobile Jaw Crusher: Performs the primary crushing, taking large quarried rock or feed material and reducing it to a size manageable for the cone crusher (e.g., <150-200mm).
2. Mobile Cone Crusher: Takes the output from the jaw crusher for secondary crushing, further reducing the size and shaping the material.
3. Mobile Screening Plant: Receives the material from the cone crusher and separates it into different sized final products (e.g., 0-5mm, 5-10mm, 10-20mm). Oversized material from the screen can be recirculated back to the cone crusher for further reduction (closed circuit).

Advantages of choosing us

Choosing a supplier for a major investment like a mobile cone crusher is critical. A poor choice can lead to unsuitable equipment, inadequate support, and costly problems. Evaluating suppliers carefully minimizes risk.

Look for a supplier with proven manufacturing capability, high-quality components, reliable parts availability, strong technical support (including application knowledge), and verifiable experience in mobile crushing solutions.

Partnering with the right supplier ensures you get equipment that performs and support you can count on.

Manufacturing and Quality

• Experience: Our extensive 20+ years of experience means we have a deep understanding of the mining, construction, and related industries’ challenges. This translates into highly reliable, efficient, and field-proven mobile crushing plant designs. We’ve encountered and solved countless operational issues, allowing us to anticipate your needs and provide solutions that truly work in demanding environments, minimizing downtime and maximizing productivity.
• Facilities: Our substantial 8,000 square meter factory houses 6 standardized production workshops equipped with approximately 110 units of large and medium-sized machining, riveting, welding, and assembly equipment. This robust infrastructure gives us full control over the manufacturing process, ensuring high-quality construction, adherence to specifications, and the capacity to meet delivery schedules reliably.
• Quality Control: Quality is paramount. We demonstrate our commitment through internationally recognized certifications, including ISO9001, Intertek, and SGS. These certifications aren’t just badges; they represent rigorous quality management systems implemented throughout our design, manufacturing, and testing processes, ensuring your mobile crushing plant meets high global standards for performance and safety.

Support and Parts

• Technical Expertise: Our global reach, with exports to over 130 countries across Europe, Africa, Asia, the Americas, and Australia, means we have established logistics and service networks to support you effectively, wherever your operation is located.
• After-Sales Service: We conduct regular follow-up visits to help you optimize maintenance and promptly analyze and resolve any equipment issues you report, ensuring long-term operational success.
• Parts Availability: We provide comprehensive support backed by technical expertise. Crucially, we guarantee the availability of original factory parts for your equipment, ensuring optimal performance and longevity.

Experience and Understanding

• Full-Service Capability: A key strength is our ability to customize solutions. We will analyze your specific requirements, including capacity needs, site layout, and material characteristics, to design and configure a mobile crushing plant solution that is perfectly tailored to your operational goals.

Logistics Considerations

Our extensive global reach, with exports to over 130 countries across Europe, Africa, Asia, the Americas, and Australia, is underpinned by mature and well-established logistics conditions. This ensures efficient, reliable, and timely delivery of both complete mobile crushing plants and essential spare parts directly to your site, minimizing potential delays and supporting your operation effectively, wherever it is located in the world.
