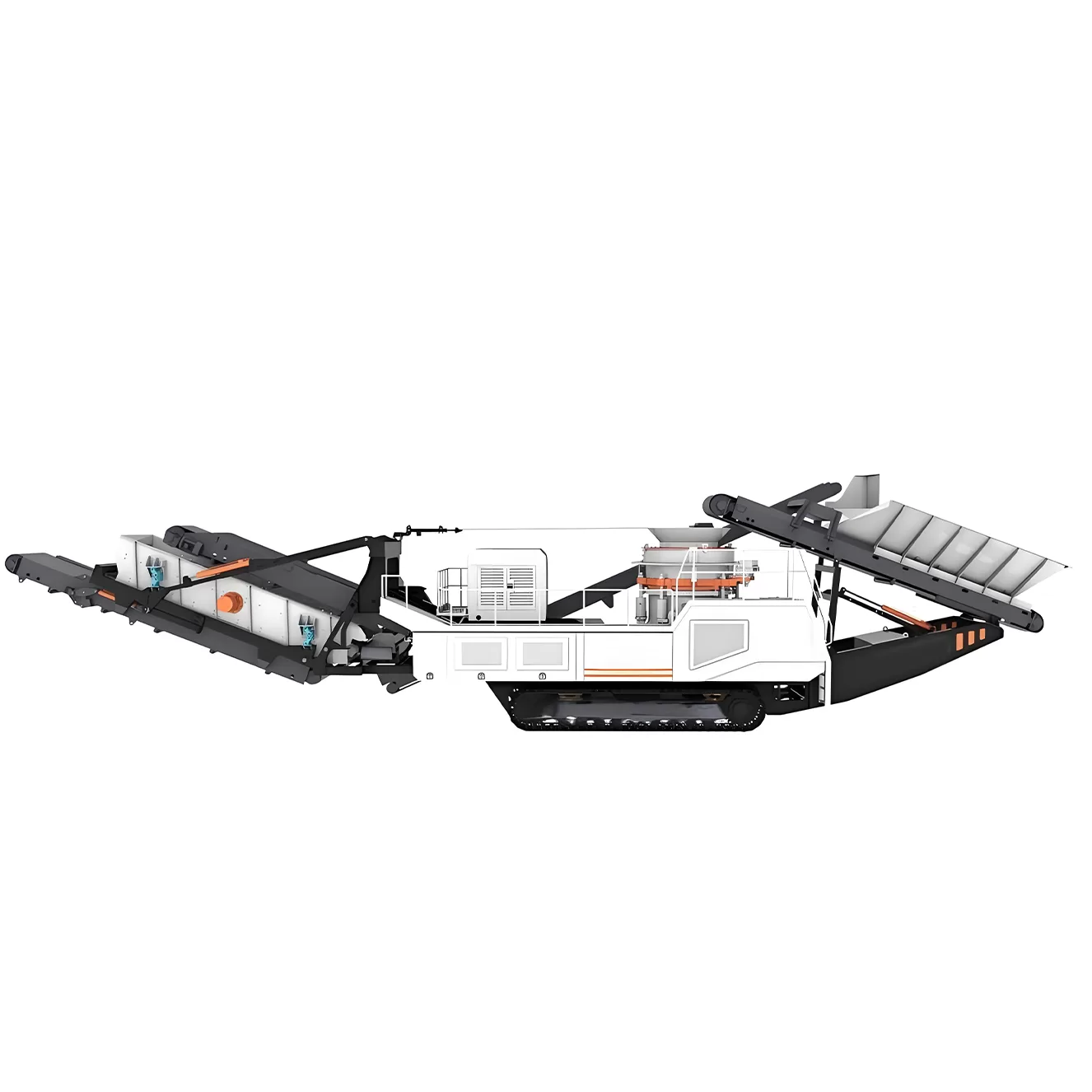

What Makes Tracked Cone Crushers Essential for Modern Crushing Operations?

 Fixed plants lack flexibility. Tracked cone crushers bring mobile power directly to your material source.

Tracked cone crushers are vital for secondary, tertiary, or quaternary crushing stages. They excel at processing hard, abrasive rock into precisely sized, cubical aggregate. Their mobility allows flexible deployment across different sites or within large quarries.

Tracked Cone Crushers  are workhorses in many industries. They follow primary jaw crushers to refine material further.

Where are tracked cone crushers mainly used? How are they different from jaw crushers?

Tracked cone crushers primarily work in secondary and tertiary crushing for hard rock like granite or basalt. They produce cubical aggregate for construction. Jaw crushers are for primary crushing, handling larger feed sizes with higher reduction ratios.

Key Applications

Tracked cone crushers are essential in:

Infrastructure Projects: Providing on-site crushing for large construction projects like dams or highways, reducing transport costs.

Aggregate Production: Creating specific sizes (e.g., 0-5mm, 5-10mm, 10-20mm) for concrete, asphalt, and base course from medium-hard to very hard rock.

Mining Operations: Reducing ore size after primary crushing for further processing like grinding or leaching.

Recycling: Processing reclaimed asphalt pavement (RAP) or crushed concrete, although care must be taken with contaminants like rebar.

Cone Crusher vs. Jaw Crusher

The fundamental difference lies in their crushing mechanism and stage of use.

Basically, a jaw crusher does the initial heavy lifting. A cone crusher takes that partially crushed material and refines it to meet stricter size and shape specifications.

Why is the cone crusher considered a key machine for producing high-quality cubical aggregate?

Cone crushers use inter-particle compression alongside mantle/bowl compression. This action breaks rock along natural fissures and rounds off edges. The result is a more cubical product, crucial for high-specification aggregate uses.

Producing aggregate that meets quality standards isn’t just about size. Particle shape is extremely important for final product performance, like concrete strength or asphalt stability.

How Cone Crushers Improve Shape

The way a cone crusher works is ideal for creating cubical products:

• Layered Crushing (Inter-particle Compression): Unlike jaw crushers where rock is mostly squeezed directly, cone crushers often maintain a full crushing chamber. Material is compressed against itself (rock-on-rock) as well as against the steel liners. This type of crushing tends to break particles across their weaker dimensions, reducing flatness and elongation.
• Attrition Crushing: As material moves down through the tapering chamber, particles rub against each other and the liners. This action grinds off sharp edges and corners, further improving cubicity.
• Consistent Crushing Force: The gyrating motion of the mantle provides continuous crushing force around the entire circumference of the chamber, promoting uniform breakage.

Why Cubical Shape Matters

• Concrete: Cubical aggregates pack better, requiring less cement paste to fill voids. This leads to stronger, more durable concrete with less shrinkage. Flaky particles create weak points.
• Asphalt: Good particle shape ensures better interlocking between aggregates. This results in a more stable, rut-resistant asphalt pavement.
• Base Course: Cubical materials provide better stability and load-bearing capacity for road foundations.

While cone crushers excel at shape, factors like feed material properties, crusher settings (CSS, speed), and liner profile choice also play significant roles. For applications demanding the absolute best shape, especially in softer or medium-hard rock, sometimes a Vertical Shaft Impactor (VSI) crusher is used in the final stage. However, for hard rock and overall efficiency in secondary/tertiary stages, the cone crusher is often the primary choice for achieving good cubicity.

How do you select the right crushing chamber type (coarse/medium/fine) based on feed size and product requirements?

Choosing the right chamber profile (liner set) is critical for efficiency and meeting specs.

Match the chamber to the job. Use a Coarse chamber for larger feed needing significant reduction. Use Medium for intermediate crushing. Use Fine or Extra-Fine for small feed requiring tight product specs or shaping.

Cone crusher liners (the mantle and bowl liner) define the shape of the crushing chamber. Manufacturers like us at ZONEDING offer different profiles optimized for different tasks. Selecting the correct one is vital.

Understanding Chamber Profiles

The main difference lies in the feed opening size and the angle of the crushing zone.

• Coarse (C): Has the largest feed opening. Designed to accept larger material from a primary crusher. Focuses on maximizing reduction in the secondary stage.
• Medium (M): A general-purpose chamber. Accepts a moderate feed size and provides a balance between reduction and throughput. Often used in secondary or tertiary stages.
• Fine (F): Has a smaller feed opening and a more parallel zone at the bottom. Designed for smaller feed sizes, typically in tertiary or quaternary stages. Focuses on producing finer products and improving shape.
• Extra Fine (EF) / Super Fine (SF): Has the smallest feed opening and the most parallel zone. Used for creating manufactured sand or very fine aggregate fractions, demanding tight control over the final product size.

Selection Guide Table

Important Note: Always consult the manufacturer’s specifications for your specific crusher model. The ideal feed size range (typically 80% passing a certain screen size) for each chamber profile is crucial. Feeding oversized material damages the crusher. Feeding material that is too fine reduces efficiency and can cause packing. Choosing the right chamber maximizes throughput, minimizes wear, and ensures you produce the desired product specification.

What are the key factors influencing the actual throughput (tph) of a tracked cone crusher?

 Many factors beyond the machine itself impact real-world production rates. Understanding these is key to maximizing output.

Actual throughput depends on feed material characteristics (hardness, moisture, gradation), crusher settings (CSS, chamber), feed method (choke feed), and downstream capacity (screens, conveyors). The crusher’s theoretical capacity is rarely achieved continuously.

Achieving the nameplate capacity (maximum theoretical TPH) of a cone crusher consistently is challenging. Real-world factors significantly influence the actual output.

Critical Throughput Factors

To maximize actual TPH, you need to control as many of these factors as possible. This means proper feed preparation, selecting the right liners, optimizing CSS, ensuring consistent choke feeding, and making sure the downstream equipment can handle the output.

What are the main differences in usage between standard and short head cone crushers?

They look similar but are designed for different crushing stages and feed materials.

Standard head cones have a steeper head angle and larger feed opening. They are typically used for secondary crushing. Short head cones have a flatter head and parallel zone, smaller feed opening, used for tertiary/quaternary fine crushing.

The terms “Standard” and “Short Head” refer to historical cone crusher designs, primarily differing in the shape of the crushing head (mantle) and the corresponding bowl liner. This difference dictates their ideal application.

Standard Head Cone Crushers

• Design: Features a more pointed mantle and a bowl liner that creates a relatively large feed opening and a less restricted discharge area. The angle between the mantle and bowl liner is steeper.
• Feed Size: Can accept larger feed material, typically coming directly from a primary crusher.
• Crushing Stage: Primarily used for trituración secundaria.
• Reduction Ratio: Offers a moderate reduction ratio.
• Product: Produces an intermediate product suitable for feeding a tertiary crusher or for applications not requiring very fine material.
• Goal: Maximize throughput and achieve significant size reduction in the secondary stage.

Short Head Cone Crushers

• Design: Features a flatter, broader mantle and a bowl liner with a more pronounced parallel zone (area where mantle and liner are nearly parallel) near the discharge. This results in a smaller feed opening compared to a standard head of the same size.
• Feed Size: Requires smaller, pre-crushed feed material, typically from a secondary crusher.
• Crushing Stage: Primarily used for tertiary or quaternary crushing.
• Reduction Ratio: Offers a lower reduction ratio but provides better control over the final product size and shape.
• Product: Produces finer, more cubical aggregate meeting strict specifications.
• Goal: Fine-tune the final product size and improve particle shape.

Usage Comparison Table

In modern tracked cone crushers, these distinctions are often achieved through different liner profile choices (Coarse, Medium, Fine, Extra Fine) rather than fundamentally different head assemblies. However, the principle remains: select the chamber geometry that best matches the feed size and product requirements for that specific crushing stage.

How can a tracked cone crusher be combined with a mobile jaw crusher and screening plant for an efficient production line?

Typically, a mobile jaw crusher performs primary crushing. Its output feeds the tracked cone crusher for secondary/tertiary reduction. A mobile screen then separates products into required sizes. Oversize can recirculate back to the cone.

What core performance parameters and configuration options should be considered when purchasing?

Key parameters include crusher size (head diameter), max feed size, CSS range, TPH capacity, engine power, and transport weight/dimensions. Important options are chamber types, pre-screen integration, automation level, and dust suppression.

What are the key points for daily operation and maintenance of a tracked cone crusher to reduce costs?

Proper daily checks and proactive maintenance are crucial for keeping tracked cone crushers running economically.

Focus on lubrication (quality, levels, temperature), managing liner wear (correct profile, timely changes), keeping the machine clean (especially seals and filters), and consistent choke feeding. These actions minimize major failures and maximize efficiency.

Preventative maintenance and smart operation are the best ways to control the costs associated with running a tracked cone crusher. Neglect leads to expensive repairs and lost production.

Key Cost-Saving Practices

Lubrication System Management – The Lifeline

• Quality & Type: Use only the manufacturer-recommended lubricant grade and viscosity for the ambient temperature. High-quality oil is essential.
• Levels & Checks: Check oil levels daily before startup. Monitor oil pressure and temperature constantly during operation via the control panel. Investigate any alarms immediately.
• Cleanliness: Insight: This is critical for mobile units. Keep the lubrication unit clean. Ensure breathers are functional. Sample oil regularly for analysis (oil condition monitoring) to detect contamination (dust, water) or wear metals early. Contaminated oil quickly destroys expensive bearings and gears.
• Filters: Change oil filters religiously according to the maintenance schedule, or sooner if indicated by pressure gauges or oil analysis. Check magnetic separators for metal debris.

Liner Management – Controlling Wear Costs

• Correct Profile: Ensure the installed mantle and bowl liner match the application (feed size, product requirements).
• Wear Monitoring: Regularly inspect liner wear patterns and measure remaining thickness.
• Timely Replacement: Change liners before they wear through and damage the supporting head or bowl structures. Don’t push them too far.
• Cost Calculation: Insight: Don’t just look at liner price. Calculate the cost per ton produced (Liner Set Cost / Tons Produced Before Change). A slightly more expensive liner that lasts significantly longer and maintains efficiency can be cheaper overall. Consider trials with different materials (manganese steel grades) if appropriate for your rock type.
• Backing Material: Use the correct epoxy backing compound and procedures during liner changes for proper support.

Dust and Cleanliness – Protecting Vital Components

• Sealing: Insight: Pay extreme attention to the main shaft seals (labyrinth, piston rings, etc.). Regularly check and replenish grease if required by the design. Failed seals allow dust into the main bearings – a catastrophic failure.
• Breathers: Ensure hydraulic tank breathers and lubrication unit breathers are clean and functioning.
• Electrical Cabinets: Keep control panels and electrical cabinets sealed and clean to prevent dust ingress and overheating.
• General Cleaning: Regularly clean accumulated material off the chassis, walkways, and around moving parts.

Buenas prácticas operativas

• Choke Feeding: Maintain a consistent high level of material in the crushing chamber whenever possible. This maximizes rock-on-rock crushing, improves cubicity, ensures even liner wear, and optimizes throughput. Avoid trickle feeding.
• Feed Quality: Remove tramp metal and uncrushable objects before they enter the crusher. Ensure feed size is appropriate for the chamber.
• Calentamiento/refrigeración: Follow recommended procedures, especially in extreme temperatures.

By focusing on these key areas daily and following the manufacturer’s full maintenance schedule, you can significantly reduce operating costs, extend the machine’s life, and maximize its productive uptime.

What are the advantages of electric-powered tracked cone crushers compared to diesel-driven ones?

Considering power options? Electric tracked crushers are gaining popularity. They offer distinct benefits over traditional diesel models, especially in certain operational contexts.

Electric tracked cone crushers offer lower energy costs, reduced emissions (zero on-site), quieter operation, and potentially less maintenance (no diesel engine). However, they require an external power source (grid or generator).

While diesel-hydraulic drives have long been the standard for mobile crushers due to their self-contained nature, electric and diesel-electric options present compelling advantages.

Advantages of Electric Power (Direct Electric or Diesel-Electric)

• Lower Operating Costs: Electricity is often cheaper per unit of energy than diesel fuel. Direct electric drives are also generally more energy-efficient than hydraulic systems. This leads to significant savings on fuel/energy expenses.
• Reduced Emissions: Direct electric machines produce zero exhaust emissions on-site, improving air quality and helping meet environmental regulations. Diesel-electric can optimize engine load for better fuel efficiency and lower emissions compared to diesel-hydraulic.
• Quieter Operation: Electric motors run much quieter than large diesel engines, reducing noise pollution – important near residential areas or where noise regulations are strict.
• Less Maintenance: Direct electric drives eliminate the diesel engine and complex hydraulic drive systems for the crusher itself. This means no engine oil changes, fuel filters, exhaust after-treatment systems (like DEF), or hydraulic drive pump maintenance, reducing upkeep costs and downtime. (Note: Hydraulics are still used for CSS adjustment, clamping, etc.).
• Stable Power: Electric motors provide consistent torque and speed, less affected by load variations compared to some diesel-hydraulic setups.
• Sustainability Focus: Using grid power (especially from renewable sources) or highly efficient generators aligns with corporate sustainability goals¹.

Considerations for Electric Power

• Power Source Dependency: Direct electric machines require a connection to the electrical grid or a suitably sized mobile generator set. This adds complexity and potentially cost, and limits mobility if tethered to the grid. Diesel-electric still carries its own generator (powered by a diesel engine).
• Initial Cost: Electric or diesel-electric machines might have a higher purchase price than standard diesel-hydraulic models.
• Site Infrastructure: Requires appropriate cabling, transformers (if needed), and electrical expertise on site.

The choice between diesel, diesel-electric, and direct electric depends on site conditions (power availability), fuel vs. electricity costs, environmental regulations, noise sensitivity, and mobility requirements. As manufacturers like ZONEDING, we can provide guidance and offer different drive options to best suit your specific operational context.
