What is a Palm Fiber Dryer?

A palm fiber dryer is an industrial machine engineered specifically to reduce the high moisture content of fibrous residues from palm oil processing, primarily using thermal energy within systems designed to handle long, potentially abrasive fibers.

Key Characteristics

• Handles Long Fibers: Unlike dryers for granular materials, it must prevent long fibers from tangling, wrapping around internal parts, or forming large clumps.
• High Moisture Removal: Designed to efficiently evaporate large amounts of water, often from initial moisture contents above 60%.
• Robust Construction: Built to withstand potential abrasion from impurities like sand and grit often found in palm fiber.
• Safety Focused: Incorporates features to mitigate the high fire and explosion risks associated with dry organic fibers.

ZONEDING designs these dryers, often robust rotary drum types, with specific internal configurations and safety systems essential for reliable palm fiber processing.

Why Dry Palm Fiber? What Are Its Main Uses?

Drying palm fiber drastically reduces its weight and volume, stops decomposition, and converts it into a valuable, stable resource, most commonly used as biomass fuel for boilers.

Drying transforms a problematic byproduct into a usable commodity with several applications, primarily driven by economics and sustainability.

Reasons for Drying

1. Biomass Fuel : Dried palm fiber (especially EFB and mesocarp) has good calorific value. It’s widely used as a renewable fuel in the palm oil mill’s own boilers (reducing reliance on fossil fuels) or sold to power plants or other industries. Drying is essential to achieve efficient combustion and high energy output.
2. Reduced Transport Costs: Removing water significantly cuts down the weight and volume, making transportation much cheaper if the fiber needs to be moved off-site.
3. Improved Handling & Storage: Dry fiber is easier to handle, convey, and store compared to wet, rapidly decomposing material. It eliminates odor and pest issues.
4. Other Potential Uses : Depending on quality and further processing, dried fiber can be used for:
   • Compost or soil conditioning.
   • Production of fiberboard or composite materials.
   • Potential feedstock for certain biochemical processes.
   • Mattress filling or erosion control materials (requires specific quality).

ZONEDING helps design drying systems optimized for your primary intended use, ensuring the final product meets the required specifications, especially for fuel applications.

Which Dryer Technology is More Reliable for Long, High-Moisture, Tangling Palm Fiber?

Rotary drum dryers, specifically designed with anti-tangling features, are generally the most reliable and widely used technology for drying challenging palm fiber like EFB. Belt dryers often struggle with feeding and handling long, non-uniform fibers.

The physical characteristics of palm fiber heavily favor certain drying technologies.

Technology Comparison for Palm Fiber

Why Rotary Dryers Dominate

• Robust Handling: The tumbling action inside a rotary drum helps break up clumps and expose fiber surfaces to hot air. However, standard lifters are unsuitable. Special anti-tangling lifter designs are crucial to prevent fibers from wrapping and forming large balls.
• Throughput: Rotary dryers can handle large volumes effectively.
• Tolerance: They are generally more tolerant of variations in feed size and the presence of some impurities.
• Belt Dryer Issues: Belt dryers struggle with evenly distributing long, tangled fibers onto the belt. This leads to poor airflow, uneven drying, and potential belt damage. Feeding such material consistently onto a belt is a major challenge.

Crucial Prerequisite : Regardless of the dryer type, effective pre-treatment (shredding/crushing) to shorten and loosen the fiber is absolutely essential before feeding it into any dryer. ZONEDING focuses on robust, appropriately configured rotary dryers as the core of reliable palm fiber drying systems.

How Does a Palm Fiber Dryer Work?

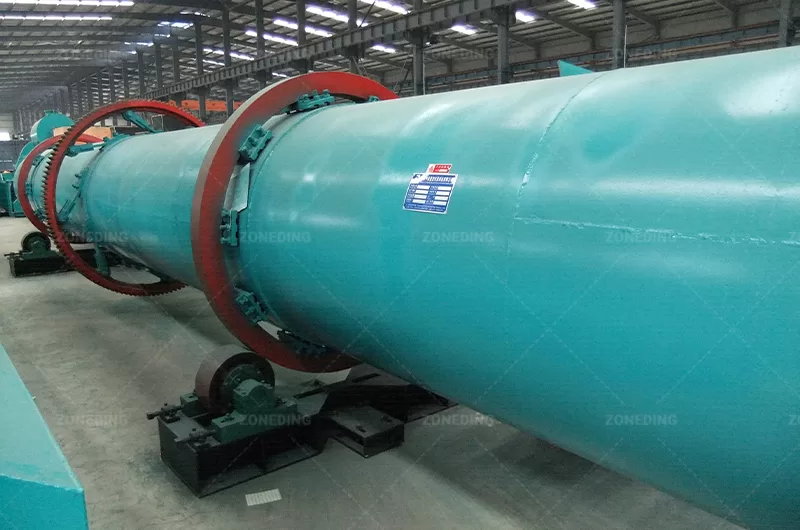

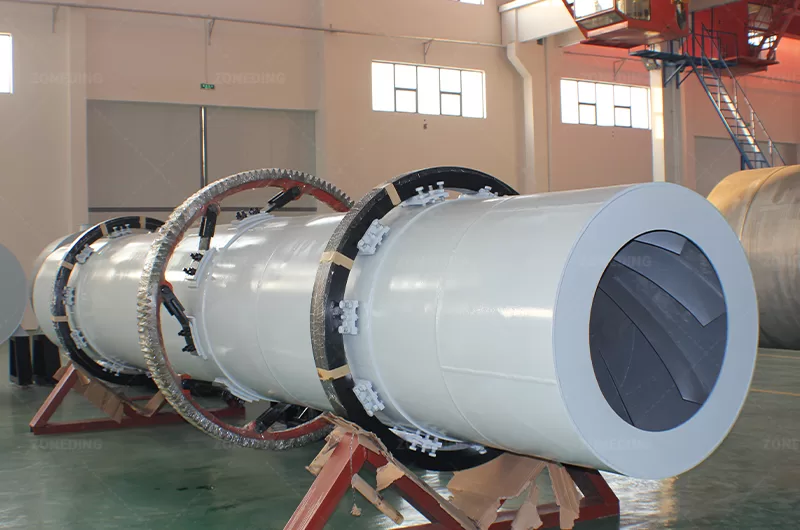

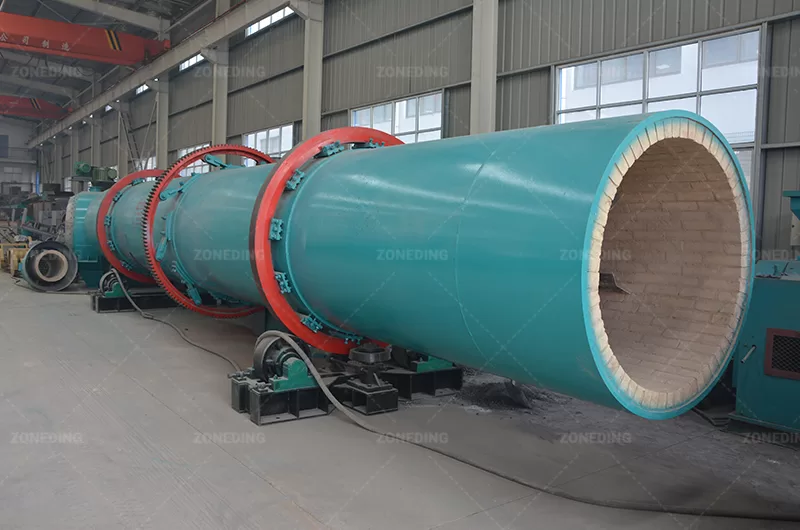

A palm fiber dryer, typically a rotary drum type, works by tumbling the pre-treated fiber through a rotating cylinder while hot gas flows through it. Specially designed lifters shower the fiber through the hot gas stream, promoting heat transfer and water evaporation.

The process involves several coordinated steps within the rotary system:

Operational Steps

1. Pre-treated Feed: Shredded and possibly dewatered palm fiber is fed continuously into the higher end of the inclined rotating drum.
2. Hot Gas Introduction: Hot gas, generated by a furnace burning biomass , natural gas, or other fuels, is introduced into the drum. This can be co-current (gas flows same direction as fiber) or counter-current (gas flows opposite direction). Counter-current is often preferred for higher efficiency.

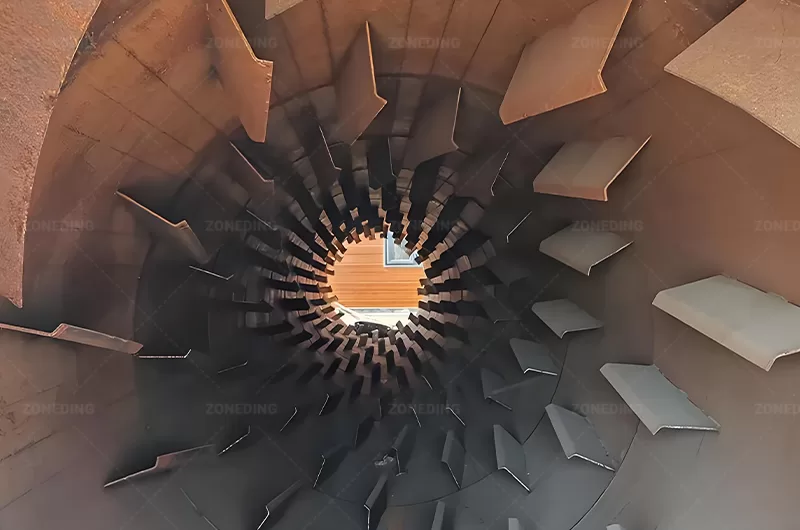

3. Tumbling and Lifting : As the drum rotates, specially designed internal plates called lifters pick up the fiber and shower it down through the hot gas stream. This maximizes contact between the fiber surface and the heat source, crucial for efficient drying. The lifter design prevents tangling.
4. Heat and Mass Transfer: Heat transfers from the hot gas to the wet fiber, providing the energy needed to evaporate the water. The evaporated water vapor is carried away by the gas flow.
5. Material Transport: The drum’s inclination and rotation speed move the fiber progressively towards the discharge end. The residence time inside the drum is controlled to achieve the desired final moisture content.
6. Discharge: Dried fiber exits the lower end of the drum.
7. Exhaust Gas Handling: The moisture-laden, potentially dusty exhaust gas exits the drum and typically goes to a dust collection system (cyclone, baghouse) before being released.

ZONEDING designs these rotary systems with optimized drum speed, inclination, lifter configuration, and airflow to ensure efficient and uniform drying specific to palm fiber.

What Equipment Makes Up a Complete Palm Fiber Drying Line?

A typical palm fiber drying line includes a shredder/crusher for pre-treatment, conveyors, potentially a dewatering press, the rotary dryer, a hot gas furnace (often biomass-fueled), fans, cyclones and/or baghouses for dust control, a cooling system, and an integrated control system.

Here’s a breakdown of the essential components for a functional production line:

Standard Line Components

1. Pre-Treatment :
   • Shredder / Crusher: Heavy-duty machine to break down and shorten the long EFB fibers. Essential first step.
   • (Optional) Impurity Removal : Screen or magnetic separator to remove stones, sand, metal.
2. Input Handling & Feeding :
   • Hopper & Conveyor System: Transports shredded fiber.
   • (Optional but Recommended) Dewatering Press : Screw press or similar to reduce initial moisture mechanically.
   • Feed Rate Controller: Ensures consistent feed to the dryer (e.g., variable speed screw).
3. Rotary Dryer Unit :
   • Rotating drum with specialized internal lifters, drive system, seals.
4. Heating System :
   • Hot Gas Furnace: Burns biomass (palm shells, waste fiber) or other fuel to generate hot gas.
   • (Alternative) Heat Exchanger: If using waste heat like steam or flue gas indirectly.
   • Hot Gas Ducting & Fans: Transport hot gas to the dryer.
5. Air & Exhaust Handling:
   • Exhaust Fan: Pulls moist air and fine particles from the dryer.
   • Dust Collection System:
     • Cyclones: Primary separation of coarser particles.
     • Baghouse / Wet Scrubber (Optional): Secondary cleaning for finer dust, often required environmentally.
   • Exhaust Stack.
6. Discharge & Cooling :
   • Discharge Conveyor System.
   • (Recommended) Cooling System: Screw cooler, pneumatic cooling, or cooling conveyor to reduce fiber temperature before storage, mitigating fire risk.
7. Safety Systems :
   • Fire detection, spark suppression, explosion venting (on dust collector), interlocks.
8. Control System:
   • PLC-based system to monitor and control temperatures, speeds, feed rates, safety systems.

ZONEDING provides complete, integrated palm fiber drying lines, ensuring all components are correctly sized and work together efficiently and safely.

Why Choose ZONEDING for Palm Fiber Dryers?

Choose ZONEDING for our capability in engineering heavy-duty, customized drying solutions, deep understanding of handling difficult materials, focus on integrating essential safety features for high-risk fibers, and ability to deliver complete, reliable production lines.

Our core strengths align well with the specific challenges of drying palm fiber:

ZONEDING Advantages

• Robust Engineering: We design equipment built to last, essential for handling potentially abrasive fibers and ensuring long operational life.
• Customization for Difficult Materials: We don’t offer generic dryers. We analyze the specific challenges of palm fiber (long fibers, tangling, high moisture, fire risk) and customize the design – especially internal lifters and handling systems.
• Integrated Safety Focus: We understand the extreme fire and explosion risks and incorporate necessary safety systems (detection, suppression, venting) as integral parts of the design.
• Energy Efficiency Solutions: We work with clients to explore energy-saving options like mechanical dewatering and waste heat integration.
• Complete System Capability: We can design and supply the entire line, from vital pre-treatment shredders to dust control and cooling systems, ensuring seamless integration and reliable performance.

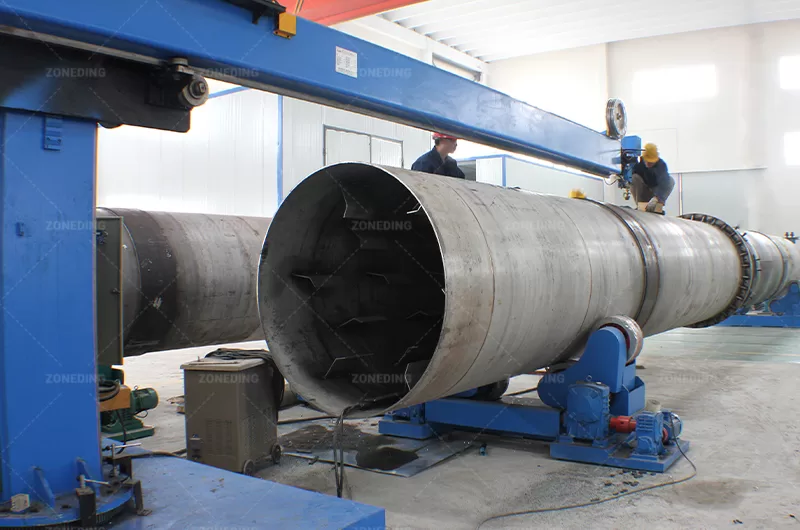

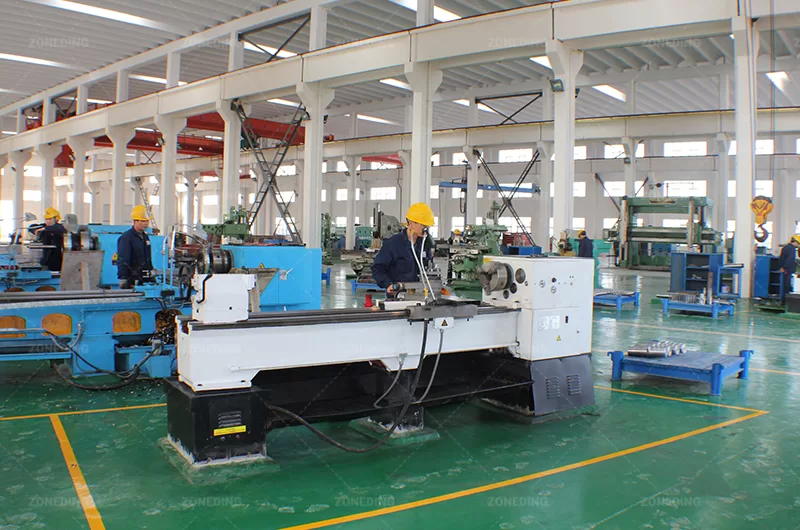

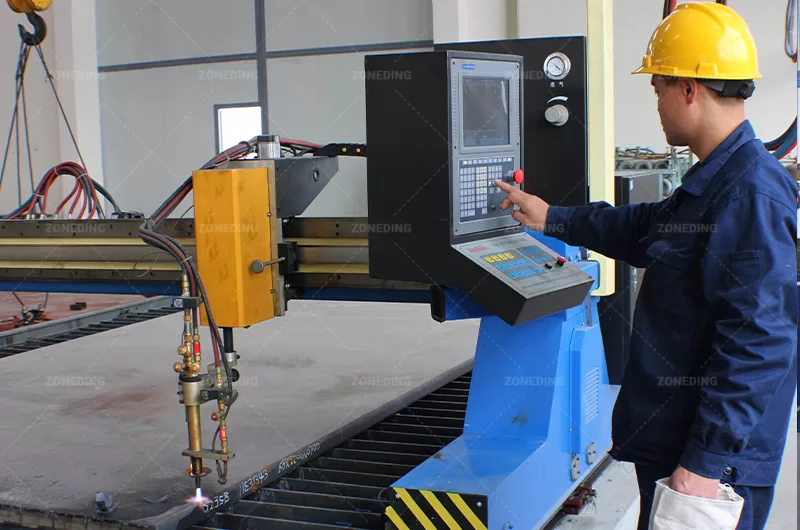

• Manufacturing Strength & Global Reach: Our large manufacturing base and international experience allow us to deliver high-quality, cost-effective solutions globally.
• Full-Service Support: We provide comprehensive support including design, manufacturing, installation guidance, commissioning, training, and after-sales service.

Partnering with ZONEDING means leveraging our engineering expertise to achieve a safe, efficient, and reliable palm fiber drying operation tailored to your specific needs.

Technical Parameters

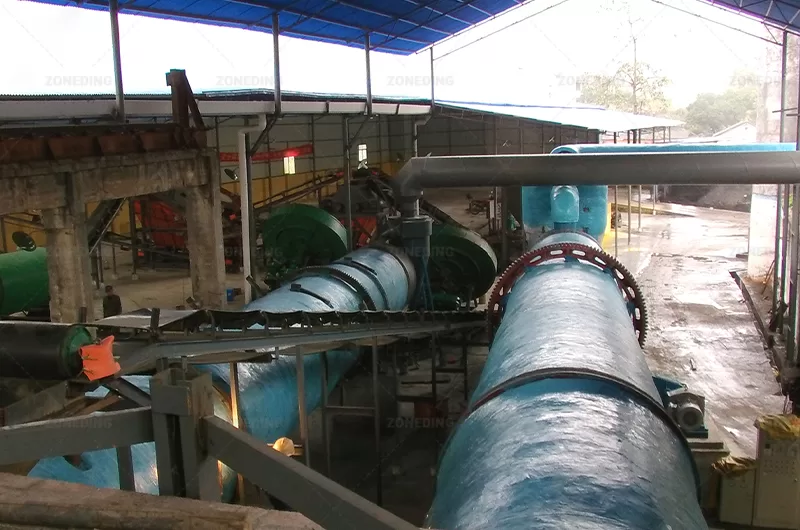

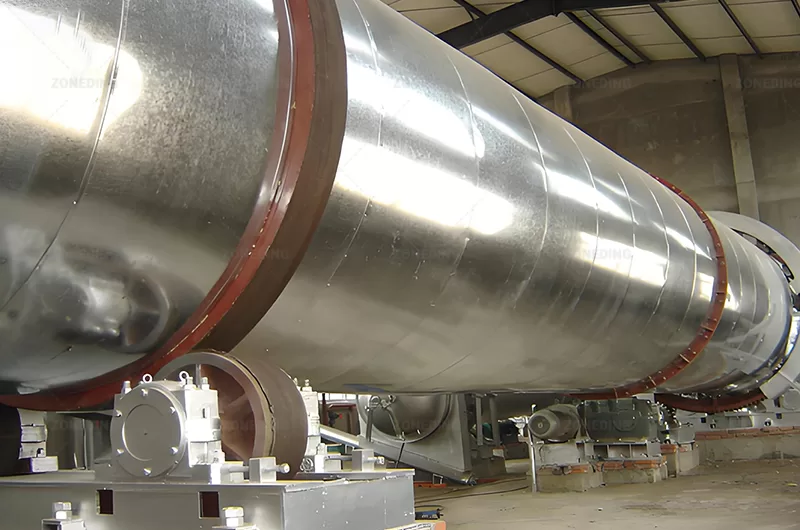

Случаи с клиентами
