What is a Slag Dryer Anyway?

A slag dryer is specialized industrial equipment designed to significantly reduce the moisture content in various types of slag, like steel slag or blast furnace slag. It uses heat to evaporate water, transforming the wet waste material into a dry, usable product.

Slag, a byproduct of smelting and refining processes, often comes out wet. Drying it isn’t just about removing water; it’s about unlocking its value for reuse and making it manageable.

What are the Applications and Advantages of Slag Dryers?

Slag dryers prepare slag for use as cement additives, construction aggregates, road base materials, or for resource recovery. Advantages include reduced transport costs, improved handling, meeting quality specs for reuse, and environmental benefits through waste valorization.

The primary purpose of drying slag is to enable its reuse or efficient disposal. Wet slag is heavy, difficult to handle, and often unsuitable for immediate use in value-added applications. Drying offers significant advantages:

Key Applications & Benefits:

• Cement and Concrete Production: Dried Ground Granulated Blast Furnace Slag is a valuable supplementary cementitious material (SCM). Steel slag, after proper treatment and drying, can be used as aggregate in concrete or asphalt. Drying is essential to meet the moisture specifications for these applications and, crucially, to avoid issues related to slag activity .
• Road Construction: Dried slag can be used as a stable and durable base or sub-base material for roads and pavements. Its physical properties often make it superior to natural aggregates, but controlled moisture is necessary for proper compaction and performance.
• Aggregate for Construction: Crushed and dried slag serves as a high-quality aggregate for various construction purposes, replacing natural resources.
• Resource Recovery: Some slags contain residual metals (like iron in steel slag or other metals in non-ferrous slags). Drying is often the first step before further processing to recover these valuable components.
• Improved Handling & Transport: Removing water significantly reduces the weight and volume, lowering transportation costs. Dried slag is also less likely to freeze in cold weather and generally easier to convey and store.
• Environmental Stewardship: Turning an industrial byproduct into a useful material reduces landfill burden and the need to quarry virgin resources.

At ZONEDING, we help industries transform their slag waste streams into valuable resources through efficient and reliable drying technology.

Which Dryer Type Best Suits Industrial Slags like Steel or Blast Furnace Slag?

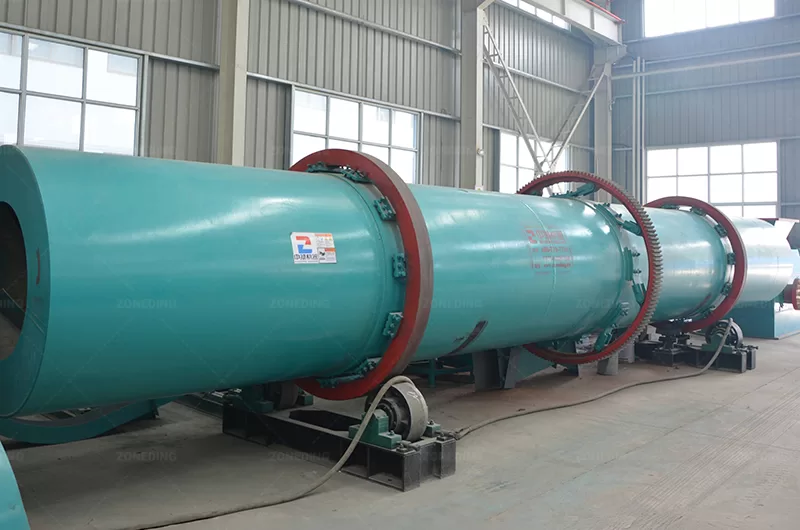

The rotary drum dryer is overwhelmingly the preferred type for most industrial slags due to its robustness, high throughput capacity, and ability to handle abrasive, heavy materials effectively.

• Robustness and Durability: Slag, especially steel slag, is dense and highly abrasive . Rotary dryers are inherently heavy-duty machines. Their thick steel shells, robust support systems (tires and rollers), and simple operating principle can withstand the harsh conditions better than more complex dryer types.
• High Throughput: Slag generation rates can be substantial. Rotary dryers can be designed for very large capacities, matching the output of steel mills or smelters.
• Handling Variability: Rotary dryers are relatively tolerant of variations in feed size and moisture content, which are common with slag. While stable feed is always ideal, the tumbling action can handle some inconsistency.
• Material Handling: The lifting and cascading action inside a rotary dryer is effective for granular, relatively free-flowing materials once surface moisture is reduced, even if they are heavy like slag.
• Heat Source Flexibility: Rotary dryers can be integrated with various heat sources, including the waste heat often available at industrial sites where slag is produced.

Other technologies like fluid bed dryers might be used for very fine, uniform slag powders but generally struggle with the typical lumpiness, abrasiveness, and high density of most steel and blast furnace slags. At ZONEDING, we focus on optimizing rotary dryer designs specifically for the demanding nature of slag.

How Do Slag Dryers Work?

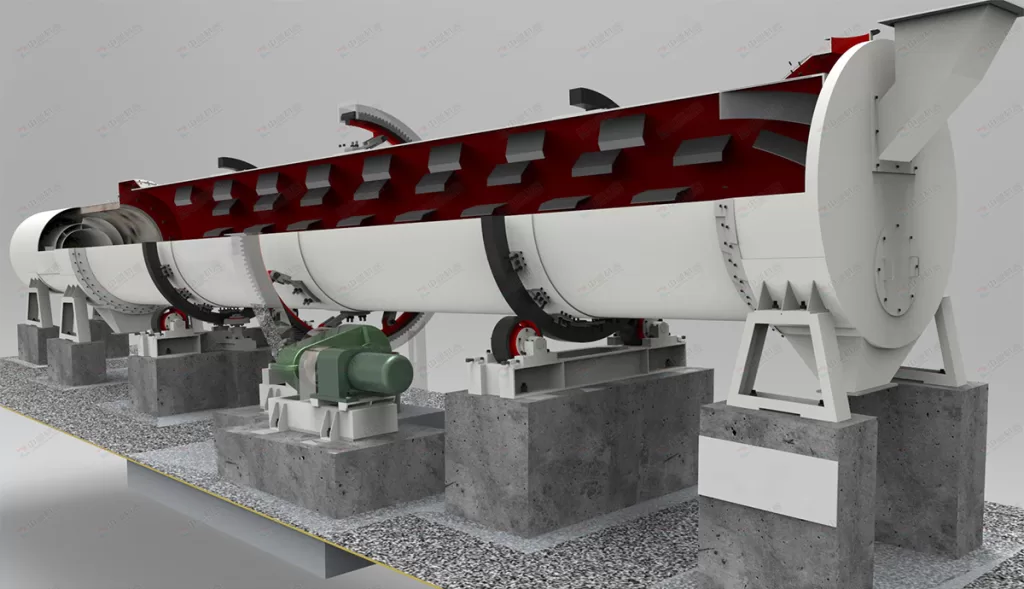

Wet slag enters a rotating, inclined drum. Inside, lifters continuously pick up the slag and shower it through a stream of hot gas. This contact transfers heat, evaporates water, and the dried slag moves towards the discharge end.

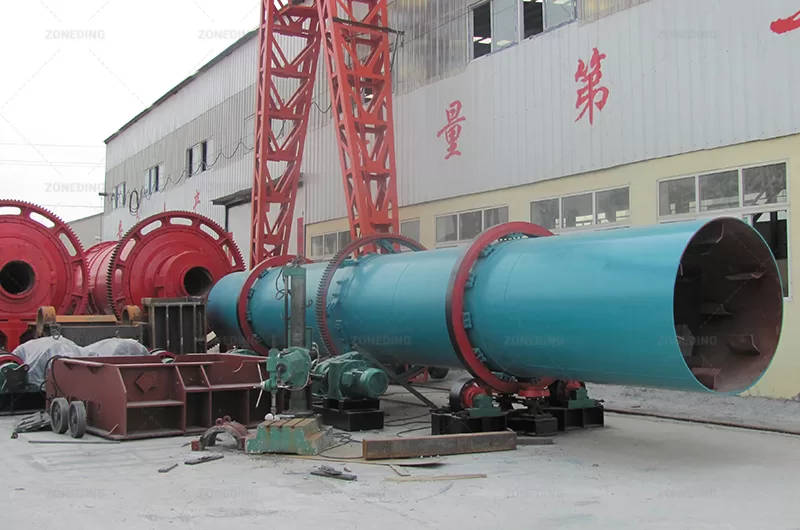

The most common slag dryer, the rotary drum dryer, operates on a continuous flow principle combining mechanical movement and thermal energy:

1. Feeding: Wet slag is fed consistently into the higher end of the slightly inclined cylindrical drum. Consistent feed rate is important for stable operation.
2. Rotation & Transport: The drum rotates slowly (typically a few RPM). The inclination angle and rotation cause the slag to gradually tumble and move down towards the discharge end.
3. Lifter Action: Internal plates called lifters (or flights) are fixed along the length of the drum’s inner surface. As the drum rotates, these lifters pick up the slag.
4. Cascading & Heat Transfer: Once lifted, the slag cascades or showers down through the drum’s open space. Simultaneously, hot gas (from a burner, furnace, or waste heat source) flows through this space. This showering action creates a “curtain” of material, maximizing the contact area between the hot gas and the wet slag particles. Heat transfers from the gas to the slag, heating the material and evaporating the water.
5. Gas Flow: The hot gas can flow in the same direction as the slag (co-current) or in the opposite direction (counter-current). Counter-current flow is often more thermally efficient for materials like slag that are not overly heat-sensitive, allowing the hottest gases to contact the driest material.
6. Vapor Removal: The evaporated water vapor is carried out of the dryer along with the drying gas (flue gas).
7. Discharge: The dried slag exits the lower end of the drum through a sealed discharge housing.

The efficiency and effectiveness depend heavily on the design of the lifters , the control of gas temperature and flow, the rotation speed, and ensuring the slag spends enough time (residence time) in the drum to reach the target moisture level. ZONEDING designs these elements precisely based on the slag type and drying requirements.

How to maintain the slag dryer？

1. Daily Inspection: Check operating status by listening, smelling, and looking (abnormal noises, odors, leaks, temperature rise), focusing on seals, drive, lubrication, instruments, and safety.
2. Regular Lubrication: Inspect, replenish, or replace lubricants as required, paying special attention to preventing dust contamination.
3. Wear Monitoring: Regularly inspect and record the condition of key wear parts (liners, lifting plates, seals), and plan replacements in advance.
4. Check & Tighten: Regularly check and tighten loose bolts, inspect transmission and support components (gears, riding rings, support rollers).
5. Annual Alignment: Core maintenance! Perform internal cleaning, and accurately measure and adjust the alignment precision of riding rings, support rollers, and gears.
6. Sealing & Dust Removal: Maintain good seals at inlet/outlet ports, regularly maintain the dust removal system to ensure effective operation.
7. Safety Procedures: Strictly adhere to maintenance safety operating procedures, especially Lockout/Tagout (LOTO) and confined space work.
8. Records & Spare Parts: Establish maintenance records, manage wearing parts and key spare parts effectively.

What Equipment and Systems Constitute a Complete Slag Drying Line (Heat Source, Feeding, Dust Control, etc.)?

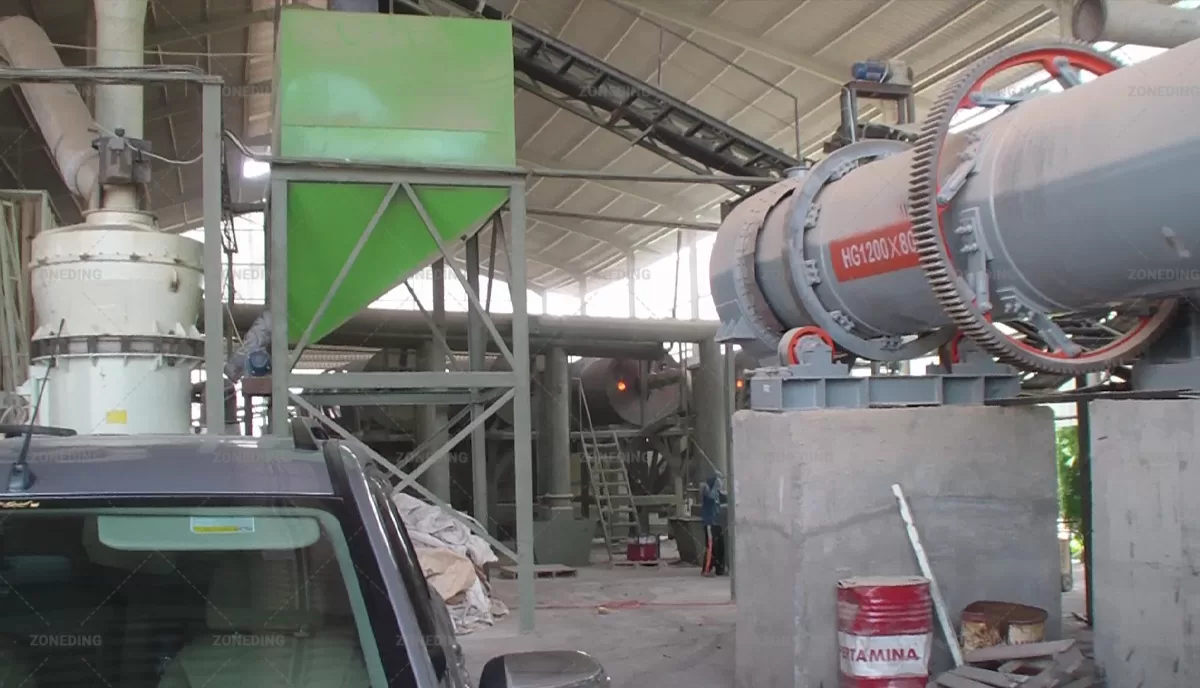

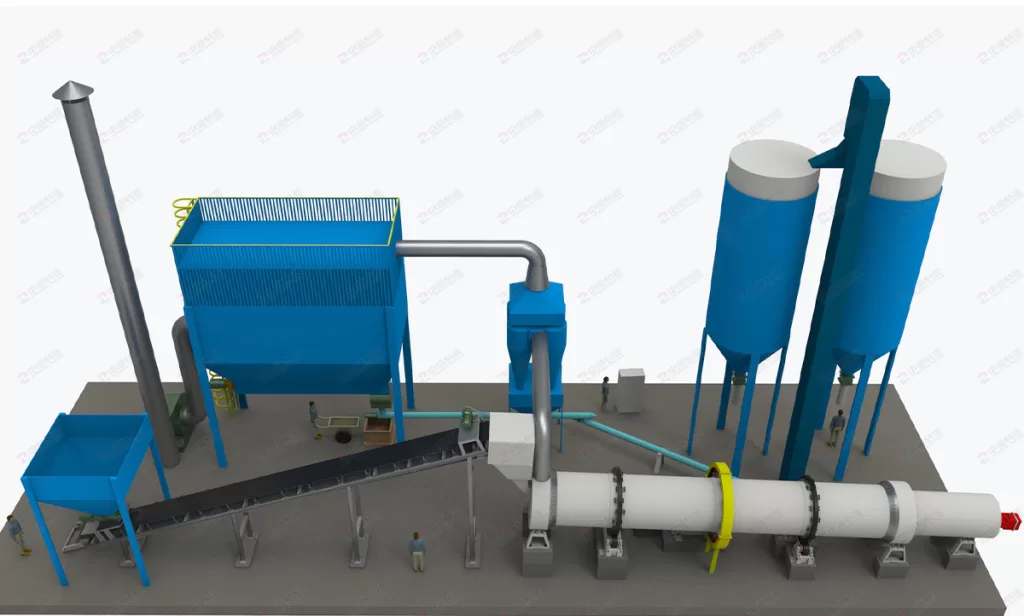

A complete line includes: a feed system (hopper, conveyor, feeder), the heat source (burner/waste heat ducting), the rotary dryer, robust dust collection (cyclone + baghouse/ESP), exhaust fan, product discharge/cooling, and integrated controls.

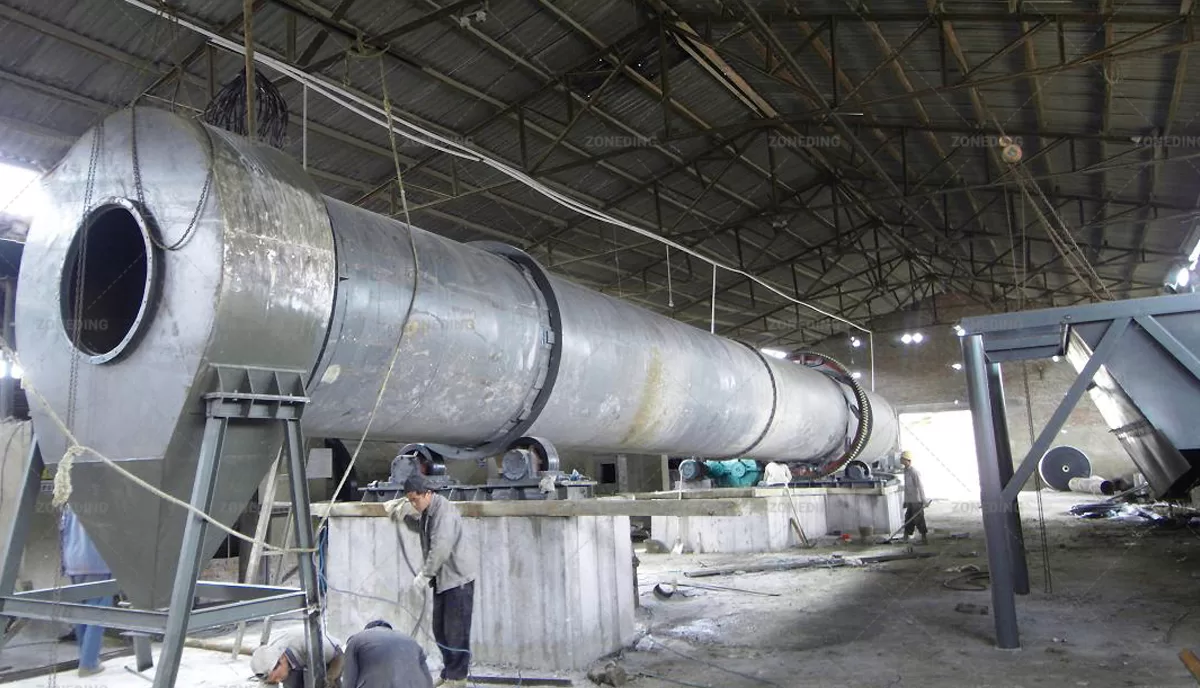

A functional slag drying operation is a carefully integrated system, not just a standalone machine. The key components typically include:

Elements of a Full Slag Drying System:

1. Feed Handling:
   • Receiving Hopper/Area: To accept incoming wet slag.
   • Conveying System: Belt conveyors or other methods to transport slag to the feeder.
   • Feeder: Provides a controlled, consistent feed rate into the dryer (e.g., weigh belt feeder, heavy-duty apron feeder). Crucial for stable operation .
   • Feed Chute: Guides slag into the dryer inlet, often heavily lined for wear resistance .
2. Heat Source System:
   • Burner (for primary fuel like gas/oil) or ducting and dampers for waste heat integration.
   • Combustion air fans, fuel trains, safety systems.

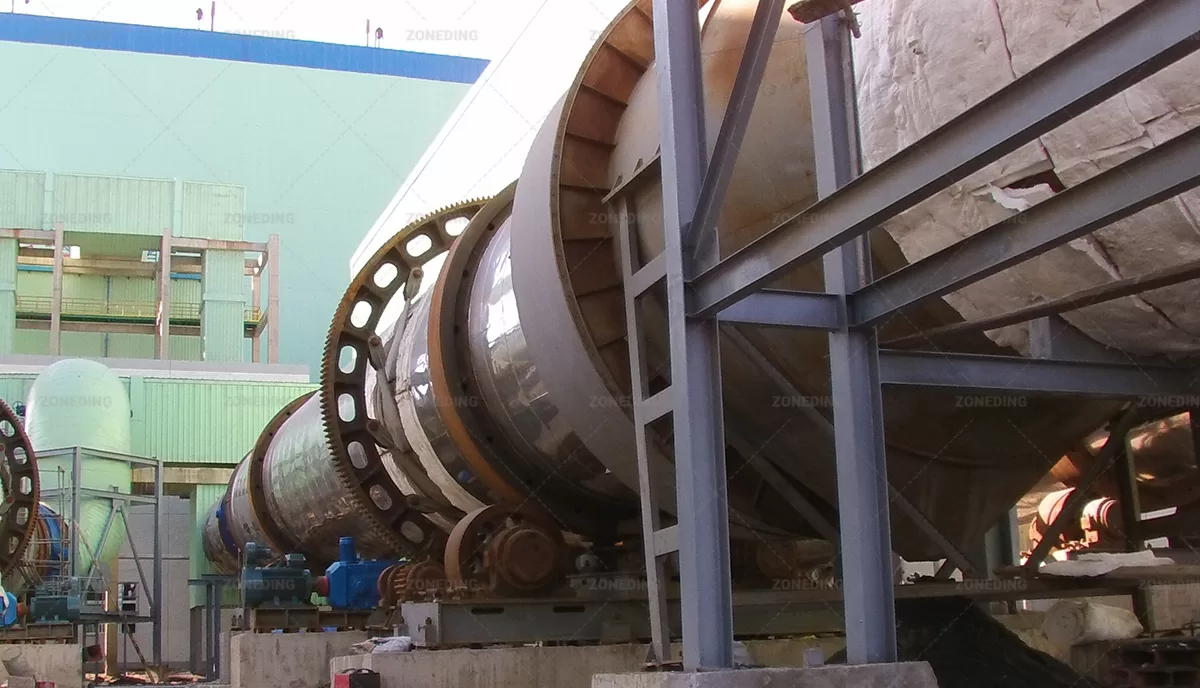

3. Rotary Dryer Unit: The core rotating drum with its drive, support system (tires, rollers, thrust rollers), seals, and internal lifters, all designed for slag duty.
4. Dust Collection System: Absolutely critical due to fine, abrasive dust generated. Usually a multi-stage system:
5. Exhaust System:
   • Ductwork: Connecting dryer outlet, dust collector, and fan. Must be wear-resistant and designed for temperature.
   • Induced Draft (ID) Fan: Pulls gases through the entire system. Needs to be robust and often includes wear-resistant impeller coatings or liners. Variable speed drive is recommended for control and energy saving.
   • Stack: Discharges cleaned flue gas.
6. Dried Product Discharge & Handling:
   • Discharge Housing: Sealed connection at the dryer outlet, often lined.
   • Discharge Device: Airlock or chute.
   • Cooling (Optional): Dried slag can be very hot. A rotary cooler or cooling conveyor might be needed before storage or further transport.
   • Conveying System: To transport dry slag.
7. Control System: PLC-based system integrating all components, monitoring temperatures, pressures, feed rates, motor loads, and including safety interlocks and operator interface (HMI).
