Copper Content is Low in Ore, Why is Beneficiation the “Alchemist’s Stone” Step?

Imagine you have a big pile of rock. Only a tiny part of this rock is valuable copper. The rest is just common stone. If you try to extract copper directly from this rock, you will spend a lot of money. You will ship a lot of waste rock. You will use huge amounts of energy to process it. The cost would be too high. You would lose money instead of making it. This is why beneficiation is so important. It is the first step that turns a low-value rock into a high-value product. It is like an “alchemist’s stone.”

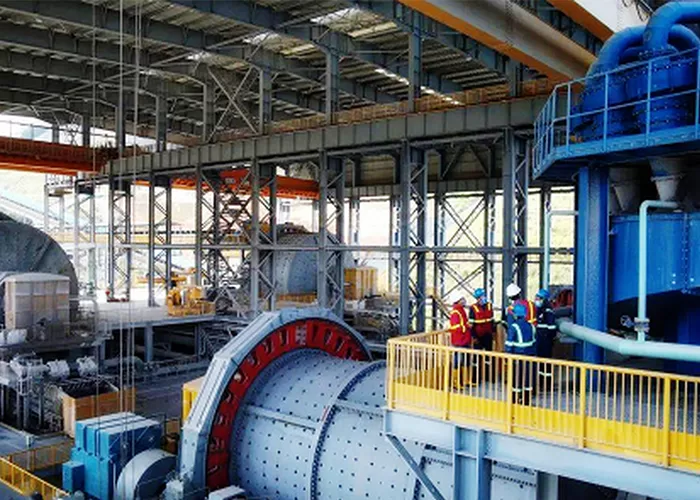

Beneficiation means taking the raw copper ore and separating the valuable copper minerals from the unwanted waste rock. This process happens before smelting. Smelting is melting the copper minerals to get pure metal. After beneficiation, the copper content in the material is much higher. We call this high-copper material “copper concentrate.” This concentrate is easier to transport. It is also much cheaper to smelt.
For example, if your raw copper ore has only 0.5% copper, a beneficiation plant can turn it into a concentrate with 25-30% copper. This concentrate is 50 to 60 times richer than the original ore. This means you only need to transport and smelt 1/50th or 1/60th of the original rock volume to get the same amount of copper. This saves a lot of money on transport. It saves a lot of money on smelting. It also makes mining more profitable. So, beneficiation is a key step. It makes the whole copper production chain work. Without it, most copper mines would not be able to make money.

Why Beneficiation is Critical

• Increases Copper Grade: Turns low-copper rock into high-copper concentrate.
• Reduces Costs: Lowers transport and smelting expenses greatly.
• Makes Mining Profitable: Allows extraction from low-grade ores.
• Removes Waste: Separates valuable minerals from unwanted rock early.
  Beneficiation is the necessary step to make copper mining economical.

How Do Sulfide Copper Ores “Transform”? How Does Flotation Extract Copper Step by Step?

Flotation Steps for Sulfide Copper

• Crushing and Grinding: Break ore to fine powder to free copper minerals. Use a Jaw Crusher and a Ball Mill.
• Mixing with Reagents: Add chemicals to make copper minerals water-repellent.
• Aeration (Bubbles): Pump air into the mixture. Bubbles attach to copper minerals.
• Floating: Copper minerals float to the surface in a foam.
• Collection: Skim off copper-rich foam.
• Thickening and Filtering: Remove water from concentrate.
  This process turns raw ore into valuable copper concentrate.

How to Extract Copper from Oxide and Mixed Ores? Is Hydrometallurgy (Leaching) the Only Option?

Sulfide copper ores are very common. But you can also find copper in oxide ores. In oxide ores, copper is chemically bonded with oxygen, not sulfur. There are also “mixed ores” that contain both sulfide and oxide copper minerals. These ores need different ways to extract copper. Flotation alone might not work well for them.
For pure oxide copper ores, flotation is often not effective. This is because oxide copper minerals do not float well with the same reagents used for sulfides. They are generally more difficult to make water-repellent. For these ores, hydrometallurgy is a common choice. Hydrometallurgy involves using a liquid solution to dissolve the copper directly from the ore. This process is called leaching. Usually, you use an acid solution, like sulfuric acid. The acid dissolves the copper. The copper then goes into the liquid. After leaching, you collect the copper-rich liquid. Then you use methods like solvent extraction and electrowinning to get pure copper metal. This is a very clean way to get copper. It produces high-purity copper cathodes. It often avoids the need for smelting.
For mixed ores, it becomes more complex. You have both types of copper. You might use a combined approach. You could use flotation first to recover the sulfide copper minerals. Then, you might take the remaining ore (which is now richer in oxide copper) and leach it. This means you use two different methods to get the most copper out. Sometimes, you might even try to “sulfidize” the oxide minerals. This means you treat them with chemicals to make their surface behave more like a sulfide. Then you can try to float them. But this can be complicated and costly.
So, while leaching is a very strong option for oxide ores, it is not always the only option. The best way to process oxide or mixed copper ores is to do a professional beneficiation test. This test will tell you exactly what minerals are in your ore. It will show how they behave. Then, based on the test results, you can choose the best process flow. This might be flotation, leaching, a combination, or even other methods like gravity separation (Spiral Chute or Shaking Table) or magnetic separation (Magnetic Separator) for specific ore types. Each ore is unique. A custom solution is always best.

Processing Oxide and Mixed Copper Ores

• Oxide Ores: Often use hydrometallurgy (leaching) with acid. Copper dissolves into liquid. Pure copper is produced directly.
• Mixed Ores: May use a combined approach. Flotation for sulfides, then leaching for oxides.
• Customization is Key: Always do a professional beneficiation test. This helps choose the best process for your specific ore.
• Other Methods: Gravity separation or magnetic separation might be used for certain ores.
  Each ore type needs a specific processing plan.

Crushing and Grinding “Eat Up” Half the Electricity Bill? How to Optimize Particle Size Control and Cut Energy Use Greatly?

Crushing and grinding machines are essential for copper beneficiation. They break down the ore. This releases the valuable copper minerals. But these machines use a lot of power. They can easily account for 30% to 50% of the total energy cost in a copper plant. This is a huge expense. You want to make this step as energy-efficient as possible.
The key to cutting energy use is optimizing particle size control. You need to break the ore just enough. Do not break it more than needed. If you grind the ore too fine, it wastes energy. It also creates too many “fines” (very tiny particles). These fines can cause problems in later stages like flotation. They can make the concentrate difficult to filter. So, finding the optimal particle size is critical.
We use a multi-stage crushing approach. This means using several crushers in sequence. First, a Jaw Crusher takes the large rocks from the mine. It breaks them into smaller pieces. Then, a Cone Crusher or Impact Crusher breaks these pieces even smaller. Using multiple stages lets each crusher work at its most efficient size range. This saves energy compared to trying to do too much size reduction in one machine. After crushing, you use screens (Vibrating Screen) to separate the ore by size. Any pieces that are still too big go back to the crusher. This “closed circuit” system ensures you only grind what is necessary.
For grinding, a common approach is stage grinding. This means grinding the ore in steps. You might use a Rod Mill first for coarse grinding. Then a Ball Mill for finer grinding. This also helps save energy. Modern grinding mills also use energy-efficient motors and smart control systems. These systems adjust grinding settings automatically. They help maintain the correct particle size. This reduces power waste. By focusing on smart crushing and grinding, you can significantly cut down on your electricity bill. This makes your copper operation much more profitable.

Energy Saving in Crushing and Grinding

• Multi-Stage Crushing: Use several crushers (Jaw Crusher, Cone Crusher) in steps. Each crusher works efficiently.
• Closed-Circuit Crushing: Use Vibrating Screen to send oversized material back for re-crushing. Avoids over-grinding.
• Stage Grinding: Grind in steps, like a Rod Mill then a Ball Mill.
• Optimal Particle Size: Grind just enough to free minerals. Do not over-grind.
• Smart Control: Use modern systems to adjust settings and save power.
  These methods help reduce energy consumption greatly.

Copper Recovery Rate Always Low? Flotation Reagents, Water Quality, Process Parameters – Which Link is Broken?

A low copper recovery rate is a big problem. It means you are leaving valuable copper in the waste. You are losing money. Many factors can affect how much copper you get out. If your recovery rate is low, you need to check several things. It could be a broken link in your process chain.
One key area is flotation reagents. These are the chemicals you add to the slurry. They make the copper minerals float. If you use the wrong type, the wrong amount, or add them at the wrong time, your recovery will drop. Some reagents are collectors. They attach to copper minerals. Some are frothers. They make stable bubbles. Some are modifiers. They control how other minerals react. If these are not balanced, your copper might not float, or too much waste might float with it. Always ensure fresh, good quality reagents.
Water quality is another important factor. The water you use in flotation is not just a carrier. It can affect how the reagents work. If your process water has too many dissolved salts, or certain ions, it can interfere with flotation. For example, some ions can activate unwanted minerals. They make them float. Other ions can depress copper minerals. They stop them from floating. Using clean water or treating your process water can make a big difference. Sometimes, even the temperature of the water can affect recovery.
Finally, process parameters are critical. These are the settings of your machines and the conditions in the flotation cells (Flotation Machine). Things like:

• Slurry density: How much solid is in the water? Too thick or too thin affects flow.
• pH: The acidity or alkalinity of the slurry. Most flotation needs a specific pH range.
• Air flow rate: How much air goes into the cells? Too little means not enough bubbles. Too much means unstable bubbles.
• Retention time: How long does the slurry stay in the flotation cell? Not enough time means copper does not float.
• Impeller speed: How fast do the mixers spin in the flotation cells? This affects mixing and bubble formation.
  If any of these parameters are off, your recovery will suffer. You need regular monitoring and adjustments. Sometimes, a small change in one of these can significantly boost your copper recovery. Finding the broken link requires careful observation and testing.

Common Causes for Low Copper Recovery

• Wrong Reagents: Incorrect type, amount, or timing of chemicals.
• Poor Water Quality: Impurities in water interfere with flotation.
• Incorrect Slurry Density: Too thick or too thin mixture affects flow and separation.
• Off-Target pH: Slurry is too acidic or alkaline for optimal flotation.
• Improper Air Flow: Not enough or too much air affects bubble formation.
• Short Retention Time: Not enough time for copper to float.
• Incorrect Impeller Speed: Affects mixing and bubble-mineral contact.
  Check these points to find and fix your recovery issues.

Low-Grade, Hard-to-Process, Many Associated Minerals… My “Stubborn” Copper Ore How to Select Minerals?

Some copper ores are truly “stubborn.” They are low-grade, meaning very little copper. They are hard-to-process, perhaps because the copper minerals are very fine or mixed tightly with other minerals. They might also have many other minerals that you do not want. These are called “associated minerals.” They can be metals like iron or zinc, or gangue minerals like talc. These stubborn ores need special treatment.
The first step for stubborn ore is always detailed mineralogical analysis. You need to know exactly what minerals are in your ore. You need to know how big they are. You need to know how they are connected. This helps identify the challenge. Is the copper very fine? Are there too many impurities that float with copper? This information is like a map for your ore.

Based on this map, you might need a complex or combined beneficiation flow sheet. For example:

• Pre-concentration: Before main flotation, you might use methods like heavy medium separation or magnetic separation to remove some obvious waste rock first. This reduces the amount of material that goes to the expensive grinding and flotation stages.
• Differential Flotation: If you have copper mixed with other valuable sulfide minerals (like zinc or lead), you need to separate them. This means you use specific reagents and pH conditions to float one mineral first, then depress it and float the next one. This requires very precise control.
• Flotation-Magnetic Separation Combined: If you have magnetic impurities (like magnetic iron ore) that affect copper flotation, you might use a Magnetic Separator after initial flotation. This removes the magnetic waste from your copper concentrate.
• Flotation-Gravity Separation Combined: For some coarse copper minerals, or if there are heavy valuable minerals (like gold) associated with copper, you might use gravity separation methods like a Jigging Separator Machine or Shaking Table before or after flotation.
• Leaching Pre-Treatment or Post-Treatment: For very complex ores, you might need to use leaching to break down some minerals or recover copper that is not floatable.
  The goal is to develop a customized solution. There is no one-size-fits-all answer for stubborn ores. You need to work with experts. They do lab tests and pilot tests. These tests help design the exact process. They select the right machines and reagents. This ensures you get the most copper out at the lowest cost, even from difficult ores.

Processing Stubborn Copper Ore

• Detailed Analysis: Understand your ore’s mineral makeup.
• Pre-concentration: Remove some waste early to save costs.
• Differential Flotation: Separate different valuable sulfides.
• Combined Methods: Use Magnetic Separator or Jigging Separator Machine with flotation.
• Leaching: Consider leaching for specific minerals.
• Customized Solution: Design a unique process based on lab tests.
  Stubborn ores need a tailored and expert approach.

How to make copper beneficiation eco-friendly?

Copper ore beneficiation plants handle large amounts of material. They use chemicals and water. This means they produce waste: tailings (solid waste), wastewater (liquid waste), and sometimes exhaust gas (air waste). Governments around the world have very strict rules for environmental protection. You must meet these rules. Achieving “green and eco-friendly production” is not just good for the planet. It is required for your license to operate.
Tailings management is a major concern. Tailings are the finely ground waste rock left after beneficiation. They often contain residual chemicals and sometimes trace amounts of heavy metals. You cannot just dump them anywhere. Modern plants use tailings dams that are carefully designed and built to be stable and prevent leaks. They often use dry stacking methods. This means removing as much water as possible from the tailings. This creates a more stable pile. It also reduces the need for large, wet tailings ponds. The recovered water can be recycled. This saves fresh water.
Wastewater treatment is also very important. Water from the plant contains chemicals and fine particles. You cannot release it directly into rivers or groundwater. You need to treat it first. This involves processes like flocculation (making small particles clump together so they settle). It includes pH adjustment and heavy metal removal. The goal is to make the water clean enough for discharge or, even better, to recycle it back into the plant. Water recycling saves fresh water. It also reduces the volume of wastewater that needs treatment and discharge.
Exhaust gas control might be needed, especially if your ore contains sulfide minerals that produce sulfur dioxide during drying or calcining. You might use scrubbers or filters to clean the air. The goal is to minimize air pollution.
Overall, achieving green production involves several steps:

Environmental Compliance for Beneficiation

• Tailings Management: Use dry stacking and stable dams.
• Wastewater Treatment: Clean water before discharge.
• Water Recycling: Reuse process water to save resources.
• Chemical Optimization: Use less chemicals to reduce waste.
• Air Pollution Control: Filter exhaust gas if needed.
• Continuous Monitoring: Check environmental factors regularly.
  Green production is key for sustainable copper mining.

How Much Does it Cost to Build a Copper Ore Beneficiation Plant? How to Choose and Configure Core Equipment?

Building a copper ore beneficiation plant is a big investment. The cost can vary a lot. It depends on many things: the size of the plant, the complexity of your ore, the technology you choose, and local conditions. You need to plan carefully to control costs and choose the right machines.
The total cost includes:

1. Equipment Cost: This is a major part. It includes all the main machines.
2. Infrastructure Cost: This covers land preparation, buildings, roads, power lines, and water supply.
3. Installation and Commissioning Cost: This is for setting up the machines and making sure they work correctly.
4. Permitting and Environmental Cost: Fees for licenses and building environmental protection systems.
5. Operating Capital: Money needed for first few months of running (reagents, power, labor).
   To choose and configure core equipment, you must start with a detailed ore beneficiation test report. This report tells you the best process flow for your specific ore. It will recommend the type and size of machines.
   Key equipment choices include:

• Crushing Section: You need a primary crusher (like a Jaw Crusher) and secondary/tertiary crushers (like a Cone Crusher or Impact Crusher). You also need screens (Vibrating Screen) and feeders (Vibration Feeder). The size of these depends on your plant’s target daily output.
• Grinding Section: This typically involves a Ball Mill or a Rod Mill. Sometimes, you use two stages of grinding. The mill size depends on the ore hardness and required fineness.
• Flotation Section: This requires Flotation Machine cells. The number and size of these cells depend on the slurry volume and retention time needed. You also need reagent mixing and dosing systems.
• Thickening and Filtering Section: You will need thickeners (to settle concentrate) and filters (like plate and frame filter presses or vacuum filters) to dewater the copper concentrate.
• Auxiliary Equipment: This includes pumps, conveyors, cyclones, and water treatment systems.
  When choosing equipment, do not just look at the price. Look at the quality, energy efficiency, durability, and the supplier’s after-sales service. Choosing cheaper but low-quality machines can lead to frequent breakdowns. This will cause higher operating costs and lower output. A good supplier can help you balance cost and performance. They help you get the right configuration for your specific project.

Core Equipment for Copper Beneficiation

• Crushing: Jaw Crusher, Cone Crusher, Vibrating Screen, Vibration Feeder.
• Grinding: Ball Mill or Rod Mill.
• Flotation: Flotation Machine cells, reagent systems.
• Dewatering: Thickeners, filters.
• Other: Pumps, conveyors, cyclones, water treatment.
  Choose based on your ore, output needs, and supplier support.

Are There Other “Black Technologies” in Copper Ore Beneficiation? Are Smart Control and Automation the Future Trend?

The copper mining industry is always looking for new ways to improve. People are asking about “black technologies.” This means advanced, cutting-edge solutions. Smart control and automation are definitely major trends for the future of copper ore beneficiation. They are not magic, but they make things work better.
Traditional beneficiation plants rely on human operators. They watch meters and adjust valves. This can be prone to human error. It can be slow to react to changes in the ore. Modern plants use smart control systems. These systems use sensors. They collect data on everything: slurry density, pH, reagent flow, air flow, and more. Computers then analyze this data in real-time. They make automatic adjustments. This keeps the process running at its optimal point. For example, if the ore coming in changes (its grade, or mineralogy), the system can adjust reagent dosages automatically. This keeps the recovery rate high. It avoids wasting expensive chemicals.
Automation takes this a step further. It means machines do tasks without human involvement. This can include automatic sampling systems. These take samples of the ore and concentrate. They analyze them instantly. It can also include robotic systems for maintenance or material handling. Automation reduces the need for human operators in dangerous areas. It improves safety. It also makes the process more consistent.
Other advanced technologies include:

• Advanced Sensor Technologies: New sensors can detect mineral types and grades in real-time. This helps operators or automated systems make faster, better decisions.
• Artificial Intelligence (AI) and Machine Learning (ML): These technologies can analyze vast amounts of data from the plant. They can predict problems before they happen. They can find patterns that humans might miss. They can optimize complex processes for maximum efficiency.
• Dry Processing Technologies: Some research focuses on methods that use less or no water. This is crucial for areas with water scarcity. Examples include sensor-based ore sorting before grinding. This technology can remove waste rock early, before it enters the main plant.
  These technologies are not yet universal in all copper plants. But they are becoming more common. They offer big benefits: higher recovery rates, lower operating costs, better safety, and reduced environmental impact. They represent the future of efficient and responsible copper ore beneficiation. You should look for suppliers who are investing in these advanced solutions.

Future Trends in Copper Beneficiation

• Smart Control Systems: Use sensors and computers for automatic adjustments.
• Automation: Machines perform tasks with less human input.
• Advanced Sensors: Detect minerals and grades in real-time.
• AI and Machine Learning: Analyze data, predict problems, optimize processes.
• Dry Processing: Technologies that use less water (e.g., ore sorting).
  These technologies lead to higher efficiency, lower costs, and better safety.

Frequently Asked Questions

Q 1: Why is copper beneficiation necessary for low-grade ore?

A: Copper beneficiation is necessary because raw low-grade copper ore has very little copper. It is too expensive to transport and smelt it directly. Beneficiation increases the copper content, making later processing steps much more economical.

Q 2: What is the main method for processing sulfide copper ore?

A: The main method for processing sulfide copper ore is flotation. This process separates copper minerals from waste rock by making copper particles float to the surface using air bubbles and chemicals.

Q 3: Can I process oxide copper ore with flotation?

A: Flotation is generally less effective for oxide copper ores compared to sulfide ores. Hydrometallurgy (leaching) is often preferred for oxide ores, or a combination of methods for mixed ores.

Q 4: What is the biggest cost in copper beneficiation?

A：Energy consumption, especially from crushing and grinding, is often the biggest operating cost in copper beneficiation. Optimizing particle size control and using efficient machines can greatly reduce this cost.
