What is a Bentonite and Kaolin Dryer?

Drying sticky clays like bentonite and kaolin is tough. Using the wrong equipment leads to blockages and inefficiency. Selecting the proper dryer designed for these materials is crucial.

The best solution is usually a rotary dryer specifically modified for clay. These dryers incorporate special internal designs and operational strategies to handle stickiness and fine dust effectively, ensuring efficient drying without product degradation.

Dealing with bentonite and kaolin presents unique hurdles compared to other minerals. Understanding these challenges is the first step toward finding the right drying solution.

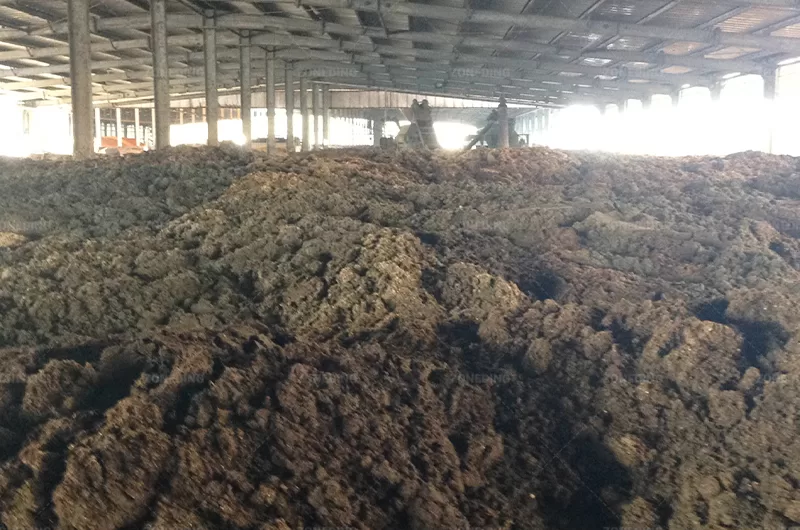

What Makes Drying Bentonite and Kaolin Difficult? (Are Stickiness and Dust the Key?)

Key Drying Challenges for Bentonite and Kaolin

Challenge	Description	Consequence
High Stickiness	Wet clay adheres strongly to surfaces.	Dryer blockages, reduced efficiency, cleaning downtime.
Fine Dust	Dried material is very fine and light.	High dust load, difficult collection, product loss, pollution.
Bound Water	Contains water tightly held within structure.	Requires sufficient temperature and time, not just airflow.
Heat Sensitivity	Properties (e.g., bentonite swelling) damaged by overheating .	Product quality degradation, loss of value.
Abrasiveness	May contain abrasive impurities like quartz.	Wear on dryer internals and handling equipment.
Variable Feed	Moisture content and consistency can fluctuate.	Requires robust process control.

Which Type of Dryer is Best Suited for Bentonite and Kaolin? (Is a Rotary Dryer the Only Option?)

Many dryer types exist in the market. Choosing the wrong one leads to inefficiency and poor results. A specific type usually performs much better for challenging materials like clay.

Specially designed direct-heat rotary dryers are generally the most suitable and widely used option. Their robustness, ability to handle lumpy/sticky feed (with modifications), and capacity make them ideal, though not strictly the only possibility.

At ZONEDING MACHINE, rotary dryers offer the best balance of features for bentonite and kaolin. The rotary dryer can handle large throughputs common in mining and aggregate operations. Its design is inherently robust and can tolerate variations in feed consistency better than some other types. With the right internal modifications,the rotary dryer can manage the stickiness effectively.

Rotary dryers can also be designed for different heating methods. Direct heating, where hot gases mix with the material, is common and energy-efficient. Indirect heating, where heat transfers through the drum shell or internal tubes, can be used for high-purity products but is less efficient and more expensive.

Other dryer types exist, but often face limitations with clays. Fluidized bed dryers struggle with the sticky nature and wide particle size distribution of raw clay feed. Flash dryers require the material to be well-dispersed and are better suited for materials that dry very quickly, which isn’t always the case for removing bound water in clays. Therefore, the rotary dryer remains the primary choice for most bentonite and kaolin drying applications due to its versatility and proven performance.

Dryer Type Comparison for Clay

Dryer Type	Suitability for Clay	Key Advantages	Key Disadvantages
Rotary Dryer	High (with modifications)	Robust, high capacity, handles feed variations	Requires anti-sticking design, large footprint
Fluidized Bed	Low to Medium (needs pre-treatment)	Good heat transfer, good mixing	Difficult with sticky/lumpy feed, dust control needed
Flash Dryer	Low (usually needs pre-dispersion)	Fast drying, small footprint	Feed must be fine/dispersed, short residence time
Indirect Rotary	Medium (for high purity)	No product contamination from flue gas	Lower efficiency, higher cost, potential scaling

What Special Designs Does an Ideal Dryer Need for Clay Properties? (How to Prevent Sticking?)

Ideal dryers need features like specially shaped anti-sticking lifting flights, sometimes combined with chain scrapers or knockers. Modifications at the feed inlet and effective pre-treatment like back-mixing are also critical.

Preventing material buildup is paramount when drying sticky clays.

• Standard lifting flights (lifters) in rotary dryers quickly become coated, reducing their ability to shower material through the hot gas stream and leading to blockages. The design of the lifting flights themselves is crucial . The angled flights or combinations can minimize flat surfaces where material can accumulate. In particularly problematic zones, like the feed end, using chain curtains hanging within the drum. These chains drag through the material bed, breaking up clumps and scraping surfaces clean.
• Mechanical knockers are installed on the outside of the shell to vibrate the drum and dislodge buildup.
• Equally important is the feed end design. A smooth transition for the wet material into the hot zone, minimizes areas where initial sticking can occur. the most effective strategy often starts before the dryer. Implementing a system to mix the incoming wet clay with a controlled amount of already dried product (back-mixing or recycle) significantly reduces the overall stickiness of the feed entering the dryer. The choice of materials for the dryer shell and flights also plays a role; using wear-resistant materials is important if the clay contains abrasive particles like quartz.

Anti-Sticking Features for Clay Dryer

Feature	Description	Purpose
Special Lifting Flights	Non-parallel sides, specific angles, combinations (e.g., angle + channel).	Reduce surface area for sticking, promote shedding.
Chain Curtains/Scrapers	Chains hanging/dragging inside the drum, especially near feed end.	Break lumps, scrape shell and lifter surfaces.
Drum Knockers	External hammers periodically striking the dryer shell.	Vibrate shell to dislodge buildup.
Optimized Feed Chute	Smooth, steep design for material entry.	Prevent initial buildup at the inlet.
Feed Pre-treatment	Mixing wet feed with dry recycle before entering dryer.	Dramatically reduce overall feed stickiness.
Material Selection	Wear-resistant liners or flights in high-wear areas.	Resist abrasion from impurities like quartz.

How to Precisely Control Final Moisture Without Damaging Material Properties?

Precise control requires managing heat input, airflow rate, and material retention time. Using reliable online moisture sensors for feedback and feedforward control is key to maintaining target moisture and preventing overheating

Achieving the target final moisture content consistently, while preserving the clay’s inherent properties, is a delicate balancing act. We need to supply enough energy to evaporate the water, including the stubborn bound water, but not so much heat or for so long that we damage the material structure, especially with sensitive clays like sodium bentonite. The key control variables are the temperature of the hot gas entering the dryer, the volume of airflow carrying the heat and moisture away, and the time the material spends inside the dryer (retention time), which is mainly controlled by the drum’s rotation speed and slope.

Modern systems, like those ZONEDING can provide, utilize sophisticated controls. Instead of just setting a fixed temperature, implement temperature profiles, perhaps higher at the feed end and lower towards the discharge. Crucially, installing reliable online moisture sensors (e.g., near-infrared or microwave types) at the dryer outlet allows for real-time monitoring. This data can be fed back to the control system (PLC) to automatically adjust the burner output (heat) or even the feed rate (retention time) to maintain the final moisture within a very narrow target range, compensating for variations in the incoming feed moisture. This level of automation is vital for consistent quality and preventing detrimental over-drying.

Parameters for Moisture Control

Parameter	Control Method	Impact on Drying	Key Consideration
Hot Gas Temperature	Burner output adjustment.	Primary driver for evaporation rate.	Avoid overheating, especially discharge end.
Airflow Rate	Fan speed control (VFD).	Carries heat in, moisture out; affects gas velocity.	Balance heat supply and dust entrainment.
Retention Time	Drum rotation speed, drum slope, dam rings.	Duration material is exposed to heat.	Ensure sufficient time for bound water removal.
Feed Rate	Feeder speed adjustment.	Amount of material entering the dryer per unit time.	Must match dryer’s evaporative capacity.
Feedback Control	Outlet moisture sensor linked to PLC.	Automatic adjustments to maintain target moisture.	Sensor accuracy and reliability.

What are Practical Ways to Reduce Energy Consumption for Bentonite/Kaolin Drying?

Practical ways include ensuring good insulation and seals, optimizing airflow and temperature settings, using efficient burners, potentially recovering waste heat from exhaust gases, and managing feed moisture effectively before drying.

• Reducing the energy needed to dry bentonite and kaolin is crucial for cost-effective operation. Several strategies contribute to energy efficiency.
  • Firstly, the dryer itself should be well-insulated to minimize heat loss to the surroundings. Equally important are effective seals at the feed and discharge ends. Air leaking into the dryer cools the process, while hot gas leaking out wastes energy and can create dust issues.
  • Secondly, optimizing the drying parameters is key. This means finding the right balance between air temperature and airflow – avoiding excessive temperatures or unnecessarily high airflow rates that just carry heat out the stack. Efficient combustion in the burner ensures maximum heat release from the fuel.

• Further savings can often be achieved through waste heat recovery. The hot exhaust gases leaving the dryer contain significant energy. This heat can sometimes be captured using heat exchangers to preheat the incoming combustion air or even the wet feed material, reducing the primary fuel requirement. Managing the feed is also important. While mechanical dewatering is often difficult for clays, any reduction in feed moisture before thermal drying saves energy. Optimizing the back-mixing ratio is also relevant; excessive recycle increases the total load on the dryer and consumes more energy. Using variable speed drives (VFDs) on fans and the drum motor allows for fine-tuning airflow and retention time, matching energy use to actual process needs.

Energy Saving Techniques for Clay Dryers

Technique	Description	Benefit
Insulation	Thick layer on dryer shell and ductwork.	Reduces heat loss to atmosphere.
Effective Seals	High-quality seals at feed and discharge ends.	Prevents cold air in-leakage, hot gas escape.
Parameter Optimization	Balancing temperature, airflow, retention time.	Avoids excessive energy use per unit water.
Efficient Combustion	Proper air/fuel ratio, modern burner design.	Maximizes heat release from fuel.
Waste Heat Recovery	Using exhaust gas heat to preheat air or feed.	Reduces primary fuel consumption.
Feed Moisture Management	Reducing water content before thermal drying (if possible).	Less water to evaporate = less energy needed.
VFDs on Motors	Variable speed control for fans and drum drive.	Matches energy use to process demand precisely.
Optimized Back-Mixing	Using the minimum effective recycle ratio.	Reduces unnecessary load on the dryer.

How to Choose and Configure a Dust Collection System for Efficient Fine Powder Handling?

High-efficiency fabric filters (baghouses), often pulse-jet cleaned, are typically required. Filter media selection, air-to-cloth ratio, and cleaning cycle parameters are critical for handling fine, potentially sticky clay dust effectively.

Managing the fine, light dust produced when drying bentonite and kaolin is a major challenge. Standard cyclone separators alone are often insufficient because they struggle to capture very small particles (<10-20 microns). While cyclones can be used as pre-collectors to remove coarser particles and reduce the load on the final filter, a high-efficiency secondary collector is almost always necessary. Fabric filters, commonly known as baghouses, are the standard solution. Pulse-jet baghouses are widely used, employing blasts of compressed air to clean the filter bags.

However, simply choosing a baghouse isn’t enough. The details are critical for clay dust. The filter media (bags) must be chosen carefully. Materials like PTFE membrane laminated onto a base fabric offer excellent efficiency and good dust cake release, which is important for potentially sticky dust. Anti-static properties may be needed if static electricity is an issue . The air-to-cloth ratio (the volume of air passing through a unit area of filter media) must be conservative (low) to prevent dust from becoming embedded in the filter material (‘blinding’ or ‘plugging’). The intensity and frequency of the cleaning pulses also need careful adjustment to effectively remove the dust cake without causing excessive wear or allowing dust to pass through during the cleaning cycle (‘re-entrainment’).

Dust Collection System Considerations for Clays

Parameter / Component	Importance for Clay Dust	Key Considerations
Collector Type	High efficiency needed for fine particles.	Baghouse usually required; cyclone often used as pre-collector.
Filter Media (Bags)	Needs high efficiency and good dust release.	PTFE membrane, possibly anti-static treatment, appropriate temperature rating.
Air-to-Cloth Ratio	Affects filter velocity, pressure drop, blinding potential.	Must be conservative (low) for fine/light dust.
Cleaning System	Must effectively remove dust cake without damaging bags or causing leaks.	Pulse-jet parameters (pressure, duration, frequency) need optimization.
Dust Discharge	Collected dust must be removed reliably.	Rotary valves, screw conveyors sized for expected load.
System Design	Ductwork velocity, potential for condensation or buildup.	Maintain adequate transport velocity; insulation if condensation risk.
Explosion Protection	Generally low risk for pure clay, but consider if organic materials present.	Assess risk; implement venting or suppression if needed.

What Parameters and Indicators are Most Important When Buying a Bentonite/Kaolin Dryer?

The most important parameters are the required processing capacity (throughput), the initial and target final moisture contents, material characteristics (stickiness, particle size, abrasiveness), available fuel type, and environmental emission limits.

Spec./m (Dia.×Length)	Shell Cubage (m³)	Capacity (t/h)	Installation Obliquity(%)	Highest Inlet Air Temperature(℃)	Main Motor (kw)	Weight (t)
Φ1.2×8.0	9.0	1.9～2.4	3～5	700～800	7.5	9
Φ1.2×10	11.3	2.4～3.0	3～5	700～800	7.5	11
Φ1.5×12	21.2	4.5～5.7	3～5	700～800	15	18.5
Φ1.5×14	24.7	5.3～6.6	3～5	700～800	15	19.7
Φ1.5×15	26.5	5.7～7.1	3～5	700～800	15	20.5
Φ1.8×12	30.5	6.5～8.1	3～5	700～800	18.5	21.5
Φ1.8×14	35.6	7.6～9.5	3～5	700～800	18.5	23
Φ2.2×12	45.6	9.7～12.2	3～5	700～800	22	33.5
Φ2.2×14	53.2	11.4～14.2	3～5	700～800	22	36
Φ2.2×16	60.8	13.0～16.2	3～5	700～800	22	38
Φ2.4×14	63.3	13.5～16.9	3～5	700～800	37	45
Φ2.4×18	81.4	17.4～21.7	3～5	700～800	37	49
Φ2.4×20	90.4	19.3～24.1	3～5	700～800	45	54
Φ2.4×22	99.5	21.2～26.5	3～5	700～800	45	58
Φ2.6×24	127.4	27.2～34.0	3～5	700～800	55	73
Φ3.0×20	141.3	30.1～37.7	3～5	700～800	75	85
Φ3.0×25	176.6	37.7～47.1	3～5	700～800	75	95
Φ3.2×25	201	42.9～53.6	3～5	700～800	90	110
Φ3.6×28	285	60.8～76.0	3～5	700～800	160	135

several key pieces of information are essential for designing the right machine.

• Firstly, need to know the processing capacity, usually stated in tons per hour of either wet feed or dry product.
• Secondly, the moisture content is critical: both the typical and maximum moisture of the feed material, and the precise target moisture content for the final product. Be specific about the final moisture, as achieving 1% is very different from achieving 5%.
• Thirdly, the material properties are vital. Consider how sticky is the wet clay and what is the particle size distribution of the feed and the desired product. and also consider if the clay contain significant amounts of abrasive materials like quartz. These factors heavily influence the dryer’s design, internal components, and materials of construction.
• Fourth, we need to know the fuel type available and its cost at your site (e.g., natural gas, coal, biomass, diesel), as this affects the burner selection and operating cost.
• Finally, environmental regulations regarding dust emissions and potentially flue gas components (like NOx) must be specified so the dust collection system and overall design meet local requirements. Understanding these key parameters allows us to offer a tailored, efficient solution.

Key Parameters for Dryer Selection

Parameter	Why It’s Important	Information Needed
Capacity (Throughput)	Determines the physical size (diameter, length) of the dryer.	Tons per hour (specify wet feed or dry product basis).
Moisture Content	Dictates the amount of water to be evaporated, impacting energy needs and size.	Initial % (average and max), Target final % (precise value).
Material Characteristics	Influences internal design (flights, anti-sticking), materials, dust collection.	Stickiness index, particle size (feed/product), abrasiveness (e.g., SiO₂ %).
Temperature Sensitivity	Prevents product degradation.	Maximum allowable product temperature.
Fuel Type & Availability	Affects burner selection, operating cost, potential emissions.	Type (gas, oil, coal, etc.), cost, supply reliability.
Emission Limits	Determines requirements for dust collection and possibly flue gas treatment.	Local regulations for particulate matter (mg/Nm³), NOx, SOx etc.
Site Conditions	Space availability, altitude, ambient temperature/humidity.	Layout constraints, impact on fan sizing and drying efficiency.

What Long-Term Operating Costs Should Be Considered When Investing in a Dedicated Dryer

Major long-term costs include fuel consumption, electricity usage, regular maintenance (including wear parts like seals and flights, and cleaning labor), spare parts inventory, and potential production losses due to downtime.

Investing in a dedicated dryer for bentonite or kaolin involves ongoing expenses beyond the initial capital investment. Understanding these operating costs (OpEx) is crucial for accurate financial planning.

• The largest single operating cost is typically fuel. The dryer’s thermal efficiency directly impacts this cost.
• Electricity is consumed by the main drive motor, fans (combustion air, exhaust), feeders, and conveyors.
• Maintenance is another significant factor. This includes routine lubrication, inspection, and replacement of wear parts. For clay dryers, seals at the feed and discharge ends are critical wear items; worn seals cause energy loss and dust leaks. Internal components like lifting flights or liners may need replacement due to abrasion.
• Don’t underestimate the cost of labor for operation and, particularly, for cleaning if the dryer design or pre-treatment is inadequate, leading to frequent buildup.
• Holding an inventory of critical spare parts also ties up capital.
• Finally, downtime represents a major hidden cost. Every hour the dryer is down for unplanned maintenance or cleaning is an hour of lost production and revenue. Choosing a robust, well-designed dryer optimized for your specific clay, like those from ZONEDING, and implementing proper pre-treatment can significantly reduce maintenance needs and costly downtime. Our full-service support also helps minimize operational issues.

Breakdown of Long-Term Operating Costs

Cost Category	Components	Factors Influencing Cost
Energy	Fuel (gas, oil, coal, etc.), Electricity (motors, fans).	Dryer efficiency, fuel price, electricity tariff, operating hours.
Maintenance	Lubricants, Wear parts (seals, flights, liners, bearings), Cleaning labor.	Dryer design robustness, material abrasiveness, operating conditions.
Labor	Operator supervision, Routine checks, Cleaning (if frequent).	Level of automation, dryer design (ease of cleaning), feed preparation.
Spare Parts	Inventory holding costs for critical components (seals, bearings, drive parts).	Manufacturer support, component lead times, criticality of operation.
Downtime	Lost production revenue during planned and unplanned stops.	Dryer reliability, maintenance planning, effectiveness of anti-sticking design.
Consumables	Filter bags for dust collector.	Dust load, cleaning frequency, bag material quality.
Compliance	Emission monitoring, reporting.	Local environmental regulations.

What Are the Advantages of ZONEDING MACHINE Bentonite (Kaolin) Dryer？

Evaluate potential manufacturers based on their specific, proven experience with bentonite and kaolin, their engineering and customization capabilities, manufacturing quality, technical support, customer references, overall value, and reliable after-sales service.

When searching for a bentonite or kaolin dryer supplier, it’s important to look beyond just the price tag. You need a partner with the right expertise. Ask potential manufacturers, including ZONEDING MACHINE, for specific examples and case studies of dryers they have successfully supplied for similar clay materials.

• Evaluate engineering capability. ZONEDING MACHINE can customize the dryer design based on your specific feed material analysis and requirements. As a manufacturer with in-house engineering since 2004, ZONEDING excels at customization.
• Assess the manufacturing quality. With high-quality materials used, welding standards, and overall robust construction structure, ZONEDING offers factory direct sales,and can provide better value and direct communication with the manufacturing source.
• Consider the level of technical support offered – from initial design consultation through installation, commissioning, and operator training.
• Ask for customer references and, if possible, visit existing installations. ZONEDING has exported machine to more than 120 countries.
• Finally, evaluate the after-sales service. ZONEDING MACHINE offers good warranty terms and the availability and cost of spare parts. A reliable long-term partner provides ongoing support, which is crucial for minimizing downtime and maximizing the lifespan of your investment.

Criteria for Evaluating Dryer Manufacturers

Evaluation Criterion	ZONEDING Strength
Clay-Specific Experience	Extensive experience since 2004 in mineral processing equipment.
Engineering Capability	Strong in-house engineering team, focus on customization.
Manufacturing Quality	Advanced manufacturing facility, factory direct sales ensure quality control.
Technical Support	Full-service support provider (design, build, install, train, maintain).
Technology Offered	Offers specialized designs, modern control options.
After-Sales Service	Global presence (120+ countries), established service network.
Price & Value	Factory direct pricing offers competitive value.
Company Stability	Established in 2004, significant production capacity and global reach.

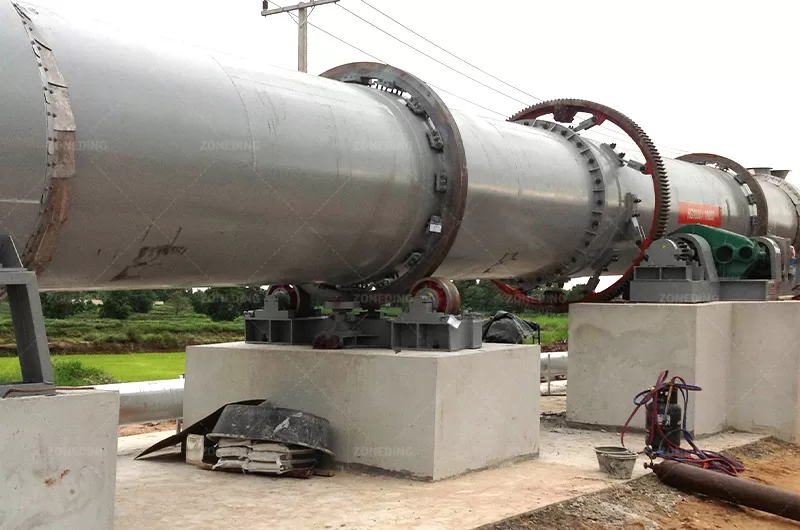

Customer Case
