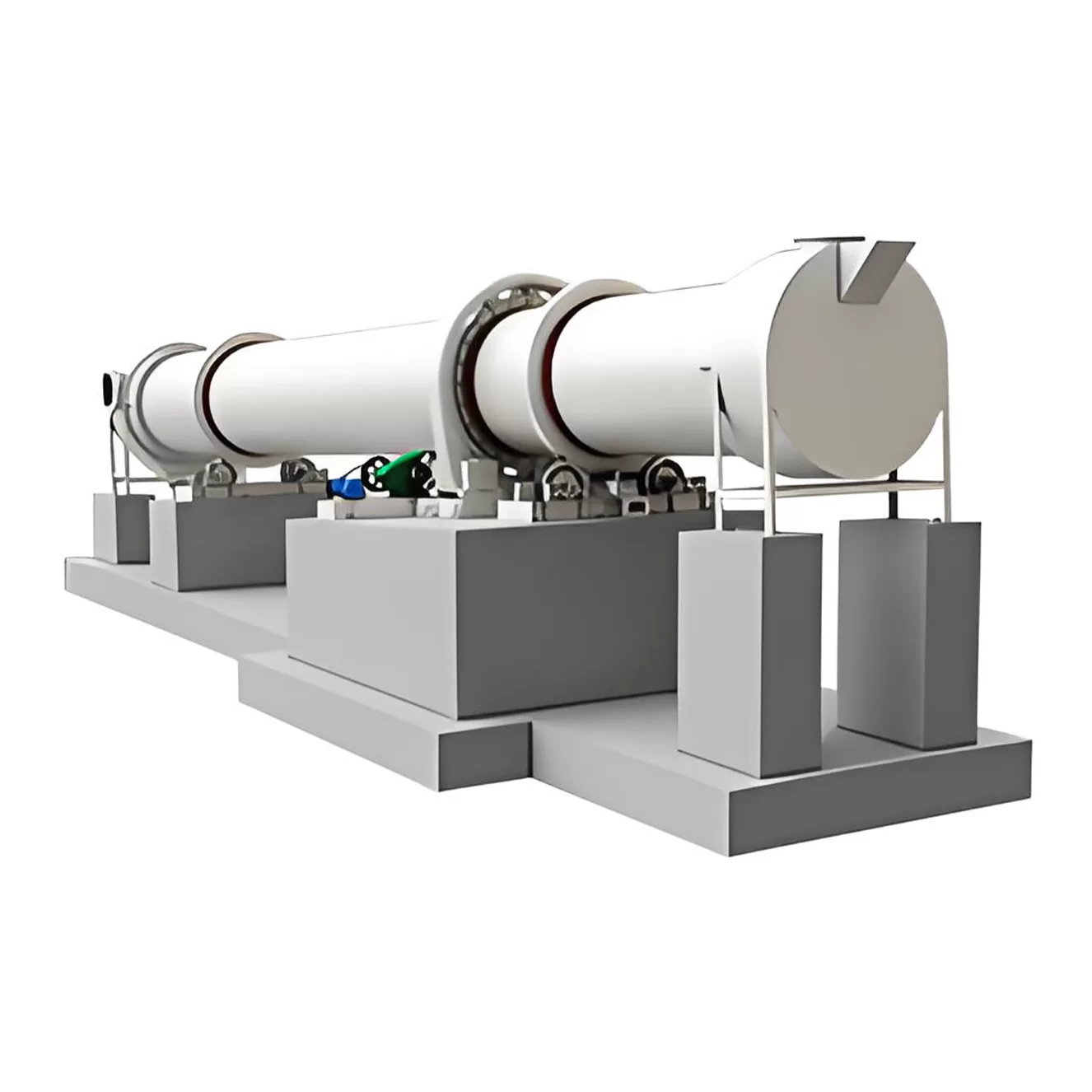

Drum dryer, including single drum dryers, have strong material adaptability and are widely used in various industries, offering advantages like simple operation, dust prevention, sealing, and maintenance, and can be configured as standalone units or complete systems.
A rotary drum dryer is essentially a rotating cylinder that uses hot gas to dry bulk materials fed into it. In mineral processing, it dries ores, concentrates, coal, sand, and limestone, improving handling, storage, and downstream process efficiency.


Rotary dryers are fundamental in many industrial processes, especially where bulk materials need moisture reduction. They consist of several key parts working together. The main body is a large, cylindrical shell, slightly inclined to help material flow from the feed end to the discharge end as it rotates. Inside the shell, lifters (or flights) are attached. These pick up the material and shower it down through the stream of hot gas passing through the drum. A drive system rotates the drum at a controlled speed. A heat source (like a burner using gas, oil, or coal) generates the hot gas, and fans manage the airflow. Seals at both ends minimize air leakage and dust escape. In mineral processing, their role is critical. They prepare materials for smelting, further concentration, screening, or simply make them easier and cheaper to transport. Dry material flows better, prevents freezing or clumping, and meets quality specifications for sale or subsequent processes.
Drum Shell: The main rotating cylinder.
Lifters (Flights): Internal plates lifting and showering material.
Drive System: Motor, gearbox, and support rollers (trunnions) to rotate the drum.
Heat Source: Burner or furnace providing hot gas.
Feed and Discharge Chutes: Introduce wet material and remove dry product.
Seals: Minimize air leakage at feed and discharge ends.
Support Structure: Frame holding the drum and drive.





It works by lifting material with internal flights and showering it through hot gas flowing inside the drum. Direct contact (convection) and heat from the drum shell (conduction/radiation) evaporate the moisture effectively.

The process relies on maximizing contact between the wet material and the hot drying medium (usually air or flue gas). As the drum rotates, the internal lifters pick up the material along the bottom. When the lifters reach a certain angle, the material cascades, or showers, down through the interior volume of the drum. This showering action creates a “curtain” of material. The hot gas flows through this curtain, transferring heat directly to the particles primarily through convection. This is the most significant mode of heat transfer in most direct-heat rotary dryers. Additionally, heat is transferred to the material when it’s in contact with the hot drum shell (conduction) and through heat radiating from the hot gas and the shell itself (radiation). The heat absorbed by the material increases the vapor pressure of the water it contains. When the vapor pressure exceeds that of the surrounding air, the water evaporates and is carried away by the airflow. The efficiency of this process depends heavily on how well the lifters create the material curtain and how effectively the hot gas flows through it.
The design and arrangement of lifters are critically important for drying efficiency, maybe even more so than just the gas temperature. Good lifter design maximizes the material curtain, ensuring good gas-solid contact. Poor design lets gas bypass the material, wasting huge amounts of energy. Different materials need different lifter designs. Sticky materials need designs that prevent build-up, while fragile materials need gentle lifting. Worn or missing lifters drastically cut heat transfer, even if temperature readings seem okay. We always emphasize calculating lifter design based on the specific material’s properties.
The effectiveness depends on the gas velocity, temperature, and humidity, as well as the material’s residence time inside the dryer. The goal is to provide enough heat and time to remove the desired amount of moisture without overheating the material.
| Single Drum Dryer | Three Drum Dryer | |
| Diameter of Outer Cylinder(m) | 1.2-3.6 | 2.5-3.6 |
| Length(m) | 8.0-28.0 | 7.0-8.0 |
| Volume(m³) | 9.0-285.0 | 16.63-81.38 |
| Capacity(T/H) | 1.9-76.0 | Yellow Sand:25-70 Slag: 20-65 |
There are types of drum dryer like single drum dryer, double drum one, three-drum one, and air-flow dryer, etc. Two of mostly used drying machines are compared here. Hope it arises a little help. From this table, it is clear that:
1> Three Drum Dryer takes less space but a better utilization of the heat;
2> Three Drum Dryer is of lower energy consumption than a single drum dryer when they take the same space;
3> Single Drum Dryer is of larger capacity and lower price;
4> Single Drum Dryer is easier operated and maintained.

Direct dryers mix hot gas directly with the material being dried. Indirect dryers heat the drum shell externally, keeping the heating medium separate from the material. Choose direct for robust materials; indirect for heat-sensitive or contamination-averse ones.
%Comparison diagram of direct vs indirect dryer
The key distinction lies in how heat is delivered to the material. In a direct-heat rotary dryer, the hot gases produced by a burner or furnace flow directly through the drum in contact with the material. This allows for very efficient heat transfer (mostly convection), making direct dryers generally more thermally efficient and often less expensive initially. They are suitable for materials that are not heat-sensitive and won’t be contaminated or negatively affected by the products of combustion (like ores, coal, sand, limestone).
In an indirect-heat rotary dryer, the rotating drum is enclosed in an outer shell or heated externally by a furnace or steam jacket. The heat transfers through the drum shell wall to the material inside (mostly conduction and radiation). The drying atmosphere inside the drum can be air or an inert gas, which doesn’t mix with the combustion gases. This design is used when the material must not contact combustion products, is very fine and might get carried away by high gas flow, is heat-sensitive, or needs to be dried in a controlled atmosphere. Indirect dryers are typically less thermally efficient and have higher capital costs but offer product purity and protection.
Within direct dryers, gas flow relative to material flow is also crucial. Counter-current flow (hot gas enters at the discharge end, material at the feed end) is usually the most thermally efficient because the hottest gas meets the driest material, maximizing the temperature difference along the dryer length. Co-current flow (gas and material enter the same end) exposes the wettest material to the hottest gas. This provides faster initial drying and a lower exit temperature for the material, which is better for heat-sensitive products. Co-current flow can also be safer for materials with explosion risks (like fine coal) because the initial moisture cools the hot gas inlet area. Don’t just default to counter-current for efficiency; consider material sensitivity and safety first.
| Feature | Direct Heat Dryer | Indirect Heat Dryer |
|---|---|---|
| Heat Transfer | Hot gas directly contacts material | Heat transfers through the drum shell |
| Efficiency | Generally Higher Thermal Efficiency | Generally Lower Thermal Efficiency |
| Contamination | Risk of contact with combustion products | No contact with combustion products |
| Product Suitability | Robust, non-sensitive materials (ores, coal) | Heat-sensitive, contamination-risk, fine materials |
| Gas Flow | High volume, carries away moisture | Lower internal gas flow, separate heating medium |
| Initial Cost | Generally Lower | Generally Higher |
| Complexity | Simpler design | More complex construction (outer shell/jacket) |
Choosing depends entirely on your material’s properties and process requirements.
The machine executes a simple physical heat transfer process. The front heating furnace generates a massive volume of hot air. The rear draft fan creates negative air pressure inside the main steel tube. This fan pulls the hot fire vapor through the entire machine length. You feed wet crushed rock into the front feeding box.
Thick internal steel plates lift the wet material. The plates drop the material through the empty center space. Millions of falling particles create a dense falling curtain. The hot air stream hits this falling material curtain. The extreme heat forces the liquid water to boil. The liquid water transforms into invisible steam. The strong air current carries the steam toward the rear exhaust port. The dry material travels along the bottom steel surface. The dry material exits through the bottom discharge flap. You regulate the drum rotation speed to change the heating time. A slower drum speed creates a drier final product.
Concrete block factories utilize many different loose raw materials. An industrial rotary dryer handles almost any loose aggregate. A specialized Fly ash rotary drying machine prepares power plant waste. Power plants generate millions of tons of wet ash. You dry this ash to mix into lightweight concrete blocks. A dedicated Clay brick raw material dryer prepares wet sticky earth.
Red brick factories need dry clay powder to press tight shapes. The massive machine processes wet crushed limestone from local quarries. The equipment handles wet coal slag from steel mills. Different raw materials require different internal steel plate designs. Heavy rocks need very thick impact metal plates. Light fly ash needs thin spreading metal plates. Sticky wet clay requires flexible chain curtain attachments. You provide the material specifications to the manufacturer. Engineers design the correct internal geometry. You process your specific local waste materials. You turn cheap waste products into highly profitable construction bricks.
Wet clay sticks firmly to flat bare steel surfaces. Engineers weld angled steel flights inside the rotating drum. These metal shelves lift the wet sticky material. The massive drum rotates. The material reaches the top inside section. Gravity pulls the heavy material down. The hard impact breaks the mud clumps apart.
The hot burner air dries the outside surface of the broken clump instantly. A dry mud surface prevents further sticking. The drum walls remain clean. ZONEDING engineers design special self-cleaning flexible plates. Heavy steel chains hang between the lifting flights. The drum turns. The chains scrape the wet mud off the steel walls. The continuous scraping action keeps the drum passage open. You process high moisture sticky clay without jamming the machine. You avoid sending workers inside the hot drum with shovels. The equipment cleans itself during standard operation. You maintain daily factory production targets.

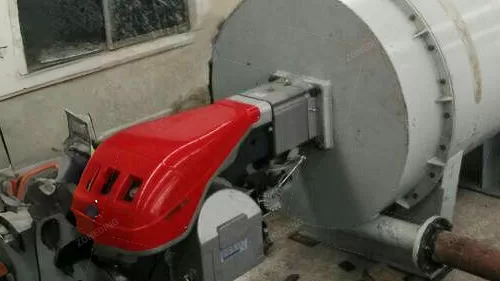

Industrial furnace burners consume massive fuel volumes. Factory owners monitor Drum dryer energy consumption daily. Heating fuel represents the largest daily factory operating expense. You must select the cheapest local fuel source. Natural gas produces a very clean fire flame. Natural gas costs top dollar in many regions. Waste coal provides cheap heat in mining districts.
Coal operations require automated ash removal systems. Wood pellets offer renewable energy near large forests. You inform the ZONEDING engineers about your fuel choice. The factory builds a custom combustion chamber for your site. The correct burner geometry maximizes the heat output. You extract the total energy value from every piece of fuel. You can alter the burner box in the future. Fuel prices change over a decade. Mechanics exchange the front furnace section. You switch from expensive gas to cheap coal. You protect your long term brick manufacturing profits.
A standard rotary drum features distinct moving joints. The spinning steel cylinder meets the stationary end caps. Huge air gaps form at these mechanical joints. Cold factory air rushes into these poor seals. Hot thermal air escapes into the factory room. This heat loss drives fuel bills up.
ZONEDING block machine engineers utilize multi-layer steel sealing technology. Overlapping stainless steel leaves cover the circular gaps. These metal leaves look like fish scales. Graphite friction blocks reduce the metal rubbing wear. Heavy metal springs push the plates tight against the spinning drum ring. The heat stays trapped inside the thick steel shell. The internal temperature remains highly stable. The factory gas meter spins slower. Your daily operating costs drop. Good seals keep the loud machine noise inside the drum. The surrounding factory floor remains quiet. Factory workers experience better daily working conditions. You pass local industrial safety noise inspections.
Rotating dry material generates thick fine dust clouds. City officials inspect factory air quality regularly. You must filter the exhaust air before outdoor release. A primary cyclone tower catches the large heavy particles. The dirty air spins inside a metal cone. Gravity pulls the heavy sand down to the bottom valve.
A secondary pulse bag filter catches the microscopic fine dust. Exhaust fans pull the remaining air through fabric tubes. The fabric traps the tiny dirt particles. Clean transparent air exits the final chimney stack. High pressure air blasts clean the fabric bags every hour. You avoid expensive city government pollution fines. You recycle the collected dry dust back into the concrete mixer. Fly ash dust strengthens concrete brick mixtures. You turn hazardous airborne waste into a usable building material. The dust collection plant protects worker lung health. Your factory meets international environmental protection standards.
Large mechanical metal parts require daily physical lubrication. A massive steel gear ring surrounds the thick drum exterior. Smaller steel pinion gears turn this massive outer ring. Factory workers apply heavy grease to these gear teeth daily. Four thick steel rollers support the entire drum weight.
Mechanics monitor the steel roller bearings. You align the support rollers using heavy industrial wrenches. Proper roller alignment stops the drum from sliding downward. A sliding drum destroys the end cap seals. Workers tighten the exterior frame bolts. Operators clean the electric motor cooling fins. Routine physical maintenance prevents sudden factory equipment shutdowns. ZONEDING provides simple lubrication schedule wall charts. Your maintenance workforce follows specific simple daily steps. You avoid shipping heavy broken gears back to the manufacturer. The machine runs for decades with correct oiling procedures. Preventative maintenance keeps your brick output calendar on track.
Factory investors demand accurate equipment pricing data. The Continuous rotary drum dryer price depends on the exact steel weight. A small model processes ten tons per hour. A massive commercial unit processes eighty tons per hour. Heavy capacity requires larger diameter steel tubes. Thicker manganese steel plates increase the total invoice.
Advanced automatic gas burners increase the equipment price. Premium pulse bag dust collectors add hardware costs. Complete industrial drying plants cost between twenty thousand and ninety thousand dollars. You buy equipment direct from the Chinese factory floor. You eliminate middleman trading company fees. You request a detailed itemized price sheet from the engineers. The factory lists the price of every motor and steel plate. You calculate the exact return on your heavy capital investment. Fast block production pays off the machine debt in six months. You secure your company financial future.
ZONEDING manufactures heavy mining machinery since 1990. The company operates an eight thousand square meter industrial workshop. Large CNC cutting tools shape the thick steel plates. Fifteen senior engineers design custom brick factory layouts. The enterprise offers a complete production line solution. The factory builds concrete block presses and raw material dryers.
Your entire plant equipment comes from one source. Both machine control systems communicate harmoniously on the factory floor. The control panel synchronizes the dryer output with the block machine input. The company exports heavy industrial machines to 120 countries. You receive dedicated lifelong technical support. You call one specific phone number for parts. The factory tests the entire assembly line before overseas shipping. You receive reliable iron machinery built for dirty environments. Superior engineering keeps your brick orders shipping to clients.
Heavy machinery demands professional physical assembly. A poorly installed drum shakes violently. A shaking machine breaks expensive steel gear teeth. ZONEDING dispatches mechanical engineers to your international construction site. The company expert checks your poured concrete floor foundations. The expert directs the crane operators lifting the heavy drum section. Technicians align the heavy gears using precision laser tools.
Electricians connect the thick copper power cables to the control box. The team runs the hot burner for three continuous test days. Factory technical instructors teach your local workers. The operators learn routine grease maintenance steps. The workers practice emergency shutdown procedures. You avoid dangerous industrial accidents. Your local workforce gains confidence running massive equipment. The block plant begins commercial production on the scheduled date. ZONEDING ensures a successful factory startup process.
| Spec./m (Dia.×Length) | Shell Cubage (m³) | Capacity (t/h) | Installation Obliquity(%) | Highest Inlet Air Temperature(℃) | Main Motor (kw) | Weight (t) |
| Φ1.2×8.0 | 9.0 | 1.9~2.4 | 3~5 | 700~800 | 7.5 | 9 |
| Φ1.2×10 | 11.3 | 2.4~3.0 | 3~5 | 700~800 | 7.5 | 11 |
| Φ1.5×12 | 21.2 | 4.5~5.7 | 3~5 | 700~800 | 15 | 18.5 |
| Φ1.5×14 | 24.7 | 5.3~6.6 | 3~5 | 700~800 | 15 | 19.7 |
| Φ1.5×15 | 26.5 | 5.7~7.1 | 3~5 | 700~800 | 15 | 20.5 |
| Φ1.8×12 | 30.5 | 6.5~8.1 | 3~5 | 700~800 | 18.5 | 21.5 |
| Φ1.8×14 | 35.6 | 7.6~9.5 | 3~5 | 700~800 | 18.5 | 23 |
| Φ2.2×12 | 45.6 | 9.7~12.2 | 3~5 | 700~800 | 22 | 33.5 |
| Φ2.2×14 | 53.2 | 11.4~14.2 | 3~5 | 700~800 | 22 | 36 |
| Φ2.2×16 | 60.8 | 13.0~16.2 | 3~5 | 700~800 | 22 | 38 |
| Φ2.4×14 | 63.3 | 13.5~16.9 | 3~5 | 700~800 | 37 | 45 |
| Φ2.4×18 | 81.4 | 17.4~21.7 | 3~5 | 700~800 | 37 | 49 |
| Φ2.4×20 | 90.4 | 19.3~24.1 | 3~5 | 700~800 | 45 | 54 |
| Φ2.4×22 | 99.5 | 21.2~26.5 | 3~5 | 700~800 | 45 | 58 |
| Φ2.6×24 | 127.4 | 27.2~34.0 | 3~5 | 700~800 | 55 | 73 |
| Φ3.0×20 | 141.3 | 30.1~37.7 | 3~5 | 700~800 | 75 | 85 |
| Φ3.0×25 | 176.6 | 37.7~47.1 | 3~5 | 700~800 | 75 | 95 |
| Φ3.2×25 | 201 | 42.9~53.6 | 3~5 | 700~800 | 90 | 110 |
| Φ3.6×28 | 285 | 60.8~76.0 | 3~5 | 700~800 | 160 | 135 |
| Shell diameter ×shell Length Items | Inside diameter of outer shell (mm) | Inside diameter of inner shell (mm) | Shell Length (m) | Shell cubage (m³) | Shell obliquity | Lifting blade form | Highest inlet air temperature (℃) | Dimensions (m) |
| Φ1.5×15m | 1500 | 500 | 15 | 20.27 | 3-5% | Lifting form | 850 | 16.2×2.7×2.7 |
| Φ1.5×17m | 17 | 22.97 | 18.2×2.7×2.7 | |||||
| Φ1.5×19m | 19 | 25.68 | 20.0×2.9×2.9 | |||||
| Φ1.8×21m | 1800 | 650 | 21 | 35.91 | 3-5% | Lifting form | 850 | 22.5×2.7×2.7 |
| Φ1.8×23m | 23 | 39.33 | 24.5×2.9×2.9 | |||||
| Φ1.8×25m | 25 | 42.75 | 26.5×2.9×2.9 | |||||
| Φ2.2×21m | 2200 | 800 | 21 | 58.10 | 3-5% | Lifting form | 850 | —- |
| Φ2.2×23m | 23 | 63.61 | ||||||
| Φ2.2×25m | 25 | 69.15 |
Note: Data may change for the improving technology; we reserve the right of changing without notice; Machine performance may vary depending on application; for more details, please chat online with Zonedingengineers.



A Drum Dryer is a type of industrial dryer that uses a rotating heated drum to dry materials. A thin layer of liquid or slurry is applied to the drum surface, and as the drum rotates, the heat evaporates the moisture, leaving a dried solid that is scraped off.
Drum Dryers are suitable for drying a wide variety of liquids, slurries, and solutions, including food products (e.g., milk powder, potato flakes), chemicals, pharmaceuticals, and wastewater sludge. The key is that the material can be applied as a thin film.
Drum Dryers offer advantages like continuous operation, relatively low operating costs, and a compact footprint. They provide good control over drying temperature and can produce a consistent, high-quality dried product.
The drying rate and final moisture content in a Drum Dryer are controlled by adjusting parameters such as drum speed, drum temperature, feed rate, and the thickness of the applied layer. Precise control ensures optimal drying results.
