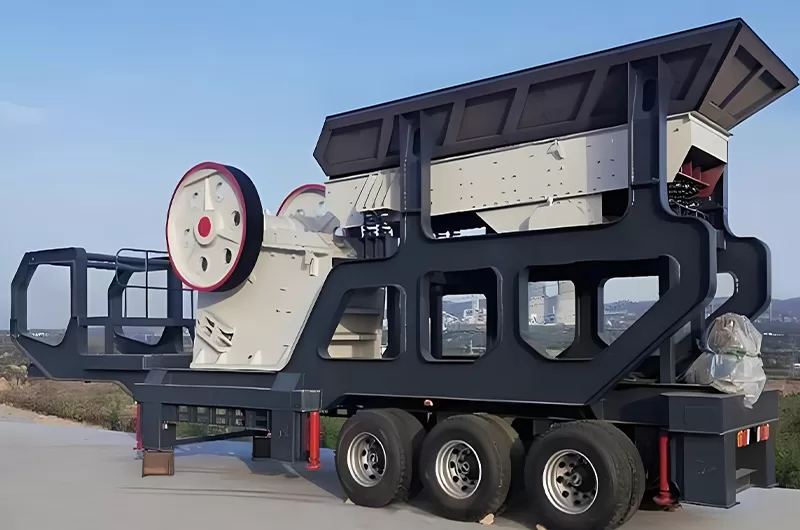

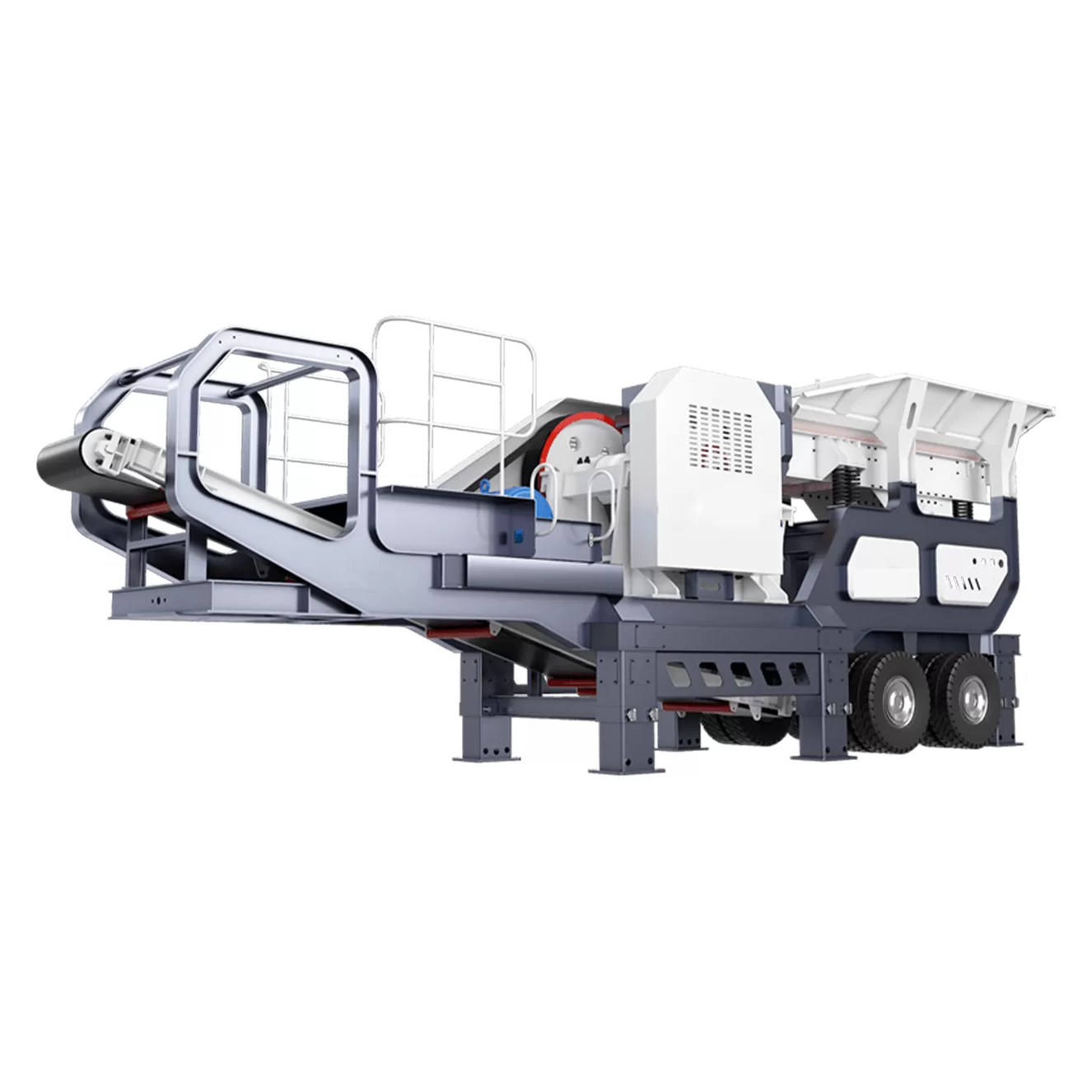

What is a Mobile Jaw Crusher ?

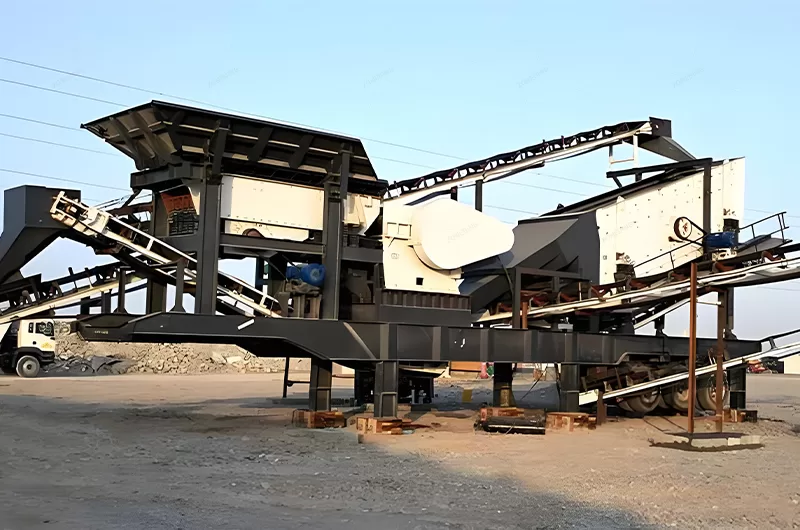

A mobile jaw crusher is a crushing unit integrating a jaw crusher, feeder, conveyor, and other components onto a movable chassis. Its key advantages include high flexibility, convenient relocation, reduced material transport costs, and rapid deployment.

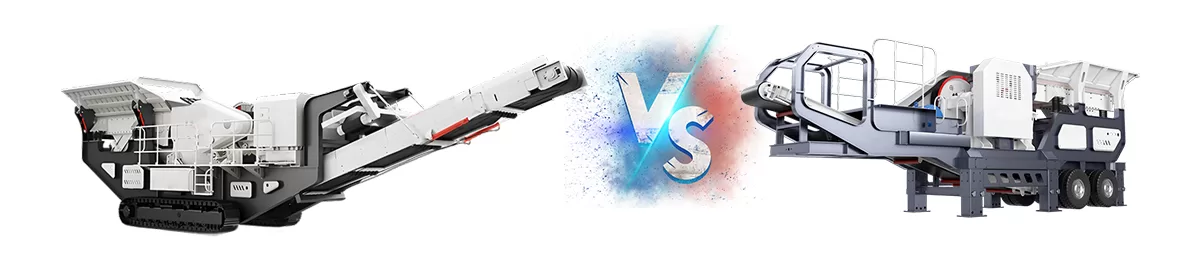

Tracked vs. Wheeled: Which Mobile Jaw Crusher is Better for My Project Needs?

Choosing between tracked and wheeled mobile jaw crushers depends on your project’s specific requirements.

Tracked mobile jaw crushers excel in harsh terrains, offer zero-radius turning, and don’t need special towing. They are ideal for mines, large quarries, and uneven sites. Wheeled mobile jaw crushers offer easy highway transport, fast movement speeds, and require a truck for towing, fitting construction waste disposal, urban infrastructure, and quarries with paved roads.

Both types have their own advantages. The choice depends on the mobility requirements and site conditions.

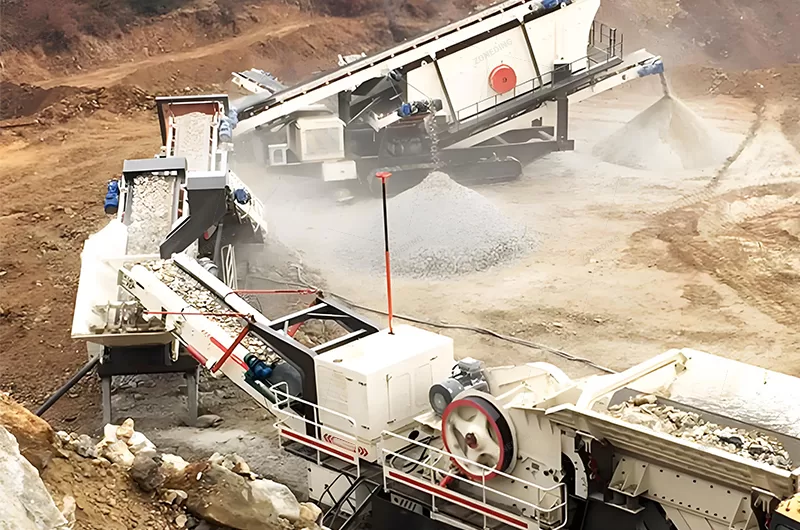

• Tracked Mobile Jaw Crushers: These units are designed for rough terrain. They can move easily across uneven surfaces and even climb steep inclines. They are perfect for mining operations where the ground is often unstable.

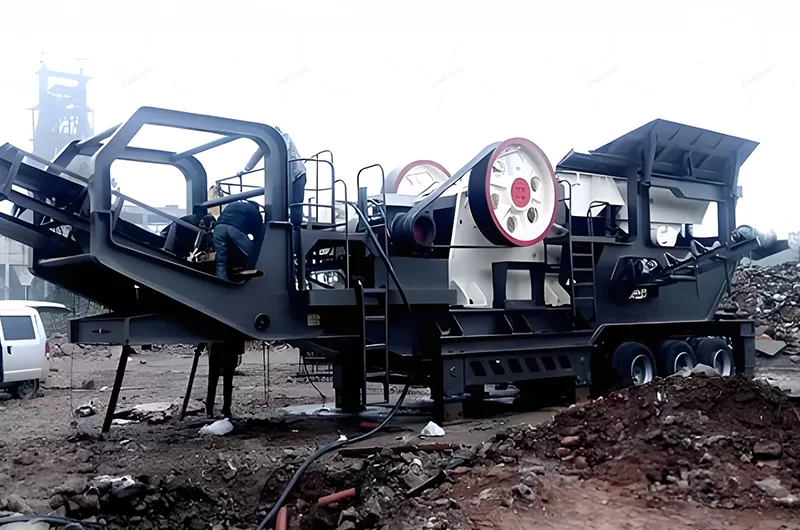

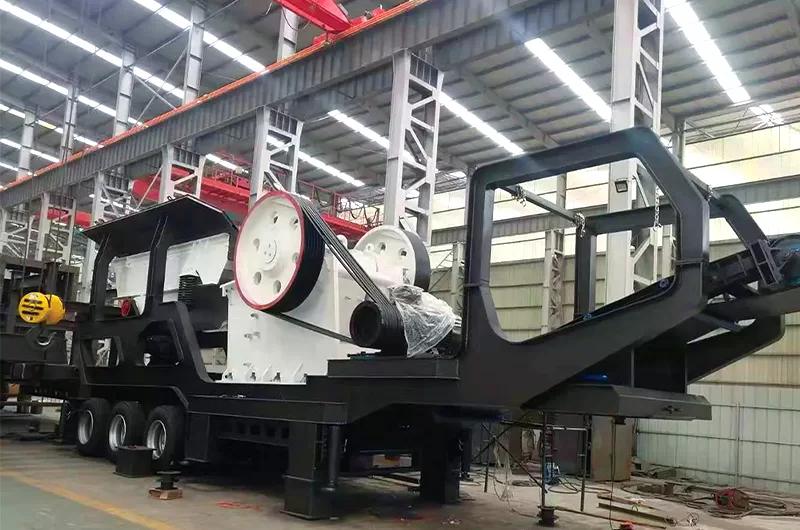

• Wheeled Mobile Jaw Crushers: These units are better suited for paved surfaces. They can be transported quickly and easily on highways, making them ideal for construction sites and urban projects.
• Cost, Flexibility, and Terrain Adaptability: Tracked units are typically more expensive but offer greater flexibility and terrain adaptability. Wheeled units are more cost-effective and easier to transport on roads but less versatile on rough terrain.

(Ore/Rock/Construction Waste) Suitable for Processing with a Mobile Jaw Crusher?

Mobile jaw crushers primarily handle materials with medium to high hardness, including various ores, rocks, and construction waste. For reinforced concrete or large materials, proper feeding and pre-screening are essential.

• Material Hardness: Mobile jaw crushers are designed for materials with medium to high hardness. Softer materials may be better suited for impact crushers.
• Reinforced Concrete: When processing reinforced concrete, it’s important to remove any large pieces of steel reinforcement before crushing. This prevents damage to the crusher and ensures a cleaner output.
• Inlet Size: The feed opening size determines the maximum size of material that can enter the crushing chamber. Be sure to select a crusher with a large enough feed opening for your material.

How to Choose the Right Mobile Jaw Crusher Model Based on Output (TPH) and Finished Product Requirements?

To select the right mobile jaw crusher model, understand key parameters such as processing capacity (tons per hour), maximum feed size, and discharge port adjustment range. Accurately estimate the processing capacity required for your project.

Model	ZDM938HD80	ZDM1149HD98	ZDM1349HD110	ZDM1349HD125
Transportation Length(mm)	12600	13500	14500	15200
Transportation Width(mm)	2600	2700	2800	2900
Transportation Height(mm)	3870	4200	4450	4500
Maximum Length(mm)	12500	14000	16100	16700
Maximum Width(mm)	4100	4500	5100	5100
Maximum Height(mm)	4100	4900	5000	5300
Weight(t)	39	57	55	65
Tire Configuration	Dual-axial	Dual-axial	Dual-axial	Dual-axial
Jaw Crusher	HD80	HD98	HD110	HD125
Maximum Feeding Size(mm)	500	550	660	800
Discharge Opening Size(mm)	50-150	75-175	100-200	125-225
Capacity(t/h)	85-275	110-350	215-510	280-650
Vibrating Model	ZSW380×95	ZSW420×110	ZSW490×130	ZSW490×130
Main Belt Conveyor	B800×8.5M	B1000×9.5M	B1000×11M	B1200×11M
Side-opening Belt conveyor(Optional)	B500×3M	B650×3.5M	B650×4M	B650×4M
Genset(Optional) (kw)	200	250	270	400
Iron Separator (Optional)	RCYD(C)-8	RCYD(C)-10	RCYD(C)-10	RCYD(C)-12

• Processing Capacity: This is the amount of material the crusher can process per hour. Choose a model with a capacity that meets or exceeds your project’s requirements.
• Maximum Feed Size: This is the largest size of material that can enter the crushing chamber. Make sure it’s compatible with the size of your raw material.
• Discharge Port Adjustment Range: This determines the size of the crushed material. Choose a model with an adjustment range that meets your finished product requirements.

What are the Core Components of a Mobile Jaw Crusher? How Do They Affect Equipment Performance and Reliability?

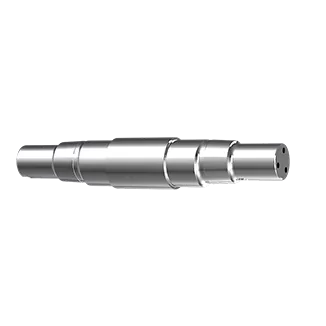

Core components of a mobile jaw crusher include a high-performance jaw crusher, a powerful feeding system with pre-screening, a reliable power system (diesel engine/motor), and an intelligent control system for ease of use and diagnostics.

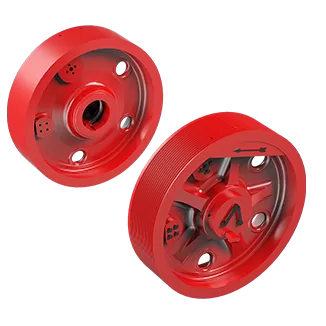

• High-Performance Jaw Crusher: The jaw crusher is the heart of the machine. Look for models with durable jaw plates, robust bearings, and a well-designed flywheel.
• Powerful Feeding System: A vibrating feeder with pre-screening removes fines and ensures a consistent feed rate. This improves crushing efficiency and reduces wear.
• Reliable Power System: Choose a diesel engine or electric motor that is appropriately sized for the crusher. Consider fuel or electricity consumption when making your decision.
• Intelligent Control System: An intelligent control system simplifies operation, provides real-time diagnostics, and enables remote monitoring.

How to Reduce Operating Costs?

Proper maintenance and operation are key to minimizing downtime and maximizing efficiency.

Key maintenance points include regular lubrication, tightening of bolts, cleaning, and timely replacement of worn parts. Operating costs can be reduced through proper operation and preventative maintenance.

Daily Checks: Perform regular checks of lubrication levels, bolt tightness, and overall cleanliness.

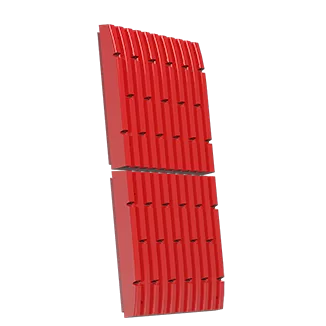

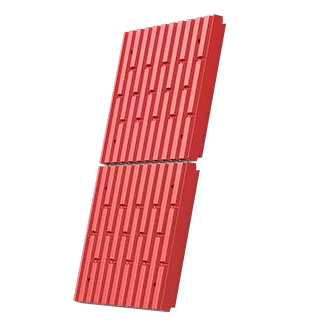

• Wear Parts: Replace wear parts (jaw plates, side liners) on a regular basis to maintain optimal performance.
• Correct Operation: Proper operation extends the life of the equipment.
• Operating Costs: Fuel/electricity, lubricating oil, and wearing parts are the main operating costs.

Why Choose Us as Reliable Mobile Jaw Crusher Manufacturer?

Choosing ZONEDING is crucial for your long-term success.

• Pre-sale service:Provide quality technical consulting services, understand customer needs, according to the actual situation of production capacity, site design reasonable, economic supporting program.

• Sale service:Provide door-to-door installation services, professional technical team door-to-door installation, commissioning equipment, guidance and training personnel, ensure efficient operation of the machine.

• After-sales service:Provide regular return visit service to help users optimize equipment maintenance and timely analyze and solve the equipment problems feedback from customers.

Rich Experience

With our extensive mining industry experience, we have the knowledge, skills and abilities to provide tailor-made solutions to your needs.

Attention to Detail

Every quote and every mining solution is reviewed by several design engineers and district managers, not simply run through an estimating or design computer

Cost Predictability

Through our quality control and product assurance methods, the ease by which costs can be predicted and controlled from the outset

With you from start to finish

From expert guidance in the design phase to engineer support equipment installation, our team will work closely with you throughout the entire process

Competitive Price

We know that price matters to our clients, We always analyze and evaluate in detail to bring out the optimal solutions, effective and cost-saving projects.

Quality Assurance

We have Strict Quality Management System.Our equipment holds iSO 9001,CE, and GOST certifications, signifying our adherence to rigorous mining machinery standards.

Why Is It the Best Primary Crusher Available?

The jaw crusher is an essential first step for any rock processing business. I call it the “primary” crusher because it handles the biggest, ugliest stones first. Other machines like cone or impact crushers have very small feeding mouths. They will choke and jam if you try to feed them a rock the size of a car tire. A jaw machine easily swallows these giant rocks.

It acts as the heavy line of defense for the rest of your factory equipment. By breaking the huge rocks down, it makes the work easy for your secondary crushing machines. ZONEDING designs our primary feeding hoppers to handle rough drops from big excavators. The high strength of the main metal frame absorbs massive shocks every second. When you use a Mobile Primary Crusher, you avoid wasting hours breaking rocks with a tiny hydraulic hammer. You feed the machine continuously and watch your daily production rate climb very high.

How Does Primary Crushing Lower Costs?

Proper primary crushing cuts your operating costs dramatically across your whole business. When you break big rocks into medium rocks early, your entire factory runs smoother. We see operators try to force large rocks directly into small machines. This mistake causes conveyor belts to rip and internal motors to burn out quickly.

You spend a huge amount of money fixing broken belts and replacing burnt electric parts. A dedicated Primary mobile crusher for aggregate stops these expensive disasters before they happen. It reduces the physical stress on all your downstream equipment. Your secondary crushers use much less electricity because they only process properly sized rocks. Additionally, placing a mobile jaw unit close to the blast face eliminates haul trucks. You stop buying expensive diesel fuel to move raw boulders short distances. ZONEDING focuses on high fuel efficiency in our diesel engines to keep your daily running costs completely flat.

Should You Choose Wheeled or Tracked Mobility?

You must choose between wheeled trailer chassis or steel crawler tracks for your work style. Wheeled crushers are very easy to attach to a heavy transport truck. You pull the wheeled machine down normal public highways at regular driving speeds. I recommend wheels if you move your machine between different cities constantly.

Tracked crushers drive themselves using heavy steel belts like an army tank. You use a remote control to walk the machine over sharp rocks and thick mud safely. Tracked units are best for messy demolition zones or quarries with very bad ground. However, tracked machines cost more to buy and need a low-bed trailer for highway transport. ZONEDING builds robust options for both mobility types. We help you look at your regular job locations before you decide. You get the correct moving frame that protects your investment from getting stuck in the dirt.

What are the New Development Trends in Mobile Jaw Crusher Technology?

ZONEDING’s mobile jaw crusher features hybrid or fully electric power, high levels of automation and intelligence, better dust and noise control, as well as a lighter, more robust design.

• Hybrid or All-Electric Power: These technologies reduce emissions and lower operating costs.
• Higher Automation: Automation improves efficiency and reduces the need for manual labor.
• Improved Environmental Controls: Advanced dust and noise control systems minimize environmental impact.
