What Exactly is a Ore Powder Dryer?

A ore powder dryer is industrial equipment specifically designed to remove moisture from fine mineral particles like concentrates or filter cakes. It uses heat transfer to evaporate water, preparing the material for further processing or transport.

This drying process isn’t just about removing water; it’s crucial for many reasons across the mining industry.

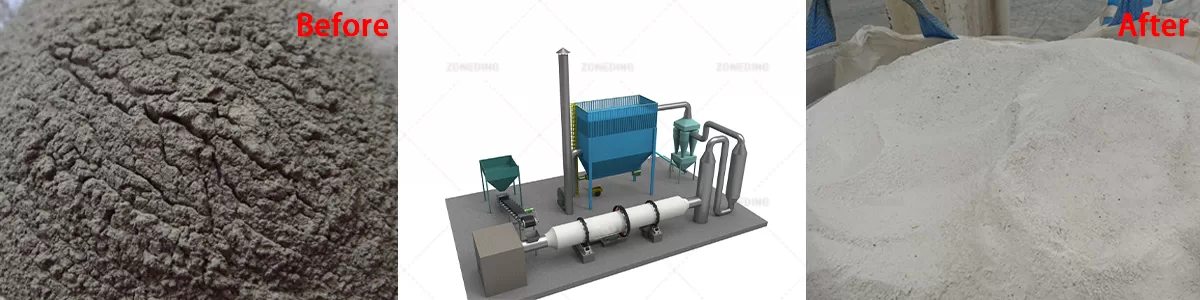

Why Dry Different Kinds of Mineral Powders?

Drying mineral powders is essential to meet transport requirements (reducing weight/volume), prevent handling issues (freezing, sticking), improve downstream process efficiency (smelting, pelletizing), and meet final product quality specifications for sale or use.

Removing water from mineral powders serves several critical purposes across the mining and processing chain:

Key Reasons for Drying Minerals:

• Reduced Transportation Costs: Water adds significant weight and volume. Drying dramatically cuts shipping costs, especially for long distances. This is a major economic driver.
• Improved Handling and Storage: Wet powders, especially filter cakes, can be sticky, difficult to convey, and prone to freezing in cold climates. Dry powders generally flow more easily and are more stable for storage.
• Meeting Downstream Process Requirements: Many metallurgical processes (like smelting, refining, pelletizing) require feed materials within a specific low moisture range for optimal efficiency and safety. Excess moisture can disrupt reactions, increase energy consumption, and cause operational problems.
• Achieving Product Quality Specifications: Final mineral products often have strict moisture content limits to meet customer requirements or industry standards. Drying ensures the product is within spec for sale.
• Preventing Degradation: Some minerals can degrade or react undesirably if stored with high moisture content for extended periods.

At ZONEDING, we understand these diverse needs, whether it’s drying iron concentrate for pelletizing, copper concentrate for smelting, or industrial minerals like kaolin for specific applications.

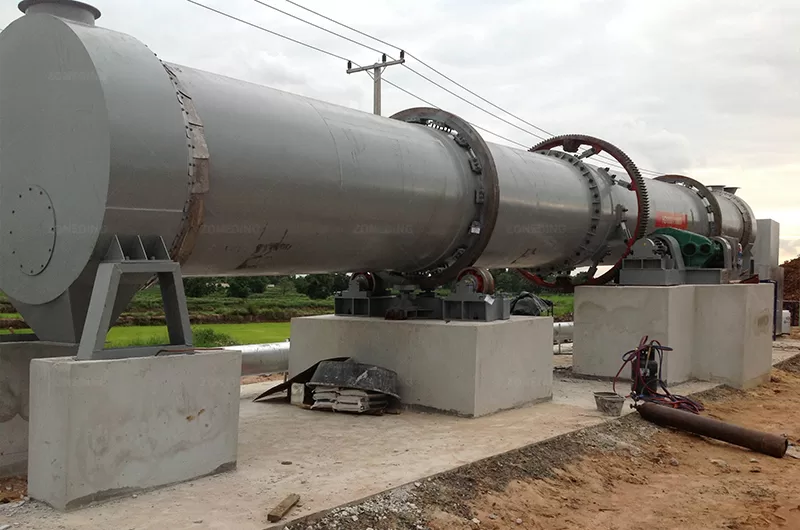

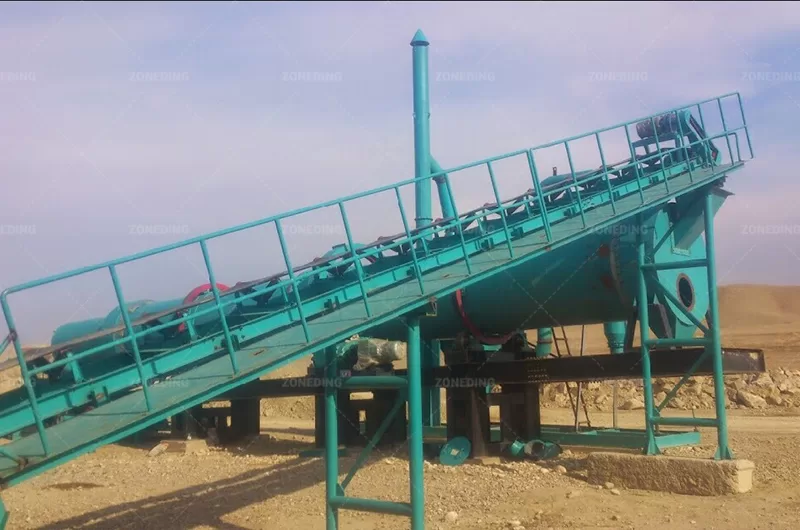

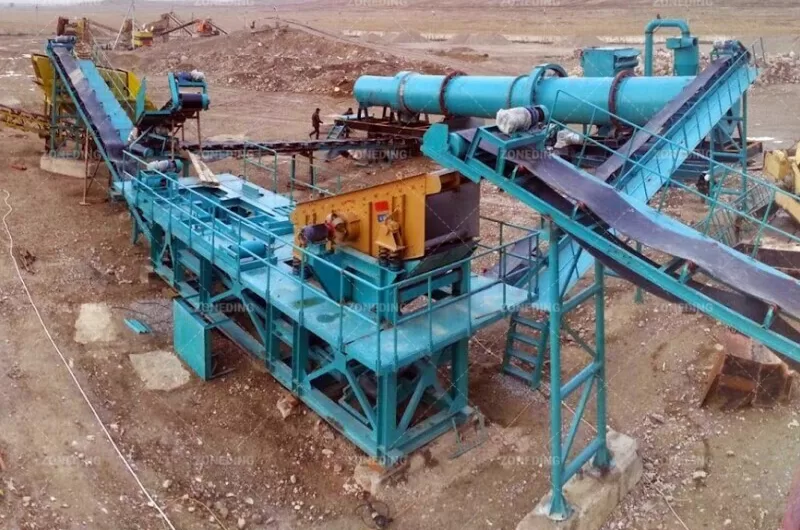

Mineral Rotary Drum Dryer Application

Mining dryer is designed for mining materials drying based on rotary drum dryer. very suitable for drying various particle and powder materials from chemical industry, metallurgy, mining, construction material industry. featured in high production rate and simple operation. adopts horizontal cylinderical drum where multiple lifting plates welded in different arrangements. The mineral rotary dryer is special designed for drying bentonite, clay, limestone, gold ore, iron ore, pyrite, river sand, copper ore and other materials. It is widely used in mineral processing, metallurgy, building materials, chemical industry and other industries.

What is the Most Common Dryer Type for Mineral Powders? How Does It Work?

The rotary drum dryer is the most common type for mineral powders. Wet material enters a rotating, slightly inclined cylinder. Hot gas flows through, transferring heat as internal lifters cascade the material through the gas stream.

The rotary dryer is favored for its robustness and ability to handle large throughputs of various mineral powders. Here’s a closer look at its operation:

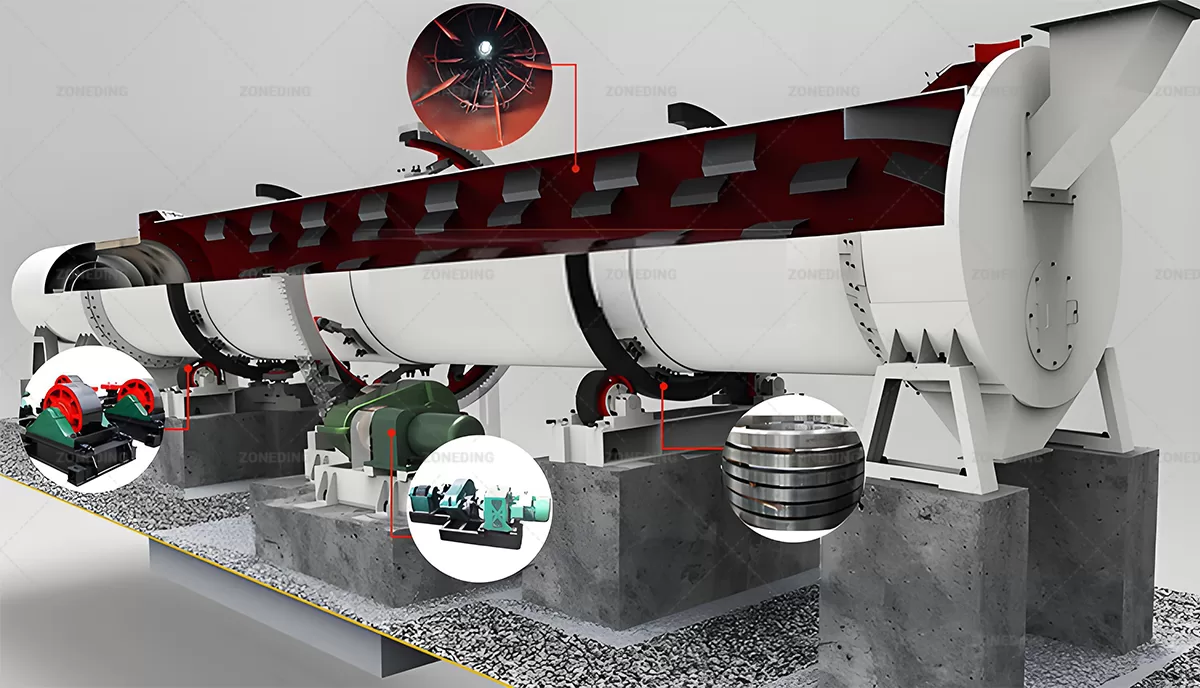

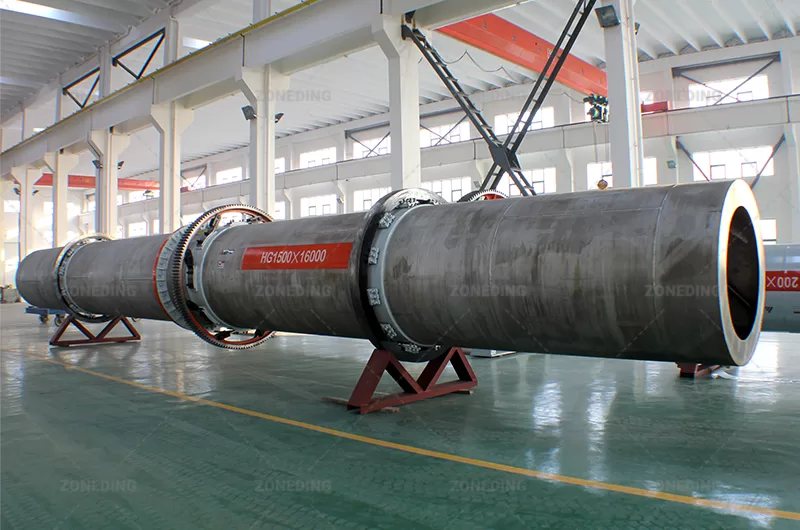

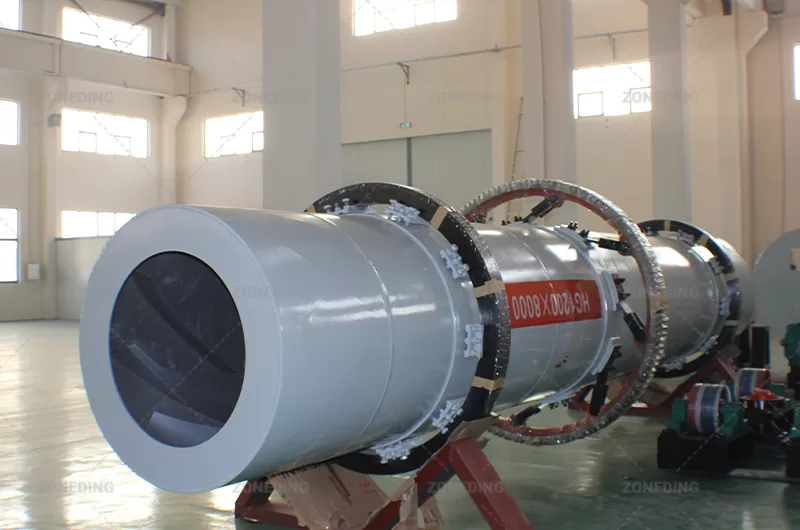

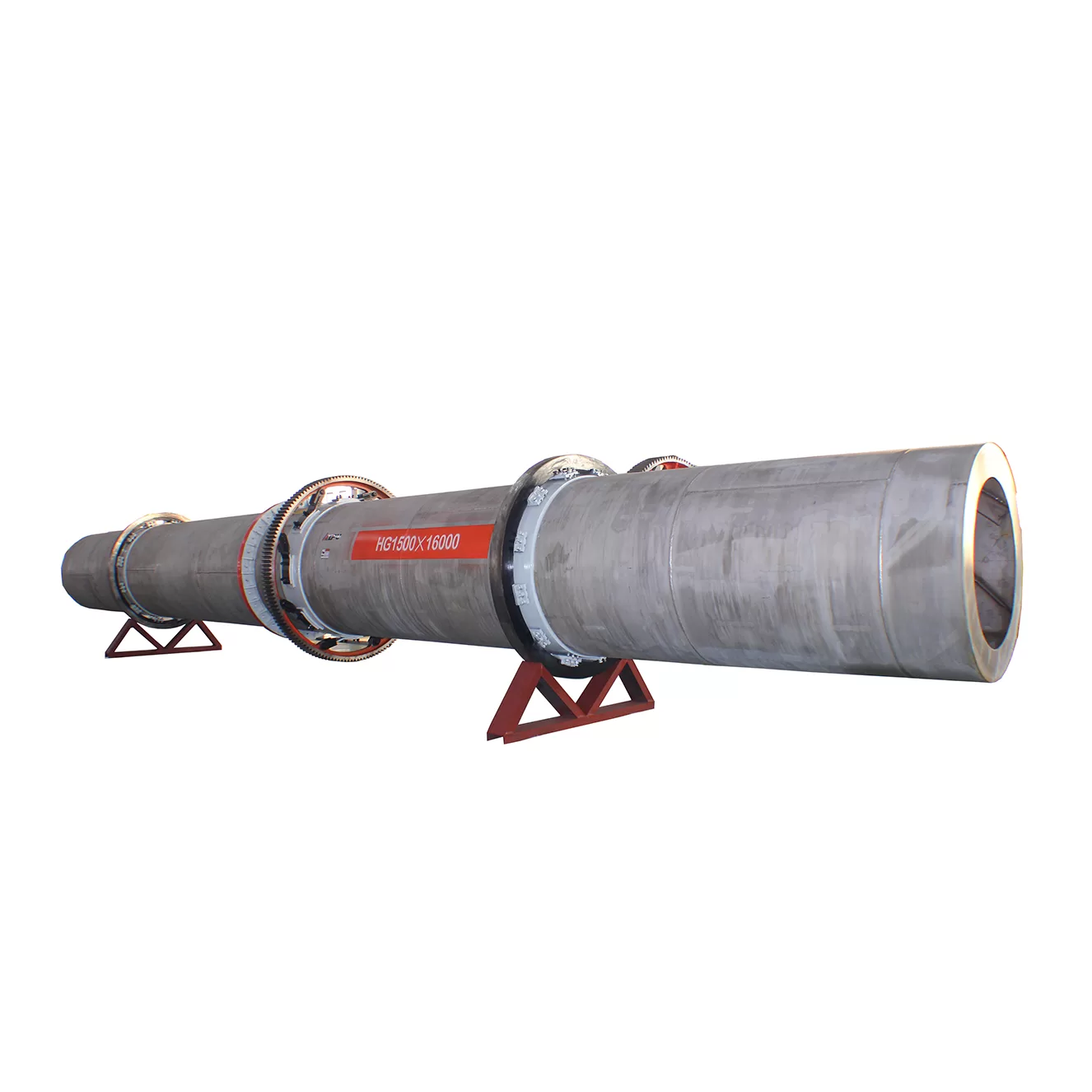

• Main Components: It consists of a large cylindrical shell (drum), slightly inclined from horizontal, supported on tires riding on support rollers. A drive system rotates the drum. Inside, specially designed plates called “lifters” or “flights” run along the length of the shell. Seals at both ends minimize air leakage.
• Material Flow: Wet mineral powder is fed into the higher end of the rotating drum. Due to the rotation and inclination, the material slowly tumbles and moves towards the lower discharge end.
• Heat Transfer: Hot gas (from a burner, furnace, or waste heat source) flows through the drum. This flow can be co-current (gas flows in the same direction as the material) or counter-current (gas flows opposite to the material). Co-current is often used for heat-sensitive materials, while counter-current is generally more thermally efficient.
• Lifter Action: As the drum rotates, the lifters pick up the mineral powder and shower it down through the hot gas stream. This cascading action maximizes contact between the powder and the hot gas, promoting efficient heat and mass transfer (evaporation of water).
• Temperature Considerations : While higher temperatures increase evaporation rate, it’s not always better. Some minerals (like sulfides) can oxidize or degrade at high temperatures. Choosing the right temperature profile and residence time is crucial, sometimes favoring lower temperatures for longer times to protect mineral value. This requires understanding the specific mineral’s properties. Also, managing thermal stress during startup and shutdown is vital for longevity.

ZONEDING designs rotary dryers with optimized lifter patterns and sealing systems, considering the specific characteristics of the mineral powder being processed.

How to Choose the Best Dryer Model and Internal Design Based on My Mineral Powder’s Properties (Stickiness, Particle Size, Abrasiveness)?

Your mineral powder is unique – maybe sticky, super fine, or highly abrasive. A one-size-fits-all dryer often leads to plugging, wear, or poor drying. Customizing the dryer design is crucial for success.

Select based on tests or experience. Sticky powders need anti-clogging lifters and possibly feed pre-treatment like back-mixing . Fine powders require careful airflow control and efficient dust collection . Abrasive powders need robust, wear-resistant liners .

Mineral powders vary widely in their physical characteristics, demanding tailored dryer designs for optimal performance and longevity. Generic designs often fail. Here’s how specific properties influence selection:

Property-Based Design Considerations:

• Stickiness / Viscosity : High moisture filter cakes, especially those containing clays or fine flotation concentrates, can be extremely sticky.
  • Challenge: Material builds up on the shell and lifters, reducing heat transfer, causing blockages, and leading to uneven drying.
  • Solutions: Special lifter designs (e.g., serrated edges, steeper angles) to promote self-cleaning; Internal chains or knockers to break up buildup; Crucially, feed pre-treatment like back-mixing dry product with wet feed before the dryer inlet, or using a lump breaker.
• Particle Size Distribution (PSD):
  • Challenge: Very fine powders become easily entrained in the gas flow, leading to high dust loads on collection systems and potential product loss. Coarse particles require longer residence times. A wide PSD makes uniform drying difficult.
  • Solutions: Lower gas velocities for fine powders; Efficient dust collection systems (baghouses are common); Longer dryer length or slower rotation for coarser particles; Lifter design optimized for the specific PSD to ensure proper showering.
• Abrasiveness : Many mineral powders (e.g., silica sand, iron ore concentrates) are highly abrasive.
  • Challenge: Rapid wear of the dryer shell, lifters, seals, and downstream equipment (ducts, fans, dust collectors).
  • Solutions: Use of abrasion-resistant materials (AR steels, high-chrome alloys, ceramics) for liners in high-wear zones (feed chute, lifter faces, discharge end); Designing lifters for easy replacement; Ensuring proper drum alignment to minimize tire/roller wear.
• Corrosiveness: Some mineral processing involves acids, leading to potentially corrosive residues in the powder.
  • Challenge: Chemical attack on metal components.
  • Solutions: Selection of appropriate corrosion-resistant alloys (e.g., stainless steels) or coatings for affected parts.

At ZONEDING, we emphasize understanding your specific mineral. We often recommend pilot testing or draw upon our experience with similar materials to design the internal configuration and select materials that directly address your powder’s unique challenges.

What are the Key Technologies and Factors for Precisely Controlling the Final Moisture Content of Mineral Powder?

Key factors are controlling heat input (gas temperature), material residence time (feed rate, drum speed), and airflow. Technology includes feedback loops using outlet temperature sensors, sometimes coupled with online moisture meters for direct measurement.

Achieving the target final moisture content (FMC) consistently is vital for meeting product specifications and optimizing downstream processes. Precise control depends on managing several variables and utilizing appropriate measurement techniques:

Factors Influencing Final Moisture:

• Heat Input: The primary control variable. Adjusting the fuel flow to the burner (or steam flow in indirect dryers) regulates the hot gas temperature entering the dryer. Higher temperature generally means more drying potential.
• Residence Time: How long the material spends in the dryer. This is controlled by:
  • Feed Rate: A constant, controlled feed rate is crucial for stable operation and predictable drying.
  • Drum Rotation Speed: Slower rotation increases residence time (common control method).
  • Drum Slope: Fixed during design, but influences residence time.
• Airflow Rate: The volume of hot gas passing through the dryer. Higher airflow can carry away more moisture but also affects heat transfer efficiency and dust entrainment . Controlled via dampers or variable speed drives (VSDs) on fans.

Control Technologies:

• Feedback Control using Outlet Temperature: This is the most common method. The temperature of the solids or gas exiting the dryer is measured. A control loop (PID controller) adjusts the heat input (or sometimes feed rate) to maintain a target outlet temperature, which is correlated (imperfectly) with FMC.
  • Limitation : Outlet temperature is an indirect indicator. It can be affected by feed rate changes, inlet moisture variations, and ambient conditions. It may not accurately reflect average moisture, especially if “false dryness” (dry surface, wet core) occurs.
• Online Moisture Analyzers: Devices using technologies like Near-Infrared (NIR) or microwave sensors installed at the dryer outlet provide a direct, real-time measurement of FMC. This allows for much more accurate closed-loop control, adjusting parameters to directly target the desired moisture level. Higher initial cost but potentially significant benefits in consistency and avoiding over-drying .
• Feed Forward Control (Advanced): Measuring inlet moisture content allows the system to proactively adjust drying parameters before the outlet moisture deviates significantly. Requires reliable inlet moisture sensing.
• Stable Operation: Maintaining consistent feed rate, feed properties , and airflow is fundamental for any control strategy to work effectively.

ZONEDING offers control systems ranging from basic temperature feedback to advanced strategies incorporating online moisture analysis, depending on the precision required by the customer’s application.

What are Practical Ways to Reduce Energy Consumption and Fuel Costs for Mineral Powder Dryers?

Reduce costs via efficient combustion, excellent insulation, minimizing air leaks (seals), optimizing airflow, considering heat recovery from exhaust gas, ensuring stable operation, and avoiding over-drying the product .

Fuel is typically the largest operating cost for a mineral powder dryer. Improving energy efficiency directly impacts profitability. Here are key areas for savings:

Energy Reduction Strategies:

• Optimize Combustion: Ensure the burner or furnace operates at peak efficiency. This means proper air-fuel ratio control for complete combustion, regular tuning, and maintenance. Using waste heat or lower-cost fuels (if feasible and environmentally compliant) can also yield savings .
• Maximize Insulation: High-quality insulation on the dryer shell, ductwork, and dust collection equipment minimizes heat loss to the surroundings. Heat lost is fuel wasted.
• Seal Integrity: Air leaks are a major source of inefficiency. Cold air leaking into the system requires extra fuel to heat up. Hot gas leaking out wastes energy. Maintain robust seals at the feed and discharge ends, inspection doors, and duct connections.
• Control Airflow: Use only the amount of airflow necessary for drying and conveying dust. Excess airflow carries away sensible heat in the exhaust gas. Variable speed drives on fans allow precise airflow control and energy savings compared to damper control.
• Heat Recovery: Install heat exchangers (recuperators) to use heat from the hot exhaust gas to preheat the incoming combustion air or potentially even the wet feed. The economic viability depends on exhaust gas temperature and system scale.
• Stable Operation : Running the dryer at a steady, optimal rate avoids inefficient startups, shutdowns, and temperature fluctuations that waste fuel. Consistent feed is key.
• Precise Moisture Control : Avoid over-drying. Drying powder significantly below the required specification wastes enormous amounts of energy. Accurate final moisture control saves fuel and can even increase saleable product weight if sold by weight within an allowable moisture range.
• Efficient Dust Collection : While primarily for environmental control and product recovery, well-designed dust collection systems minimize pressure drop, reducing the energy needed by the main exhaust fan.

At ZONEDING, we incorporate energy-saving features into our designs, such as high-performance insulation and optimized sealing systems, and advise clients on operational best practices to minimize fuel consumption.

What Needs Consideration When Choosing the Heat Source (Natural Gas, Coal Gas, Flue Gas, Steam) for a Mineral Powder Dryer?

The heat source choice significantly affects dryer cost and operation. Consider fuel availability and long-term cost, capital cost of the heating system, required temperature control precision, emission regulations, operational complexity, and potential interaction with the mineral powder itself.

Choosing the heat source for your mineral powder dryer is a critical decision with long-term implications for operating costs, environmental compliance, and process control. Key factors to evaluate include:

Heat Source Selection Factors:

1. Fuel Availability and Cost:

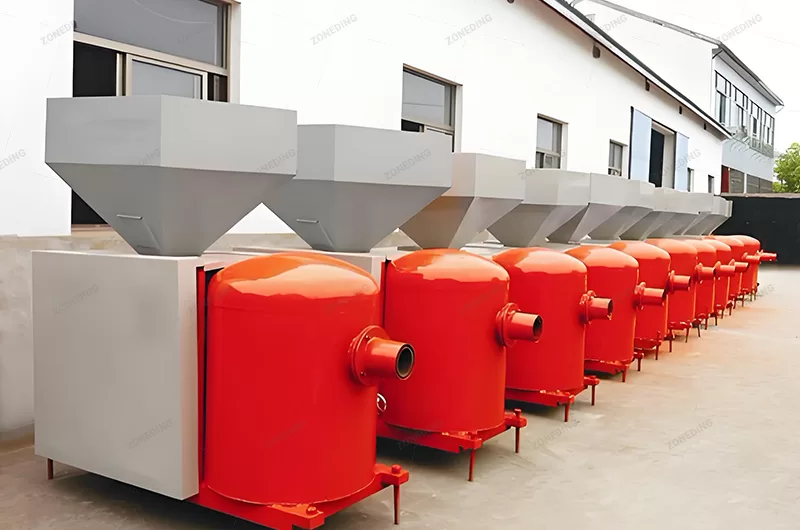

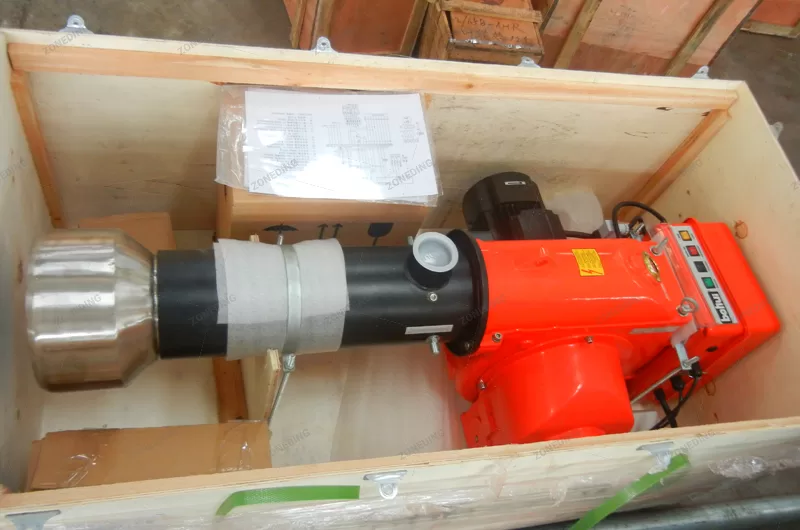

   • Natural Gas: Often preferred for clean burning, ease of control, and relatively simple burner systems. Availability and price vary regionally and can be volatile.
   • Coal Gas / Producer Gas: Can be lower cost if generated on-site from coal, but involves higher capital cost for gasification, more complex operation, and potentially challenging emissions control.
   • Liquid Fuels (Diesel, HFO): Used where gas is unavailable. Requires storage tanks, fuel handling systems, and typically produces more emissions than gas.
   • Waste Heat / Flue Gas: Utilizing hot exhaust gas from another plant process (e.g., furnace, kiln) offers significant energy savings but requires careful integration and may have temperature limitations or contaminants.
   • Steam (Indirect Heating): If plant steam is available, using steam coils or a steam tube rotary dryer provides excellent temperature control and prevents direct contact between combustion products and the mineral. Ideal for heat-sensitive materials . Cost depends on steam generation cost.

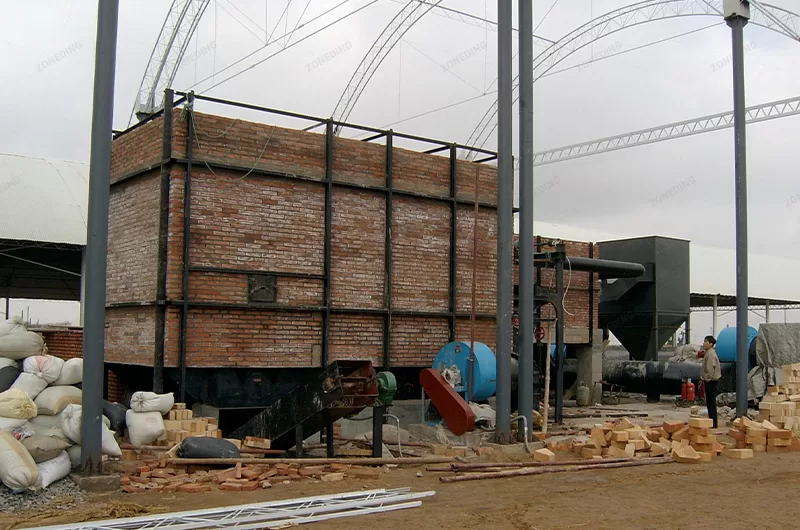

   • Solid Fuels (Coal, Biomass – Direct Fired): Can be lower cost fuel but requires complex combustion/ash handling systems and poses risks of contamination or unwanted reactions if combustion products mix directly with the mineral.
2. Capital Cost: Burner systems for gas/oil are generally less expensive upfront than coal gasification, solid fuel furnaces, or large steam heat exchange systems.
3. Temperature Control Requirements: Gas and steam offer the most precise and rapid temperature control. Solid fuel and waste heat systems can be less responsive. The required precision depends on the mineral’s sensitivity.
4. Emission Regulations: Burning coal, oil, or some waste gases produces more regulated pollutants (SOx, NOx, particulates) requiring more extensive flue gas treatment compared to natural gas. Indirect steam heating avoids combustion emissions at the dryer location.
5. Operational Complexity: Gas systems are typically the simplest. Solid fuel and gasification systems require more operator attention and maintenance.
6. Mineral Interaction : Direct firing (mixing combustion gases with the mineral) can cause unwanted chemical reactions (e.g., oxidation of sulfides) or contamination. Indirect heating (like steam) avoids this issue and is preferred for sensitive materials.

ZONEDING helps clients analyze these trade-offs based on their site specifics, fuel availability, mineral properties, and regulatory environment to select the most appropriate and cost-effective heat source.

What Auxiliary Equipment is Typically Needed for a Complete Mineral Powder Drying System (e.g., Feeding, Heat Source, Dust Collection)?

A complete system needs: feed handling (hopper, feeder ), the heat source (burner/furnace), ducting, the dryer unit, efficient dust collection (cyclone/baghouse ), exhaust fan, product discharge/cooling, and controls.

A mineral powder dryer operates as part of an integrated system. The dryer drum itself is just one piece of the puzzle. A complete, functional plant requires several essential auxiliary components:

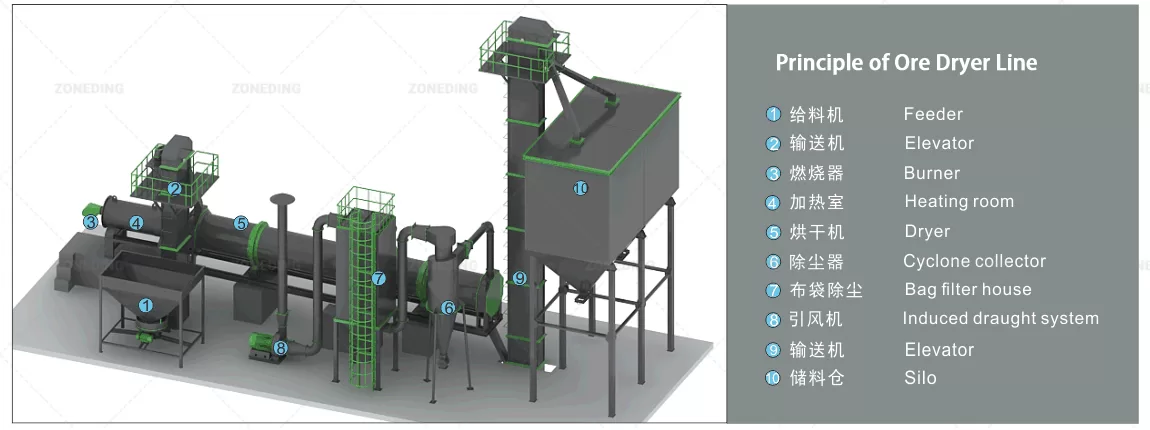

Components of a Full Drying System:

1. Feed Handling System:
   • Hopper/Bin: Receives the wet mineral powder (often filter cake).
   • Feeder: Critically important for providing a consistent, controllable feed rate to the dryer (e.g., screw feeder, belt feeder). Feed consistency is key for stable operation.
   • Pre-Treatment (Optional but often needed ): Lump breaker for oversized chunks, back-mixing equipment for sticky materials.
   • Conveyor: Transports feed to the dryer inlet.
2. Heat Source:
   • Burner (gas/oil), Furnace (solid fuel/waste heat), or Steam Air Heater.
   • Combustion air fan, fuel delivery system.
3. Dryer Unit: The rotary drum (or other dryer type) with its drive, seals, and support system.
4. Ductwork: Connects the heat source to the dryer inlet and the dryer outlet to the dust collection system. Must be designed to handle temperature, potential abrasion, and maintain gas velocity.
5. Dust Collection System : Essential for environmental compliance and recovering valuable product. Typically involves:
   • Primary Collector (e.g., Cyclone): Removes coarser particles, reducing load on the final filter.
   • Secondary Collector (e.g., Baghouse or Wet Scrubber): Captures fine dust with high efficiency. Baghouses are very common for dry powders.
   • Dust Discharge: Rotary airlocks or screw conveyors to remove collected dust.
6. Exhaust Fan (ID Fan): Provides the motive force to pull gas through the entire system. Often equipped with a Variable Speed Drive (VSD) for flow control and energy savings.
7. Stack: Discharges the cleaned exhaust gas to the atmosphere.
8. Dried Product Discharge & Handling:
   • Discharge Breeching/Airlock: Removes dry product from the dryer outlet while maintaining system seal.
   • Cooling (If Necessary): Hot product may need cooling (e.g., via cooling conveyor or rotary cooler) before storage or further processing.
   • Conveyor: Transports dry product to storage.
9. Control System: PLC-based system with HMI, sensors (temperature, pressure, possibly moisture, O2, CO), control loops, and safety interlocks.

ZONEDING provides complete, engineered drying systems, ensuring all these auxiliary components are correctly sized, integrated, and controlled for reliable and efficient operation.

What is the advantages of ZONEDING MACHINE ?

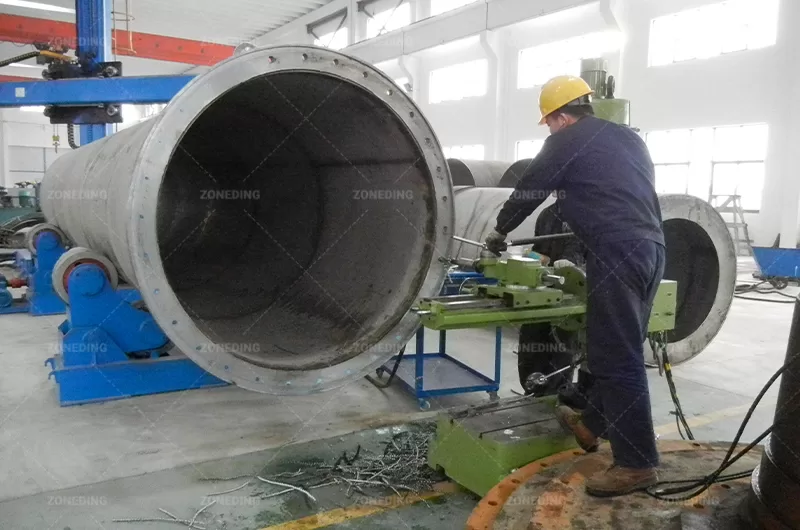

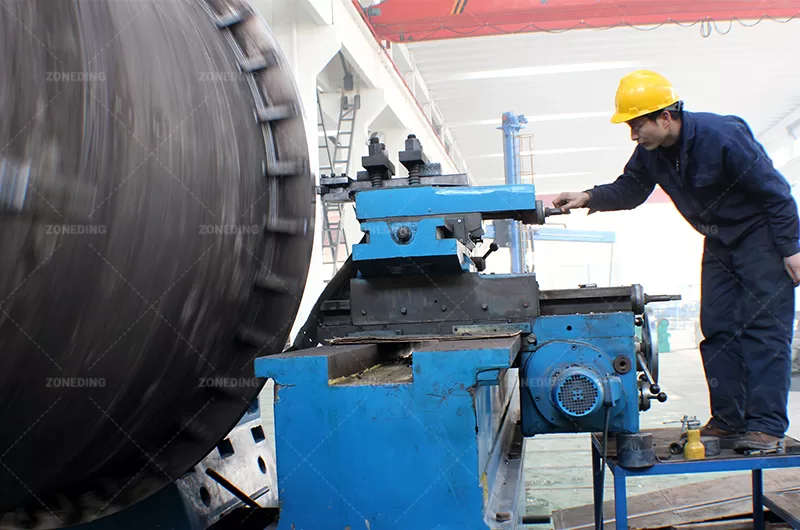

• Manufacturing Experience: With quality control and robust construction, ZONEDING MACHINE has been designing and manufacturing mineral processing equipment, including Triple-pass dryers,Ball Mill,Crushing Equipment since 2004.
• Engineering & Design Capability: ZONEDING MACHINE has experienced engineers,discussing technical details like airflow , flight design, seal mechanisms , and temperature profiles easily. Crucially, ZONEDING MACHINE can customize the design for your specific material and needs. This is a key strength for us.
• Installation & Commissioning Support: ZONEDING MACHINE offers supervision or full installation services, including proper installation, especially alignment. About commissioning support and operator training, ZONEDING MACHINE can also offers full-service support, including installation and training.
• After-Sales Service & Parts: ZONEDING MACHINE, as manufacturers, can control our parts supply with strategy for providing spare parts (seals, rollers, etc.) quickly and cost-effectively.
• References & Reputation: ZONEDING MACHINE has shipped to more than 120 countries, with high market reputation.
• Total Cost of Ownership: When choosing supplier, look beyond the initial purchase price. Consider energy efficiency claims (ask for backing data), expected wear part life and cost, and the value of reliable support. ZONEDING MACHINE is soure supplier, Buying factory-direct often provides significant cost advantages.
• Heat Source & Auxiliaries: ZONEDING MACHINE can supply or recommend compatible, high-quality burners/furnaces and dust collection systems. An integrated package solution is often beneficial.
