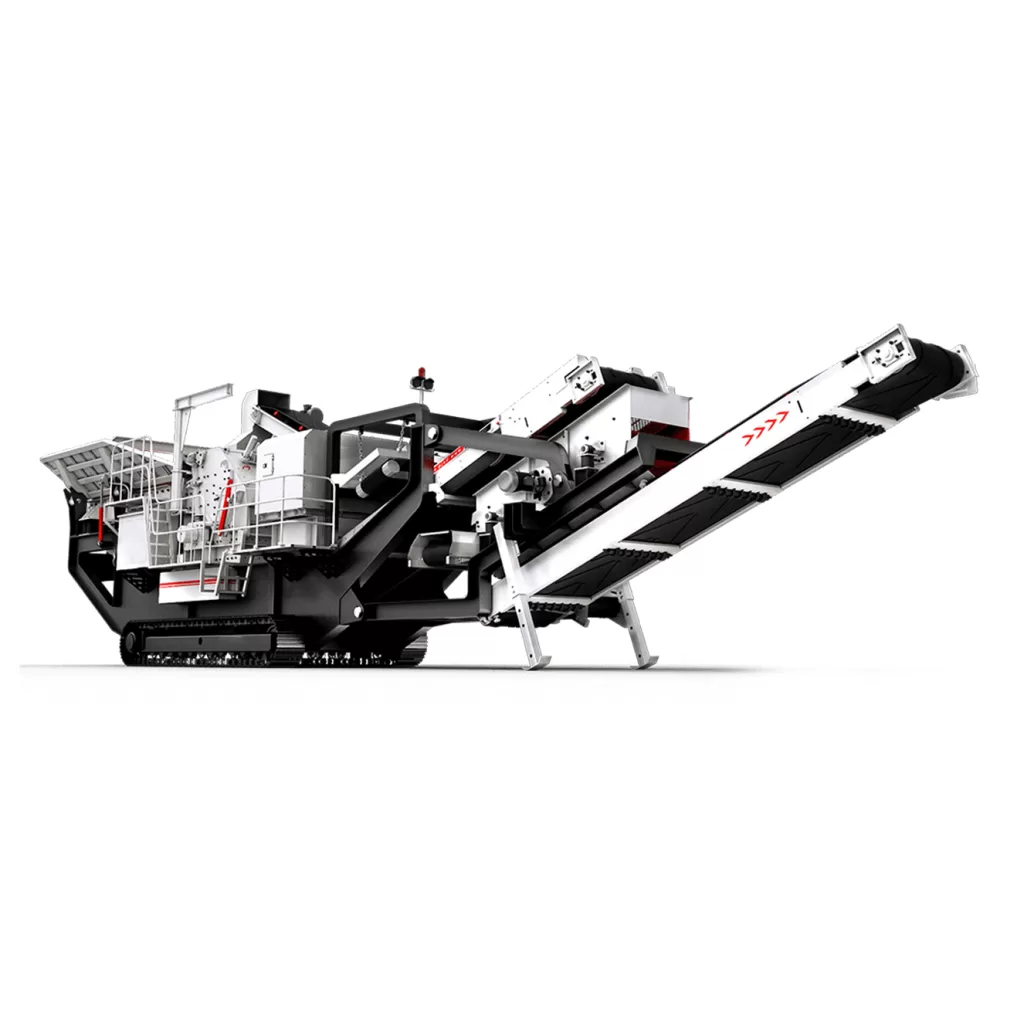

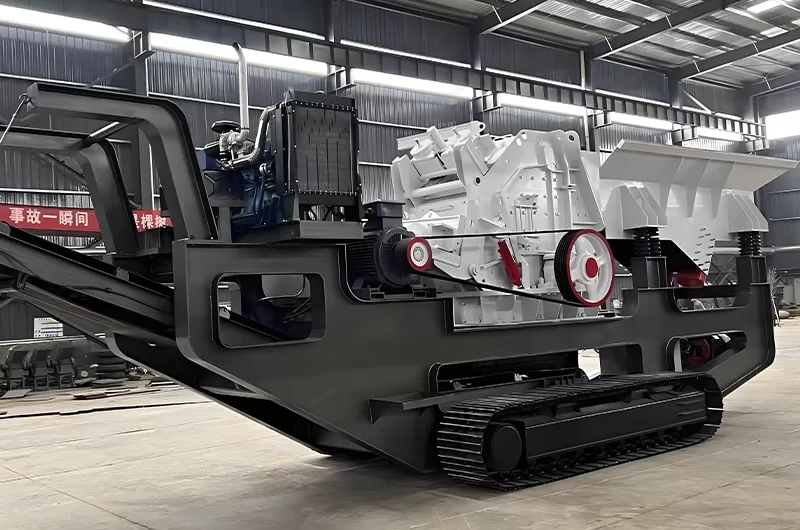

What is Track-Mounted Impact Crushers?

A track-mounted impact crusher uses high-speed blow bars to strike material, causing it to shatter along natural fissures. Mounted on tracks, it moves easily around sites, ideal for secondary crushing, aggregate shaping, and recycling applications like concrete and asphalt.

This machine combines the crushing principle of an impactor with the go-anywhere capability of a tracked chassis. It’s a vital tool for many aggregate producers and recycling operations. ZONEDING MACHINE builds robust track impactors designed for performance and reliability in demanding conditions.

How Does Tracked Impact Crushers Differ from Jaw or Cone Crushers?

A track-mounted impact crusher uses a rotor with blow bars spinning at high speed to strike feed material. This differs from jaw crushers (compression between plates) and cone crushers (compression within a cavity), resulting in different product shapes and suitability for various materials.

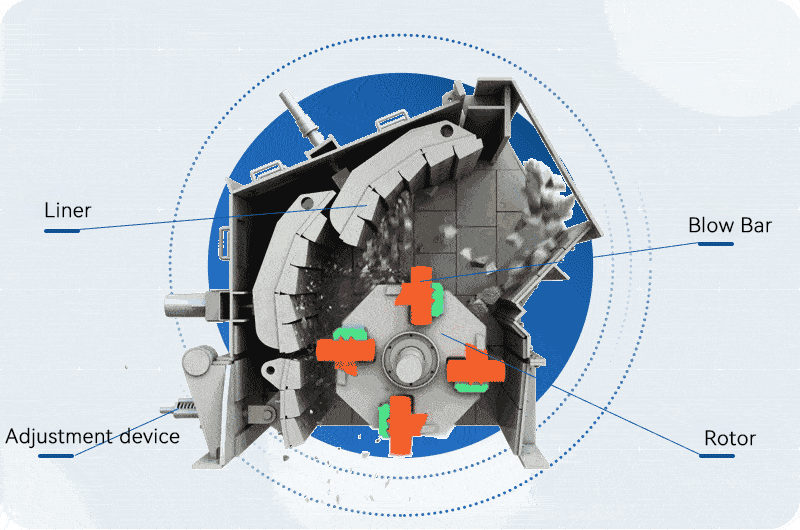

How Impact Crushers Work

Key Differences from Jaw and Cone Crushers

Feature	Track-Mounted Impact Crusher (HSI)	Track-Mounted Jaw Crusher	Track-Mounted Cone Crusher
Crushing Action	High-speed impact, rebound, attrition	Slow compression	Compression and grinding
Typical Stage	Secondary, Tertiary, Recycling (Primary for soft rock)	Primary	Secondary, Tertiary, Quaternary
Feed Material	Medium-hard to soft rock, C&D waste, asphalt	Hard to medium-hard rock, large feed	Hard to medium-hard abrasive rock
Product Shape	Excellent (Cubical)	Generally Flaky	Good (Cubical, but less than HSI)
Reduction Ratio	High (can be, material dependent)	Moderate	Moderate
Wear Parts Cost	Higher (Blow bars, impact plates)	Lower (Jaw plates)	Moderate (Mantle, concave)
Fine Generation	Can be higher	Lower	Lower to Moderate
Sensitivity	More sensitive to abrasive material & feed	Less sensitive	Sensitive to feed segregation

Impact crushers when product shape (cubicity) is critical, or for recycling applications.

Jaws are for primary breaking of large, hard rock.

Cones are excellent for secondary/tertiary crushing of hard, abrasive materials.

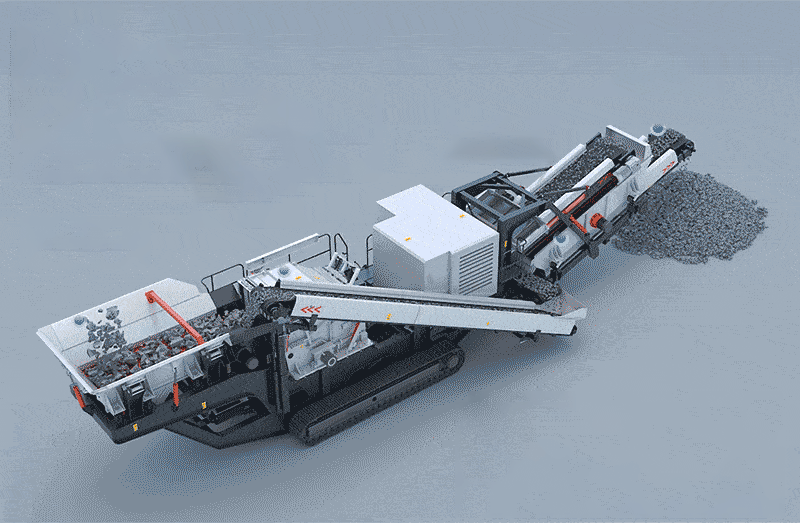

What are the Core Advantages of Choosing a Track-Mounted Impact Crusher? (Mobility & Crushing Principle)

The core advantages are its self-propulsion (tracked mobility) for easy on-site relocation and its impact crushing principle, which excels at producing highly cubical aggregates and efficiently processing recycled materials like concrete with rebar.

Unmatched Mobility

Like its tracked jaw and cone counterparts, the track-mounted impact crusher eliminates the need for:

• Building fixed foundations.
• Extensive site preparation for setup.
• Using external vehicles (like trucks) to move the crusher around the quarry, demolition site, or recycling yard.

This drastically reduces setup time and internal haulage costs, allowing the crusher to follow the material source or move easily between stockpiles. ZONEDING track units for reliable and efficient movement.

Superior Crushing Principle for Specific Applications

The impact method offers distinct benefits:

• Excellent Product Shape (Cubicity): The high-impact shattering and particle-on-particle collision naturally produce aggregates with a more cubical shape compared to compression crushers. This is highly desirable for concrete and asphalt production, meeting stringent specifications.
• High Reduction Ratio (Material Dependent): In suitable materials (like limestone or recycled concrete), impactors can achieve significant size reduction in a single pass. Pushing for a very high ratio (small output setting, high speed) on harder or abrasive rock (like some granite or river gravel components) will cause wear parts (blow bars, impact plates) to wear out extremely quickly. This drives up operating costs significantly. Aim for a reasonable reduction ratio based on material hardness (check Mohs hardness, Los Angeles Abrasion value) and abrasiveness (Silica content – SiO2%).
• Effective Recycling: Impactors handle heterogeneous materials like C&D waste well. The impact action can help liberate rebar from concrete, making downstream magnetic separation more effective.

These advantages make track-mounted impact crushers a preferred choice for final stage crushing in aggregate production and a primary tool in recycling yards.

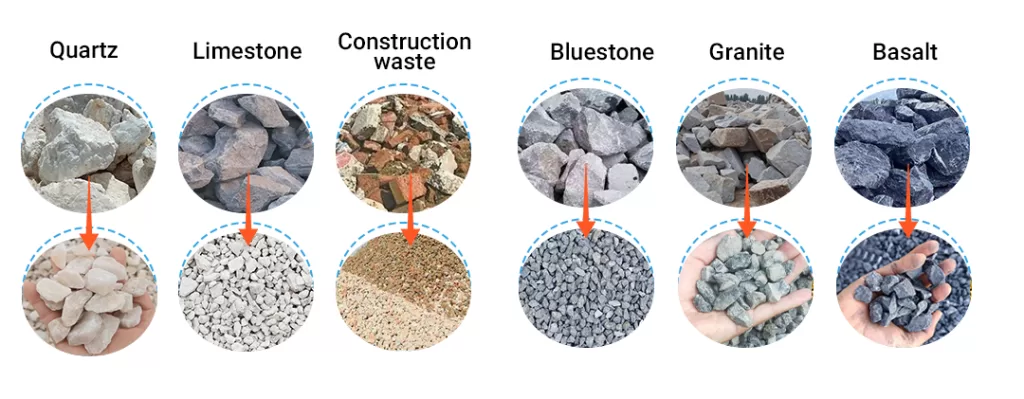

Which Materials and Application Scenarios Best Leverage the Strengths of a Track-Mounted Impact Crusher?

Track-mounted impact crushers excel with medium-hard to soft, non-abrasive rock (like limestone, dolomite, gypsum) and are highly effective in recycling concrete (including reinforced) and asphalt pavement due to their ability to produce good shape and handle contaminants.

Ideal Materials

• Limestone & Dolomite: Widely used for producing cubical aggregates for concrete and road base. Impactors achieve good shape and high throughput.
• Sandstone (less abrasive types): Can be processed effectively.
• Gypsum, Shale, Coal: Softer materials easily crushed by impact.
• Recycled Concrete: Excellent at breaking down concrete while helping to separate rebar.
• Reclaimed Asphalt Pavement (RAP): Effectively liberates the aggregate from the bitumen binder.
• Bricks and Blocks: Reduces construction demolition waste.

Prime Application Scenarios

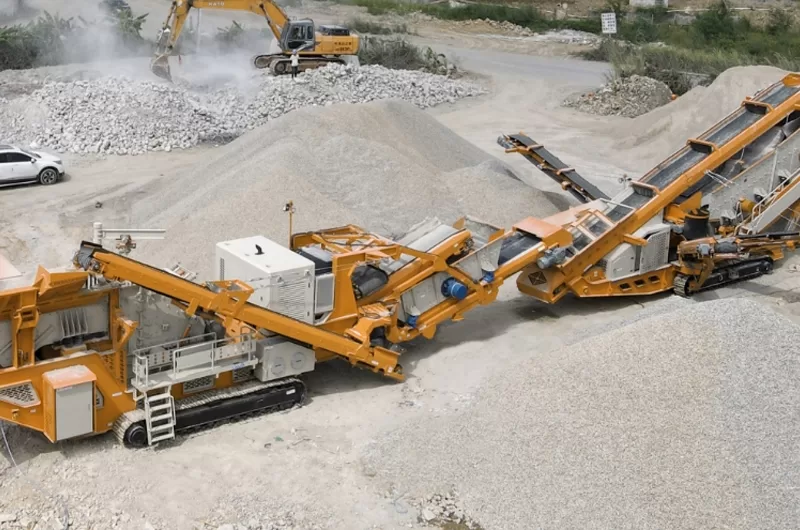

• Aggregate Production (Secondary/Tertiary): Producing final spec aggregates requiring high cubicity. Often follows a primary jaw crusher.
• Construction & Demolition (C&D) Waste Recycling: The most common application. Mobility allows processing directly on demolition sites. Handles variability in feed.
• Asphalt Recycling: Processing RAP for reuse in new asphalt mixes.
• Sand Manufacturing: Can produce manufactured sand, though often generates more fines than VSI crushers.
• Contract Crushing: Mobility is key for contractors moving between diverse jobs involving suitable materials.

When Purchasing a Track-Mounted Impact Crusher, Which Technical Parameters and Configurations are Crucial?

Crucial parameters include rotor diameter and width, maximum feed size, throughput capacity, engine power, CSS/apron adjustment range, transport weight/dimensions, and optional configurations like pre-screens, magnetic separators, and closed-circuit screens with return conveyors.

Model	ZDM938F1210	ZDM938FW1214	ZDM1149F1315	ZDM1349HD1110	ZDM1349HD1315
Transportation Length（mm）	12000	12000	13900	15450	15450
Transportation Width（mm）	2550	2550	2900	2950	2950
Transportation Height（mm）	3900	3900	4450	4500	4500
Maximum Length（mm）	12500	12500	13900	15450	15450
Maximum Width（mm）	3250	3260	3250	3250	3250
Maximum Height（mm）	5100	5200	5200	5200	5200
Weight（t）	39	44	54	62	62
Crusher Model	PF-1210	PF-1214	PF-1315	HD1110	HD1315
The Maximum Feeding Size（mm）	350	350	500	400	700
Production Capacity（t/h）	70-130	100-180	130-250	112	280
Vibrating Feeder	ZSW950×3800	ZSW950×3800	ZSW110×4900	ZSW130×4900	ZSW130×4900
Main Belt Conveyor	B800×8.5M	B800×8.5M	B1000×9.5M	B800×11M	B1200×11M
Side-opening Belt conveyor(Optional)	B500×3.2M	B500×3.2M	B650×4M	B650×4M	B650×4M
Genset(Optional) （kw）	320	320	400	320	440
Iron Separator (Optional)（kw）	RCYD(C)-8	RCYD(C)-8	RCYD(C)-10	RCYD(C)-8	RCYD(C)-12

Essential Technical Specifications

• Rotor Dimensions (Diameter x Width): Larger rotors generally handle larger feed sizes and offer higher throughput potential. Width impacts capacity.
• Maximum Feed Size: Ensure the machine can accept the largest rocks you expect to feed it consistently. Consider the “effective” opening, not just the physical gap.
• Throughput Capacity (tph): Look for ratings specific to your material type (e.g., limestone vs. concrete). Be conservative; maximum ratings are under ideal conditions.
• Engine Power (kW/HP): Must be sufficient to handle the expected load without strain. Consider fuel efficiency and emissions standards. Electric options are increasingly available.
• Transport Weight & Dimensions: Critical for road permits and site accessibility. Ensure your transport equipment can handle it.

Important Configurations & Options

• Vibrating Feeder with Pre-Screen: Highly recommended. Removes fines before crushing, improving efficiency and reducing wear. Check screen size and type options.
• Magnetic Separator: Essential for recycling applications to remove steel rebar. Check magnet strength, position, and ease of cleaning.
• Closed-Circuit System: Includes an onboard screen and return conveyor to send oversized material back to the crusher. Produces a finished spec product in one unit. Optimize screen media and ensure the return system isn’t a bottleneck. The entire circuit needs to be balanced for efficient operation.
• Dust Suppression System: Water spray nozzles at feed, discharge, and transfer points to control dust. Increasingly required by regulations.
• Remote Control: For safe operation and easy repositioning.

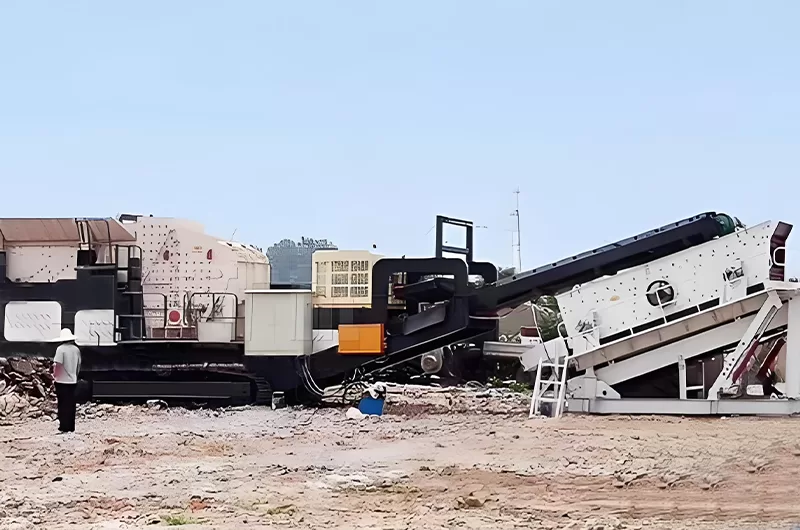

Can It Turn Construction Waste into Bricks?

You can turn old buildings and roads into new cash with this machine. I often see people throw away old concrete and bricks. This is a big mistake that costs you money in landfill fees. A Mobile concrete crushing plant crushes that waste into clean gravel and powder. You can then take this material directly to your brick factory. We design our DURABLE brick machines to use this recycled material. It creates a smart loop for your business and your wallet. You do not have to buy expensive new sand from the river anymore.

You just use the rubble that others want to throw away. This process also helps the planet because you do not fill up the earth with trash. ZONEDING engineers ensure the aggregate grain is the right size for cement mixing. You get strong blocks that pass all the safety tests in your country. The machine can also remove the dirt from the waste using a side conveyor. You are left with pure stone that is ready for the mixer. This allows you to bid on city demolition jobs because you have a way to recycle the waste on the spot. You become a leader in the green building market.

Why Is Cubic Grain Shape Vital?

Cubic grain shape is the most important factor for high-quality concrete bricks. I know that many buyers do not understand why shape matters. If a stone is flat or thin, it is very weak. Flat stones create tiny air pockets inside your concrete mix. These pockets cause the brick to crack when a heavy building sits on it. An impact crusher creates a “cubic” shape. It hits the rock from different angles and breaks it along natural lines. This turns the rock into a shape like a small dice or cube.

These cubes lock together very tightly inside the cement paste. This interlocking creates a much stronger internal structure for your building blocks. A cubic product also uses less cement because there is less surface area to cover. This saves you a lot of money over a full year of production. Builders will pay you more for stones that have a perfect cubic shape. ZONEDING focuses on the internal impact plate design to maximize this effect. We adjust the machine so every hit creates the best possible shape. You build a better reputation by selling stones that people can trust for big buildings.

How Do High Mobility Lower Project Costs?

Mobility is how you win the battle against the high cost of fuel. I have seen many companies go broke because of trucking costs. If you have a fixed crusher, you must move all the rocks to it. You pay for trucks, drivers, fuel, and expensive tires. A Crawler Crusher drives right up to the wall of rock or the waste pile. You feed the machine with an excavator from only five meters away. This short distance eliminates the need for many dump trucks.

You cut your fuel bill by thirty percent per ton of stone. You also save on time because you do not wait for trucks to drive back and forth. When one pile is finished, you drive the machine to the next pile. You do not spend weeks taking the machine apart and building it again. This fast movement allows you to finish your project weeks earlier. ZONEDING mobile machines are compact but very powerful. They fit on standard trailers for fast transport between cities. You can even move the machine while it is working to stay near the pile. This high efficiency keeps your profit margins high even when fuel prices go up.

What Materials Can Tracked Crushers Handle?

A tracked impactor can handle many different types of materials in his daily life. I have seen them crush soft limestone, recycled asphalt, and old roof tiles. They also work very well on medium-hard river stones and coal waste. You can put concrete with small bits of wood or dirt into the machine. The impactor shatters the hard stuff and lets the soft stuff pass. Many people look for a High-performance tracked impactor for sale to handle their diverse projects.

It works great on “soft” rocks like gypsum and “medium” rocks like dolomite. I do not recommend it for the hardest granite or basalt because those rocks wear the metal too fast. For those types of rock, you might need a different machine like a jaw or cone. But for most building waste and city rubble, the impactor is the best tool. ZONEDING engineers help you test your stones in our factory first. We want to be sure the machine fits your specific local material hardness. This prevents you from breaking your rotor on stones that are too tough. You get a tool that works for nearly every construction job you take.

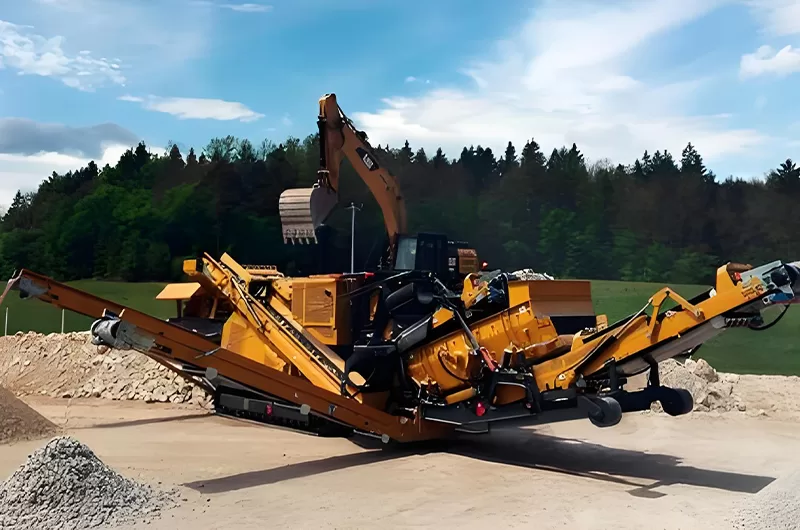

How Do Crawler Tracks Handle Harsh Terrain?

Crawler tracks are designed for the worst ground conditions you can imagine. I know that machines with wheels get stuck in soft sand or deep mud very easily. Crawler tracks spread the heavy weight of the machine over a very large area. This means the machine does not sink into the dirt when it rains. The tracks have big steel teeth that grip the ground like a mountain climber. You can drive up steep hills in a quarry that a truck could never climb.

You can walk over sharp rocks without worrying about a flat tire. This extra grip is vital for remote mining sites or messy demolition zones in a city. ZONEDING uses heavy-duty track frames and very powerful hydraulic motors. You can turn the machine in a circle in one spot. This “zero-turn” capability is perfect for tight city work zones with many cars and buildings. You do not have to worry about the weather or the mud slowing you down. Your machine stays at work even when the ground is bad for other vehicles.

Does It Feature Integrated Diesel-Electric Power?

Modern tracked crushers from ZONEDING often use a diesel-electric power system. I think this is the smartest way to run a moving factory. A large diesel engine runs a powerful electric generator inside the frame. This generator then sends power to electric motors on the conveyors and the rotor. This system is much better than using old hydraulic pipes that can leak oil. Electric motors are very efficient and do not lose power as they get hot.

They are also much easier for your mechanic to solve if something goes wrong. If you are near a big power grid, you can sometimes plug the machine in. This lets you save all your money on diesel fuel. The diesel-electric setup stays cooler in hot desert climates because it has fewer moving fluid parts. ZONEDING chooses high-quality generators that can handle big dust and heat. You get a steady flow of power that does not quit during a heavy load of rock. This power setup saves you money on maintenance and energy every single week. You can see your fuel use on a small screen in the control box.

How Do High-Chrome Blow Bars Save Money?

The blow bars are the parts that hit the rock inside the crushing chamber. I have seen cheap steel bars wear out in only two or three days. Replacing these bars costs a lot of money and stops your work. You should always use high-chrome iron blow bars for your project. Chrome is an extremely hard metal that resists scratching and wearing down. These bars can last three times longer than basic steel bars.

This means you stop the machine less often to change the parts. You spend less money on buying and shipping heavy metal around the world. ZONEDING uses a special casting method for our blow bars to make them very solid. We ensure there are no air bubbles inside the metal that could cause a break. You spend your cash on growing your business instead of buying new iron every week. Good Impact crusher wear parts maintenance is about picking the right metal first. Our bars are also reversible, so you can flip them over and use the other side. This doubles the life of every bar you buy.

Why Is an Over-Belt Magnet Crucial for Rebar?

If you crush old concrete from buildings, you will find a lot of steel rebar. I know that steel is a nightmare for your block machines and conveyor belts. You cannot have metal pieces inside your new building bricks. An over-belt magnet sits right above the main output conveyor belt. It pulls all the steel rebar and nails up and out of the rock as it passes.

The magnet drops the steel into a separate pile on the ground. You can sell this scrap metal to a recycling center for extra cash. Most importantly, it keeps your stone gravel pure and clean of any metal trash. Clean gravel is the only way to get a high price from your customers. ZONEDING builds these magnets as a standard option for our recycling clients. We make sure the magnetic field is deep enough to catch even heavy bars. You avoid the stress of a metal jam slowing down your production. You protect your expensive block factory equipment from sudden damage.

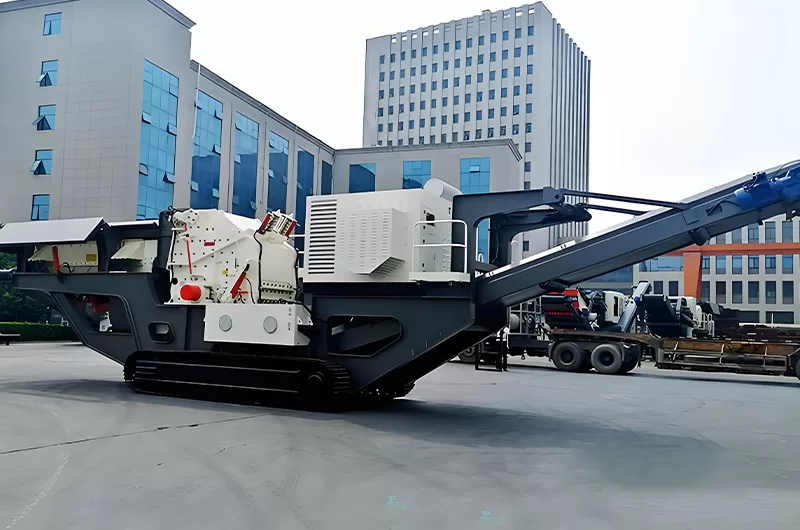

How Quickly Can You Set Up at a New Site?

In our business, speed is how you beat the other contractors. I have seen stationary plants take months to build and set up. A tracked mobile unit is ready to work in less than twenty minutes. You drive it off the transport trailer and put it where the rock is. You use the hydraulic handles to unfold the long conveyor belts.

You raise the side walls of the feeding hopper using the machine’s own power. You check the oil and you start the engine. You are crushing the first big rocks before the sun is high in the sky. This incredible speed lets you take on small jobs that other companies cannot do. You can finish one site and be at a new site the same afternoon. ZONEDING designs every folding part to be simple and very safe for the operator. One single worker can set up the whole machine without help. You do not need expensive cranes or big crews for this work. This efficiency makes you the most responsive company in your local area.

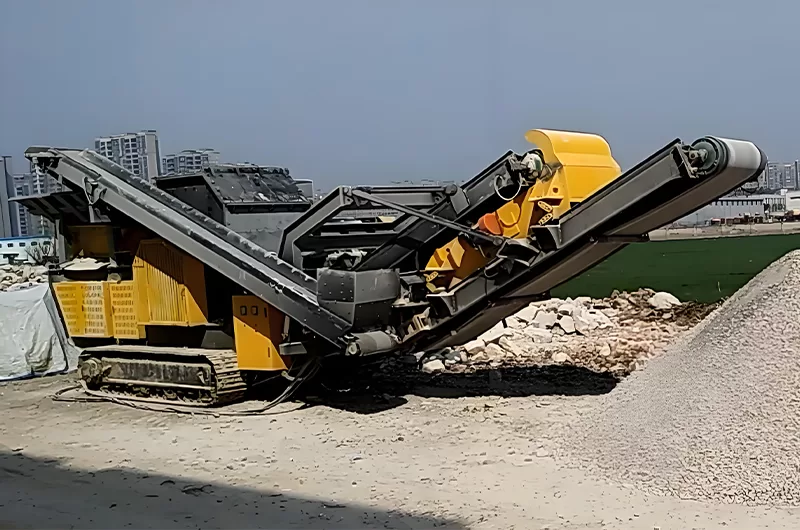

Customer site

Track-mounted impact crushers are versatile tools for producing quality aggregates and recycling materials. ZONEDING MACHINE offers reliable, customizable solutions.
