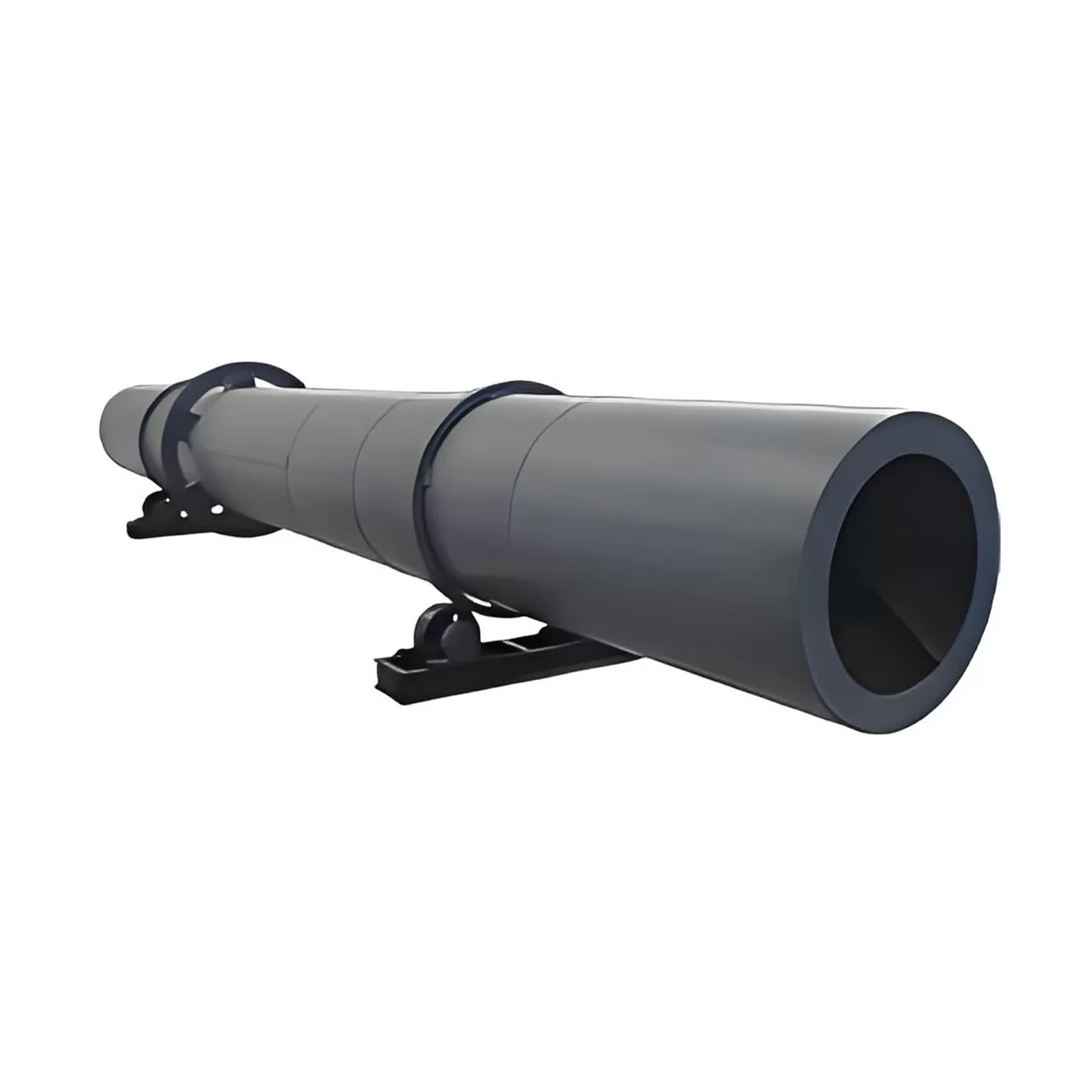

what is a Bagasse Dryer ?

A bagasse dryer is a piece of industrial equipment specifically designed to turn Bagasse trash into treasurereduce.

Wet bagasse has low value and is hard to handle. Simply burning it is inefficient and wasteful. Drying unlocks its fuel potential and saves energy costs significantly.

Electing a dryer specifically designed for bagasse is crucial. It addresses handling challenges like fiber tangling, boosts its heating value by removing moisture, and incorporates energy-saving and safety features, transforming waste into valuable fuel.

Transforming sugarcane waste into a valuable resource requires careful processing. Drying is a key step, but it’s not as simple as just applying heat. Understanding the unique challenges of bagasse is essential for choosing the right equipment and achieving efficient, safe operation.

Why Dry Wet Bagasse? (Is it Just for Burning?)

Piles of wet bagasse take up space and have limited use. Its low heat value makes it a poor fuel directly. Drying increases its value for energy production and potentially other applications.

While boosting its fuel value for boilers is the main reason, drying also reduces transport weight and cost, improves storage stability (less decomposition), and can prepare bagasse for other uses like panel board or pulp production.

The primary motivation for drying bagasse is definitely to improve its performance as a fuel, typically for cogeneration plants in sugar mills. Wet bagasse, often containing 45-55% moisture, has a low net calorific value because much energy is wasted evaporating the water during combustion. Drying it down to 10-15% moisture significantly increases the energy released per unit weight, improving boiler efficiency and steam production. Beyond combustion, drying offers other key advantages:

• Reduced Transportation Costs: Removing water drastically cuts the weight, making transport more economical if the bagasse needs to be moved off-site.
• Improved Storage: Wet bagasse decomposes and can ferment during storage, leading to losses and potential odor issues. Dry bagasse is much more stable.
• Feedstock for Other Processes: Dried bagasse can be used as a raw material for producing particleboard, fiberboard, pulp for paper, or even advanced biofuels and biochemicals, although specialized drying requirements might apply for these uses.

Benefits of Drying Bagasse

Feature	Wet Bagasse (approx. 50% Moisture)	Dry Bagasse (approx. 10-15% Moisture)	Impact
Net Calorific Value	Low (~7.5 MJ/kg)	High (~15-17 MJ/kg)	Significantly more usable energy per ton.
Boiler Efficiency	Lower	Higher	More steam/power generation for same fuel amount.
Transport Weight	High	Lower	Reduced shipping costs.
Storage Stability	Poor (decomposition risk)	Good	Less material loss, safer storage.
Handling	Can be sticky, prone to clumping	Flows better (though still fibrous)	Easier automated handling.

What Makes Drying High-Moisture, Long-Fiber Bagasse Difficult? (Clogging? Fire?)

Bagasse seems like simple plant fiber, easy to handle. But its long fibers tangle, it holds lots of water, and dry dust is very flammable. These create real drying challenges.

Difficulties include its tendency for long fibers to wrap and clog feeding systems and internal dryer parts. High, variable moisture complicates consistent drying. Also, dry bagasse dust poses a significant fire and explosion risk.

Drying bagasse presents unique challenges compared to materials like minerals or grains. Based on experience:

1. Fibrous Nature & Clogging: Bagasse consists of long, tough fibers. These fibers have a strong tendency to wrap around rotating equipment like standard screw feeders or rotary valves, causing jams and inconsistent feeding. Inside the dryer, simple lifter designs can allow fibers to accumulate, forming ropes or balls that don’t dry properly and can become hazards.
2. High and Variable Moisture: Bagasse typically comes from sugar mills with high moisture content (45-55%+), and this moisture level can change rapidly depending on cane quality, processing, and weather. This variability makes it hard to maintain a consistent drying process and final moisture content without sophisticated controls.
3. Fire and Explosion Risk : This is critically important. Dry bagasse dust is highly combustible and prone to dust explosions, much more so than many other materials. Static electricity, sparks, or overheated surfaces can easily ignite it within the dryer, ductwork, or dust collector, leading to serious incidents if safety measures are inadequate.

Key Challenges in Drying Bagasse

Challenge	Description	Consequence if Not Addressed
Fiber Tangling/Clogging	Long fibers wrap around shafts, bridge in hoppers, tangle on lifters.	Inconsistent feed, blockages, poor drying, downtime.
High/Variable Moisture	Feed moisture is high (45-55%+) and can fluctuate significantly.	Inconsistent final moisture, energy waste, inefficiency.
Fire/Explosion Hazard	Dry bagasse dust is highly flammable and explosive.	Catastrophic equipment damage, injury, production loss.
Low Bulk Density	Bagasse is light and bulky.	Requires larger equipment volume for the same mass flow.

Rotary, Air Stream, Belt… Which Dryer is the “Chosen One” for Bagasse?

Many dryer types exist, but not all can handle bagasse well. Choosing the wrong one leads to clogs, inefficiency, or safety issues. The best choice depends on bagasse’s specific properties.

Rotary dryers are frequently the preferred choice for large-scale bagasse drying. They are robust, offer longer residence times needed for high moisture removal, and can be customized with features to handle fibrous materials effectively.

While several dryer types could theoretically be used, the rotary dryer often emerges as the most practical and robust solution for drying large volumes of bagasse, especially considering its challenging properties. Here are reasons:

• Rotary Dryers: These workhorses can handle large throughputs. Their tumbling action, when combined with properly designed lifters, helps expose material surfaces to hot gas while minimizing fiber tangling compared to other designs. They provide sufficient residence time to remove the high initial moisture content effectively. Their robust construction can withstand the demands of industrial use.
• Air Stream (Flash) Dryers: These rely on high-velocity gas to convey and dry particles quickly. While efficient for some materials, the very short residence time might be insufficient for removing high moisture from bagasse uniformly. The fibrous nature can also lead to blockages in pneumatic conveying lines.
• Belt Dryers: These convey material on a permeable belt through heated zones. They can be gentler but are often more expensive and can face issues with bagasse forming a dense mat, hindering airflow and drying uniformity. They might be suitable for smaller capacities or specific applications.

For the typical needs of a sugar mill or biomass power plant requiring reliable, high-volume drying, a customized rotary dryer usually offers the best balance of performance, cost, and ability to handle bagasse’s difficult nature.

Dryer Suitability for Bagasse

Dryer Type	Suitability for Bagasse	Key Advantages for Bagasse	Key Disadvantages for Bagasse
Rotary Dryer	High (often preferred)	Robust, handles large volumes, adaptable.	Requires specific lifters/feeders.
Air/Flash Dryer	Low to Medium	Fast drying possible.	Short residence time, high clogging risk (fibers).
Belt Dryer	Medium	Gentle drying.	Potential matting issues, higher cost/footprint.

What Key Technical Parameters Must Be Examined When Buying a Bagasse Dryer?

Investing in a large industrial dryer requires careful specification. Focusing on the right technical details ensures you get a machine that meets your needs efficiently and reliably.

Spec./m (Dia.×Length)	Shell Cubage (m³)	Capacity (t/h)	Installation Obliquity(%)	Highest Inlet Air Temperature(℃)	Main Motor (kw)	Weight (t)
Φ1.2×8.0	9.0	1.9～2.4	3～5	700～800	7.5	9
Φ1.2×10	11.3	2.4～3.0	3～5	700～800	7.5	11
Φ1.5×12	21.2	4.5～5.7	3～5	700～800	15	18.5
Φ1.5×14	24.7	5.3～6.6	3～5	700～800	15	19.7
Φ1.5×15	26.5	5.7～7.1	3～5	700～800	15	20.5
Φ1.8×12	30.5	6.5～8.1	3～5	700～800	18.5	21.5
Φ1.8×14	35.6	7.6～9.5	3～5	700～800	18.5	23
Φ2.2×12	45.6	9.7～12.2	3～5	700～800	22	33.5
Φ2.2×14	53.2	11.4～14.2	3～5	700～800	22	36
Φ2.2×16	60.8	13.0～16.2	3～5	700～800	22	38
Φ2.4×14	63.3	13.5～16.9	3～5	700～800	37	45
Φ2.4×18	81.4	17.4～21.7	3～5	700～800	37	49
Φ2.4×20	90.4	19.3～24.1	3～5	700～800	45	54
Φ2.4×22	99.5	21.2～26.5	3～5	700～800	45	58
Φ2.6×24	127.4	27.2～34.0	3～5	700～800	55	73
Φ3.0×20	141.3	30.1～37.7	3～5	700～800	75	85
Φ3.0×25	176.6	37.7～47.1	3～5	700～800	75	95
Φ3.2×25	201	42.9～53.6	3～5	700～800	90	110
Φ3.6×28	285	60.8～76.0	3～5	700～800	160	135

Providing detailed information, ZONEDING can engineer a dryer (likely a customized rotary dryer) that meets your specific throughput, product quality, and operational requirements efficiently and reliably.

How to Precisely Control Final Moisture Content for Maximum Bagasse Heat Value?

Getting the moisture level just right maximizes fuel value. Too wet, and energy is wasted in the boiler. Too dry, and energy was wasted in the dryer, plus fire risk increases.

Precise control relies on an automated system using sensors for feed rate, inlet moisture, dryer temperatures, and outlet moisture. This system adjusts heat input (and sometimes drum speed) automatically to maintain the target consistently.

Achieving a consistent final moisture content (often targeting 10-15%) despite fluctuations in feed moisture requires more than manual adjustments. A reliable control system is essential. Simply controlling the outlet gas temperature is insufficient because it doesn’t directly measure the product moisture and reacts slowly to changes.

A robust system typically involves:

1. Feed Rate Monitoring: Knowing how much material is entering the dryer (e.g., using a weigh belt feeder).
2. Inlet Moisture Sensing (Optional but Recommended): Using sensors like microwave or Near-Infrared (NIR) gauges on the incoming feed provides crucial early information about moisture variations.
3. Temperature Monitoring: Measuring hot gas inlet temperature, exhaust gas temperature, and ideally, material temperature near the discharge.
4. Outlet Moisture Sensing: Using an online moisture sensor (microwave or NIR) on the dried product provides the most direct feedback.
5. Automated Control Logic (PLC): A Programmable Logic Controller (PLC) takes inputs from these sensors and automatically adjusts the heat source output (e.g., burner firing rate, hot gas damper position) and potentially the dryer drum’s rotational speed to maintain the desired outlet moisture target despite feed variations.

This feedback loop allows the system to react quickly and maintain consistency, maximizing fuel value and preventing over-drying.

Elements of Precise Moisture Control

Control Element	Method	Purpose	Key Point
Heat Source Output	Adjust burner firing rate / furnace output.	Control overall energy input to the dryer.	Match energy to evaporation load.
Airflow Rate	Adjust fan speed (VFD).	Control heat delivery and moisture removal rate.	Balance efficiency and temp.
Material Temp Sensors	Thermocouples placed within material bed.	Provide direct feedback on product temperature.	Crucial for preventing overshoot.
Retention Time	Adjust drum speed / slope.	Control how long material is exposed to heat.	Ensure sufficient drying time.
Feed Rate Control	Stable feeding system.	Maintain consistent load on the dryer for stable temps.	Avoid fluctuations.

What Energy-Saving Techniques and Tips Can Tackle High Bagasse Drying Costs?

Drying uses a lot of heat, meaning high fuel costs. These costs significantly impact the economics of using bagasse. Smart choices can drastically reduce energy consumption.

Key savings come from maximizing mechanical dewatering before thermal drying, optimizing the heat source (using waste heat carefully), ensuring good dryer insulation and seals, and targeting the optimal, not lowest, final moisture.

Reducing the significant energy cost of drying bagasse is crucial for project viability. Several effective strategies exist:

1. Prioritize Mechanical Dewatering: This is often the most impactful yet overlooked step. Removing water mechanically using high-pressure presses before it enters the thermal dryer requires far less energy than evaporating it. Improving existing presses or adding a dedicated dewatering press can yield substantial energy savings (e.g., reducing inlet moisture from 52% to 45% can cut drying energy by 15-20%+).
2. Optimize Heat Source: While using “free” waste heat like boiler flue gas seems attractive, assess the true cost. Flue gas may contain contaminants (ash, sulfur) that pollute the bagasse or cause corrosion, requiring costly cleanup or heat exchangers. Sometimes a dedicated clean burner (biomass gasifier, natural gas) offers better control and product quality, potentially offsetting fuel costs through reliability. If using waste heat, ensure proper temperature control and material compatibility.
3. Dryer Efficiency: Ensure the dryer itself is well-insulated to minimize heat loss. Maintain effective seals at feed and discharge points to prevent cold air ingress or hot gas leakage.
4. Optimize Target Moisture: Don’t over-dry. Aim for the moisture level (often 10-15%) that provides the best overall system efficiency (dryer energy input vs. boiler efficiency gain), not necessarily the absolute lowest moisture possible.

Energy Saving Methods for Bagasse Drying

Technique	Description	Impact
Mechanical Dewatering	Use high-pressure presses to reduce water before thermal drying.	Dramatically lowers thermal energy required for evaporation.
Heat Source Evaluation	Choose fuel carefully; analyze true cost/impact of waste heat.	Balances fuel cost vs. capital cost, contamination, control.
Insulation & Sealing	Proper insulation on shell/ducts; effective seals at ends.	Minimizes heat loss, prevents inefficient air leakage.
Target Moisture Setting	Aim for system optimum (e.g., 10-15%), not absolute minimum.	Avoids wasting energy on marginal boiler efficiency gains.
Control System	Automated controls prevent over-drying and maintain efficiency.	Ensures consistent operation at optimal energy usage.
Regular Maintenance	Clean internals, functional seals, efficient drive system.	Maintains design efficiency over time.

How Should the System Be Designed (Feed to Discharge) to Prevent Clogging?

Fibrous bagasse loves to clump and tangle, causing frustrating jams. From where the material enters to where it leaves, specific design choices are needed to keep things flowing smoothly.

Use robust, non-clogging feed systems (like specialized screw feeders or live-bottom bins) and carefully designed internal dryer lifters that promote tumbling without allowing fibers to wrap or build up. Smooth transitions and proper discharge are also key.

Preventing blockages caused by bagasse’s fibrous nature requires attention throughout the system design:

1. Feeding System: This is often the first bottleneck. Standard screw conveyors or rotary valves will likely fail. Reliable options include:
   • Robust Screw Feeders: Often twin-shaft designs with intermeshing flights, or variable-pitch single screws designed to break clumps and resist wrapping.
   • Live-Bottom Bins: Use multiple screws or a moving floor in the feed hopper to ensure consistent material discharge without bridging.
   • Chute Design: Ensure feed chutes are steep, smooth, and potentially vibrated to prevent material buildup before it enters the dryer.
2. Dryer Internals (Lifters/Flights): Inside the rotary drum, lifter design is critical. Simple L-shaped lifters allow fibers to hang up. Better designs involve:
   • Complex Shapes: Combinations of angled plates, channels, or specialized designs that lift and shower the material effectively while minimizing surfaces where fibers can catch and start building “ropes.”
   • Self-Cleaning Action: Designs that encourage material to tumble over itself can help dislodge potential accumulations.
3. Discharge System: Ensure a smooth transition from the dryer drum to the discharge housing and subsequent conveying system, avoiding abrupt changes in direction or constrictions where material could jam.

Design Features to Prevent Bagasse Clogging

System Area	Design Consideration	Purpose
Feed Hopper	Steep walls, live-bottom mechanism.	Prevent bridging, ensure consistent flow to feeder.
Feeder	Specialized screw (twin, variable pitch).	Actively move material, break clumps, resist wrapping.
Feed Chute	Smooth, steep, possibly vibrated.	Minimize friction and buildup points at dryer entry.
Dryer Lifters	Complex shapes, avoid flat catching surfaces.	Promote showering, prevent fiber accumulation/roping.
Discharge	Smooth transitions, adequate sizing.	Ensure easy exit of dried material without restriction.

Drying Bagasse = High Fire/Explosion Risk? How Important is Safety Design?

Key elements include:

1. Spark Detection and Extinguishing: Sensors in ductwork detect sparks (common ignition sources) and trigger rapid water spray systems before the spark reaches high-dust areas like the baghouse.
2. Explosion Venting/Suppression: If an explosion occurs, engineered vents release pressure safely, or chemical suppression systems extinguish the flame front rapidly. This is vital for the dryer body, dust collector, and potentially interconnecting ducts, designed according to standards like NFPA or ATEX.
3. Temperature Monitoring and Control: Overheating is a major ignition risk. Accurate temperature sensors and control systems are needed to prevent hot spots within the dryer. Emergency shutdowns if temperatures exceed safe limits are essential.
4. Material Handling Design: Avoid designs that allow dust or semi-dried material to accumulate in stagnant zones, as these are prime locations for smoldering fires.
5. Inerting (Optional): In some high-risk cases, introducing inert gas (like CO2 or N2) or recirculated flue gas (low oxygen) can reduce the oxygen concentration below combustion levels, but this adds complexity and cost.
6. Good Housekeeping: Design should facilitate easy cleaning to prevent dust accumulation. Operational procedures must enforce regular cleaning.

Safety is not just about adding components; it’s about inherently safer design principles integrated throughout the system.

Essential Safety Design Features for Bagasse Dryers

Safety Feature	Purpose	Location(s)
Spark Detection	Detect incandescent particles traveling in ducts.	Ducts before baghouse, potentially after dryer.
Spark Extinguishing	Rapidly quench detected sparks with water spray.	Immediately downstream of detectors.
Explosion Venting	Safely release explosion pressure to prevent vessel rupture.	Dryer body, dust collector, silos.
Explosion Suppression	Chemically extinguish deflagration flame front.	Alternative/supplement to venting.
Temperature Monitoring	Detect overheating conditions, trigger alarms/shutdowns.	Hot gas inlet, dryer body, exhaust, bearings.
Emergency Shutdowns	Automatically stop system in unsafe conditions (high temp, etc.).	Integrated into control system.
Grounding/Bonding	Prevent static electricity buildup and discharge (ignition source).	All conductive equipment components.
Good Housekeeping	Design for easy cleaning, operational procedures for regular cleaning.	Entire system, especially ledges/corners.

Beyond the Dryer Body, What Else is Needed for an Efficient Bagasse Drying System? (Dust Collection, Conveying)

The dryer drum itself is central, but it can’t work alone. A complete, functional system requires several other essential pieces of equipment working together smoothly.

A full system requires a reliable feed mechanism, a heat source (furnace/burner), the dryer unit, robust conveying systems for wet feed and dry product, and critically, an efficient and safe dust collection system.

An effective bagasse drying operation is a system, not just a single machine. Besides the dryer body (typically a rotary drum), several key ancillary components are essential:

1. Feeding System: As discussed before, this needs to reliably deliver the wet, fibrous bagasse into the dryer without clogging. Examples include specialized screw feeders or live-bottom bins.
2. Heat Source: Provides the hot gas for drying. This could be a dedicated furnace burning natural gas, biomass, or other fuel, or it could involve utilizing waste heat (like boiler flue gas) via direct contact or indirectly through a heat exchanger.
3. Dryer Body: The core unit where heat and mass transfer occur.
4. Dust Collection System: Crucial for safety and environmental compliance. Typically involves a primary separator (like a cyclone) followed by a high-efficiency baghouse filter to capture fine dust before the exhaust gas is released.
5. Exhaust Fan: Creates the necessary airflow to pull hot gas through the dryer and dust collection system, maintaining negative pressure to control dust leakage.
6. Conveying Systems: Transporting wet bagasse to the feeder and moving the hot, dry (and potentially dusty) bagasse away from the dryer discharge to storage or the next process step. Screw conveyors, belt conveyors, or pneumatic systems might be used, chosen carefully for handling dry bagasse.
7. Control System: The brain of the operation, coordinating all components for efficient and safe drying.

Components of a Complete Bagasse Drying System

Component	Function	Key Considerations for Bagasse
Feeding System	Reliably introduce wet bagasse into the dryer.	Must handle fibrous nature, prevent clogging.
Heat Source	Generate hot gas for drying.	Fuel type, efficiency, potential contamination (if direct fire).
Dryer Body	Facilitate heat/mass transfer between hot gas and bagasse.	Appropriate size, internal design for fiber handling.
Dust Collection	Capture fine bagasse dust from exhaust gas.	High efficiency needed, critical safety component.
Exhaust Fan	Provide airflow through the system, maintain negative pressure.	Sized for required airflow and system pressure drop.
Conveying (In/Out)	Transport wet feed to dryer, dry product away from dryer.	Must handle wet/sticky feed and dry/dusty/fibrous product.
Control System	Monitor sensors, automate adjustments for moisture/safety.	Essential for consistency, efficiency, and safety.

Buying a Bagasse Dryer: What “Traps” Await if You Only Look at Price?

The lowest initial price always looks tempting. But for complex equipment like a bagasse dryer, choosing the cheapest option often leads to much higher costs down the road due to failures, inefficiency, or safety incidents.

Focusing solely on price ignores critical factors like inadequate safety features, poor handling of fibrous material leading to clogs, high energy consumption, low durability, lack of necessary controls, and poor supplier support.

While budget is always a factor, selecting a bagasse dryer based primarily on the initial purchase price is a recipe for long-term problems and higher overall costs. Common pitfalls include:

• Compromised Safety: The cheapest options may cut corners on essential safety features like spark detection, suppression, or properly rated explosion venting. The cost of a single fire or explosion far outweighs any initial savings.
• Inadequate Material Handling: Standard, low-cost feeders and internal dryer designs may not cope with bagasse’s fibrous nature, leading to constant clogging, downtime, and lost production.
• Poor Energy Efficiency: Lack of proper insulation, ineffective seals, inefficient heat source integration, or inability to optimize target moisture means significantly higher ongoing fuel costs. Ignoring pre-drying mechanical dewatering options also inflates energy use.
• Lack of Automation: Systems without robust controls to handle feed moisture variations will produce inconsistent product and waste energy.
• Low Durability: Using cheaper materials without considering potential abrasion from sand/grit or corrosion can lead to premature wear and costly repairs or replacement.
• Insufficient Dust Control: Undersized or low-quality dust collection systems can lead to environmental fines and unsafe working conditions.
• Poor Supplier Support: A low price may come with minimal engineering support, training, spare parts availability, or after-sales service, leaving you stranded when issues arise.

Investing in a well-engineered dryer designed specifically for bagasse by an experienced supplier, considering total cost of ownership (including safety, efficiency, and reliability), is crucial.

Pitfalls of Price-Focused Dryer Selection

Pitfall	Consequence
Inadequate Safety Features	High risk of fire/explosion, catastrophic failure, injury.
Poor Fiber Handling Design	Frequent clogging, downtime, inconsistent drying, lost production.
Low Energy Efficiency	High ongoing fuel costs, poor ROI.
Lack of Robust Controls	Inconsistent product quality, energy waste, manual intervention needed.
Inferior Materials/Construction	Premature wear, corrosion, frequent repairs, shorter equipment life.
Undersized Dust Collection	Environmental non-compliance, unsafe workplace, product loss.
Minimal Supplier Support	Difficult installation/commissioning, prolonged downtime if issues arise.

ZONEDINGMACHINE Strengths:

1. Proven Experience: ZONEDING MACHINE has exported machines to more than 120 countries. With rich experience, ZONEDING MACHINE can provide specific examples and references of successful installations drying your type of gypsum (Natural, FGD, Phospho).
2. Engineering Support: ZONEDING MACHINE engineers are highly involved during the specification and design phase. And ZONEDING can offer installation supervision and commissioning assistance.
3. Manufacturing and Quality Control: With quality standards, ZONEDING MACHINE manufactures in-house. Factory direct sales often mean better control and communication.
4. Operator Training: ZONEDING MACHINE provides comprehensive training for your staff on how to operate and maintain the dryer correctly.
5. Spare Parts Availability: ZONEDING MACHINE can quickly supply critical spare parts at proper cost, with some consumable parts are in stock.
6. After-Sales Service Network: ZONEDING MACHINE has service capabilities in most region and response quickly for technical queries or troubleshooting requests.
7. Warranty: ZONEDING MACHINE offers one-year warranty.

ZONEDINGMACHINE, as a reliable long-term partner， with comprehensive product line, customization capabilities, factory-direct model, and global experience and full-service support, can ensure you receive not just equipment, but a complete drying solution.

Customer Cases
