what is a gypsum dryer ?

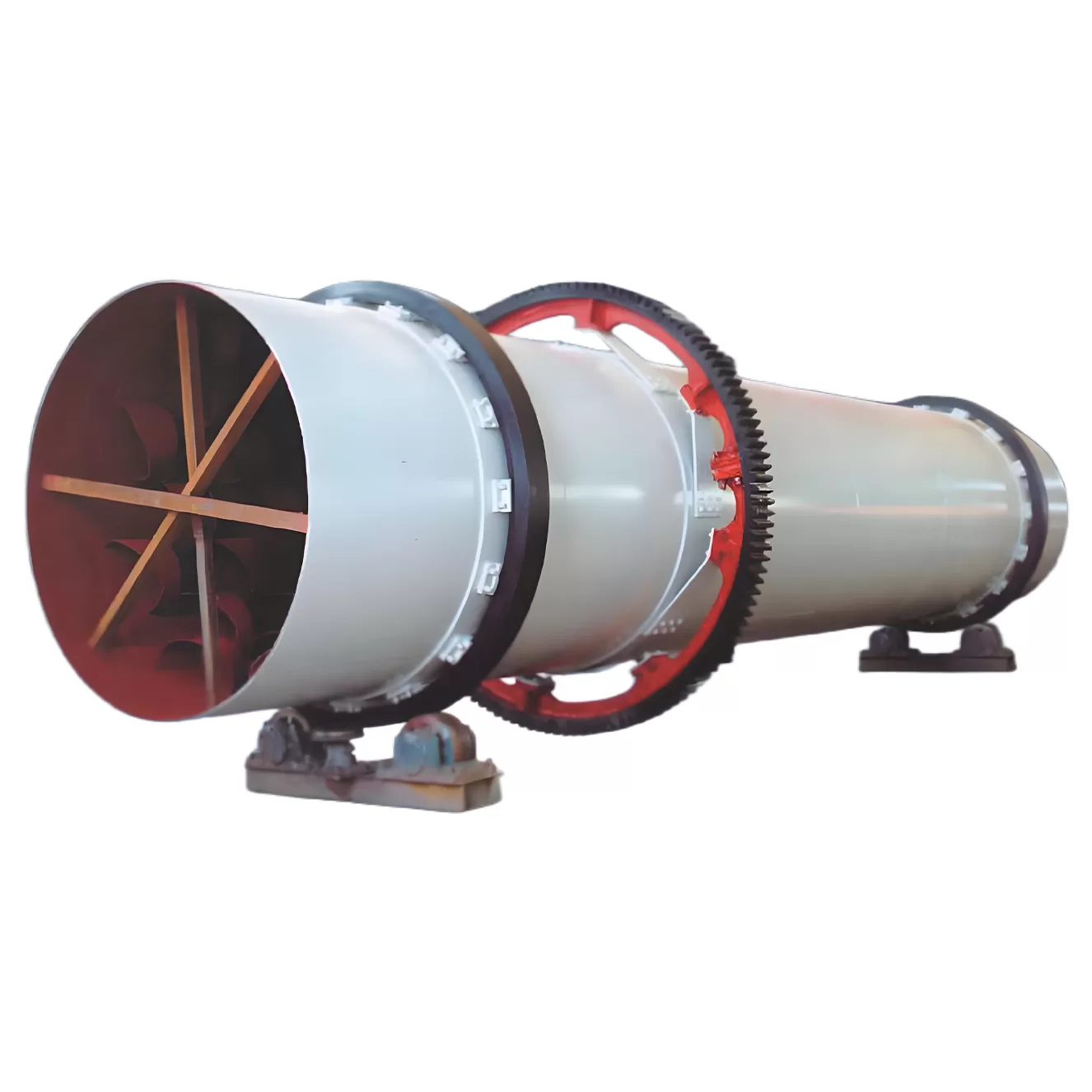

A gypsum dryer is a piece of industrial equipment specifically designed to reduce the moisture content (free water) of raw gypsum. It’s a crucial step in processing gypsum for various applications, most notably before it’s calcined to produce Plaster of Paris (stucco) used in wallboard manufacturing, or when preparing it as an additive for cement production.

Drying gypsum seems straightforward, but problems arise. Over-calcination ruins quality, and dust creates hazards. Selecting the correct dryer prevents these costly issues.Choosing a dryer designed specifically for gypsum is crucial. It ensures precise temperature control to prevent unwanted phase changes (calcination) and includes features to handle potential stickiness and manage fine dust effectively.

Handling gypsum involves more than just removing water. Different gypsum types have unique properties. Understanding these differences is key to selecting equipment that performs reliably and efficiently.

Does Natural Gypsum Dry Differently Than FGD?

Yes, natural gypsum and FGD (Flue Gas Desulfurization) gypsum have very different needs. Natural gypsum comes from mines and usually has about 5% to 10% moisture. It is often in big rocks that you must crush first. FGD gypsum is a byproduct of power plants and is a very fine, wet powder. It often has 15% or more moisture and feels like wet flour. This creates a challenge for a Rotary Drum Dryer for Gypsum. The fine powder can blow away or stick to the drum walls before it gets dry.

ZONEDING specializes in Synthetic gypsum moisture removal for power plant waste. We use different internal designs for these two materials. For natural rocks, we use heavy lifting plates that can survive the impact of big stones. For FGD powder, we use a “triple-pass” design or a drum with chains. These chains constantly knock the walls of the drum to keep the sticky powder moving. We also adjust the speed of the hot air. If the air moves too fast, the fine FGD gypsum will fly out the chimney before it is dry. Our 2025 models use smart sensors to detect which material is inside and adjust the settings automatically for the best result.

Why Is Moisture Control Critical for Quality?

Moisture control is the difference between a high-grade product and a rejected batch. If your gypsum is too wet, it will rot in the bags or clog the cement mill. If it is too dry, it can lead to “pre-calcination.” This means the heat starts to change the chemical structure of the gypsum too early. This ruins the gypsum for making plaster or wallboards. A ZONEDING Gypsum Dryer is designed to hit a perfect 1% to 3% moisture level every single hour. This is vital for Gypsum builder raw material preparation.

Many of our customers use the dry gypsum to feed into an automatic brick machine to make high-end gypsum blocks. For these bricks to be strong, the raw powder must be high quality. Our dryers use a “co-current” airflow. This means the hottest air meets the wettest gypsum first. This “flash dries” the surface and protects the core from getting too hot. As the gypsum moves toward the exit, the air is cooler. This balance prevents burning the material. We use Siemens temperature sensors to watch the exit heat every second. This level of precision is why ZONEDING is a global leader in mineral drying.

Is Drying Gypsum Just About Removing Water? (Why Focus on Phase Change Control?)

Gypsum (CaSO₄·2H₂O) loses crystal water at specific temperatures, changing into hemihydrate (CaSO₄·½H₂O) or anhydrite (CaSO₄). Drying aims to remove surface water only, while calcination requires precise temperature control to achieve the desired phase.

The primary goal of a gypsum dryer is to remove the free or surface moisture. This water is physically attached to the gypsum particles, often found in filter cake from processes like Flue Gas Desulfurization (FGD). Typically aim to reduce this moisture from maybe 10-20% down to less than 1%. This usually happens at temperatures below 120°C (248°F).

However, gypsum itself contains chemically bound water, called crystal water. Heating gypsum above certain temperatures (around 140-180°C or 284-356°F), it undergoes calcination. It loses 1.5 water molecules to become hemihydrate (Plaster of Paris), or all 2 water molecules to become anhydrite. If your goal is just drying (e.g., preparing gypsum for wallboard manufacturing where calcination happens later, or for cement production), exceeding these temperatures in the dryer is detrimental. It leads to unwanted calcination, creating a mix of dihydrate, hemihydrate, and possibly “dead-burned” anhydrite, which has poor setting properties. This results in inconsistent product quality and wasted energy. Therefore, precise temperature control in the dryer is essential to stay below calcination temperatures. Calcination requires different, specialized equipment like rotary kilns or kettle calciners.

Understanding Gypsum Water Types

Water Type	Description	Removal Process	Target Temperature Range	Goal	Equipment Focus
Free Water	Surface moisture, mechanically held between particles.	Drying	< 120°C (248°F)	Remove moisture	Rotary Dryer
Crystal Water	Chemically bound within the CaSO₄·2H₂O structure.	Calcination	140-180°C (284-356°F) for hemihydrate	Change phase	Rotary Kiln, Kettle

How Do Drying Difficulties Differ for Natural, FGD, and Phosphogypsum?

Not all gypsum is the same. Natural rock gypsum behaves differently than synthetic gypsum from industrial processes. Knowing these differences helps select the right drying approach. Natural gypsum is often easier to handle. FGD gypsum is typically very fine, wet, and sticky. Phosphogypsum can contain impurities affecting drying and final product quality.

• The source of the gypsum significantly impacts how it behaves during drying, influencing dryer design.
• Natural Gypsum: Mined gypsum rock is usually crushed and screened first. Its moisture content is often lower than synthetic types. It tends to be less sticky and flows better, making it relatively easier to dry in standard rotary dryers, although proper temperature control to avoid calcination is still needed.
• FGD Gypsum (Desulfurization Gypsum): This is a byproduct of removing sulfur dioxide from power plant flue gases. It typically comes as a filter cake with high free moisture (10-20%+). Its particles are very fine and uniform. The biggest challenge with FGD gypsum is its high stickiness when wet. It readily builds up inside dryers, requiring special designs like anti-sticking lifters and potentially back-mixing systems. FGD gypsum can also contain chlorides from the coal or limestone used, making it potentially corrosive to standard equipment, especially in wet, hot conditions.
• Phosphogypsum: This is a byproduct of phosphoric acid production. Like FGD gypsum, it’s fine-particled and can have high moisture. However, it often contains different impurities like residual acids (P₂O₅) or sometimes radioactive elements, depending on the phosphate rock source. These impurities can affect drying behavior, potentially increase corrosivity, and limit the end-use applications of the dried product. Drying may require specific material considerations and potentially washing steps beforehand.

Key Differences in Gypsum Types for Drying

Gypsum Type	Typical Feed State	Key Drying Challenges	Primary Considerations
Natural Gypsum	Crushed rock	Control temperature to avoid calcination.	Flowability generally good.
FGD Gypsum	Wet filter cake	High stickiness, high moisture, potential corrosivity (Cl⁻).	Anti-sticking design, material selection.
Phosphogypsum	Wet filter cake	High moisture, potential impurities (P₂O₅, others), acidity.	Impurity impact, potential corrosivity.

Which Dryer Type is Best for Your Gypsum and Product Requirements? (Rotary vs. Air Stream vs. Others?)

Many dryer types exist, each with strengths and weaknesses. Choosing the wrong one means inefficiency or poor product. The best choice depends on specific gypsum and goals.

Rotary dryers are the most common and versatile for drying various gypsum types, especially for large capacities. Air stream (flash) dryers can work for fine materials if retention time is sufficient, but struggle with sticky FGD gypsum.

• Direct-heat rotary dryer is the workhorse for most gypsum drying applications. Its robustness allows it to handle variations in feed moisture and particle size. With appropriate internal modifications (like specialized lifters), it can effectively manage sticky materials like FGD gypsum. Rotary dryers provide sufficient residence time for removing surface moisture efficiently without typically causing excessive calcination if operated correctly. They are suitable for the large throughputs required in industries like cement and wallboard manufacturing.
• Air stream or flash dryers work by suspending particles in a high-velocity hot gas stream. They offer very short drying times and are compact. However, they are best suited for materials that release moisture very quickly and are not sticky. While potentially usable for some pre-crushed natural gypsum, they generally struggle with the high moisture and stickiness of FGD gypsum filter cake. Achieving low final moisture might also require very high inlet temperatures, increasing the risk of localized over-heating or partial calcination.
• Fluidized bed dryers can offer excellent heat transfer but may also face challenges with the stickiness and wide particle size distribution sometimes found in gypsum feeds. For most large-scale gypsum drying (not calcining) needs, the rotary dryer provides the best balance of flexibility, robustness, and cost-effectiveness.

Dryer Suitability for Gypsum

Dryer Type	Suitability for Gypsum Drying	Advantages	Disadvantages
Rotary Dryer	High (especially with modifications)	Versatile, handles feed variations, robust.	Needs anti-sticking for FGD, larger footprint.
Air/Flash Dryer	Medium (for fine, non-sticky)	Fast drying, compact.	Struggles with sticky feed, short residence time, dust load.
Fluidized Bed	Medium (potential for good heat transfer)	Good mixing, efficient heat transfer.	Potential issues with stickiness, requires uniform feed.
Kettle/Calciner	Not for drying (for calcination)	Produces specific phases (hemihydrate).	Not designed for efficient free water removal.

How to Precisely Control Temperature and Time to Avoid “Over-Burning” Gypsum?

Heating gypsum too much or for too long changes its structure permanently. This “over-burning” ruins its ability to set properly. Precise control is needed for quality.

Control requires careful management of the heat source output (burner/furnace) and airflow, coupled with monitoring the material temperature, especially near the discharge. Maintaining outlet temperatures below the critical calcination point (around 120°C) is key.

Avoiding unwanted calcination (“over-burning” or “dead-burning”) during the drying stage is primarily about temperature and time control. In a direct-heat rotary dryer, the main control inputs are the temperature of the hot gas entering the dryer and the volume of that gas (airflow). The material’s residence time is controlled by the dryer’s rotation speed, slope, and internal dam rings or lifter design.

To prevent over-heating, ensure the material temperature is important, particularly as it nears the discharge end, stays below the point where significant crystal water loss begins (roughly 120-130°C for drying). This requires:

1. Accurate Hot Gas Control: Using a reliable heat source (like a well-controlled hot air furnace) where the outlet temperature can be precisely set and maintained.
2. Material Temperature Monitoring: Installing thermocouples or other temperature sensors inside the dryer, especially in the final third, to directly measure the gypsum temperature. This provides crucial feedback.
3. Appropriate Airflow: Using enough airflow to carry away the evaporated moisture but not so much that it requires excessively high inlet gas temperatures to achieve the desired drying.
4. Stable Operation: Maintaining consistent feed rate and feed moisture helps keep the temperature profile stable. Sudden changes can lead to temperature spikes.

Modern control systems (PLCs) can use feedback from material temperature sensors to automatically adjust the heat input, ensuring the gypsum is dried effectively without exceeding the critical threshold for unwanted phase changes.

Temperature Control Strategies

Control Element	Method	Purpose	Key Point
Heat Source Output	Adjust burner firing rate / furnace output.	Control overall energy input to the dryer.	Match energy to evaporation load.
Airflow Rate	Adjust fan speed (VFD).	Control heat delivery and moisture removal rate.	Balance efficiency and temp.
Material Temp Sensors	Thermocouples placed within material bed.	Provide direct feedback on product temperature.	Crucial for preventing overshoot.
Retention Time	Adjust drum speed / slope.	Control how long material is exposed to heat.	Ensure sufficient drying time.
Feed Rate Control	Stable feeding system.	Maintain consistent load on the dryer for stable temps.	Avoid fluctuations.

What Special Designs Are Needed for High-Moisture, Sticky FGD Gypsum Dryers?

FGD Gypsum arrives very wet and clumps together easily. Standard dryers clog quickly with this material. Specific design features are essential for reliable operation.

Dryers for FGD gypsum require specialized internal lifting flights (e.g., combination or chain types), potentially back-mixing systems, optimized feed end design, and sometimes specific materials to combat stickiness and potential corrosion.

Handling the challenging properties of FGD gypsum requires specific adaptations in the rotary dryer design. As highlighted before, its high moisture content and fine particle size make it extremely sticky. To prevent severe buildup on the shell and lifters, which kills efficiency and causes blockages, we implement several strategies at ZONEDING:

• Advanced Lifter Design: Standard lifters are inadequate. We use specialized designs, particularly in the wet feed section. Combination lifters (e.g., angled flights with channels) or chain systems are effective. Chains hanging within the drum create a curtain that breaks up clumps and provides a scraping action as the drum rotates, preventing material from adhering firmly.
• Back-Mixing (Recycle): Introducing a portion of hot, dry product back to mix with the incoming wet feed (either externally before the dryer or internally near the feed end) is a highly effective technique. This lowers the overall moisture and stickiness of the material entering the main drying zone. Precise control of the recycle ratio is important for efficiency.
• Optimized Feed Chute: Ensuring a smooth, steep entry for the wet material minimizes initial sticking points.
• Material Selection: Due to potential chlorides and acidity in FGD gypsum, using corrosion-resistant materials like stainless steel (e.g., 304 or 316L) for the shell or liners, especially in the wetter, hotter zones, may be necessary to ensure reasonable equipment life. Carbon steel might require frequent maintenance or premature replacement.

Design Features for FGD Gypsum Dryers

Feature	Description	Benefit
Specialized Lifters	Combination flights, channel flights, chain curtains/systems.	Prevent sticking, break clumps, enhance heat transfer.
Back-Mixing System	Controlled recycle of dry product to mix with wet feed.	Reduces feed stickiness, improves flowability.
Optimized Feed End	Smooth, non-restrictive entry design.	Minimizes initial buildup.
Material Selection	Use of stainless steel or alloys in critical areas.	Resists corrosion from chlorides or acidity.
Operational Tuning	Adjusting drum speed/slope for optimal material movement.	Helps move material quickly through sticky zones.

How Can Energy Consumption and Operating Costs Be Effectively Reduced in Gypsum Drying?

Drying uses a lot of energy, mainly fuel for heating. High energy use means high operating costs. Smart choices in design and operation can save significant money.

Reduce costs by optimizing the heat source, ensuring good insulation and sealing, controlling airflow effectively, minimizing heat loss, and potentially utilizing waste heat if available. Proper maintenance also prevents efficiency drops.

Energy, primarily fuel for the heat source, is typically the largest operating expense for a gypsum dryer. Reducing this consumption directly improves profitability. Several strategies contribute to lower energy use and operating costs:

1. Heat Source Selection & Efficiency: Choosing the most cost-effective fuel available at your site is crucial. Natural gas is clean but can be expensive. Coal is cheaper but requires investment in emissions control. Utilizing waste heat (e.g., flue gas from power plants or cement kilns) is often the most economical option if available and compatible. Ensuring the burner or furnace operates at peak combustion efficiency is vital.
2. Insulation and Sealing: Minimizing heat loss is essential. The dryer shell and ductwork should be well-insulated. Effective seals at the feed and discharge ends are critical to prevent cold air leaking in (reducing efficiency) and hot gas leaking out (wasting energy).
3. Optimized Operation: Running the dryer at the correct temperature and airflow – avoiding excessive rates – ensures energy isn’t wasted heating unnecessary air or losing too much heat in the exhaust.
4. Maintenance: Regular maintenance prevents efficiency degradation. Clean internals ensure good heat transfer. Well-maintained seals prevent leaks. Proper lubrication reduces friction and energy use by the drive system.
5. Process Integration: If possible, mechanically dewatering the feed gypsum to the lowest practical moisture content before thermal drying significantly reduces the energy needed for evaporation.

Reducing Gypsum Dryer Operating Costs

Cost Reduction Strategy	Detail	Impact
Fuel Choice/Waste Heat	Select lowest cost fuel; utilize available waste heat sources.	Directly reduces primary energy cost.
Combustion Efficiency	Ensure complete fuel burning with proper air/fuel ratio.	Maximizes heat generated per unit of fuel.
Insulation	Proper insulation on dryer shell and ducts.	Minimizes radiative and convective heat loss.
Sealing	High-quality, well-maintained feed/discharge seals.	Prevents energy loss from air leaks.
Parameter Optimization	Run at optimal temperature, airflow, and retention time.	Avoids wasting energy on excessive heating or air movement.
Regular Maintenance	Keep internals clean, seals effective, components lubricated.	Maintains design efficiency, prevents gradual performance degradation.
Feed Dewatering	Reduce incoming moisture mechanically where possible.	Less water to evaporate means less thermal energy required.

Dust Everywhere? How Important is Choosing the Right Dust Collection System?

Drying gypsum creates fine dust that easily becomes airborne. This is not just messy; it’s a safety, environmental, and economic issue. Effective dust control is non-negotiable.

It is critically important. A high-efficiency dust collector, typically a baghouse, is essential to meet environmental regulations, prevent product loss, ensure worker safety, and maintain reliable dryer operation through proper system airflow.

Gypsum dust generated during drying is fine and pervasive. Letting it escape into the atmosphere is unacceptable due to environmental regulations and potential health concerns for workers. Furthermore, this dust is valuable product; losing it reduces your yield. Effective dust collection is therefore essential, not optional.

The standard solution for the fine dust from gypsum dryers is a baghouse (fabric filter). Cyclones alone are rarely sufficient for the fine particles involved. Key factors for selecting and operating a baghouse for gypsum dust include:

1. High Efficiency: The system must meet local emission limits, often requiring efficiencies well above 99.9%.
2. Filter Media: The filter bags must be compatible with the expected temperature and potential corrosivity (especially for FGD gypsum). Materials like polyester or PPS might be used, sometimes with special coatings.
3. Air-to-Cloth Ratio: This design parameter (airflow divided by filter area) must be conservative to prevent the fine gypsum dust from blinding the bags.
4. Cleaning System: Pulse-jet cleaning is common and effective, but the pulse pressure and frequency need optimization.
5. Reliable Seals: The entire dryer and dust collection system must be well-sealed to prevent fugitive emissions. Operating the system under slight negative pressure helps contain dust.
   Properly designed and maintained dust collection ensures compliance, recovers product, and contributes to a safer working environment.

Key Aspects of Gypsum Dust Control

Aspect	Importance	Common Solution / Consideration
Emission Control	Meet environmental regulations, avoid fines/shutdowns.	High-efficiency baghouse filter.
Product Recovery	Dust collected is valuable product.	Return collected dust to the product stream (if appropriate).
Worker Safety	Reduce airborne dust exposure.	Enclosed system, effective collection.
System Operation	Proper airflow is needed for drying efficiency.	Correctly sized fan and collector, maintain low pressure drop.
Equipment Choice	Needs high efficiency for fine particles.	Baghouse typically required; cyclone as pre-collector optional.
Filter Bag Selection	Must withstand temperature, potential corrosion, fine dust.	Appropriate material, possibly specialized coatings.
System Sealing	Prevent dust escaping from flanges, access doors, dryer ends.	Quality gaskets, well-maintained seals on dryer/ducts.

How Can You Prevent Fine Gypsum from Sticking?

Sticky gypsum is a nightmare for mill operators. When the wet powder hits the hot metal drum, it can stick like glue. Over time, this buildup gets thick and blocks the heat. It can even make the drum off-balance, which ruins the bearings. We solve this problem at ZONEDING with “Anti-Stick” engineering. We install heavy chains inside the first 25% of the drum. As the drum spins, these chains fall and hit the inner wall. This vibration knocks the sticky gypsum off before it can harden.

We also use a specialized high-speed “disintegration” shaft at the entrance. This shaft has blades that break the wet clumps into tiny pieces. Small pieces dry much faster and are less likely to stick. This technology is similar to what we use in our Impact Crusher for wet ores. We find that preventing the “cake” from forming is much easier than cleaning it later. Our FGD Gypsum Drying lines are built with this “self-cleaning” mindset. This allows you to run the factory for 24 hours without stopping to scrub the drum. This increases your uptime and your total profit for the year.

Is a Three-Pass Rotary Dryer Right for You?

A three-pass rotary dryer is a very clever design. Instead of one long drum, it is three cylinders built inside each other. The gypsum travels back and forth three times before it leaves. This makes the machine much shorter. It is perfect if you have a small factory building or limited ground space. It is also very Energy efficient gypsum drying system. The heat from the inner drum stays inside the outer layers. Very little heat escapes into the room. This saves you about 15% on your fuel bill every month.

However, a single-pass drum is easier to maintain if you have very big rocks or very sticky mud. At ZONEDING, we look at your site before we recommend a design. If you have plenty of space, a long single-pass drum is very reliable and simple. If you are in a city and space is expensive, the three-pass model is the winner. We build both types in our 8,000sqm factory. We use high-precision welding to make sure all three layers are perfectly balanced. This is high-level engineering that you cannot get from a small local shop. We help you choose the right “shape” for your business goals.

How Do You Avoid Overheating and Pre-Calcination?

Pre-calcination is when gypsum starts to turn into plaster (hemihydrate) inside the dryer. This happens if the temperature goes above 120 degrees Celsius. If this happens, your gypsum is ruined for some industrial uses. To avoid this, you need a Gypsum Dryer with a “high-volume, low-heat” design. This means we use a massive fan to move a lot of warm air rather than a small fan with very hot air. This is the secret to high-quality Industrial Gypsum Processing.

ZONEDING machines use a “smart burner” that adjusts the flame based on the moisture coming in. If the gypsum is drier than usual, the flame goes down automatically. This prevents the drum from getting too hot. We also use a “double-shell” discharge hood. This pulls cold air around the exit to cool the gypsum down immediately. This stops the chemical reaction the moment the drying is done. I have seen many clients switch to our machines because their old ones were burning the product. Our 2026 control system makes this overheating problem a thing of the past.

What Key Technical Parameters Must Be Examined When Buying a Gypsum Dryer?

Investing in a large industrial dryer requires careful specification. Focusing on the right technical details ensures you get a machine that meets your needs efficiently and reliably.

Key parameters include required throughput, feed and target moisture levels, gypsum type (natural/FGD/phospho) and its properties (stickiness, impurities), available heat source, required product temperature (avoiding calcination), and emission limits.

Spec./m (Dia.×Length)	Shell Cubage (m³)	Capacity (t/h)	Installation Obliquity(%)	Highest Inlet Air Temperature(℃)	Main Motor (kw)	Weight (t)
Φ1.2×8.0	9.0	1.9～2.4	3～5	700～800	7.5	9
Φ1.2×10	11.3	2.4～3.0	3～5	700～800	7.5	11
Φ1.5×12	21.2	4.5～5.7	3～5	700～800	15	18.5
Φ1.5×14	24.7	5.3～6.6	3～5	700～800	15	19.7
Φ1.5×15	26.5	5.7～7.1	3～5	700～800	15	20.5
Φ1.8×12	30.5	6.5～8.1	3～5	700～800	18.5	21.5
Φ1.8×14	35.6	7.6～9.5	3～5	700～800	18.5	23
Φ2.2×12	45.6	9.7～12.2	3～5	700～800	22	33.5
Φ2.2×14	53.2	11.4～14.2	3～5	700～800	22	36
Φ2.2×16	60.8	13.0～16.2	3～5	700～800	22	38
Φ2.4×14	63.3	13.5～16.9	3～5	700～800	37	45
Φ2.4×18	81.4	17.4～21.7	3～5	700～800	37	49
Φ2.4×20	90.4	19.3～24.1	3～5	700～800	45	54
Φ2.4×22	99.5	21.2～26.5	3～5	700～800	45	58
Φ2.6×24	127.4	27.2～34.0	3～5	700～800	55	73
Φ3.0×20	141.3	30.1～37.7	3～5	700～800	75	85
Φ3.0×25	176.6	37.7～47.1	3～5	700～800	75	95
Φ3.2×25	201	42.9～53.6	3～5	700～800	90	110
Φ3.6×28	285	60.8～76.0	3～5	700～800	160	135

When you are ready to purchase a gypsum dryer, providing detailed information to the manufacturer is crucial for getting the right equipment.

At ZONEDING, several key technical parameters is needed to design and quote accurately:

1. Capacity: Consider how many tons per hour do you need to process. Specify if this is based on wet feed weight or dry product weight.
2. Moisture Content: Consider what is the typical and maximum moisture percentage of the gypsum feed and what is the required final moisture percentage of the dried product. Precision here is important.
3. Gypsum Type and Properties: Consider gypsum type (natural, FGD, or phosphogypsum). And also provide what are its particle size characteristics. Crucially, for FGD or phosphogypsum, consider what is its typical stickiness, and if there are known corrosive impurities like chlorides or residual acids. Chemical analysis helps.
4. Product Temperature Requirement: Consider what is the maximum allowable temperature for the dried gypsum to avoid unwanted calcination.
5. Heat Source: Consider what fuel type will be used (gas, coal, oil, waste heat) and what are its properties and cost.
6. Emission Limits: Consider what are the local environmental regulations for dust particulate emissions.
7. Site Conditions: Ensure if there are space limitations and consider what are the typical ambient temperature and altitude.

Providing this detailed information, ZONEDING can engineer a dryer (likely a customized rotary dryer) that meets your specific throughput, product quality, and operational requirements efficiently and reliably.

Essential Dryer Specification Parameters

Parameter	Importance	Information Needed
Capacity	Determines dryer size.	Tons per hour (wet feed or dry product basis).
Moisture Levels	Dictates energy needs and drying time.	Feed % (avg/max), Target final %.
Gypsum Type & Analysis	Influences design (stickiness, corrosion), material selection.	Natural/FGD/Phospho; Particle size, Stickiness index, Impurities (Cl⁻, P₂O₅).
Max Product Temp	Critical to prevent unwanted calcination.	Maximum allowable discharge material temperature (°C or °F).
Heat Source Details	Affects burner/furnace design, operating cost, potential contamination.	Fuel type, availability, cost, composition (if waste heat).
Emission Regulations	Dictates dust collection system requirements.	Required outlet dust concentration (e.g., mg/Nm³).
Operating Environment	Influences structural design, fan sizing.	Site layout, altitude, ambient conditions.

What are Advantages of ZONEDINGMACHINE?

Buying a dryer is just the start. Ongoing support from the supplier is vital for long-term success. Evaluate their experience with your specific gypsum type, engineering support during design/installation, availability of spare parts, responsiveness to issues, operator training programs, and warranty terms. Look for a partner, not just a seller.

Choosing the right supplier for your gypsum dryer involves more than just comparing technical specifications and price. The quality of their support and service is crucial for smooth installation, commissioning, and long-term reliable operation.

ZONEDING MACHINE Strengths:

1. Proven Experience: ZONEDING MACHINE has exported machines to more than 120 countries. With rich experience, ZONEDING MACHINE can provide specific examples and references of successful installations drying your type of gypsum (Natural, FGD, Phospho).
2. Engineering Support: ZONEDING MACHINE engineers are highly involved during the specification and design phase. And ZONEDING can offer installation supervision and commissioning assistance.
3. Manufacturing and Quality Control: With quality standards, ZONEDING MACHINE manufactures in-house. Factory direct sales often mean better control and communication.
4. Operator Training: ZONEDING MACHINE provides comprehensive training for your staff on how to operate and maintain the dryer correctly.
5. Spare Parts Availability: ZONEDING MACHINE can quickly supply critical spare parts at proper cost, with some consumable parts are in stock.
6. After-Sales Service Network: ZONEDING MACHINE has service capabilities in most region and response quickly for technical queries or troubleshooting requests.
7. Warranty: ZONEDING MACHINE offers one-year warranty.

ZONEDING MACHINE, as a reliable long-term partner， with comprehensive product line, customization capabilities, factory-direct model, and global experience (exporting to 120+ countries) and full-service support, can ensure you receive not just equipment, but a complete drying solution.
