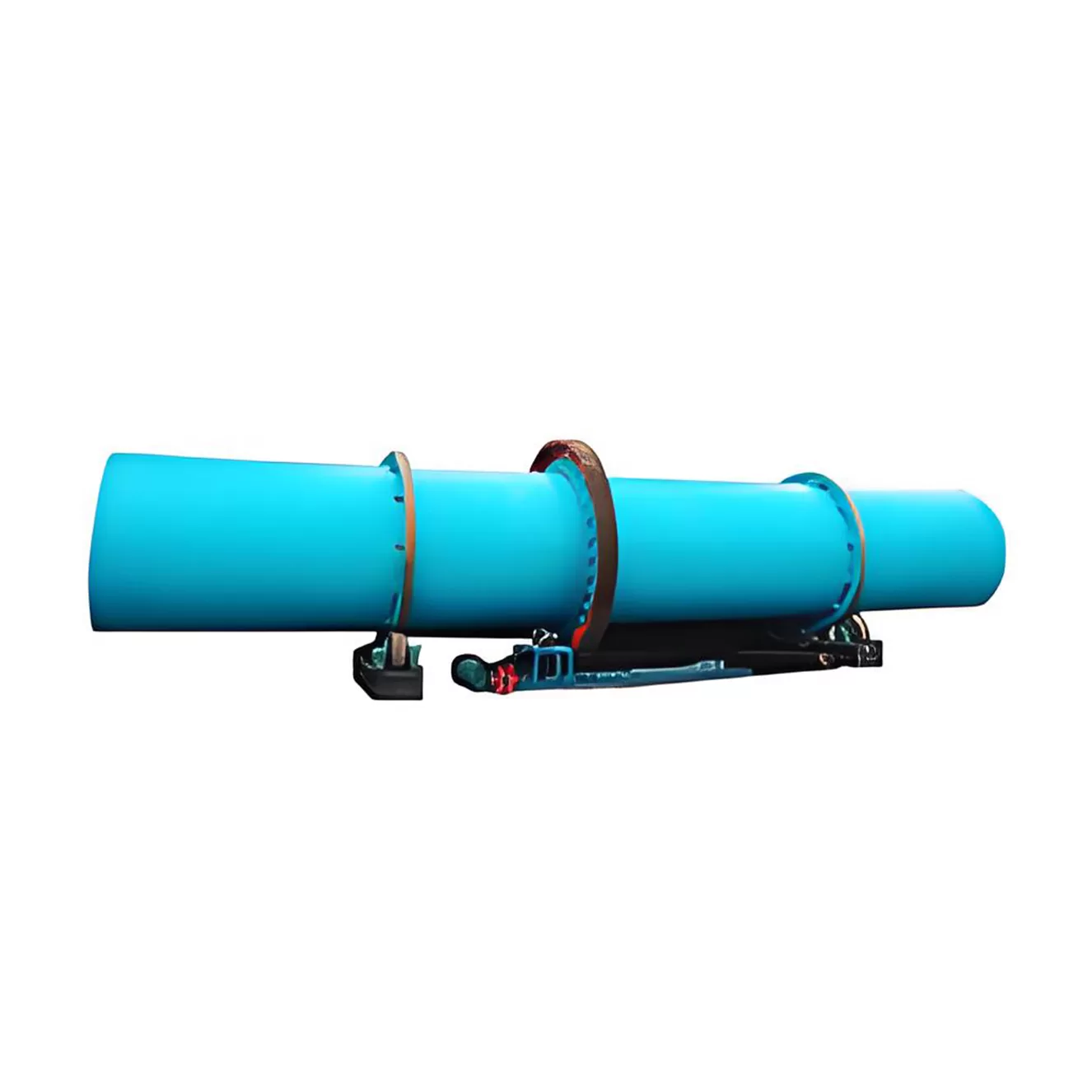

What is a Slurry Dryer ?

A slurry dryer is industrial equipment specifically designed to remove liquid (usually water) from a pumpable mixture of fine solid particles suspended in that liquid. It transforms the wet slurry into a dried solid product like powder, granules, or cake.

Slurries come in many forms across industries – mineral concentrates, coal fines, tailings, clays, chemical precipitates, wastewater sludge. Drying them is often essential for further use or disposal. As ZONEDING, we build dryers to handle these challenging materials.

Why Is Transporting Wet Sludge So Expensive?

Wet sludge is usually 80% water. This means when you pay for a truck to take it away, you are mostly paying to transport water. Water has no value in a landfill, but it adds massive weight to the truck. Transportation companies charge by the ton. So, you are literally throwing your profits out the window by moving wet “mud.” This is a huge problem for any Municipal sewage sludge drying plant. If you remove that water at your site, you save 80% of your shipping costs.

ZONEDING helps you solve this math problem. We build machines that take that 80% water and turn it into 10% or 20% moisture. This is called Sludge Volume Reduction. After drying, one truck can carry the same amount of waste that used to take five trucks. Also, many landfills charge a “wet waste” fee because wet sludge is hard for them to manage. Dry sludge is much cheaper to dump. Some mines use our tech like they use a Jaw Crusher. They process the waste immediately to keep the site clean and the costs low. It is a simple way to increase your monthly profit.

Why Dry My Slurry (e.g., Coal Slime, Concentrate, Tailings, Kaolin, Sludge)?

Slurry drying is vital to reduce transport costs, meet downstream process requirements, improve handling and storage, recover valuable solids, meet product specifications, or enable safe disposal.

There are compelling reasons across various industries to remove water from slurries:

• Reduced Transportation & Handling Costs: Water is heavy and takes up volume. Drying significantly cuts shipping expenses and makes the material easier to convey and store without issues like freezing or settling.
• Meeting Downstream Process Needs: Many processes require materials with low moisture content (e.g., feeding a kiln, briquetting coal fines, further chemical processing). Wet slurry is often unsuitable.
• Product Quality & Specification: For products like kaolin clay or mineral concentrates, a specific low moisture content is often required for sale or final use.
• Resource Recovery: Drying allows for the recovery and concentration of valuable solid materials from waste streams like tailings or sludge.
• Volume Reduction & Disposal: For waste materials like sludge or tailings, drying significantly reduces the volume needing disposal, lowering landfill costs and environmental impact.
• Improved Stability: Dry solids are generally more stable chemically and physically during storage compared to wet slurries.

At ZONEDING, we understand these drivers and help industries select the right drying solution for their specific slurry and objectives.

Working principle of slurry dryer

A rotary slurry (sludge) dryer tumbles the sludge inside a gently inclined, rotating drum while hot gas flows through. Internal lifters continuously lift and shower the sludge through the hot gas stream, promoting heat transfer and water evaporation. Special designs combat stickiness.

Rotary dryers are a common choice for municipal and industrial sludges due to their robustness and capacity. The process involves several key actions:

Key Steps in Rotary Drying

1. Feeding: Dewatered or thickened sludge enters the higher end of the inclined drum. Consistent feed is important.
2. Rotation & Transport: The drum rotates slowly, causing the sludge to tumble and gradually move towards the lower discharge end due to the inclination.
3. Lifting & Showering: Internal plates called lifters are fitted along the drum’s length. They pick up the sludge and allow it to cascade through the drum’s cross-section.
4. Heat Transfer: Hot gas (from a burner or waste heat source) flows through the drum, either in the same direction as the sludge (co-current) or the opposite direction (counter-current). The showering action maximizes contact between the hot gas and the sludge particles, efficiently transferring heat for evaporation.
5. Discharge: Dried sludge exits the lower end.

What Auxiliary Equipment is Usually Needed for a Complete Slurry Drying System (Feed Pump, Mixer, Heat Source, Dust Collector, etc.)?

A slurry dryer doesn’t operate in isolation. It needs supporting equipment to feed it, heat it, handle the exhaust, and control the process. Understanding the full system is vital.

A complete system typically requires: a slurry feed pump (appropriate type for slurry ), possibly a feed tank/mixer , the heat source (burner/steam), the dryer itself, ducting, dust collector, exhaust fan, product discharge system, and controls.

A functional slurry drying plant involves several critical pieces of auxiliary equipment working together:

Components of a Full Slurry Drying System:

1. Feed Preparation & Delivery:
   • Slurry Holding Tank: Stores slurry before drying, potentially with agitation to maintain suspension.
   • Feed Pump: Must be suitable for the slurry’s viscosity, solids content, and potential abrasiveness/corrosiveness. Types include progressive cavity, peristaltic, diaphragm, or centrifugal pumps. Consistent, non-pulsating flow is ideal .
   • Mixer/Buffer Tank (Optional but Recommended ): Helps homogenize feed and dampen pulsations from the pump, ensuring stable feed to the dryer.
   • Piping & Valves: To transport slurry to the dryer inlet.
2. Heat Source:
   • Burner System (Natural gas, oil, LPG) with combustion air fan and fuel train.
   • Steam Generator / Boiler & Steam Control System (for indirect heat or steam injection).
   • Waste Heat Source Integration (Ducting, dampers, potentially heat exchangers).
3. Dryer Unit: The core drying vessel (Spray chamber, Paddle trough, Flash duct, Rotary drum) with its drive system.
4. Exhaust Gas Handling:
   • Ductwork: Connecting dryer outlet to dust collector and stack. Material choice depends on temperature and corrosion.
   • Dust Collection System : Cyclone, Baghouse, Wet Scrubber, or combination. Includes dust discharge devices (rotary valves, screw conveyors).
   • Exhaust Fan (ID Fan): Provides motive force for gas flow through the system. Often equipped with VSD for control.
   • Stack: For final discharge.
5. Dried Product Handling:
   • Discharge Device: Rotary valve, screw conveyor, or simple chute from the dryer/dust collector.
   • Cooling System (Optional): If product exits hot (e.g., rotary dryer) and needs cooling before storage (e.g., cooling screw, pneumatic cooling).
   • Conveying System: Pneumatic or mechanical conveying to storage silos or packaging.
6. Control System: PLC-based automation system with sensors (temperature, pressure, flow, moisture), actuators (valves, dampers, VSDs), safety interlocks, and operator interface (HMI).

ZONEDING provides complete, engineered slurry drying systems, ensuring all necessary auxiliary components are correctly selected, sized, and integrated for reliable and efficient operation.

How Do You Handle the Impossible “Gluey Phase”?

Sludge has a very annoying secret. When it is very wet, it flows like water. When it is very dry, it is like sand. But in the middle, it enters the “Gluey Phase.” This is when the sludge is about 40% to 60% wet. It becomes incredibly sticky, like thick glue or wet clay. This gluey sludge sticks to the walls of the machine and can stop the motor entirely. Many cheap dryers fail because they cannot handle this sticky stage.

ZONEDING has spent 35 years perfecting the answer to this problem. Our Industrial Sludge Treatment lines use internal “breaker” plates and “self-cleaning” chains. As the drum spins, these heavy parts fall and knock the sticky sludge off the walls. Also, our paddle dryers have blades that intermesh and “scrape” each other clean. This ensures that the “glue” never has a chance to stay in one place. We use high-torque motors from global brands like Schneider to keep the blades moving. This rugged design is a trademark of ZONEDING. We make sure your production never stops because of a “sticky” situation.

Can You Reduce Sludge Volume by Over 80%?

Yes, you can easily reduce the volume by 80% or more. This is why a Cost of industrial sludge drying system is actually an investment, not a cost. If you start with 10 tons of wet sludge, 8 tons of that is water. Our dryer evaporates that 8 tons into the air as clean steam. You are left with only 2 tons of dry material. This massive reduction makes your waste management so much easier. You need less storage space, fewer trucks, and less labor.

At ZONEDING, we focus on the final density of the material. We want the dry sludge to be easy to pack and move. We also help you design the “Pre-treatment” stage. Sometimes using a press before the dryer can save you even more money. This integrated approach is why we have 15 senior engineers who look at your specific material. We want to maximize your Sludge Volume Reduction while using the least amount of electricity. We use the most modern 2025 heat-exchange math to ensure every bit of hot air is used to dry the sludge, not wasted in the pipes.

Is a Rotary Drum or a Paddle Dryer Best for You?

This is the most common question we get at ZONEDING. The answer depends on your material and your space. A rotary drum dryer is very long and simple. It is great for mineral slurry or large amounts of municipal waste. It uses the same rotation logic as an Impact Crusher to keep things moving. It is very durable and easy to fix. But it takes up a lot of horizontal space in your factory.

A High efficiency paddle dryer for sludge is different. It is a smaller, horizontal tank with two shafts of spinning paddles. It uses “conductive” heating, which means the heat comes from the paddles themselves. This is excellent for very sticky, dangerous, or smelly waste. It takes up much less space and uses less air. ZONEDING builds both types in our 8,000 square meter factory. We help you choose the best one based on your “Material Profile.” If you have a small city plant, the paddle dryer is usually the winner. If you have a massive mine, the rotary drum is the best choice.

How Do ZONEDING Dryers Prevent Internal Clogging?

Clogging is the biggest reason for dryer downtime. When sludge builds up in a corner, it gets hard and blocks the path. ZONEDING solves this with “Precision Clearance” engineering. Our paddles and drum liners are designed to leave no “dead zones” where sludge can hide. Everything is constantly moving. We also use “Direct-Heat Injection” which keeps the metal surfaces hot. Hot metal is much harder for wet sludge to stick to.

Our Sludge to energy conversion equipment also includes a smart vibration system. If the sensors detect a buildup, the machine can trigger a small vibration to shake the sludge loose. We use high-end sensors from OMRON and Siemens to monitor the “flow” inside the machine. This level of automation is rare in the drying industry. It ensures that you don’t need a worker to manually clean the machine every week. Our goal is “Zero-Clog” performance for your Paper mill sludge disposal solutions. This keeps your workers safe and your machines running for 24 hours a day.

Can Dried Sludge Be Reused in Brick Production?

This is the most exciting trend in 2026. You can take your dry sludge and mix it with clay to make building blocks. This is a perfect example of a “Circular Economy.” Instead of paying to dump the sludge, you use it as a free raw material. Some types of sludge even contain minerals that make the bricks stronger. You can use our Sludge Dryer to prepare the material for an automatic brick machine. This turns a waste problem into a construction business.

ZONEDING is uniquely famous because we build both the dryers and the brick machines. We know exactly how to prep the sludge so it works in the press. This is a great solution for Municipal sewage sludge drying plant managers. You can sell the dry sludge to local brick factories or start your own block-making line. It creates a “Zero-Waste” factory. We provide the technical recipes for mixing sludge and clay. This helps you get the necessary building permits for your new “Green Bricks.” It is a smart way to get a double return on your investment.

General Specification

Spec./m (Dia.×Length)	Shell Cubage (m³)	Capacity (t/h)	Installation Obliquity(%)	Highest Inlet Air Temperature(℃)	Main Motor (kw)	Weight (t)
Φ1.2×8.0	9.0	1.9～2.4	3～5	700～800	7.5	9
Φ1.2×10	11.3	2.4～3.0	3～5	700～800	7.5	11
Φ1.5×12	21.2	4.5～5.7	3～5	700～800	15	18.5
Φ1.5×14	24.7	5.3～6.6	3～5	700～800	15	19.7
Φ1.5×15	26.5	5.7～7.1	3～5	700～800	15	20.5
Φ1.8×12	30.5	6.5～8.1	3～5	700～800	18.5	21.5
Φ1.8×14	35.6	7.6～9.5	3～5	700～800	18.5	23
Φ2.2×12	45.6	9.7～12.2	3～5	700～800	22	33.5
Φ2.2×14	53.2	11.4～14.2	3～5	700～800	22	36
Φ2.2×16	60.8	13.0～16.2	3～5	700～800	22	38
Φ2.4×14	63.3	13.5～16.9	3～5	700～800	37	45
Φ2.4×18	81.4	17.4～21.7	3～5	700～800	37	49
Φ2.4×20	90.4	19.3～24.1	3～5	700～800	45	54
Φ2.4×22	99.5	21.2～26.5	3～5	700～800	45	58
Φ2.6×24	127.4	27.2～34.0	3～5	700～800	55	73
Φ3.0×20	141.3	30.1～37.7	3～5	700～800	75	85
Φ3.0×25	176.6	37.7～47.1	3～5	700～800	75	95
Φ3.2×25	201	42.9～53.6	3～5	700～800	90	110
Φ3.6×28	285	60.8～76.0	3～5	700～800	160	135
