What is a sand dryer?

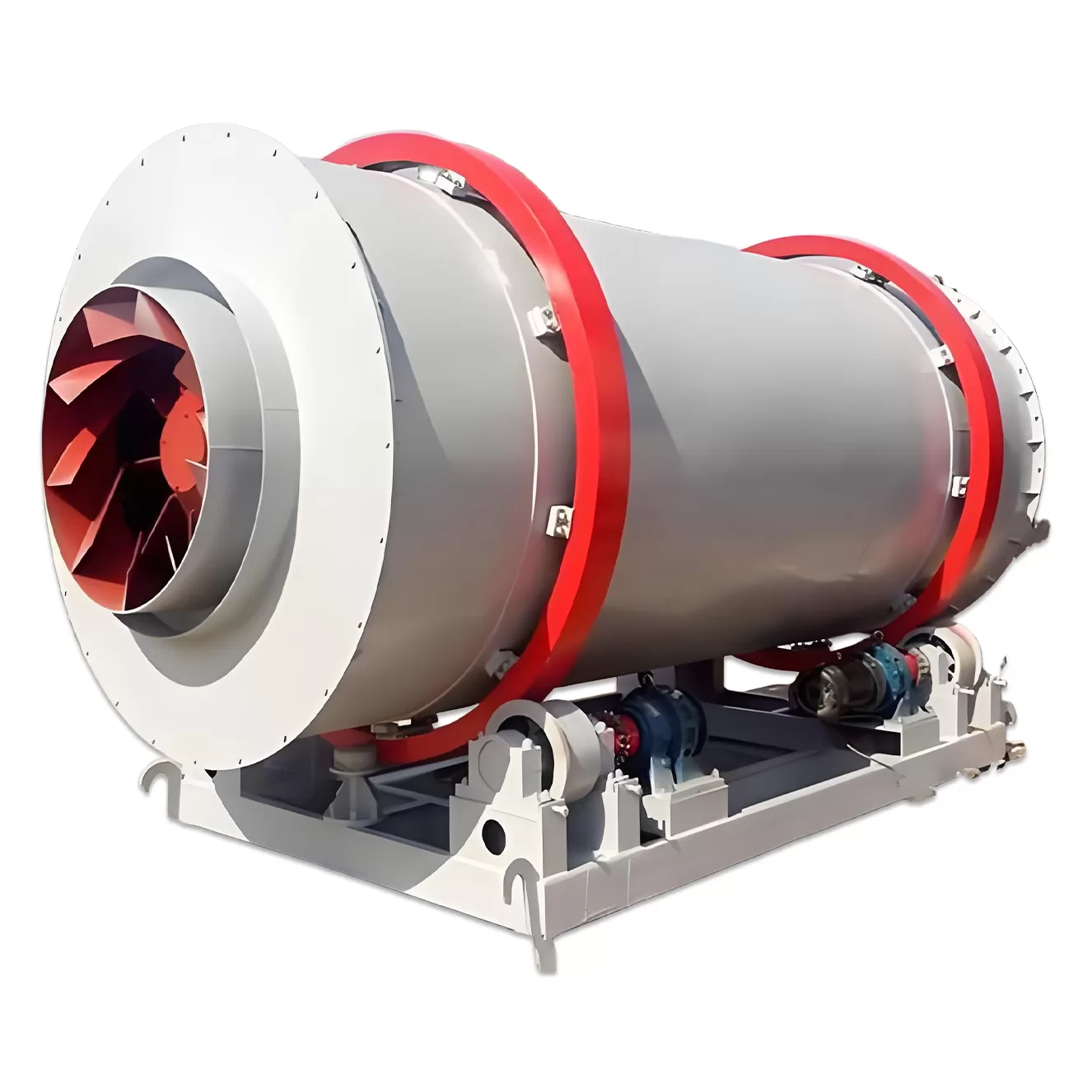

Sand dryer is a rotary drying equipment for dehydrating granular materials, especially suitable for artificial sand, river sand, quartz/silica sand, etc. The sand dryer machine has the advantages of high production capacity, wide range of application, small flow resistance, large operation fluctuation range, and convenient operation. Sand dryers are also commonly used to dry mineral powder, cinder, slag, etc. The rotary sand dryer is suitable for a variety of fuels, such as coal, oil, and gas.

Wet sand causes big problems. It clumps, jams equipment, and lowers product quality. A dedicated sand dryer is often the only effective solution.

Why is Drying Sand Necessary? Which Industries Depend on Sand Dryers?

Key Reasons for Drying Sand

• Process Consistency: Many processes require sand with a specific, low moisture content for predictable results. Concrete strength, asphalt binding, glass clarity, and foundry mold integrity all depend on dry sand.
• Flowability: Dry sand flows freely from silos, feeders, and conveyors. Wet sand tends to clump, bridge, and stick, causing handling nightmares and process interruptions.
• Accurate Batching: When mixing materials by weight (like in concrete or glass), unknown water content in the sand throws off the proportions, leading to quality problems.
• Preventing Freezing: In colder climates, moisture in sand stockpiles can freeze, creating large, unmanageable lumps.
• Downstream Processing: Dry sand screens more efficiently. Wet sand can blind screen meshes (Insight #6). Some coating processes also require perfectly dry sand.
• Reduced Transport Costs: Removing water weight makes long-distance transport more economical.

Major Industries Using Sand Dryers

• Construction: Producing aggregates for concrete and asphalt requires sand with low and consistent moisture.
• Glass Manufacturing: Requires very pure silica sand with extremely low moisture content (<0.1% often) for proper melting and clarity.
• Foundries: Making molds and cores for metal casting needs specific types of sand (e.g., silica, zircon) dried to precise moisture levels for strength and gas permeability.
• Oil & Gas (Frac Sand): Hydraulic fracturing demands high-purity quartz sand dried to very low moisture levels to ensure it flows well and props open rock fractures effectively.
• Sports Turf & Landscaping: Specialized sands for golf courses or artificial turf infill often need drying.
• Manufacturing: Used as filler, abrasive material, or in producing chemicals like sodium silicate.

Why Must Sand Be Bone-Dry for Bricks?

Concrete block production requires precise chemical water ratios. Factory automation systems measure the water content for every batch. Wet incoming sand contains unknown amounts of hidden water. This hidden water breaks the strict cement chemical bonding process. Cement particles need exact water volumes to cure strong. You add too much water and the final concrete block becomes very weak.

A high capacity river sand rotary dryer solves this chemical problem. It removes water until the sand holds only one percent moisture. The mixing computer later adds the exact required clean water amount. This strict control guarantees every concrete block meets building codes. Construction projects demand uniform block strength across the entire building. You avoid selling weak blocks to important construction clients. Dry sand also flows freely down the storage silos. Wet sand sticks to the metal silo walls and blocks the flow. Your block pressing machine receives a steady supply of dry raw materials.

How Does a Sand Dryer Work?

The Drying Process Step-by-Step

1. Feeding: Wet sand is fed continuously into the higher end of the slightly inclined rotating drum.
2. Rotation & Tumbling: As the drum rotates, internal plates called lifters (or flights) pick up the sand.
3. Showering (Creating a Curtain): When the lifters rotate upwards, the sand cascades down through the inside of the drum. This creates a “curtain” of sand particles.
4. Hot Gas Flow: Hot gas from a burner or furnace is passed through the drum. This gas flows through the curtain of falling sand.
5. Heat Transfer: Heat transfers from the hot gas to the sand primarily through direct contact (convection). Some heat also transfers via contact with the hot drum shell (conduction) and radiation. Air velocity control is crucial here to avoid blowing away fine sand (Insight #1).
6. Evaporation: The heat absorbed by the sand increases the water’s vapor pressure, causing it to evaporate.
7. Material Transport: The drum’s slight slope and the flow of gas help move the sand gradually towards the discharge end.
8. Discharge: Dried sand exits the lower end of the drum.
9. Exhaust: The moisture-laden gas exits the drum and typically goes to a dust collection system to capture fine sand particles before being vented.

The efficiency depends on factors like drum speed, gas temperature, gas velocity, lifter design, and the time the sand spends inside the drum (residence time).

What are the Pros and Cons of Different Sand Dryer Types like Single-Pass and Triple-Pass?

Single-pass dryers are simpler and cheaper but less thermally efficient and have a larger footprint. Triple-pass dryers recycle heat internally, offering higher efficiency and a more compact size, but are more complex and costly upfront.

While both are rotary drum dryers, their internal structure and gas flow path differ, leading to distinct advantages and disadvantages, especially for sand drying.

Single-Pass Rotary Dryer

• Design: A simple, long rotating drum. Hot gas and sand typically flow through it once, either in the same direction (co-current) or opposite directions (counter-current).
• Pros:
  • Simpler design, generally lower initial purchase cost.
  • Easier maintenance due to simpler structure.
  • Well-suited for materials that are not very fine or heat-sensitive.
• Cons:
  • Lower thermal efficiency as exhaust gases leave relatively hot.
  • Requires a longer drum (larger footprint) for sufficient drying time.
  • Can have higher heat loss from the larger shell surface area.

Triple-Pass Rotary Dryer

Potentially higher risk of blockages if handling very sticky or inconsistent feed.

Design: Consists of three concentric drums. Material is fed into the innermost drum, travels its length, flows back through the middle drum, and finally forward through the outer drum before discharging. Hot gas usually flows co-currently with the material in the inner drum and then passes through all three drums.

Pros:

Higher thermal efficiency (often 20-30% better than single-pass) because heat from the inner drum transfers to the middle and outer passes, and exhaust gas temperature is lower.

More compact design for the same capacity due to the longer effective path length in a shorter overall unit. Lower footprint.

Lower heat loss from the outer shell as it’s insulated by the inner passes.

Cons:

More complex design, leading to a higher initial purchase cost.

Maintenance can be more involved due to the concentric structure.

Comparison Table

Feature	Single-Pass Dryer	Triple-Pass Dryer
Efficiency	Lower	Higher
Footprint	Larger	Smaller
Initial Cost	Lower	Higher
Complexity	Simpler	More Complex
Maintenance	Easier	Potentially More Involved
Best For	Lower budgets, space ok	High efficiency, limited space

For sand drying, the choice often depends on balancing fuel costs (favoring triple-pass) against capital investment and maintenance considerations. As manufacturers (ZONEDING), we offer both types and help clients choose based on their specific economic and operational context.

Natural Gas, Coal, Biomass: Which Heat Source is Best for My Sand Drying Operation?

Fuel is a major operating cost for dryers. Choosing the right heat source involves balancing fuel price, availability, handling costs, environmental impact, and compatibility with your sand product. There’s no single ‘best’ answer.

Natural gas is clean and easy to control but can be expensive. Coal is cheap but requires handling/ash disposal and causes more emissions. Biomass is renewable but has variable properties and handling challenges. Choice depends on local availability, cost, and regulations.

Natural Gas

• Pros: Burns cleanly with minimal ash or particulate emissions. Easy to control temperature precisely. Requires minimal on-site storage infrastructure (if pipeline available). Lower maintenance on burner systems. Often preferred for high-purity sands (silica) in direct dryers to minimize contamination.
• Cons: Price can be volatile and high in some regions. Requires pipeline access or expensive liquefied natural gas (LNG) delivery/storage.

Coal (Various Types)

• Pros: Often the cheapest fuel per unit of energy (BTU). Widely available in many regions.
• Cons: Requires significant on-site storage and handling infrastructure (conveyors, bunkers). Produces ash that needs disposal. Higher emissions of particulate matter, sulfur oxides (SOx), and potentially heavy metals, often requiring more sophisticated pollution control equipment (scrubbers, baghouses). Burner control can be less precise than gas. Potential for product contamination in direct-heat dryers.

Biomass (Wood Chips, Sawdust, Agricultural Residues)

• Pros: Often considered carbon-neutral or renewable. Can be locally sourced and potentially inexpensive depending on availability.
• Cons: Fuel properties (moisture content, energy value, ash content) can be highly variable, making consistent combustion and temperature control challenging. Requires significant storage and handling systems, often more complex than coal. Can produce significant ash and particulate emissions. May require specialized combustion systems (e.g., gasifiers).

Other Options (Less Common for Sand)

• Fuel Oil: Easier to handle than coal but generally more expensive and has associated emissions.
• Waste Heat: Utilizing waste heat from other industrial processes can be extremely cost-effective if available nearby.

Decision Factors Table

Feature	Natural Gas	Coal	Biomass
Fuel Cost	Variable, often High	Often Low	Variable, potentially Low
Handling/Storage	Minimal (pipeline)	High	High, Complex
Emissions	Low	High (PM, SOx)	Variable (PM, Ash)
Control Precision	High	Moderate	Lower, Variable
Product Purity	Good (Direct Heat)	Risk (Direct Heat)	Risk (Direct Heat)
Availability	Network Dependent	Widely Available	Locally Dependent

The best choice involves a detailed economic analysis considering fuel price, transportation, handling costs, equipment costs (including pollution control), maintenance, and local environmental regulations. We can help design dryers compatible with various fuel types.

What Equipment is Typically Included in a Complete Sand Drying Production Line?

A typical line includes: Wet sand feeding system (hopper, feeder), conveyor belt, the rotary dryer unit with heat source, dust collection system (cyclone/baghouse), discharge conveyor, and a control system panel.

Setting up an efficient sand drying operation involves several interconnected pieces of equipment working together. Here are the usual components of a complete production line:

Core Components

1. Feeding System:
   • Hopper/Bin: Holds a buffer of wet sand to ensure a relatively consistent feed to the dryer.
   • Feeder: Controls the rate at which wet sand is fed into the system (e.g., belt feeder, vibrating feeder). Consistent feed rate is important (Insight #2).
2. Infeed Conveyor: Transports the metered wet sand from the feeder to the dryer inlet. Often an inclined belt conveyor.
3. Rotary Dryer Unit: The main machine itself, including:
   • Rotating Drum: With internal lifters.
   • Drive System: Motor, gearbox, tires, trunnions to rotate the drum.
   • Support Frame: Structure holding the drum assembly.
   • Seals: At feed and discharge ends.
4. Heat Source System:
   • Burner (Gas/Oil) or Furnace (Coal/Biomass): Generates the hot gas.
   • Combustion Air Fan: Supplies air for burning the fuel.
   • Fuel Delivery System: Pipes, pumps, storage, conveyors depending on the fuel type.
5. Dust Collection System: Essential for environmental compliance and product recovery.
   • Ducting: Connects the dryer exhaust outlet to the collector.
   • Cyclone (Optional Pre-cleaner): Removes coarser dust particles.
   • Baghouse or Wet Scrubber: Removes fine dust particles.
   • Exhaust Fan (Induced Draft Fan): Pulls the gas through the dryer and dust collector, maintaining system airflow and slight negative pressure.
   • Stack: Vents the cleaned exhaust gas.
   • Dust Discharge: Rotary valve or screw conveyor to remove collected dust.
6. Discharge System:
   • Discharge Breeching/Chute: Collects dry sand from the dryer outlet. Often lined with AR materials.
   • Discharge Conveyor: Transports the hot, dry sand away from the dryer, often to a cooling area, storage silo, or screening plant. Might be heat-resistant.
7. Control System:
   • Control Panel: Houses motor starters, temperature controllers, VFDs (if used), safety interlocks, and operator interface. Allows monitoring and adjustment of parameters like temperature and fan speeds.

Optional equipment might include a cooling drum or conveyor after the dryer, screening equipment, or systems to recycle collected dust back into the product if desired. As ZONEDING, we can design and supply the complete, integrated production line tailored to your needs.

Does Wet Aggregate Ruin Concrete Quality?

Wet aggregate heavily damages the final concrete product quality. Excess water creates tiny empty bubbles inside the curing cement paste. These empty bubbles reduce the load bearing strength of the block. Heavy building weight will crush a block with too many bubbles. Wet aggregate also causes terrible shrinkage cracks on the block surface. You will face angry customers returning cracked concrete materials.

A specialized Silica sand dryer for block making prevents these quality failures. The machine guarantees your aggregate materials remain perfectly dry. Construction clients test your bricks using hydraulic pressure machines. Dry aggregate ensures your bricks pass these strict pressure tests. You avoid the financial disaster of widespread product rejection. Wet mud also sticks to your expensive block molds. The block pressing machine struggles to release blocks with wet mud. You must stop the factory line to clean the steel molds manually. Dry aggregate keeps your expensive machinery clean and running fast.

How Do You Prevent Severe Metal Abrasion?

Coarse river sand acts like hard glass fragments against metal. The sharp sand scratches the internal machine walls during rotation. Basic thin steel plates wear down rapidly under this heavy friction. A broken internal plate forces you to stop the entire factory. You lose daily production time fixing broken metal parts. Equipment engineers specifically design Wear-resistant sand drying equipment for this problem.

ZONEDING uses highly durable manganese steel plates inside the drum. Factory welders secure these thick plates onto the inner drum surface. This specific manganese steel resists deep scratching from hard river sand. You operate the heavy machine for years without internal structural damage. The machine design angles the internal plates to drop sand softly. This gentle tumbling action reduces raw physical impact on the metal shell. You avoid buying expensive replacement drum shells every year. You keep your production schedule reliable for your building clients. Heavy steel guarantees a long profitable life for your machinery investment.

Single or Triple Pass: Which Is Better?

Factory owners must choose between single tube or triple tube designs. A single pass dryer features one long steel pipe. Basic single pass models lose heat through the outer metal skin. You waste expensive heating fuel warming the factory air. A Triple pass river sand dryer machine solves this energy waste problem. The design uses three concentric steel tubes nested together.

The heat bounces back and forth through the three separate tubes. The outer steel tube acts as a thick insulation layer. The outer metal shell remains cool to the touch during operation. The trapped heat enters the wet sand material directly. The triple pass machine dries the sand twice as fast. It also uses half the factory floor space. A single pass machine needs twenty meters of open floor. The three pass model needs only eight meters of floor space. You avoid building a new warehouse to fit the machinery. ZONEDING highly recommends the triple pass model for urban block factories.

How Do Internal Flights Maximize Heat Transfer?

The metal drum contains dozens of internal lifting flights. These lifting flights are thick steel shelves welded to the walls. The drum turns slowly and the flights scoop up the wet sand. The flights carry the sand to the highest point of rotation. They drop the sand through the middle of the empty space. Millions of falling sand particles create a dense falling curtain.

The massive industrial burner blows extreme heat right through this sand curtain. Every single grain of sand touches the hot air stream. This physical contact forces rapid water evaporation. Equipment engineers calculate the exact angles for these steel lifting flights. Bad angles drop the sand against the steel walls and waste heat. ZONEDING flights spread the sand evenly across the whole drum diameter. You achieve maximum moisture reduction with minimal fuel consumption. The hot air extracts water until the sand hits your specific target. Concrete block formulas rely on this precise moisture control system.

Which Heating Fuels Lower Production Costs?

You must purchase local heating fuel to run the thermal burner. Heating fuel represents the largest daily operating cost for drying material. You must research local energy prices before choosing a burner type. Natural gas burns very clean but costs more money in certain cities. Waste coal provides an incredibly cheap heat source in mining regions. Wood pellets offer a good renewable fuel alternative for forest areas.

You tell equipment engineers your cheapest local fuel option. ZONEDING builds a custom heating furnace for block machine lines. The engineers match the burner unit to your exact fuel supply. The custom burner burns the raw fuel completely. You generate maximum heat without wasting unburned fuel. You can install a different burner box later if fuel prices change. You control the flame size from the central electrical panel. You use high heat for very wet materials and save fuel on dry days. You maintain strict control over your daily factory operating costs.

General specifications

Project/Unit/Model	Φ2.5×7m	Diameter 2.7×7 meters	Φ3.0×7.0m	Diameter 3.2×7.0 meters	Diameter 3.6×8 meters
Outer cylinder diameter(m)	2.5	2.7	3.0	3.2	3.6
Length of outer cylinder(m)	7	7	7.0	7.0	8
Cylinder volume( m³ )	16.63	16.63	52.678	52.678	81.38
Cylinder speed (rpm)	4-10	4-10	4 -10	4 -10	4 -10
Initial moisture content of slag (%)	10-12	10-12	10-12	10-12	10-12
Final moisture content of slag (%)	1	1	1	1	1
Initial water content of yellow ground (%)	8-10	8-10	8-10	8-10	8-10
Final moisture content of yellow ground (%)	0.5-1	0.5-1	0.5-1	0.5-1	0.5-1
Maximum inlet air temperature (°C)	700-750° Celsius	700-750° Celsius	700-750° Celsius	700-750° Celsius	700-750° Celsius
Production capacity (T/h)	Yellow Sand：25-30 Slag：20-25	Yellow Sand：30-35 Slag：25-30	Yellow Sand：35-40 Furnace Slag：30-35	Yellow Sand：45-50 Furnace Slag：35-40	Yellow Sand：65-70 Mine Slag：60-65
Motor type	Y2-132M-4E	Y2-132M-4E	Model Y2-160M-4	Model Y2-160M-4	Model Y2-160M-4
Motor power(kw)	7,5×2	11×2	7,5×4	7,5×4	15×4
Type of reducer	XWD7-23-11W	XWD7-23-11W	XWD6-23-7.5KW	XWD6-23-7.5KW	XWD8-23-15KW
Reducer speed ratio	29	29	29	29	29

Note: Data is subject to change due to technical improvements; We reserve the right to make changes without notice; Machine performance may vary depending on the application; For more details, please chat live with Zoneding engineers.
