The main types of fluorite and the industries in which it is mainly used

Main Categories of Fluorite:

According to the calcium fluoride (CaF2) content in the product, fluorite products can generally be divided into the following four main grades:

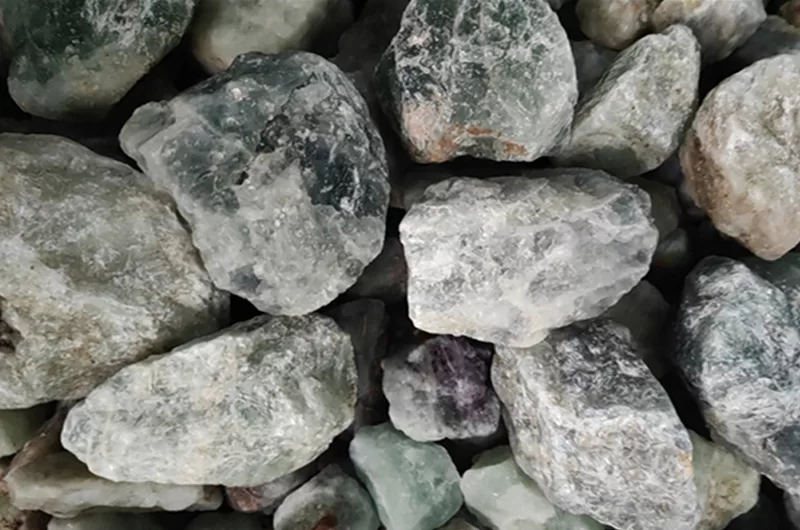

1. Ordinary Fluorite Ore: Original ore grade without deep processing.

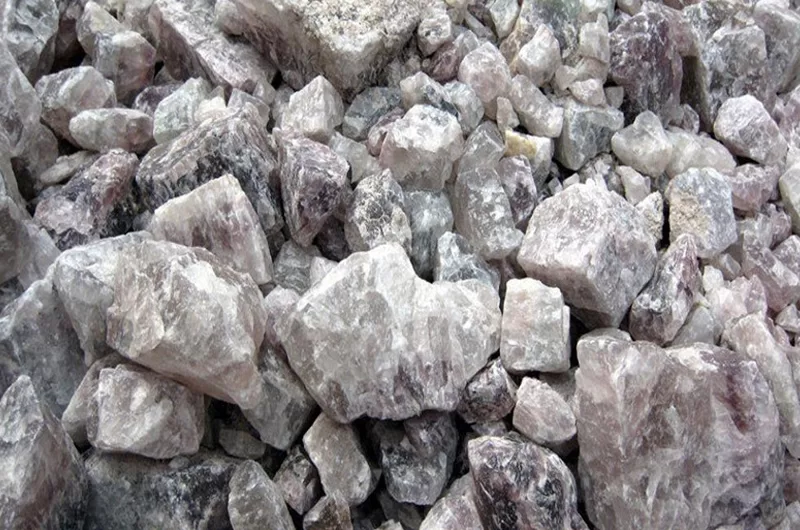

2. High-Grade Fluorite Lump Ore: Blocky fluorite with higher grade, obtained through simple screening or hand sorting.

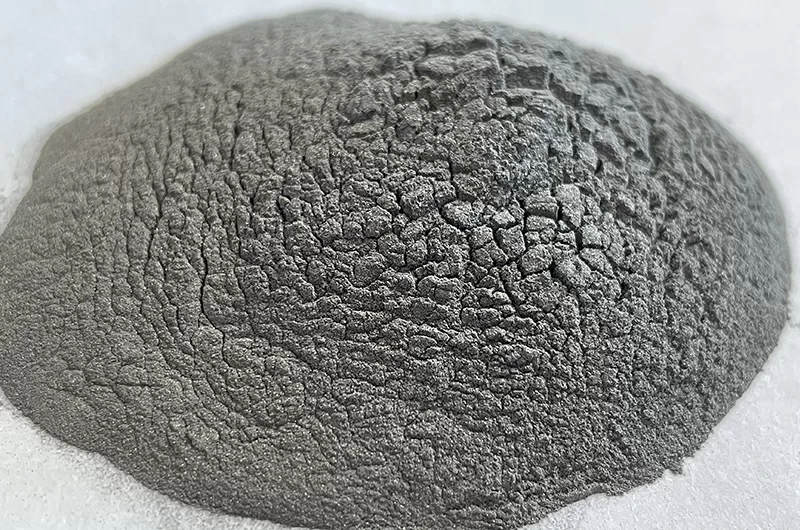

3. Metallurgical Grade Fluorite Concentrate: Mainly used in the metallurgical industry, usually with certain CaF2 content requirements, but lower than acid grade fluorite concentrate .
4. Acid Grade Fluorite Concentrate: Has the highest calcium fluoride (CaF2) content requirement for fluorite, mainly used in the fluorochemical industry.

Key Aspects of Fluorite Ore Analysis

Aspect	Why It Matters	How It Helps You
Gangue Mineral Types	Determines difficulty of separation and reagent needs	Guides choice of flotation or combined processes
Embedment Size	Dictates grinding fineness for optimal liberation	Balances liberation with over-grinding risk
Coexistence Features	Influences process flow and separation efficiency	Helps select targeted separation methods
Accurate analysis is the foundation for an effective and economical fluorite beneficiation plan.

Industries Where Fluorite is Mainly Used:

As a strategic mineral resource, fluorite plays an indispensable and important role in multiple key areas. Its main application industries include:

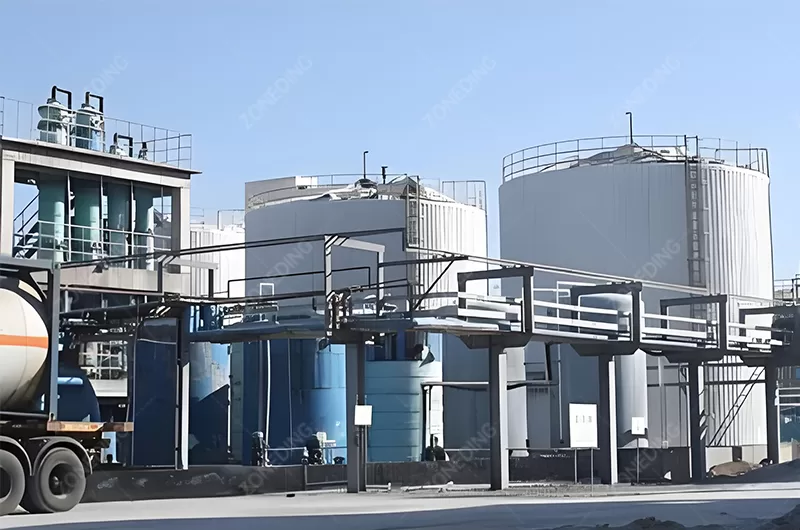

1. Fluorochemical Industry: Requires the highest CaF2 content for fluorite and is its most important downstream application field. Fluorite is the main raw material for producing hydrofluoric acid (HF), and hydrofluoric acid and its derivatives form the basis of the fluorochemical industry chain.
2. Information Technology Field: Fluorite-related products, especially its derivatives, are used in the cleaning and etching processes of integrated circuits and semiconductors.
3. New Energy Field: Fluorite is an important component of lithium battery cathode materials and nuclear fuel processing.
4. New Materials Field: Fluorite derivatives are widely used in the production of high-end new materials such as aerospace and photovoltaics.

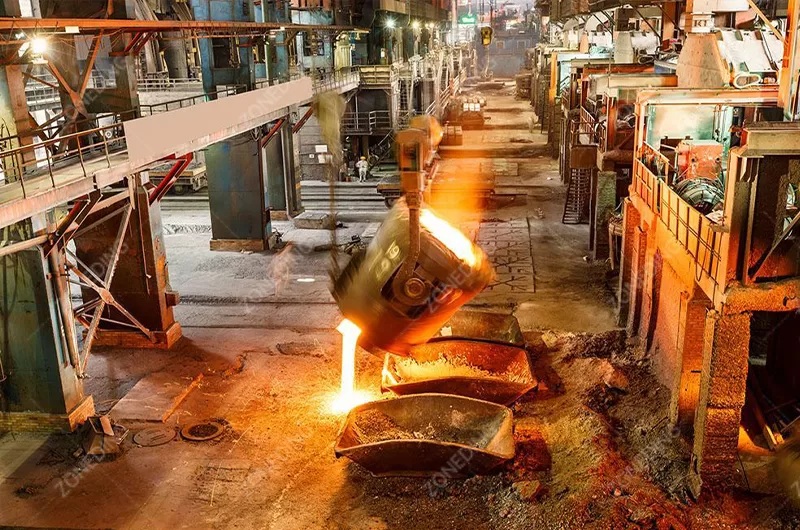

5. Metallurgical Industry: Fluorite is used as a flux in steel smelting to help lower the melting point, improve slag fluidity, and promote the removal of impurities such as phosphorus and sulfur.
6. Building Materials: Used in ceramic, glass, cement, and other industries as a flux or opacifier.

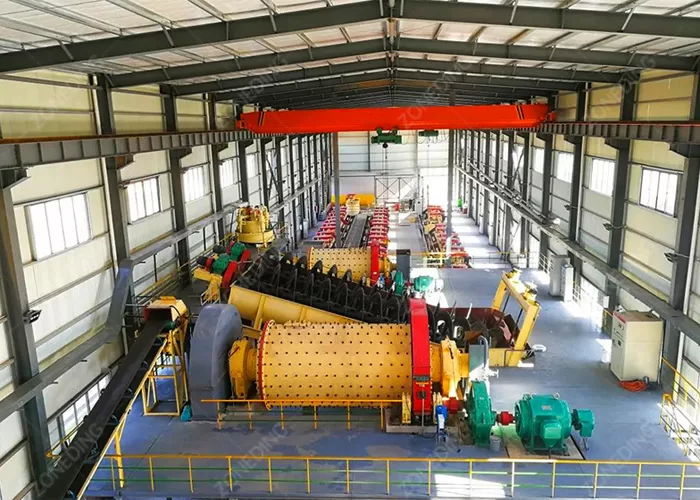

What Are Common Fluorite Mineral Beneficiation Technologies?

The beneficiation and purification of fluorite (fluorspar) is a complex and critical process aimed at separating valuable fluorite minerals from raw ore and removing impurities. While specific process flows vary depending on the type of fluorite ore (e.g., quartz-type, calcite-type, polymetallic associated ores) and the complexity of associated minerals, here are some of the most common and essential fluorite beneficiation technologies:

• Crushing: This is the primary stage of fluorite beneficiation. Raw ore, typically large in size, needs to be reduced to a particle size suitable for subsequent grinding or separation operations. Fluorite ore is relatively brittle. Therefore, multi-stage crushing combined with efficient screening equipment is often employed to precisely control the crushed particle size and achieve the optimal goal of “more crushing, less grinding.”
• Grinding: After crushing, the ore needs to be further ground using grinding equipment (such as ball mills) to effectively liberate fluorite from gangue minerals. The selection of grinding fineness is crucial. If too coarse, mineral liberation will be insufficient, affecting separation efficiency; if too fine, it will generate excessive slimes, leading to over-grinding issues. Therefore, detailed mineralogical studies are needed to determine the optimal liberation size, balancing recovery rate and cost. For easily sliming minerals like fluorite, staged grinding and staged separation processes are often recommended to recover liberated, qualified particle sizes as early as possible.

• Manual Separation: For some larger-sized, higher-grade fluorite lump ores, after crushing and screening, manual sorting can still be used to remove obvious gangue or low-grade ore. Although labor-intensive, this method remains an economical and effective pre-selection method for small-scale mines or when product quality requirements are extremely high and raw ore characteristics are distinct, reducing the load on subsequent mechanical beneficiation.

In summary, the selection and combination of fluorite beneficiation technologies is a tailored process based on the specific characteristics of the ore. There is no one-size-fits-all solution; systematic mineralogical studies and beneficiation tests (laboratory tests, pilot tests, semi-industrial tests) are required to ultimately determine the most economical, efficient, and sustainable beneficiation process.

How to balance grinding costs with recovery rates?

Fluorite is a brittle mineral. It needs fine grinding to separate from gangue. But grinding too much causes a big problem. It makes a lot of very fine particles. These fines are often called “slimes.”
This “over-grinding” leads to huge hidden costs:

1. Lower Recovery: Fine slimes hurt flotation. They can coat air bubbles. This lowers flotation efficiency. It reduces concentrate recovery.
2. More Reagent Use: Fine particles have a big surface area. They absorb more reagents. This greatly increases flotation reagent consumption. Your running costs soar.
3. Hard Dewatering: Many fine slimes make thickening and filtering very hard. This adds to dewatering costs and time.
   So, the grinding process needs a “gentle touch.” You should follow a “crush more, grind less” rule. Use multi-stage crushing. For example, use a Jaw Crusher for primary crushing. Then use a Cone Crusher or Hammer Crusher for secondary crushing. Also, use efficient Vibrating Screens. These screens sort material at each stage. This ensures uniform particle size for grinding. It also reduces over-grinding as much as possible. This approach saves energy. It also boosts overall efficiency.

Grinding & Recovery Balance for Fluorite

Challenge	Solution	Benefit for Your Plant
Over-grinding	Multi-stage crushing, precise screening	Reduces slime, saves energy, lowers reagent cost
Low Recovery of Fines	Efficient classifiers (e.g., Spiral Classifier)	Recovers valuable fine particles, increases overall yield
High Energy Costs	Optimize grinding circuit, reduce over-grinding	Significant reduction in operational energy consumption

What “star” equipment a fluorite plant needs?

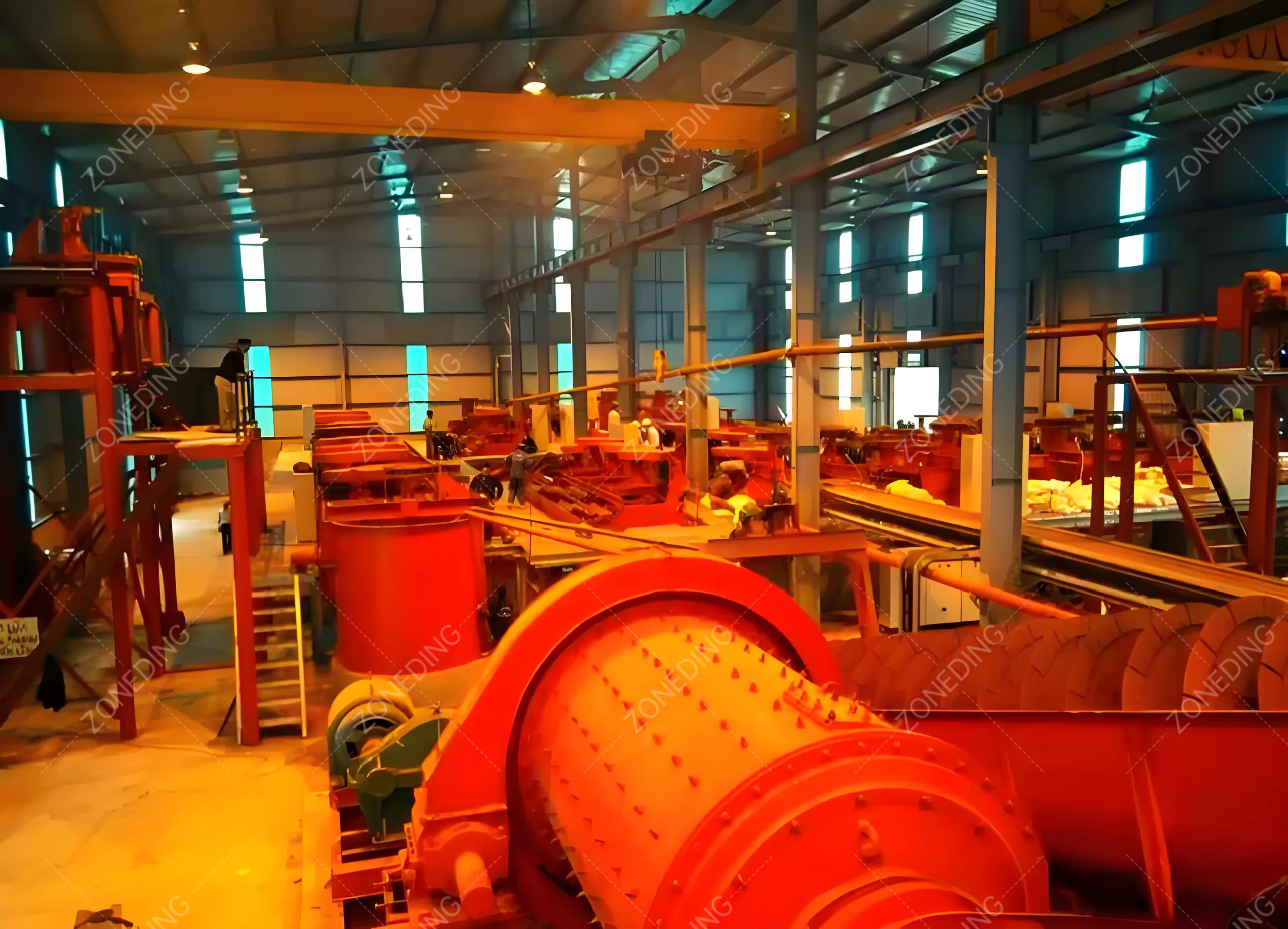

A well-designed fluorite beneficiation plant needs specific “star” equipment. This equipment works together. It ensures high capacity and good profit. From breaking rocks to getting the final dry product, each machine plays a vital role.
Here are the main equipment types for a high-performing fluorite line:

1. Crushing Section:
   • Primary Crusher: Jaw Crusher for initial size reduction.
   • Secondary Crusher: Cone Crusher or Impact Crusher for finer crushing. This promotes a “crush more, grind less” strategy.
   • Screening: Vibrating Screen for material classification.
2. Grinding Section:
   • Mills: Ball Mill or Rod Mill for liberation.
   • Classifiers: Spiral Classifier or hydrocyclones to separate finely ground particles.
3. Separation Section:
   • Gravity Separators (Optional but recommended): Jigging Separator Machine or Shaking Table for pre-concentration or heavy mineral removal.
   • Flotation Machines: Flotation Machines are the core of acid-grade fluorite production.
   • Mixers: Mixers for pulp preparation.
4. Dewatering Section:
   • Thickeners: High-Efficiency Concentrator for initial dewatering of concentrates.
   • Filters: Filter presses (e.g., plate-and-frame, ceramic filters) to achieve low moisture content.
   • Dryers: Drum Dryer if very low moisture is required for final product.
     My experience shows that selecting the right equipment is not just about individual machines. It is about how they integrate. It is about their overall reliability. High-quality, durable equipment reduces maintenance costs. It ensures continuous, efficient operation. This boosts your plant’s capacity and profitability.

Essential Equipment for Fluorite Production

Section	Key Equipment	Role in Process
Crushing	Jaw Crusher, Cone Crusher	Size reduction, prepare for grinding
Grinding	Ball Mill, Spiral Classifier	Liberate fluorite from gangue, classify particles
Flotation	Flotation Machine, Mixer	Separate fluorite from impurities using reagents
Dewatering	High-Efficiency Concentrator, Drum Dryer	Remove water from concentrate to meet product specs

How to achieve “zero discharge” and resource use for tailings?

Fluorite beneficiation often faces big environmental issues. These include heavy tailing slime and difficult wastewater discharge. To achieve a “green revolution,” you need to aim for “zero discharge” and resource utilization. This means turning waste into value.
1. Water Resource Management:

• Closed-Loop Water Systems: Design the plant to recycle water. Water from thickeners and filter presses is treated. It is then reused in the process. This greatly cuts fresh water use. It also minimizes wastewater discharge.
• High-Efficiency Thickeners: Use High-Efficiency Concentrators. They separate solids quickly. This returns more water for reuse.
  2. Tailings Treatment and Utilization:
• Dry Stacking: This method dewaters tailings to a solid, stackable cake. Filter presses achieve this. It reduces land needed for tailings ponds. It lowers risk of dam failures. It minimizes water pollution.
• Tailings Utilization: Explore ways to use tailings. Some can be used as construction materials. They can also be used for land reclamation or backfilling mines. This turns waste into value.
  My experience shows that integrating these solutions from the start is very important. It meets environmental rules. It also provides long-term cost savings. It cuts water bills. It reduces discharge fees. It ensures stable production. This approach makes your plant more sustainable and profitable.

Solutions for Green and Efficient Production

Challenge	Solution	Benefits
Water Scarcity/Pollution	Closed-loop water systems	Reduced fresh water use, minimal wastewater
Tailings Disposal	Dry stacking, tailings utilization	Reduced land use, environmental impact lessened
Operational Costs	High-efficiency thickeners, energy-saving equipment	Lower operating expenses, improved profitability

How automation and smart tech boost plant efficiency?

The mining industry is moving towards smart operations. Fluorite beneficiation plants can greatly benefit from automation and smart upgrades. These advancements lead to more stable production. They boost efficiency. They also reduce human errors. This makes your plant “smarter” and more efficient.
1. Real-time Monitoring and Data Analysis:

• Sensors Everywhere: Install sensors throughout the plant. They collect data on feed rates, pulp density, pH levels, and reagent consumption. They also monitor equipment health.
• Centralized Control: All data flows to a central control room. Operators can see the entire process in real time.
• AI Optimization: Advanced software and AI analyze this data. They identify trends. They predict problems. For example, AI can adjust the Ball Mill circuit. It can also fine-tune reagent dosages in the Flotation Machine automatically. This maintains optimal separation.
  2. Automation:
• Automated Feed Control: Systems automatically manage material flow. This is from Vibration Feeders to crushers and mills. This ensures consistent input.
• Automated Reagent Dosing: Reagents are added precisely and automatically. This reduces waste. It ensures consistent separation results.
• Predictive Maintenance: Smart systems predict when equipment parts might fail. This includes parts of a Jaw Crusher. This allows you to perform maintenance before a breakdown. It minimizes downtime.
  These smart systems help plants run smoothly. They use resources efficiently. They allow fewer people to manage complex operations. This leads to higher overall efficiency. It also reduces operating costs.

Benefits of Smart Upgrades

Benefit	How It Is Achieved	Impact on Production
Stable Efficiency	Real-time data, AI-powered adjustments	Consistent product quality, reduced variability
Higher Production	Optimized processes, reduced downtime	Increased throughput, maximized output
Cost Savings	Optimized resource use, predictive maintenance	Lower energy, reagent, and repair costs

How to pick a partner for “turnkey” project success?

You now understand that fluorite beneficiation is complex. It needs tailored solutions for each ore type. So, choosing the right supplier is very important. You need a partner who truly understands your specific fluorite ore. They must offer full-process solutions. This partnership is vital for your project’s success.
Here is what to look for when choosing a professional supplier:

1. Deep Expertise in Fluorite: The supplier must have vast, proven experience. This experience should cover all types of fluorite ores. Ask for successful case studies of similar projects they have finished.
2. Strong R&D and Testing Capabilities: A top supplier has its own mineral processing laboratory. They should offer detailed mineralogical analysis of your ore. They should perform bench-scale and pilot-scale beneficiation tests. This makes sure the process flow is specifically designed for your ore. This is not a “one-size-fits-all” business.
3. Comprehensive Equipment Portfolio and Manufacturing Strength: The supplier must provide a wide range of high-quality equipment. This includes all necessary machines. For example, crushers (Jaw Crusher, Cone Crusher), grinding mills (Ball Mill, Rod Mill), separation equipment (Flotation Machine), and dewatering equipment (High-Efficiency Concentrator, Drum Dryer). They should have modern manufacturing facilities. ZONEDING, for example, operates an 8000 square meter workshop. We can produce over 500 units of various equipment annually.
4. Full-Process Service Support: A true partner offers services for the entire project. This starts from the very beginning.
   • Consultation and Feasibility Study: Helping you plan your project.
   • Process Flow Design: Creating the optimal engineering blueprint.
   • Equipment Manufacturing: Producing reliable and durable machines.
   • Installation and Commissioning: Ensuring proper setup and smooth startup.
   • Operator Training: Equipping your team with the necessary skills.
   • After-Sales Service: Providing spare parts and ongoing technical support.
5. Commitment to Sustainability and Innovation: The supplier should offer solutions that are environmentally friendly. This includes water recycling and advanced tailings management. They should also embrace new technologies like smart control and automation. This shows they are forward-thinking.
6. Proven Global Track Record: A supplier with international project experience understands diverse operating conditions. They also know different environmental regulations. ZONEDING has successfully exported products to over 120 countries since 2004. This demonstrates our global capabilities and experience.
   When you choose a partner, you are selecting a company that will profoundly impact your project’s long-term success. It will affect your profitability. Look for a company like ZONEDING. We combine deep technical expertise with comprehensive service. We have a long-term commitment to your specific needs. This partnership is far more valuable than simply buying the cheapest equipment.

Qualities of a Professional Fluorite Supplier

Choosing a professional fluorite beneficiation supplier is crucial, as it will directly impact the long-term success and profitability of your project. As a leader in the industry, ZONEDING is your ideal partner due to the following outstanding qualities:

1. Profound Expertise in Hematite Beneficiation: ZONEDING possesses deep and proven expertise and successful experience in the field of fluorite beneficiation. Our team of experts has a thorough understanding of the characteristics and complexities of various types of fluorite ores. We are happy to share successful case studies of similar completed projects to demonstrate our excellent capabilities in processing complex fluorite ores.
2. Strong R&D and Testing Capabilities: ZONEDING understands that a “one-size-fits-all” solution cannot meet your unique needs. We are proud to have our own advanced mineral processing laboratory, capable of providing detailed mineralogical analysis for your ore. By conducting rigorous laboratory bench-scale and pilot tests, ZONEDING ensures that the designed process flow is tailor-made for your ore to achieve optimal beneficiation results.
3. Comprehensive Equipment Portfolio and Manufacturing Strength: ZONEDING offers a wide and high-quality equipment portfolio covering the entire fluorite beneficiation process. This includes all necessary machinery, such as various crushers (jaw crushers, cone crushers), grinding mills (ball mills, rod mills), separation equipment (magnetic separators, flotation machines, jigs), and dewatering equipment (high-efficiency thickeners, rotary dryers), etc. We have a modern manufacturing facility, with an 8000 square meter modern workshop enabling us to produce over 500 sets of various equipment annually, ensuring high product quality and timely delivery.
4. Full-Process Service Support: ZONEDING is not just an equipment supplier but also a full-process partner for your project. We provide unparalleled full-process service support, from initial project consultation and feasibility studies, to customized process design, high-quality equipment manufacturing, professional installation and commissioning, comprehensive operator training, and lasting after-sales service (including spare parts supply and continuous technical support), ensuring your project starts smoothly and operates efficiently long-term.
5. Commitment to Sustainable Development and Innovation: ZONEDING is firmly committed to providing environmentally friendly and innovative solutions. We actively promote water recycling and advanced tailings management technologies to reduce environmental footprint. Simultaneously, ZONEDING continuously embraces emerging technologies such as intelligent control and automation, improving beneficiation efficiency and reducing operating costs through continuous innovation, demonstrating our forward-thinking approach to the future of the industry.
6. Mature Global Project Experience: ZONEDING has a proven track record of global project implementation. Since 2004, we have successfully exported products to over 120 countries worldwide, which fully demonstrates ZONEDING’s understanding and adaptability to diverse operating conditions and different international environmental regulations. Our rich international experience will provide a solid guarantee for your project.

Choosing ZONEDING means you are choosing not just equipment, but a strategic partner that will profoundly impact the long-term success and profitability of your project. ZONEDING combines deep technical expertise with a comprehensive service system and is committed to meeting your specific needs long-term. This cooperation is far more valuable than simply purchasing the cheapest equipment.

FAQ

Q 1: Why is “acid-grade” important for fluorite?

A: “Acid-grade” fluorite, often over 97% CaF2, is a high-purity product. It is used in the chemical industry for hydrofluoric acid production. It is also used in aluminum smelting.

Q 2:  What is the biggest challenge when separating fluorite from calcite?

A：Calcite has similar floatability to fluorite. This makes their separation difficult. It requires specific inhibitors and precise pH control in flotation.

Q 3: How can I reduce over-grinding in fluorite processing?

A: Implement a “crush more, grind less” strategy. Use multi-stage crushing with efficient screening. This prepares the material optimally for grinding.

Q 4: Can fluorite beneficiation achieve zero discharge?

A: Yes, by using closed-loop water systems and dry stacking of tailings. This minimizes water consumption and waste disposal. It maximizes resource utilization.
