What is Lead-Zinc Beneficiation?

Lead-Zinc Beneficiation is the industrial process of separating valuble Lead (Pb) and Zinc (Zn) minerals from waste rock and significantly from each other.

In nature, lead and zinc are rarely found in isolation. They almost always occur together in polymetallic deposits, often accompanied by silver, copper, or pyrite. The primary ore for lead is Galena (PbS), and for zinc, it is Sphalerite (ZnS). The challenge lies in the fact that these minerals effectively “grew up” together geologically; they are often intergrown or chemically bonded in complex structures.

The beneficiation process transforms low-grade “run-of-mine” ore into high-grade commercial concentrates. A typical raw ore might contain only 3% to 10% combined metal. After a successful Flotation Separation Process, the final lead concentrate can reach a grade of 65-70% Pb, and the zinc concentrate can reach 50-55% Zn. This concentration is achieved primarily through froth flotation, a physicochemical method that relies on the different surface properties of minerals.

What Are the Unique Properties and Characteristics of Lead-Zinc Ore?

To design an effective flowchart, one must understand the mineralogy. The physical limits of the ore dictate the machinery settings.

• 1. Crystal Structure and Brittleness:

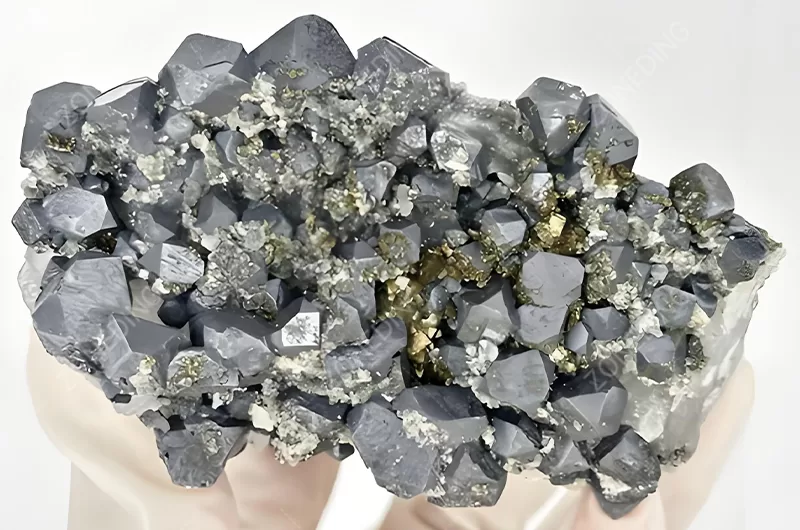

  • Galena is brittle. During the grinding process in a Ball Mill for Lead Zinc, Galena tends to “over-grind” or slime easily. If Galena becomes too fine (mud), it won’t float, leading to metal loss. Sphalerite is harder. This difference means the grinding circuit must be balanced to liberate the zinc without pulverizing the lead.
• 2. Specific Gravity:
  • Galena is very heavy (Specific Gravity ~7.5), while Sphalerite is lighter (~4.0), and gangue minerals (like quartz) are lighter still (~2.6). This difference allows for some pre-concentration using gravity separation (like jigs or spirals) before flotation to remove bulk waste early.
• 3. Oxidation Sensitivity:
  • Zinc Oxide Processing is much harder than sulphide processing. If the ore body is near the surface and has oxidized (turning into Cerussite or Smithsonite), standard flotation reagents work poorly. These ores require sulfidization—a chemical treatment to coat the oxide particle with a sulphide layer so it can float.

How to Analyze Your Lead-Zinc Ore Accurately?

Many people focus only on lead and zinc grades. They also look at common mineral types. But the real key is a deep analysis of your ore’s micro-structure. This includes how minerals are grown together. It looks at how well they separate. It also checks how impurity minerals are present. Lead-zinc ores are often difficult to process. This is because they have low grades. They also have fine mineral particles. Their mineralogy is complex. They do not separate easily. For example, lead sulfide (galena) and zinc sulfide (sphalerite) are often tightly intergrown. This is common in natural deposits.
Even in the same mine, different mining levels can have big differences. The size of lead-zinc mineral particles can vary. Tiny harmful elements like cadmium, arsenic, and antimony might be present in different ways. The ore’s oxidation level (sulfide and oxide minerals together) can also differ greatly. These differences directly decide many things. They decide how fine you need to grind. They decide which flotation reagents to use. For example, oxidized lead-zinc ores need extra activators. These differences also decide if your final concentrate purity will meet standards.
If you invest an extra 10% on detailed ore analysis at the start, you might save 20% or more later. You save on equipment choices. You save on process design. You save on running costs. This is much cheaper than finding problems after the plant starts. This upfront step helps you find the “optimal solution.” This solution is specific to your ore. It makes your whole process more efficient. It directly affects your overall profitability. It helps you get the most out of your “treasure.”

Key Aspects of Lead-Zinc Ore Analysis

Aspect	Why It Matters	How It Helps You
Micro-structure	Reveals mineral intergrowth and liberation patterns	Guides grinding fineness and separation methods
Associated Impurities	Identifies harmful elements and their forms	Helps select specific removal strategies
Oxidation Degree	Affects mineral surface properties and reagent needs	Informs choice of activators for flotation
Accurate analysis guides optimal process design and saves costs.

What are Applications of Lead-Zinc in Modern Industry?

Understanding the end market helps in determining the required purity of the concentrate. Global demand for these metals drives the need for efficient Pb-Zn Mining Equipment.

• Lead Applications:
  • Batteries: Roughly 85% of lead is used in lead-acid batteries for automobiles and backup power systems.
  • Radiation Shielding: High density makes it ideal for medical X-ray rooms and nuclear facilities.
  • Cable Sheathing: Protecting underwater power cables.
• Zinc Applications:
  • Galvanizing: About 50% of global zinc is used to coat steel (galvanization) to prevent rust in construction and automotive industries.
  • Die-Casting: Used for precision components in cars and electronics.
  • Brass and Bronze: Zinc is an essential alloy component with copper.

What are Challenges in Lead-Zinc Beneficiation? How to Solve?

Mining engineers face two primary headaches: “separation efficiency” and “adverse activation.”

• Challenge 1: Inseparable Intergrowth:Sometimes, the lead and zinc mineral grains are microscopic and locked together. Even after grinding, they remain attached.
  • Solution: Use a regrinding circuit. The initial concentrate (middlings) is sent to a vertical mill or a smaller ball mill to break these locking bonds before the final cleaning stage.
• Challenge 2: The Zinc Activation Problem：Copper ions (often naturally present in the water or ore) can accidentally “activate” zinc. This makes the zinc float when you are trying to float lead. The result is a “dirty” lead concentrate contaminated with zinc.
  • Solution: Strict reagent control is key. ZONEDING engineers recommend adding Zinc Sulphate (ZnSO4) or Cyanide early in the grinding stage to depress the zinc strongly while Floating the Lead.

What are Main Steps for Lead-Zinc Beneficiation?

The Lead-Zinc Beneficiation Process is a sequence of crushing, grinding, and chemical separation.

Step 1: Crushing and Screening

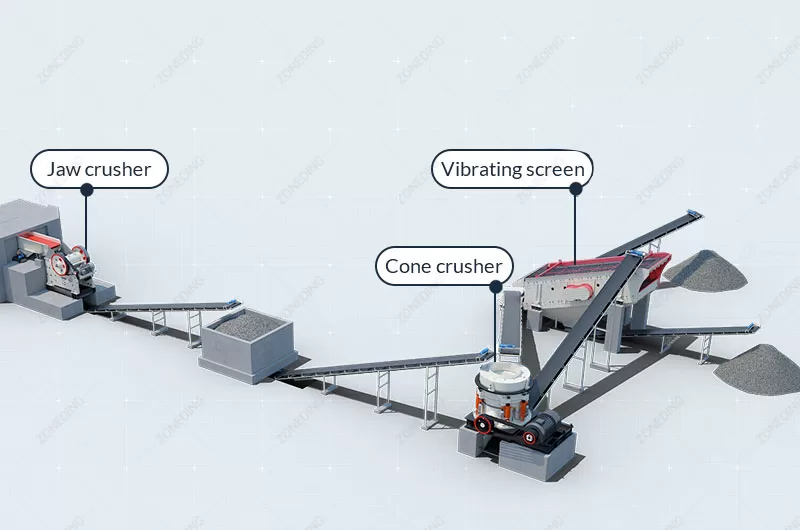

Large boulders from the mine are reduced to ~12mm gravel. A Jaw Crusher performs the primary break, followed by a cone crusher for fine crushing. A vibrating screen ensures only small particles enter the mill.

Step 2: Grinding and Classification

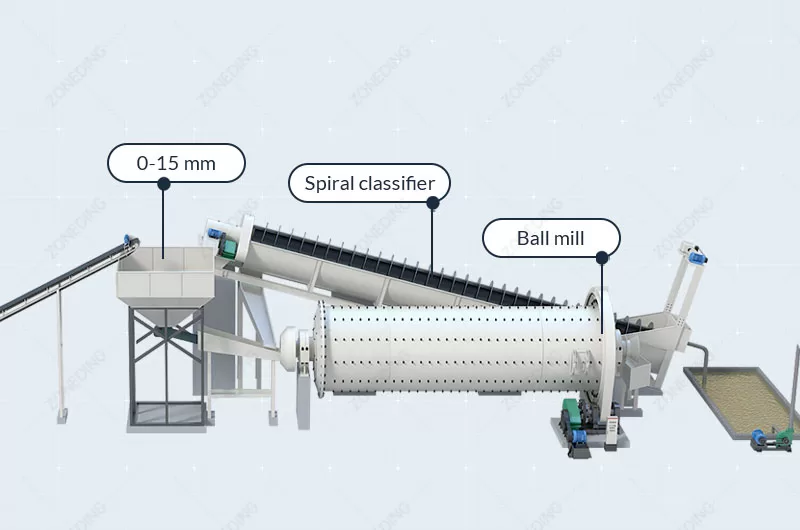

This is crucial for liberation. The ore is tumbled in a Ball Mill for Lead Zinc with steel balls. It works in a closed circuit with a Spiral Classifier or hydrocyclone. The goal is to grind the ore to roughly 200 mesh (74 microns) so that 80-90% of the minerals are liberated from the waste rock.

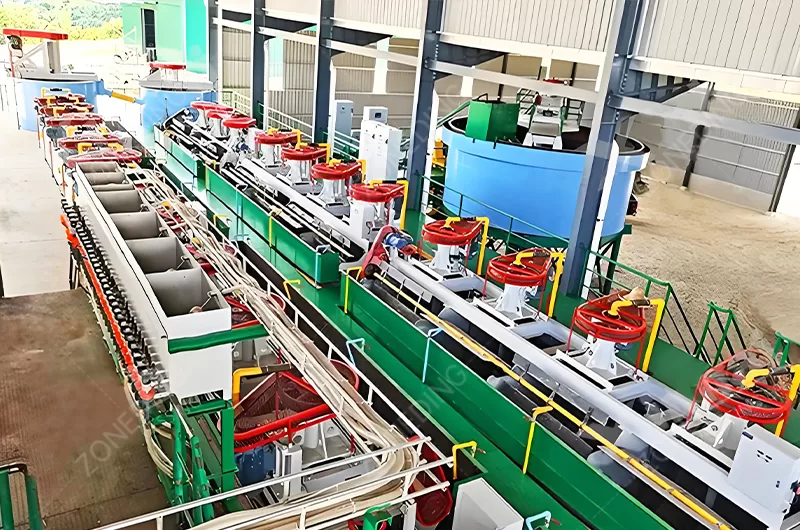

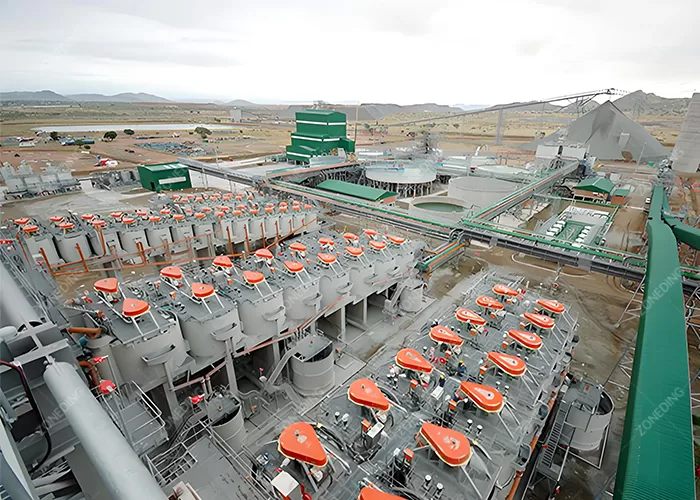

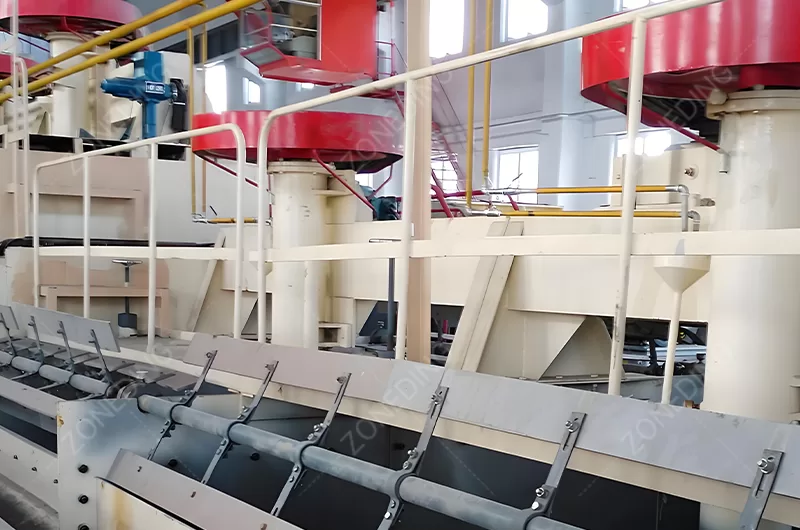

Step 3: Different and Mixed Flotation (The Core)

This is where Galena and Sphalerite Separation occurs.

• Lead Flotation: Chemical collectors (Xanthates) are added to make Lead hydrophobic (water-repelling). Air is blown into the Mineral Flotation Cell. Lead bubbles rise to the top and are skimmed off. Zinc is chemically suppressed and stays at the bottom.
• Zinc Flotation: The “tailings” from the lead step (which contain the zinc) are conditioned. Copper Sulphate (CuSO4) is added to activate the zinc. Now, the zinc floats to the top, and the remaining waste rock sinks.

Step 4: Concentration and Dewatering

The wet foam (concentrate) contains about 50% water. It is pumped to a thickener to settle, and then to a filter press, reducing moisture to below 10% for shipping.

Which Equipment is Needed in a Lead-Zinc Beneficiation Plant?

A successful plant relies on a chain of robust machinery. ZONEDING supplies the complete line of Pb-Zn Mining Equipment.

• PE Jaw Crusher: For coarse primary crushing of hard ore.
• Cone Crusher: Essential for producing fine, uniform pebbles for the mill.
• Ball Mill: The workhorse of liberation. ZONEDING ball mills feature high-manganese steel liners for durability.
• Spiral Classifier/Hydrocyclone: To control particle size and prevent over-grinding of brittle Galena.

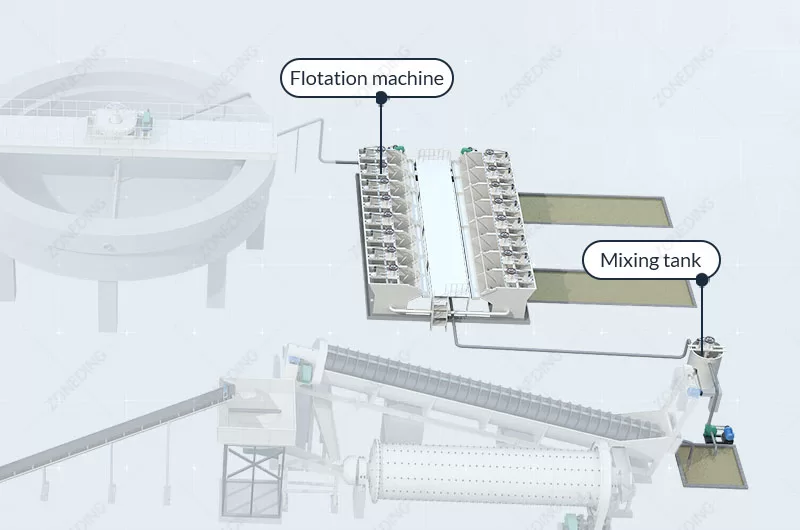

• Flotation Machine: Self-aspirating cells designed to create fine, stable bubbles for optimal mineralization.
• Agitation Tank: For mixing reagents (collectors, frothers) thoroughly with the slurry.
• Thickener & Filter Press: For dewatering the final Lead Concentrate Recovery product.

How to Balance Lead-Zinc Recovery and Concentrate Grade?

Balancing recovery rate and concentrate grade is a key challenge in lead-zinc beneficiation. A high recovery means you get most of the metal out of the ore. A high grade means the final product is very pure. Often, improving one hurts the other. Modern lead-zinc beneficiation plants use smart production and automation. These tools help achieve both high recovery and high grade. They also ensure stable efficiency.

• 1. Smart Production:
  • Real-time Monitoring: Sensors collect data throughout the plant. They track feed rate, pulp density, pH, reagent levels, and flotation cell performance. This data is fed into a central system.
  • Data Analysis and AI: Advanced software and artificial intelligence (AI) analyze this data. They find patterns. They predict changes. For example, AI can adjust reagent dosages in a Flotation Machine in real time. This keeps the separation efficient. It responds to changes in the ore.
  • Predictive Maintenance: Smart systems can warn about equipment problems before they happen. This includes issues with a Ball Mill or a Jaw Crusher. This helps reduce unexpected downtime.
• 2. Automation:
  • Automated Reagent Dosing: Systems automatically add flotation reagents. They ensure precise amounts. This reduces waste. It improves consistency.
  • Automated Material Handling: Conveyors and feeders (like a Vibration Feeder) move ore. They are controlled automatically. This ensures steady flow. It also reduces manual labor.
  • Centralized Control Rooms: Operators work from a single control room. They monitor and adjust the entire plant using computers. This makes operations easier. It also makes them safer.


Benefits of Smart Production and Automation

Benefit	How It Is Achieved	Impact on Plant Operations
Stable Efficiency	Real-time monitoring, AI optimization	Consistent recovery and grade, less downtime
Lower Costs	Reduced reagent use, energy savings, predictive maintenance	Optimized resource use, lower operational expenses
Improved Safety	Automated tasks, centralized control	Less human intervention in hazardous areas
Smart production and automation drive better performance and reliability.

What Are the Efficient Ways to Manage and Dewater Tailings?

Tailings are the waste slurry left after extracting the valuable metals. Managing this material is critical for environmental compliance and water conservation.

• 1. Tailings Thickening:Using a High Efficiency Concentrator, the watery tailings are settled rapidly. Flocculants bind the fine particles. This recovers up to 80% of the process water, which is recycled back to the grinding mill. This drastically lowers the plant’s freshwater consumption.
• 2. Dry Stacking:After the thickener, the sludge can be passed through a ceramic filter or filter press to create a dry cake. Lead-zinc tailings management via dry stacking is safer than wet dams, as it prevents leakage into groundwater and reduces the dam footprint.

How to Ease Environmental Pressures in Lead-Zinc Beneficiation?

Lead-zinc beneficiation plants face big pressures. They must meet environmental rules. They also need to control costs. Traditional methods can create large amounts of tailings. They also use a lot of water. This leads to environmental problems. It also adds to costs. So, you need efficient solutions for tailings treatment and water recycling. This helps ease these pressures.

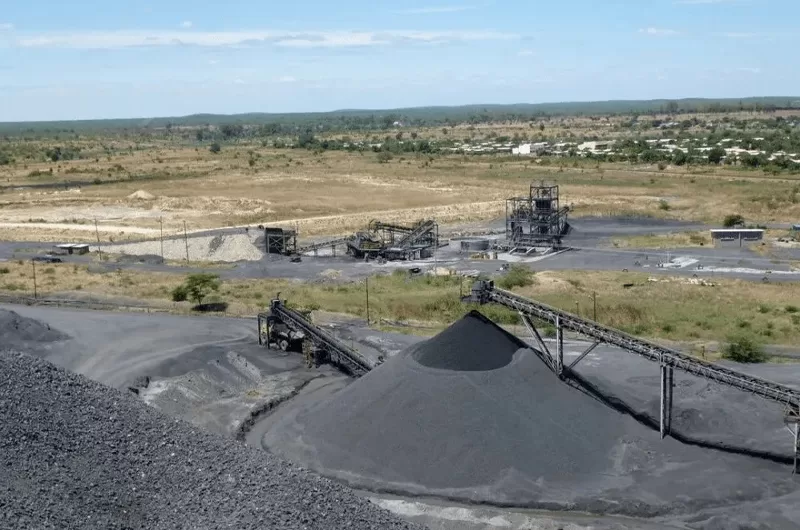

1. Tailings Treatment: Tailings are the waste materials left after processing.

• Dry Stacking: This is a modern method. It dewaters tailings to a solid cake. This uses filter presses. Then you stack the dry tailings like a regular dump. This uses less land. It also reduces the risk of dam failures. It minimizes water pollution.
• Co-disposal with Waste Rock: Sometimes, you can mix dewatered tailings with waste rock. This helps create stable landforms. It also can reduce the need for separate storage areas.
• Utilization: Find ways to use tailings. Some tailings can be used as construction materials. Or they can be used for land reclamation. This turns waste into a resource.
• 2. Water Recycling and Management: Beneficiation uses a lot of water.
• Closed-Loop Systems: Design the plant to reuse water as much as possible. Water from thickeners and filter presses is cleaned and sent back. This greatly reduces fresh water use.

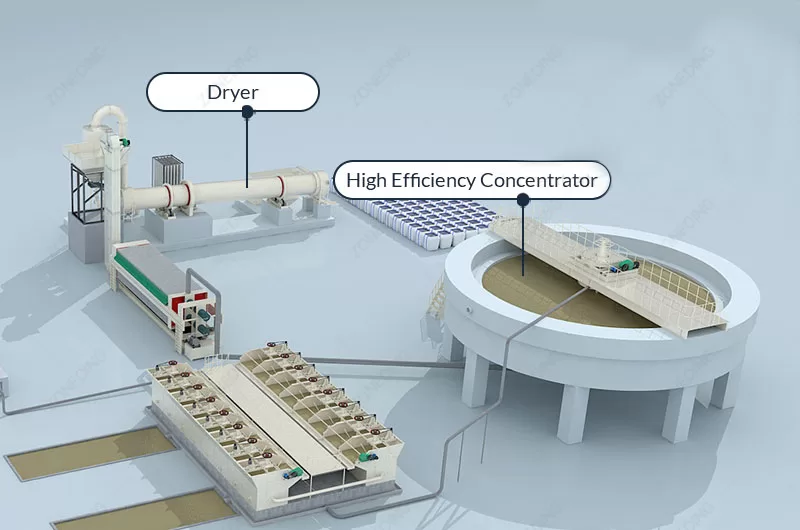

• High-Efficiency Thickeners: Use High-Efficiency Concentrators. They separate solids from water quickly. This recovers more water for reuse.
• Water Treatment: If needed, use advanced water treatment methods. These remove specific pollutants from the recycled water. This ensures the water quality is good for the process.
  Building an efficient wastewater treatment and recycling system is not just about following environmental rules. It is key to lowering running costs. It cuts water bills. It reduces discharge fees. It also ensures stable production. Carefully controlling suspended solids and ion concentrations in recycled water greatly improves flotation stability. It also lowers reagent use. I have seen cases where poor water system design led to unstable flotation results. This resulted in inconsistent product quality. Eventually, it needed large investments to fix. Prioritizing effective fine particle recovery and smart water management helps you maximize profit. It also ensures long-term plant stability. This holistic approach makes your plant more resilient. It also makes it more profitable.

Environmental and Cost Solutions

Challenge	Solution	Equipment	Benefits
Tailings Burden	Dry stacking, co-disposal, utilization	Filter presses, specialized stacking equipment	Reduced environmental impact, lower disposal costs

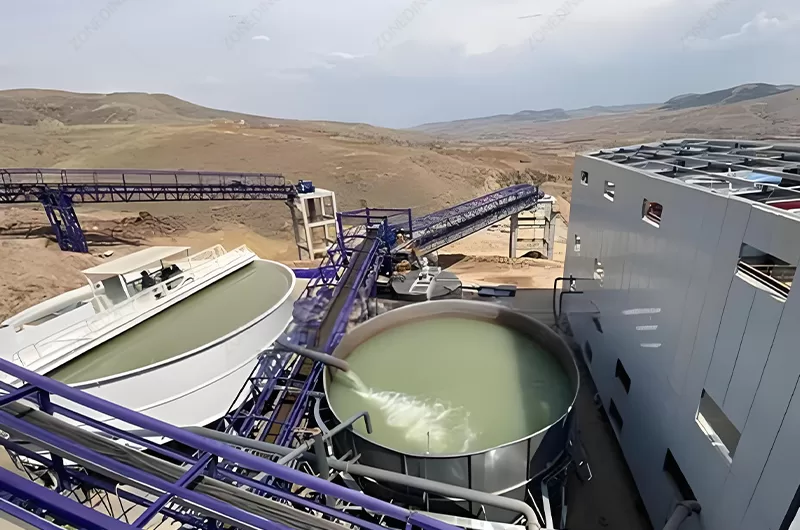

Water Scarcity/Pollution	Closed-loop systems, high-efficiency thickeners	High-Efficiency Concentrator, water treatment units	Lower water costs, stable process, regulatory compliance
Embracing these solutions ensures long-term sustainability and profitability.

What is the Cost for Starting Lead-Zinc Beneficiation Plant?

The cost is variable, but predictable factors drive it.

• Capacity is Key: A small pilot plant (50 tons/day) might cost in the range of $100,000 – $200,000 for equipment. A medium-scale plant (500 tons/day) moves into the millions.
• Ore Complexity: If the ore is oxidized (Zinc Oxide Processing), the equipment list remains similar, but the operating cost (reagents) doubles or triples. If the ore requires ultra-fine regrinding (under 400 mesh), expensive vertical mills are needed.
• Infrastructure: The equipment cost is usually 40-50% of the total project. The rest goes to civil work (concrete foundations), power supply, water pipes, and labor camp construction.

How Can Automation Control Reduce Reagent Consumption and Labor?

Modern Lead Zinc Ore Processing Plants are smart. Automation is the quickest way to lower OPEX (Operating Expenses).

• Auto-Dosing Systems:
  • Manual reagent addition is inaccurate. Operators often “over-dose” just to be safe, wasting expensive Xanthate. Automated dosing pumps linked to an online analyzer ensure exactly the right amount of chemical is added based on the incoming ore grade. This can save 15-20% on chemical costs.
• PLC Control Centers:
  • A central control room allows one operator to monitor the entire line. They can see if the crusher is jammed or if the flotation cell level is too low. This reduces the number of staff required on the floor and improves safety.

How to Choose Suitable Supplier for Your Lead-Zinc Beneficiation Plant?

Choosing a supplier is choosing a long-term partner. The equipment is heavy, expensive, and critical. Here is what to look for when choosing a professional supplier:

1. Deep Expertise in Lead-Zinc: The supplier must have vast, proven experience. This experience should cover all types of lead-zinc ores. These include sulfide, oxide, and complex multi-metal ores. Ask for successful case studies of similar projects they have finished.
2. Strong R&D and Testing Capabilities: A top supplier has its own mineral processing laboratory. They should offer detailed mineralogical analysis of your ore. They should perform bench-scale and pilot-scale beneficiation tests. This makes sure the process flow is specifically designed for your ore. This is not a “one-size-fits-all” business.

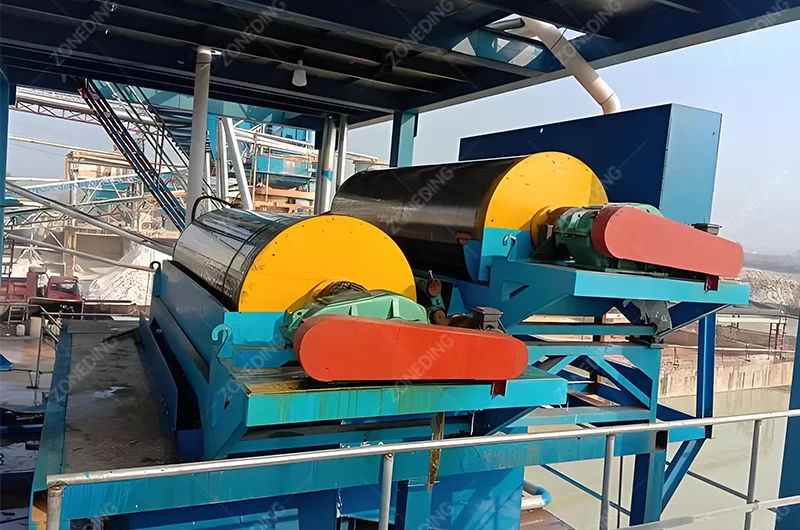

3. Comprehensive Equipment Portfolio and Manufacturing Strength: The supplier must provide a wide range of high-quality equipment. This includes all necessary machines. For example, crushers (Jaw Crusher, Cone Crusher), grinding mills (Ball Mill, Rod Mill), separation equipment (Flotation Machine, Magnetic Separator, Shaking Table, Spiral Classifier), screening equipment (Vibrating Screen), and feeding equipment like Vibration Feeder. They should have modern manufacturing facilities. ZONEDING, for example, operates an 8000 square meter workshop. We can produce over 500 units of various equipment annually.
4. Full-Process Service Support: A true partner offers services for the entire project. This starts from the very beginning.
   • Consultation and Feasibility Study: Helping you plan your project.
   • Process Flow Design: Creating the optimal engineering blueprint.
   • Equipment Manufacturing: Producing reliable and durable machines.

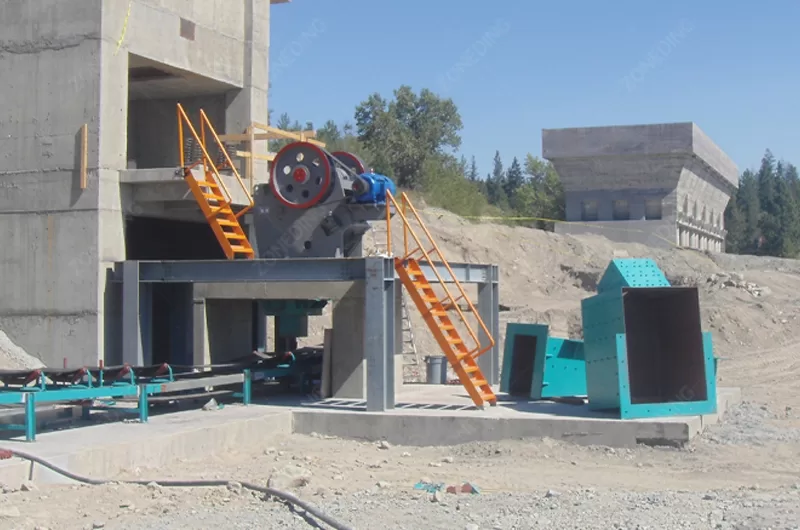

   • Installation and Commissioning: Ensuring proper setup and smooth startup.

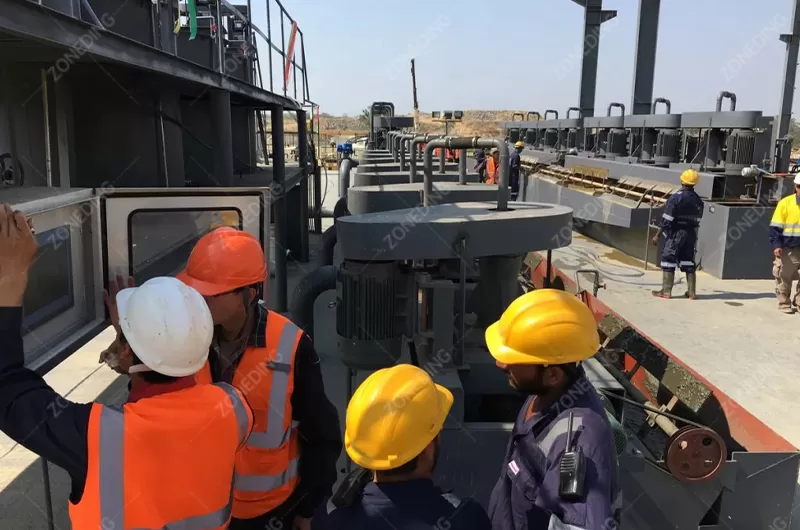

   • Operator Training: Equipping your team with the necessary skills.
   • After-Sales Service: Providing spare parts and ongoing technical support.
5. Commitment to Sustainability and Innovation: The supplier should offer solutions that are environmentally friendly. This includes water recycling and advanced tailings management. They should also embrace new technologies like smart control and automation. This shows they are forward-thinking.
6. Proven Global Track Record: A supplier with international project experience understands diverse operating conditions. They also know different environmental regulations. ZONEDING has successfully exported products to over 120 countries since 2004. This demonstrates our global capabilities and experience.
   When you choose a partner, you are selecting a company that will profoundly impact your project’s long-term success. It will affect your profitability. Look for a company like ZONEDING. We combine deep technical expertise with comprehensive service. We have a long-term commitment to your specific needs. This partnership is far more valuable than simply buying the cheapest equipment.

Ready to Customize Your Beneficiation Flowchart with ZONEDING Engineers?

Every ore deposit is a unique puzzle. Copying a flowchart from a neighboring mine rarely works perfectly. ZONEDING offers a “Design-Build” service.

• Sample Testing: Send a 50kg sample to the ZONEDING lab.
  2. Analysis: Engineers analyze the mineral spectrum and conduct flotation tests to find the best reagent formula.
  3. Flowchart Design: A custom blueprint is drawn, balancing budget and recovery rate.
  4. Manufacturing & Installation: The team builds the machines and flies to your site for installation and training.

Frequently Asked Questions

Q 1: Why is accurate mineral analysis crucial for lead-zinc ore?

A: Accurate mineral analysis is vital because lead-zinc ores are complex. They have varied micro-structures, intergrowth patterns, and impurities. This analysis guides the precise design of grinding, flotation, and other processes.

Q 2: How does pre-concentration help reduce costs in lead-zinc beneficiation?

A: Pre-concentration removes waste rock early in the process using methods like gravity or magnetic separation. This reduces the amount of material that needs fine grinding. This saves significant energy and reagent costs.

Q 3: Preferential Flotation vs. Mixed Flotation: Which Flowsheet Fits Your Ore?

This is the most critical design decision.

• Preferential Flotation (Differential): This is the standard method. You float Lead first (while suppressing Zinc), then you float Zinc from the tailings. This produces high-grade concentrates immediately. It is best for ores where the minerals are well-liberated and have high grades.
• Mixed Flotation (Bulk): You float Lead and Zinc together first to make a “bulk concentrate,” throwing away the waste rock. Then, you separate the Lead and Zinc from that bulk concentrate. This is better for low-grade ores or ores where the minerals are very finely interlocked. It saves energy because you grind less material in the separation stage.

Q 4: How Does the Flotation Cell Machine Achieve Effective Mineral Separation?

The Mineral Flotation Cell works by mixing air, slurry, and chemicals. A rotor spins at the bottom, acting like a mixer. It sucks air down a shaft (or receives blown air) and disperses it into tiny bubbles.

The chemicals (collectors) make the Lead particles hydrophobic (water-hating). When a Lead particle bumps into an air bubble, it attaches like a magnet. The bubble lifts the Lead to the surface, forming a mineralized froth. The Zinc (which is hydrophilic/water-loving due to depressants) ignores the bubbles and sinks.

Q 5: Which Reagents Are Critical to Activate Lead and Depress Zinc?

Chemical balance is everything in sulphide ore beneficiation.

• Collectors: Butyl Xanthate or Ethyl Xanthate. These coat the Lead to make it float.
• Depressants: Zinc Sulphate (ZnSO4) and Sodium Cyanide (if permitted). These essentially “turn off” the Zinc so it won’t float during the Lead stage.
• Activators: Copper Sulphate (CuSO4). Added after the lead is removed. It “wakes up” the Zinc surfaces so they can now be collected.
• Frothers: Pine Oil or MIBC. These strengthen the bubbles so they don’t burst before reaching the overflow lip.

Q 6: How to Calculate the ROI and Payback Period of a Lead-Zinc Plant?

To calculate Return on Investment (ROI):

• Calculate Revenue: (Tons of Lead Concentrate × Price) + (Tons of Zinc Concentrate × Price).
• Calculate OPEX: Power + Labor + Reagents + Wear Parts + Maintenance.
• Calculate Profit: Revenue – OPEX.
• Payback Period: Total Equipment Cost (CAPEX) ÷ Annual Profit.
