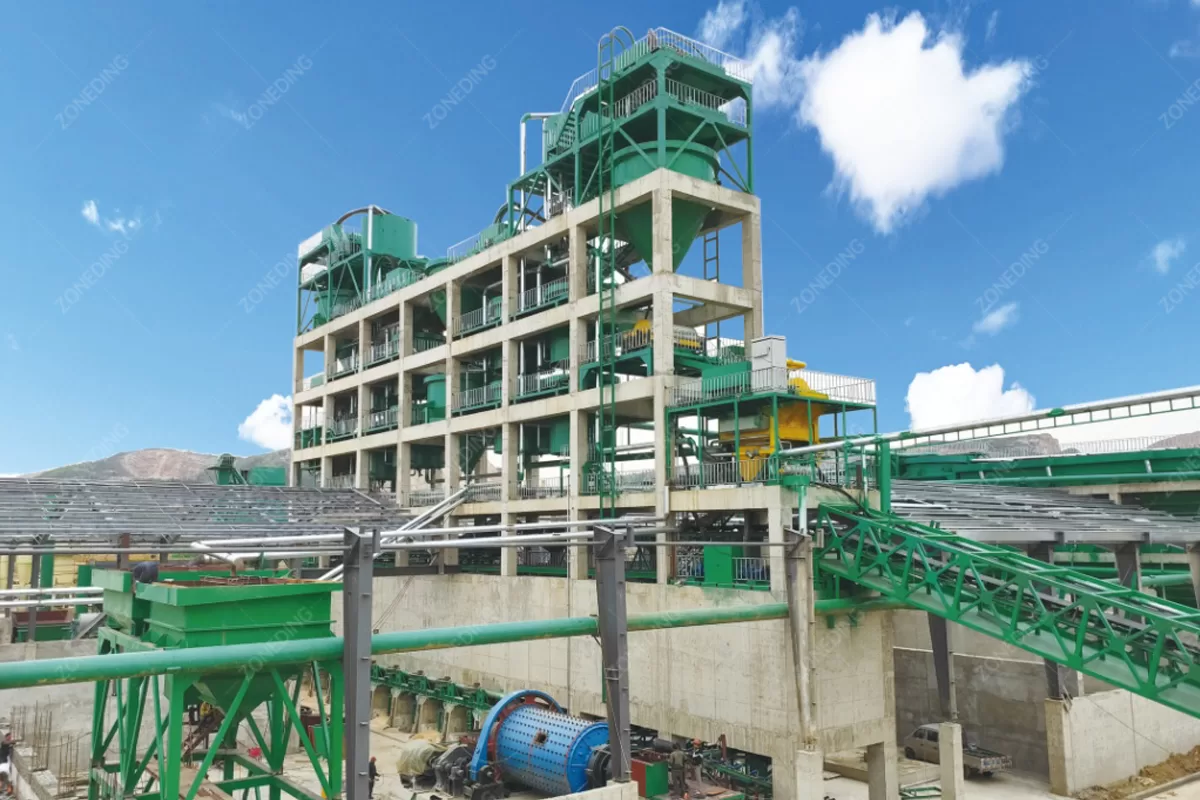

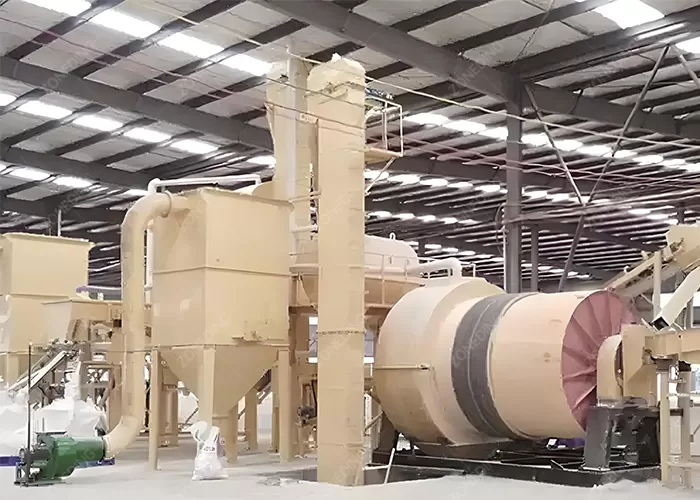

Quartz Sand Processing Plant

Quartz Sand Processing Process

Quartz Sand(Silica Sand) Process is removal of a small amount of impurities and the high difficulty separation technique to obtain refined Quartz Sand(Silica Sand) or high purity Quartz Sand(Silica Sand). The purification technologies of Quartz Sand(Silica Sand) at home and abroad are washing, classifying & desliming, scrubbing, magnetic separation, flotation, acid leaching, microbial leaching, etc.

We get quartz lumps by using open pit or dredging mining methods.

  • Open-Pit Mining: Typically, quartz sand is primarily extracted using open-pit mining methods. This process involves systematically stripping away the overburden (topsoil and other overlying strata) to expose the underlying quartz sand deposits. Subsequently, heavy machinery such as excavators, loaders, and dump trucks are utilized for efficient mineral extraction and raw material transportation.
  • Dredging (Optional): In certain specific circumstances, quartz sand can also be extracted from riverbeds or underwater deposits using dredging equipment. Dredgers extract the sand from underwater, after which it undergoes subsequent processing steps to remove impurities and prepare it as a material meeting industrial application standards.

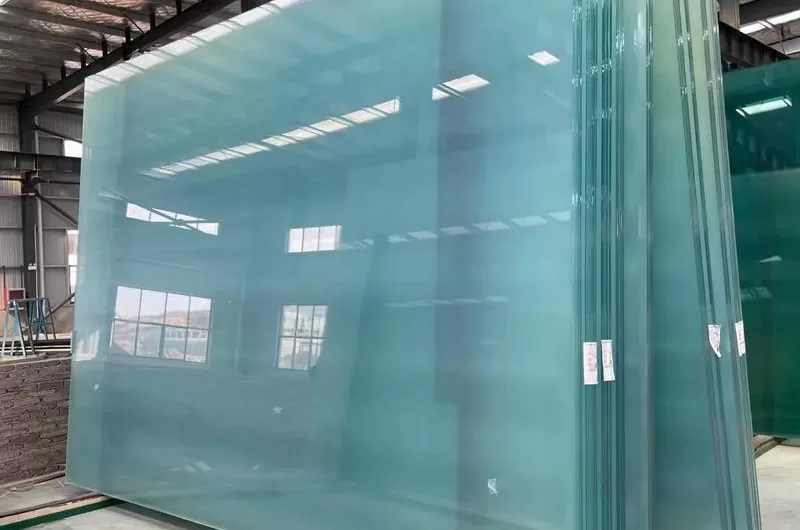

glass manufacturing
glass manufacturing

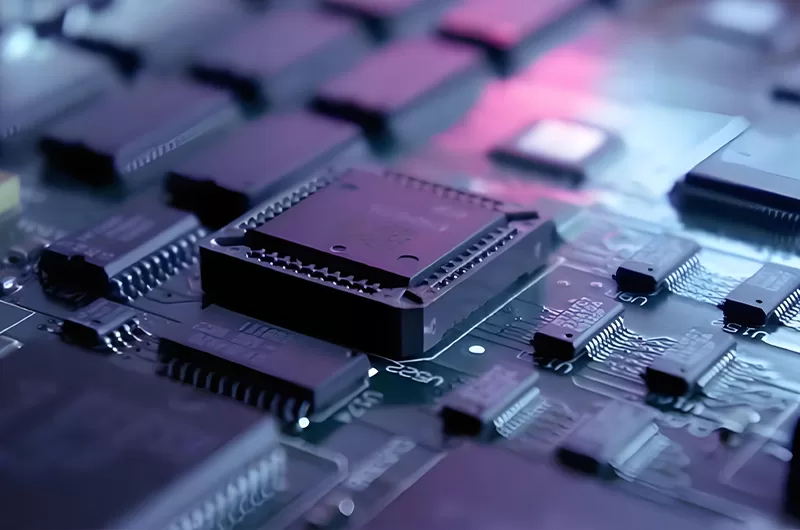

semiconductors
semiconductors

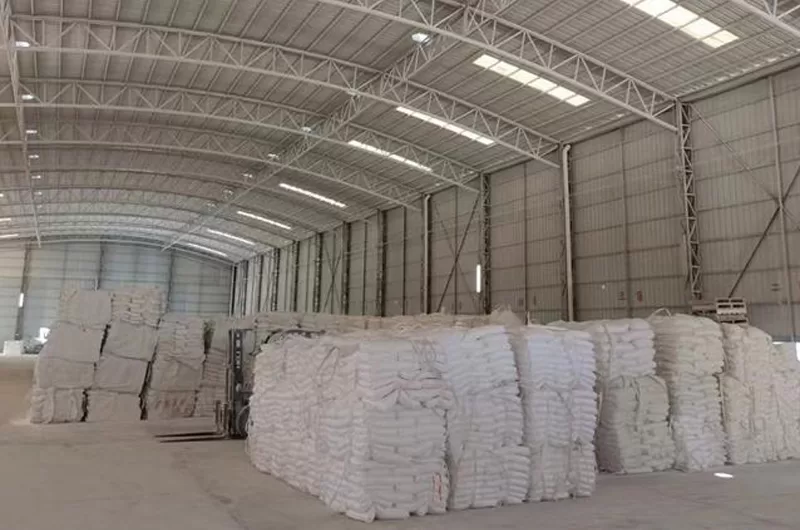

construction
construction

How Quartz Sand Purity Impacts You

Purity LevelTypical UseYour Requirement
Glass GradeFlat glass, container glassGood clarity, low iron
Solar GradeSolar panel crucibles, semiconductor partsVery low metal impurities
Electronic GradeMicroelectronics, optical fibersExtremely high purity, near 99.99% SiO2

What are the processing steps for a quartz sand plant?

Building a quartz sand plant involves several steps. Each step cleans the quartz more. It also gets rid of more impurities. This process aims for cleaner sand. It also focuses on controlling costs. It starts with raw quartz ore. Big rocks go into small pieces. Then, these pieces are cleaned. They are sorted by size. Finally, they are dried.
The full process usually begins with crushing. This breaks down large lumps. Then, grinding reduces particle size. This helps separate quartz from impurities. After that, scrubbing cleans the surface of the sand grains. Separation methods like magnetic separation or flotation remove specific impurities. Finally, the sand is dewatered and dried. This prepares it for sale. Each step is important. It adds value to the final product.

Main Stages in Quartz Sand Processing

  • Crushing: Reduces large quartz rocks into smaller pieces.
  • Grinding: Further breaks down particles to release impurities.
  • Scrubbing: Cleans the surface of quartz grains.
  • Separation: Removes specific unwanted minerals.
  • Dewatering: Removes water from the cleaned sand.
  • Drying: Ensures the final product is dry and ready.

How to efficiently remove iron impurities from quartz sand?

Iron is the most common harmful impurity in quartz sand. It affects clarity and performance. Removing iron is very important for making high-quality quartz sand. There are several ways to remove iron. Each method works best for different types of iron impurities. You need to choose the right one.
Magnetic separation is a key method. It removes magnetic iron minerals. These include magnetite and hematite. It also removes some weakly magnetic ones. For particles that are not very magnetic, you need a powerful machine. A Magnetic Separator with high intensity works well. It can use a pulsating magnetic field. This removes even tiny, weakly magnetic particles. Combining magnetic separation with scrubbing is effective. It helps remove iron films on the quartz surface.
Flotation uses chemical reactions. It works by making iron minerals stick to air bubbles. The bubbles float them away. This method is good for very fine iron minerals. It also works for other non-magnetic impurities like mica. A Flotation Machine is used for this. It requires specific chemicals. These chemicals make iron float. They make quartz stay in the water.
Acid leaching is for the toughest iron. This is iron stuck deep in the quartz. Or it is iron that coats the quartz tightly. Strong acids dissolve these impurities. This method makes very high purity sand. But acid leaching is costly. It also has environmental risks. So, I recommend using magnetic separation and flotation first. These steps remove most iron. This means you use less acid later. This lowers costs. It also makes the process safer. This “dual role” of early magnetic separation saves you a lot of money in the long run.

Magnetic separator
Magnetic separator
Flotation machine
Flotation machine

Iron Removal Methods for Quartz Sand

MethodBest ForBenefit for You
Magnetic SeparationMagnetic or weakly magnetic iron mineralsCost-effective for bulk iron removal
FlotationFine iron, other non-magnetic impuritiesRemoves iron not picked up by magnets
Acid LeachingDeep-seated iron, surface films after other stepsAchieves ultra-high purity

How to use different technologies for full quartz sand purification?

Achieving truly pure quartz sand means removing all kinds of unwanted minerals. This needs more than just iron removal. It requires a combination of different purification technologies. These methods target specific impurities. They work together for a “full purification” process.
Scrubbing is a hidden power in quartz purification. Many people think it is just washing. But it is much more. It uses intense friction between sand particles. This happens in a high-concentration slurry. This friction rubs off iron films. It removes clay. It cleans other impurities stuck to the quartz surface. This step is often underestimated. Yet, it is crucial for purity. A high-intensity scrubbing machine, like a vertical stirred scrubber, gives enough friction. After scrubbing, a Spiral Classifier or hydrocyclone separates out fine impurities and mud. This greatly boosts the sand’s purity.
Gravity separation is useful for impurities that have different densities than quartz. These include heavy minerals like zircon or rutile. It also works for lighter minerals like mica. Equipment such as a Shaking Table or Spiral Chute can separate these impurities. This method is environmentally friendly. It uses no chemicals. It is very effective for removing minerals with clear density differences.
Flotation works not just for iron. It is also excellent for removing other silicate minerals. These include feldspar and mica. These minerals have similar densities to quartz. So, gravity separation does not work well for them. Flotation uses specific chemicals. These chemicals make only the impurities float. The quartz stays behind. This helps achieve very high purity. By combining these methods, you can clean your quartz sand from a wide range of impurities.

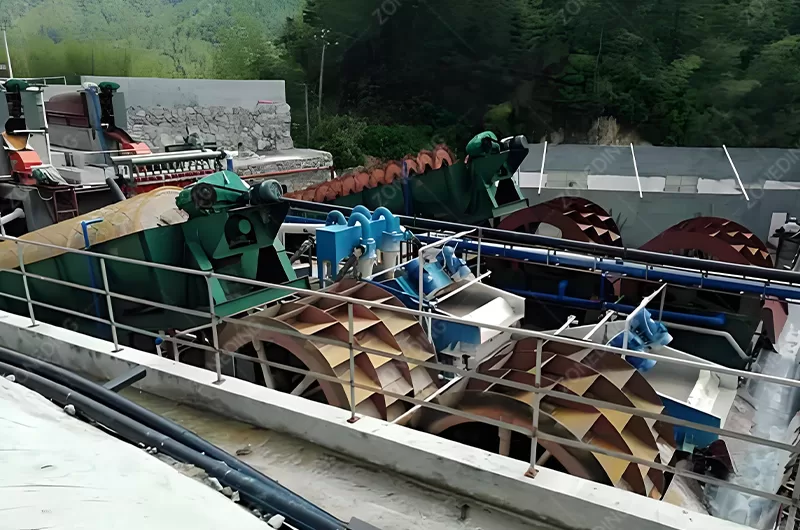

quartz sand -Scrubbing
quartz sand -Scrubbing

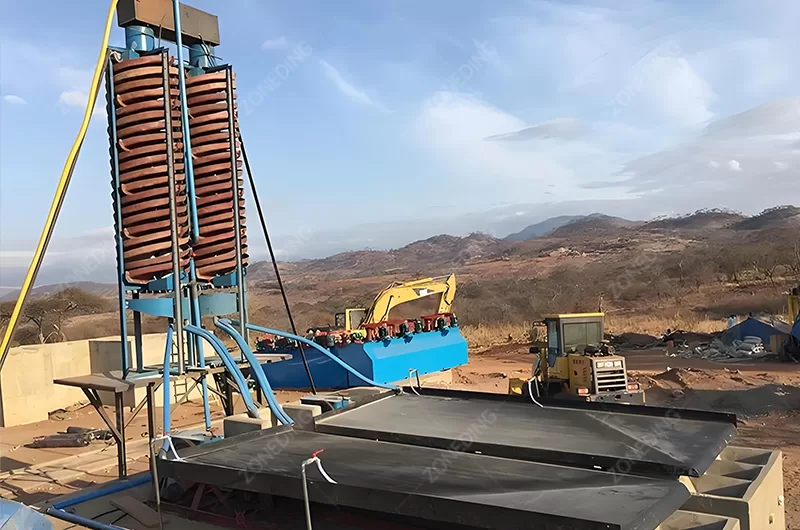

Gravity Separation
Gravity separation

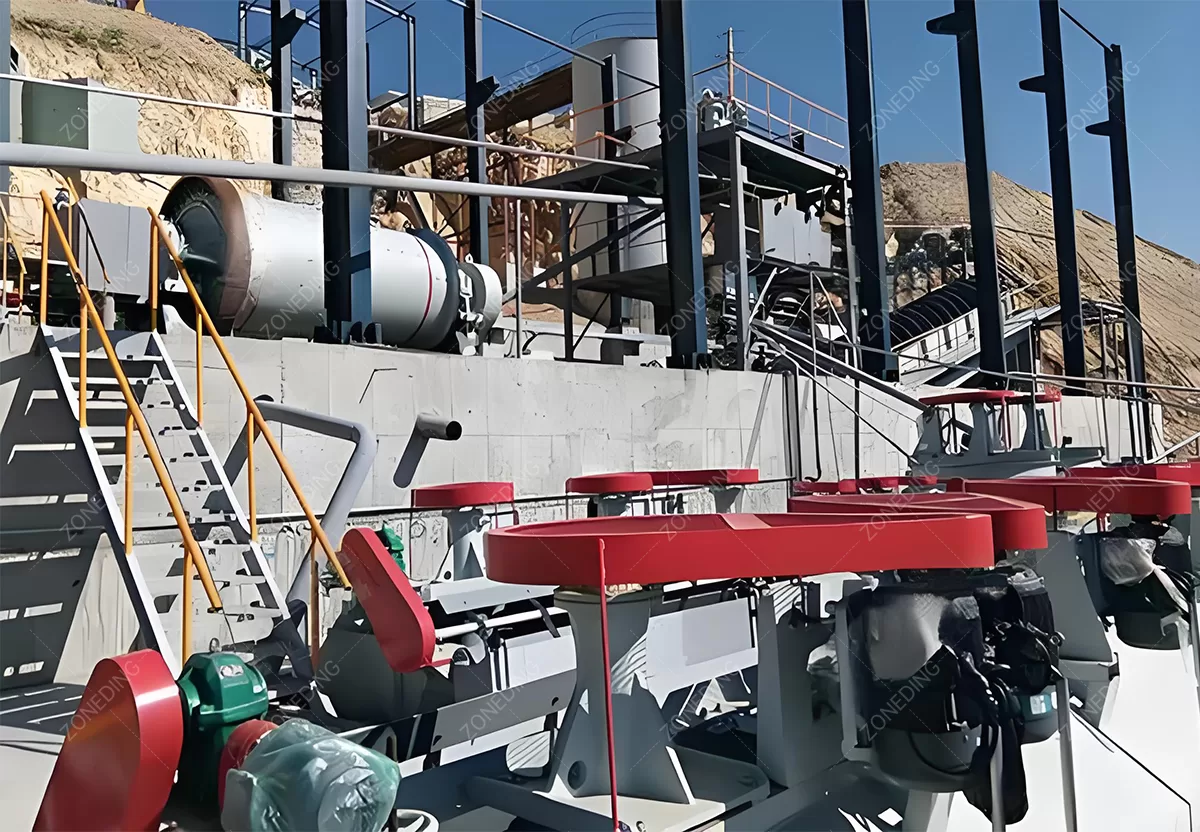

 flotation technology
Flotation

Purification Techniques for Quartz Sand

  • Scrubbing: Removes surface impurities and films.
  • Gravity Separation: Separates minerals by density differences.
  • Flotation: Removes feldspar, mica, and other silicates.

How to achieve over 99.9% high-purity quartz sand?

Reaching over 99.9% purity for quartz sand is a high goal. It means making “ultra-high purity quartz sand.” This level of purity is needed for very sensitive uses. These include solar panels and electronics. To get this level, you often need acid leaching. It is the final purification step.
Acid leaching is crucial for such high purity. It dissolves impurities that other methods cannot remove. These are impurities trapped inside the quartz structure. They can also be very tough surface films. Hydrofluoric acid (HF) can remove aluminum inside the quartz lattice. It also removes residual feldspar. But HF is very dangerous. It is also highly corrosive. Hydrochloric acid (HCl) and sulfuric acid (H2SO4) mostly remove iron, titanium, and calcium.
Choosing the right acid is key. You also need to decide on the acid’s strength. The temperature and time of acid leaching also matter. These choices depend on your raw ore. They also depend on the final purity you need. My advice is to do as much cleaning as possible with physical methods first. Use mechanical scrubbing. Use magnetic separation. Use flotation. Acid leaching should be the last step. It should be a fine-tuning process. This approach lowers operating costs. It also reduces equipment maintenance. It lessens environmental impact. Remember, proper handling of acid waste is also very important. You must invest in waste acid recovery and neutralization.

Acid Leaching Considerations

FactorImportanceImpact on Your Plant
Acid TypeSelects specific impurities to removeDetermines required safety measures and costs
Concentration/TempAffects impurity removal efficiency and reaction speedInfluences processing time and energy consumption
Pre-treatmentMaximizing physical separation before acid leachingGreatly reduces acid consumption and waste

What equipment is needed to build an efficient quartz sand processing plant?

Building an efficient quartz sand processing plant needs a complete set of reliable machines. These machines work together to turn raw quartz ore into high-purity sand. Each piece of equipment plays a key role. It ensures smooth operation and high product quality.
For crushing, you will need a Jaw Crusher for primary breaking. For smaller sizes, a Cone Crusher or Roll Crusher works well. For grinding, a Rod Mill is often best. It helps avoid over-grinding. It keeps particle shape good. It is better than a Ball Mill for this. After grinding, you need screening to classify the sand. A Vibrating Screen is common. For very fine particles, a High-Frequency Screen works better.
For scrubbing, a high-intensity scrubber is important. After scrubbing, a Spiral Classifier or hydrocyclone removes mud and fine impurities. For magnetic separation, a Magnetic Separator is key for iron removal. For flotation, you need a Flotation Machine and a Mixer for preparing the pulp. Finally, for dewatering and drying, a High-Efficiency Concentrator thickens the slurry. Then a filter press removes more water. For final drying, a Drum Dryer is used. It is important to pick the right equipment for each step. This ensures an efficient and high-quality quartz sand production line.

cone crusher
cone crusher
Rod mill
Rod mill
Spiral Classifier
Spiral Classifier
Mixer
Mixer

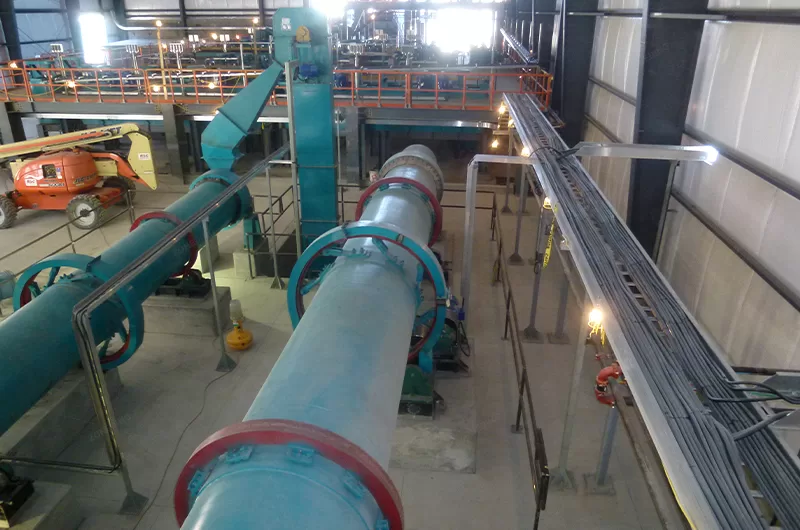

Quartz sand drying
Drum Dryer

Essential Quartz Sand Processing Equipment

How to build a green and eco-friendly quartz sand plant?

Quartz sand processing can use a lot of water. It also produces large amounts of tailings. These are big environmental challenges. To build a truly green and sustainable quartz sand plant, you must focus on recycling. You must also turn waste into value. This is how you make an eco-friendly process.
Water resource management is very important. You should design a closed-loop water system. Water from thickeners and filter presses should be treated. Then it should be reused in the process. This greatly cuts down on fresh water use. It also minimizes wastewater discharge. Using a High-Efficiency Concentrator can help. It quickly separates solids. This allows more water to return for reuse. This approach lowers water bills. It reduces discharge fees. It ensures stable production.
Tailings treatment and utilization are also key. Tailings should not just be waste. They are a potential secondary resource. You can dewater tailings using filter presses. This creates a solid cake. This method reduces the land needed for tailings ponds. It lowers the risk of water pollution. You can also find ways to use these tailings. Some can be used as construction materials. They can be used for land reclamation. Or they can be backfilled into mines. Tailings might even contain valuable minerals. These include feldspar or quartz fines. They can be used as raw materials for ceramics or glass. Planning these solutions from the start is very important. It meets environmental rules. It also provides long-term cost savings. It makes your plant more sustainable and profitable.

High-Efficiency-Concentrator
Water resource management

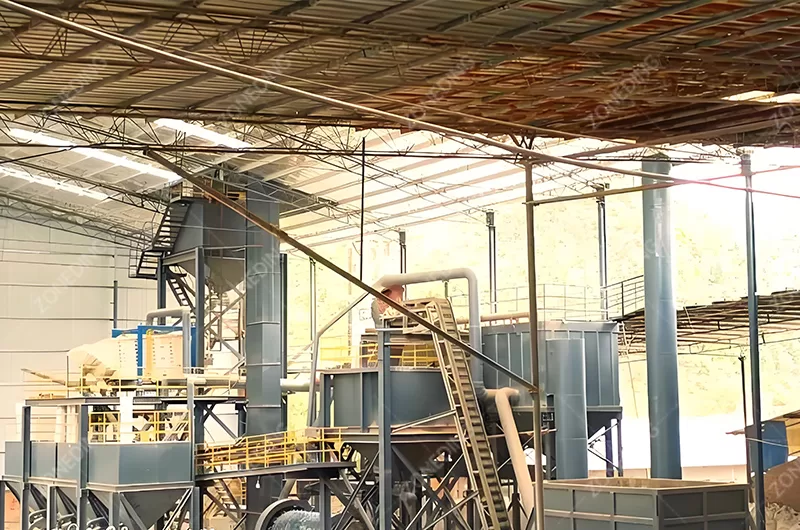

Tailings treatment

Green Practices for Your Quartz Sand Plant

  • Water Recycling: Implement closed-loop systems to reuse water.
  • Efficient Dewatering: Use High-Efficiency Concentrators and filter presses.
  • Tailings Utilization: Explore options for using tailings in construction or other industries.
  • Energy Optimization: Choose energy-efficient equipment. Optimize the overall process flow.

How to ensure every batch of quartz sand meets high-quality standards?

For a quartz sand processing plant, consistent high quality is essential. Your customers rely on stable product purity and particle size. To make sure every batch of quartz sand meets “high quality” standards, you need a strong quality management system. This system uses both online testing and detailed lab analysis.
Online monitoring gives you real-time data. Sensors can be placed throughout the plant. They check things like pulp density, pH levels, and particle size distribution. They can also monitor the flow rate. This helps operators see if anything is going wrong immediately. For example, if a Magnetic Separator is not working well, online sensors can alert you. This allows for quick adjustments. It prevents off-spec product.
Laboratory analysis provides precise data. Samples are taken regularly. They are tested in a dedicated lab. The lab checks the chemical composition. It looks for impurities like iron, aluminum, and titanium. It also verifies particle size. These tests are more detailed than online monitoring. They confirm the final product quality. They ensure it meets your customer’s strict specifications. This dual approach of real-time monitoring and lab verification is key. It helps you control quality at every step. It also builds trust with your customers. It ensures your quartz sand is always high quality.

Elements of a Quality Management System

  • Online Sensors: Real-time data collection for immediate process control.
  • Regular Sampling: Frequent collection of samples throughout the production line.
  • Lab Testing: Detailed chemical and physical analysis for purity and particle size.
  • Data Analysis: Use data to track trends and identify potential issues.
  • Standard Operating Procedures: Clear guidelines for every step of production.

Why choosing ZONEDING MACHINE helps your project succeed?

The processing technology for quartz sand is complex, requiring precise planning and tailored solutions for different ore types. Therefore, choosing the right supplier is crucial—you need a partner who truly understands your specific quartz ore and can provide end-to-end solutions. This strategic partnership is vital for the success of your project.

When selecting a professional supplier, pay attention to the following key qualities, of which ZONEDING is an excellent example:

  • Profound Expertise in Quartz Sand: A supplier must possess extensive and practically proven experience covering various types of quartz ore. With over 50 years of deep industry accumulation, ZONEDING has amassed extensive and practically proven experience, offering numerous successful cases that demonstrate its outstanding achievements in similar projects.
  • Strong R&D and Testing Capabilities: A top supplier should have its own mineral processing laboratory capable of providing detailed mineralogical analysis for your ore. ZONEDING understands that a “one-size-fits-all” solution cannot meet your unique needs. Therefore, we possess advanced mineral processing laboratories capable of providing detailed mineralogical analysis and conducting bench-scale and pilot-scale beneficiation tests to ensure the most optimized and suitable process flow is customized for you.
  • Comprehensive Equipment Portfolio and Manufacturing Strength: The supplier must be able to provide a full range of high-quality, high-performance equipment, including crushing equipment like jaw crushers and cone crushers, grinding equipment like rod mills, screening equipment like vibrating screens, and drying equipment like rotary dryers. ZONEDING owns an 8,000 square meter modern production workshop, with an annual output of over 500 sets of various equipment, ensuring stable and reliable hardware support for you.
  • End-to-End Service Support: A true partner will provide service support covering the entire project lifecycle. Choosing ZONEDING means you receive professional support covering the entire project lifecycle, from initial consultation and feasibility studies, to optimized process flow design, high-quality equipment manufacturing, on-site installation and commissioning, and further to operator training and comprehensive after-sales service (including spare parts supply and continuous technical support). We will accompany you every step of the way.
  • Commitment to Sustainability and Innovation: Suppliers should offer environmentally friendly solutions, including water recycling and advanced tailings management technologies. At the same time, they should actively adopt emerging technologies such as intelligent control and automation, demonstrating forward-thinking. ZONEDING is always committed to providing environmentally friendly and innovative solutions, such as efficient water recycling systems and advanced tailings treatment technologies, and enhancing overall operational efficiency through intelligent control and automation technologies.
  • Proven Global Track Record: Suppliers with international project experience can understand different operating environments and strict environmental regulations. Since 2004, ZONEDING has successfully exported products to over 120 countries and regions worldwide, which fully demonstrates our strong capabilities and rich experience on a global scale.

By choosing ZONEDING as your partner, you are not just purchasing equipment; you are introducing a strategic partner to your project who possesses profound expertise, comprehensive service capabilities, and a long-term commitment to your specific needs. This partnership will profoundly impact the long-term success and profitability of your project far more than simply purchasing the cheapest equipment.

Solution technical support
Solution technical support
Training
Training
Installation and Commissioning
Installation and Commissioning
Spare parts and after sales
Spare parts and after sales

Qualities of a Professional Quartz Sand Supplier

  • Quartz Expertise: Proven knowledge across all ore types and impurity characteristics.
  • Lab & Testing: In-house facilities for detailed ore analysis and process development.
  • Comprehensive Offerings: Wide range of quality equipment and solutions for all stages.
  • Full-Service Support: From design to after-sales service.
  • Sustainable & Innovative: Focus on green practices and new technologies.
  • Global Experience: Track record of successful international projects.
    Choose a partner who genuinely understands your project’s unique challenges.

FAQ

Q 1: What is the most common impurity in quartz sand?
A: Iron is the most common and problematic impurity in quartz sand. It affects the color and clarity of the final product. You must remove it to get high purity.
Q 2: Why is scrubbing important for quartz sand purification?
A: Scrubbing uses intense friction to remove surface impurities. These include iron films, clay, and other attached particles. It is a key step for achieving high purity before other methods.
Q 3: Can I achieve 99.9% purity without acid leaching?
A: For some raw quartz ores with very low impurities, high purity can be achieved without acid leaching. But for others, acid leaching is often needed to reach over 99.9% purity. It handles impurities deep inside the quartz.
Q 4: What is the benefit of using a rod mill for quartz sand grinding?
A: A Rod Mill helps prevent over-grinding. It maintains particle shape better than a ball mill. This reduces fine powder creation. This helps reduce wastewater and improve final product quality.
Q 5: How can I reduce water consumption in my quartz sand plant?
A: You can reduce water use by implementing a closed-loop water recycling system. You should also use high-efficiency thickeners like a High-Efficiency Concentrator.
